Welding Table

SIEGMUND 8.7 EXTREME 3,0 x 1,5

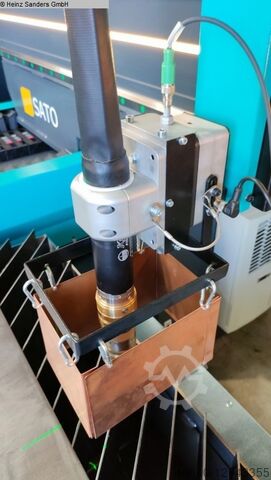

Condition: new, table width 3000 mm table length 1500 mm burner heads 1 Control CNC feed 20.000 mm/min total power requirement 15 kVA dimensions of the machine ca. 4,5 x 2,5 m * Heavy machine bed with precision guides for quiet movement machine * A ball bearing cross carriage for height adjustment with 400mm vertical Hub * Thermal separation of the drive and cutting areas ensures the highest precision * Automatic height finding and torch height control during cutting * Torch holder with collision protection and automatic shutdown in the event of a collision * Installation or implementation of the machine using the plug & play method with a forklift, Ant or crane possible * 3-sided accessibility to cutting area through boom design SATOTEC suction table: The SATOTEC table system is characterized by a stable table construction max. cutting thickness of 150 mm. For cutting a workpiece thickness of 150 mm, oxyfuel cutting technology is required. The workpiece support frame has interchangeable ones placed at a 45° angle Ljdpfx Aspm U U Nsgmorw and 3 mm thick flat iron slats. The distance between the slats is 50 mm. Power source Kjellberg Q1500: * Precise plasma cutting of all electrically conductive materials from 0.5 to 60 mm both dry and under water * Recommended cutting range from 0.5 to 40 mm * Maximum piercing thickness 30 mm, increase possible with ProPierce Technology * Marking, notching and punching, including coated metallic materials * Inverter power source with digitally controlled, fully electronic process flow * Integrated cooling with partially automated filling and emptying Gas control: Fully automatically controlled, processor-controlled plasma all-gas console Q- Gas for cutting all metals Lantek Expert Cut Inside: CAD/CAM module integrated in the machine control Extraction TEKA EcoCube 5.5 kW Medium to be filtered: dry, fat-free or oil-free dust/smoke Filter area: 100 m² (4 cartridges of 25 m²) Filter cartridge: BIA M, Type Nano Degree of separation: 99% (according to BGIA test certificate) Filter control: automatic filter cleaning, PLC Fan performance: 4500 m³/h Motor power: 5.5 kW Connection voltage: 400V/50 Hz or 480V 60Hz. Current consumption: 11.5 A Current type: 3Ph+N+PE Fan structure: on the system, including silencer duct bend, right side Motor control: frequency converter Noise level: 75dB(A) + max 10 dB(A) with cleaning pulse Intake port: NW 250 mm via intake duct, left side Exhaust: via silencer duct bend Dimensions (W x D): approx. 800 x 800 mm System color: - Fan housing: Light gray - Cartridge housing: RAL 5007 brilliant blue Special equipment: - Locking hooks and toggle locks - Compressed air connection and condensate drain each mounted with one Bulkhead fitting - Compressed air connection with hose nozzle d=8mm - Provide the system with grounding bolts - Cable in UL version - EATON frequency converter on the left in the attached control cabinet

Condition: like new (used), Year of construction: 2022, functionality: fully functional, load capacity: 1,500 kg, The Siegmund M positioner is ideal for welding, assembly and maintenance work. Positioning is carried out using a manually driven handwheel. Positioner with load capacities of up to 1,500 kg. Torque 900 Nm Handwheel with handle Ø 315 mm U-angle compatibility Lrsdjvlgzajpfx Agmjw System 28 Max. length of U-angle 3,000 mm A - Working height 850 mm B - Column height 955 mm C - Total height 1,140 mm D - Width of base plate 600 mm E - Length of base plate 600 mm Price does not include 3D accessories. Prices 3-D accessories, heavy cast parts, wall thickness 28mm, everything processed, special prices New: original angle 28 U-shape 500mm x 200mm x 200mm (surcharge 500.-€) or 2000mm x 200mm x 200mm (surcharge approx. 1000.-€) or 2400mm x 200mm x 200mm (surcharge 1300.-€) or with table top 28 hole, 2000mm x 1000mm x 200mm (surcharge 2000.-€) several positioners are available
