Eccentric Press - Single Column

SMERAL LEN 63C

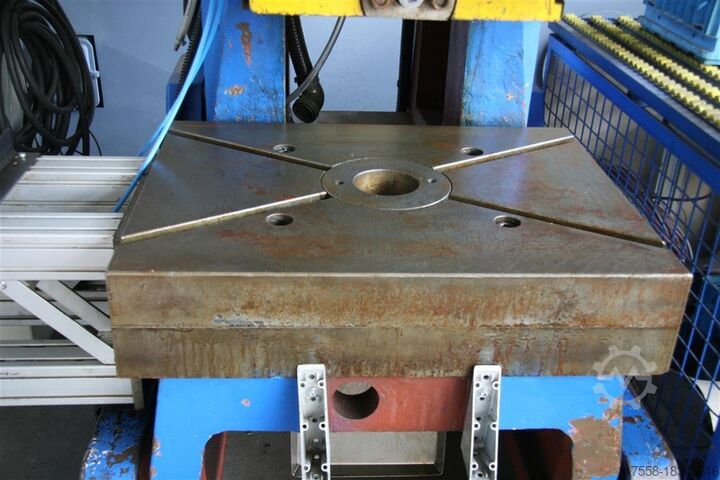

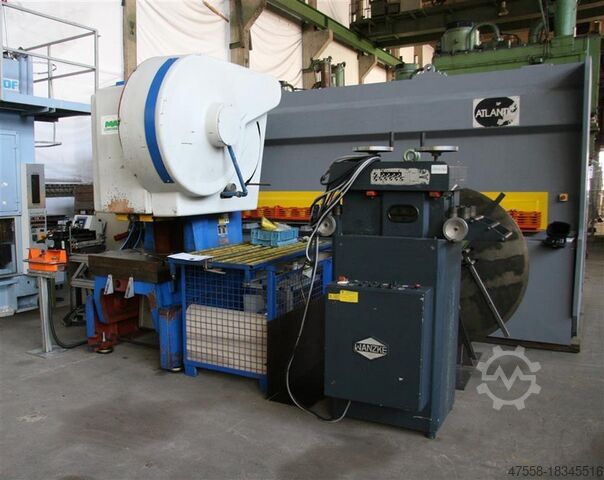

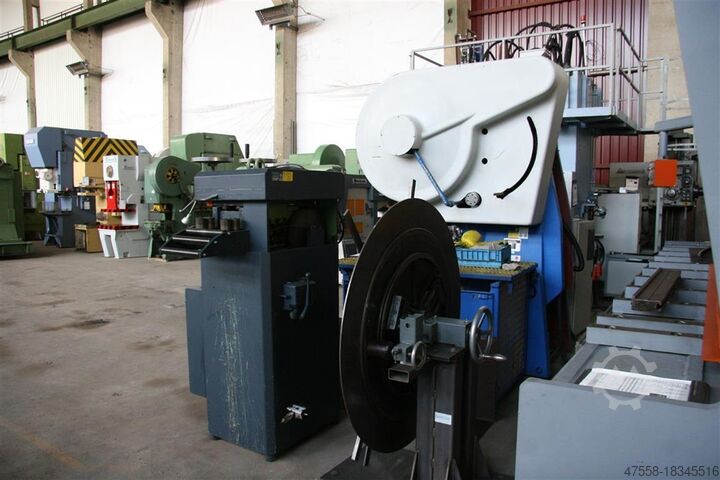

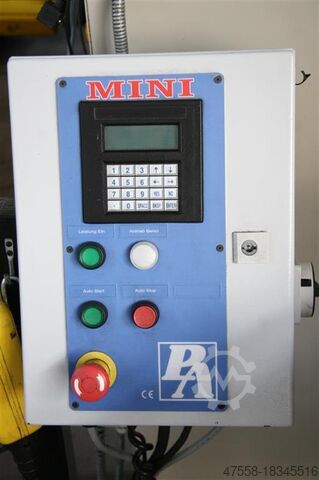

Condition: used, Technical details: pressure: 63 t throat: 315 mm ram adjustment: 60 mm adjustment of stroke: 70 mm ram stroke: 10 - 105 mm no. of strokes: 71 - 140 Hub/min strokes per minute: Einzelhub: 45 / 50 Hub/min. passage between the side columns: 355 mm dayligth: 335 mm table:: BxT: 800 x 630 mm passage opening in table: 400 x 130 mm clamping plate: BxT: 616 x 85 mm clamping surface ram: BxT: 450 x 280 mm mortise hole in ram: Ø 50 x 83mm mm total power requirement: 7,5 kW weight of the machine ca.: 5,9 t dimensions electric cabinet LxWxH: 0,86 x 0,30 x 1.3 m Ksdpjvt Nvpjfx Adysnd dimension machine xH: Presse: 1,42 x 1,8 x 2,6 m Press with roll feed/strip system and straightener High-performance press with roll feed/strip system and straightening machine Application: suitable for series production Equipped with servo roll feed MINI: refurbished until 01/2021 -manufacturer P/A GmbH, type SRF 220 -for strip width 220mm -feed rate 150m/min. -operation with hand tool straightening system: -manufacturer Wanzke, type KS 150 -insertion width max. 200mm -2 pieces driven inserting rolls -4 pieces driven straightening rolls (top), adjustable vertical approx. 30mm -5 pieces driven straightening rolls (bottom), fixed, not adjustable Coil = special design: -mechanical/manual -external take-up max. Ø 1.500mm -internal take-up max. Ø 300mm -width max. 200mm Roller deposit: -roller system with 9 pieces of roller bars with 53 rollers (Ø 25x25mm). *

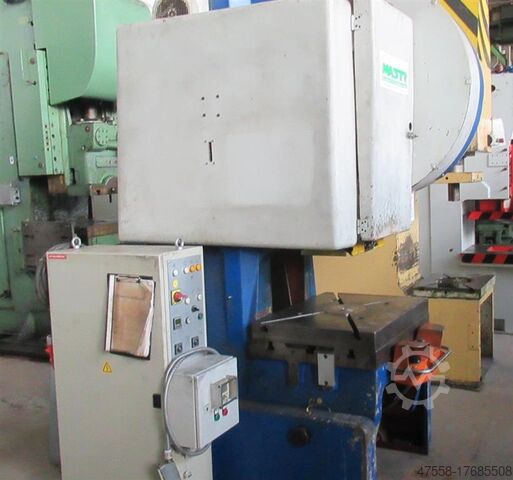

Condition: used, Year of construction: 1970, pressure:63 t throat:250 mm stroke:8-100 mm table depth:710 mm table width:500 mm ram head dimension:450x280 mm Ksdpocxxx Hofx Adysnd ram adjustment:63 mm no. of strokes:140 Hub/min total power requirement:7 kW weight of the machine ca.:3,5 t

Condition: good (used), Year of construction: 1984, functionality: fully functional, pressing force: 63 t, Band saw LEN63C Knsdpfx Aeu Nkfuodyjd

Condition: good (used), Year of construction: 1989, functionality: fully functional, total height: 25,500 mm, table width: 800 mm, table length: 630 mm, stroke adjustment: 105 mm, total width: 14,250 mm, total length: 17,900 mm, overall weight: 5,850 kg, pressing force: 63 t, height adjustment type: mechanical, power: 7.5 kW (10.20 HP), Eccentric press LEN 63C. Year prod. 1989(SMERAL TRNAVA Czech Republic). Technical data: - pressing force: 63 tons - number of strokes in automatic: 65/130 min - number of jumps manual operation: 45/50 min - slider stroke adjustment: 10-105 mm - slide stroke: 70 mm - table surface: 800 x 630 mm - slider surface: 450 x 280 mm - overhang: 315 mm - table - slider clearance: 335 mm - clearance between columns: 355 mm - number of gears: 2 - motor speed: 730/1440 min - motor power: 4/7,5 kW - press dimensions: 1425 x 1790 x 2550 mm Ksdpfxstzxdzj Adyend - weight: 5850 kg The technical condition of the machine is good. It is possible to make a visual inspection and check the machine in operation.

Year of construction: 2002, condition: used, pressure 63 t throat 315 mm stroke 8-100 mm no. of strokes 140 Hub/min ram - range of adjustment 63 mm table surface area 1200x630 mm ram surface 800x315 mm hole in the table Ø 110 mm table height 820 mm tool hole in ram Ø 50 mm dayligth 335 mm total power requirement 7,5 kW weight of the machine ca. 5 t Knsdpfxolp U D Ts Adysd

Condition: used, Single-column eccentric press WEINGARTEN type EV 63 Machine. No. 738 / 61 Year of construction 1962 Pressure capacity 63 ton. throat 260 mm Table surface 630 x 530 mm Table opening Ø 210 mm ram surface 315 x 260 mm Plunger stroke adjustable 8-100 mm Kjdpfjk S Htxjx Adyjnd Plunger adjustment 63 mm Installation height max 450 mm Stroke rate 115 strokes / min. Compressed air requirement min. 4.5 bar Motor power 4 kW Mains connection 380 Volt, 50 Hz Table height above floor approx. 750 to 900 mm - Electric lift release via foot switch or two-hand operation - Overload protection by breaker plate - Clutch/brake combination with WEINGARTEN friction threaded clutch with TDC overrun protection - Front crankshaft support bearing - Press table height-adjustable via 2 threaded spindles - Manual central grease lubrication - Control cabinet adjacent - UVV for manual insertion work Space requirement L x W x H 1750 x 1600 x 2430 mm Weight 4.5 tons good condition

Condition: used, Year of construction: 1959, pressure 063 t throat 280 mm stroke 8 - 100 mm no. of strokes 65 /min distance table/ram, max. stroke up, adjustment up 550 mm table surface area 630 x 500 mm hole in the table 230 mm Knodpfx Adjvuk Rweyod table height over floor 740 mm table adjustable 200 mm ram surface 320 x 260 mm ram adjustment 63 mm power capacity 5,5 kW weight 4,6 t Dimensions (WxDxH) 1,4 x 1,8 x 2,4 m permitted for manual loading according to the German Safety Regulations (UVV) with motor, friction clutch, mechanical overload protection in ram, manual stroke adjustment, manual ram adjustment, adjustable table, manual centralized lubrication, two-hand operation Press is currently under revision

Condition: excellent (used), pressure 50 t throat 245 mm stroke 14 / 90 mm ram adjustment 75 mm table height adjustment 150 mm strokes per minute 42/85 table surface area 700 x 490 mm ram surface 400 x 230 mm tool hole in ram 40 mm total power requirement 4 kW weight of the machine ca. 3,41 t dimensions of the machine ca. 0,8 x 1,75 x 2,1 m Machine was partially overhauled in our house as follows: - disassembly, cleaning and inspection - table milled over - new paintwork of the machine - shaft crack test carried out - disassemble Ortlinghaus clutch and additional brake, clean, check, replaceseals - additional air storage tanks - new control cabinet with safety control and touchscreen display - new wiring of the machine Ksdpetrhf Aofx Adyend - new Vogel central lubrication system with piping - new Herion press safety valve + maintenance unit - new Balluff cam swith - new 2-hand control panel - new footswitch - Current UVV test with braking time measurement - Machine safe for hand inlay work

Condition: used, Year of construction: 1985, Pressure 080 t throat 345 mm Ksdpfx Aovuug Njdysnd stroke 20 - 160 mm no. of strokes 65 /min distance table/ram, max. stroke up, adjustment up 495 mm table surface area 920 x 610 mm table height over floor 800 mm Hole in the table 280 mm passage to the back 670 mm ram surface 650 x 400 mm ram adjustment 50 mm power capacity 10,0 kW weight 7,7 t Dimensions (WxDxH) 1,5 x 2,2 x 3,15 m permitted for manual put-in according to the German Safety Regulations (UVV) with motor, pneumatic clutch, hydraulic overload protection in ram, manual stroke adjustment, motoric ram adjustment, motoric centralized lubrication, two-hand operation Press is at the moment being overhauled electrically and mechanically - video is from before starting the overhaul WITH mechanical partly overhaul, WITH new electrical control Pilz

Condition: good (used), pressing force: 50 t, stroke length: 320 mm, Capacity 50 Ton Throat 225 mm Adjustable stroke 8 - 100 mm Number of strokes 320 p/min Ram size 300 x 280 mm Table size 500 x 800 mm Machine LxWxH: 160 x 120 x 260 cm Machine weight: 6 Ton Knodpfx Ajtt A T Tedyjd
