Eccentric Press - Single Column

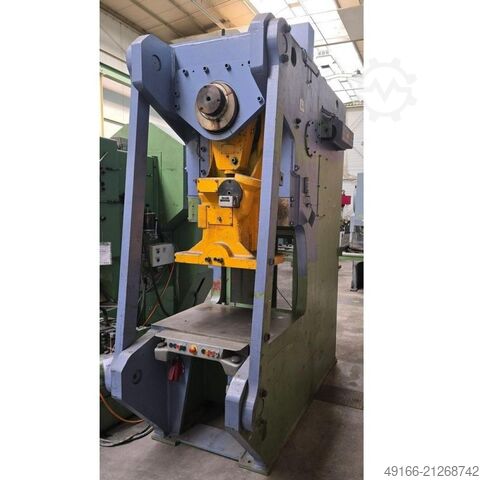

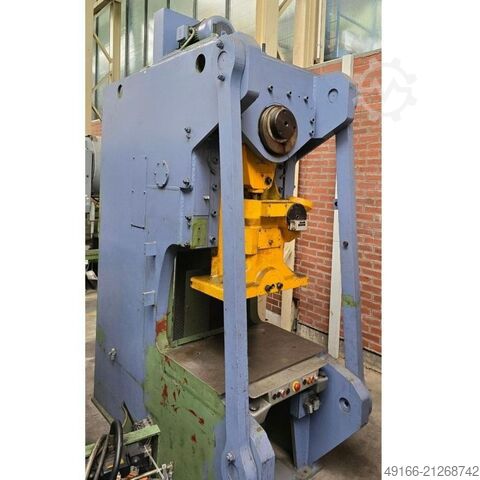

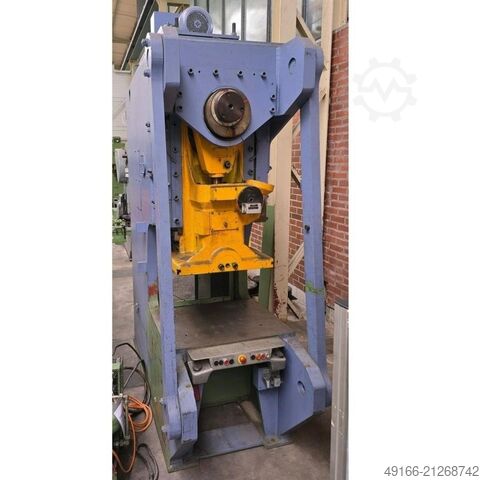

WEINGARTEN ARP 80 (UVV)

Condition: used, Year of construction: 1987, Pressure 080 t throat 380 mm stroke 8 - 112 mm no. of strokes 60 /min distance table/ram, max. stroke up, adjustment up 472 mm table surface area 840 x 610 mm table height over floor 800 mm passage to the back 520 mm ram surface 650 x 400 mm Podsvuk Snepfx Ac Hjrf ram adjustment 70 mm power capacity 7,5 kW weight 6,9 t Dimensions (WxDxH) 1,1 x 2,15 x 3,2 m permitted for manual loading according to the German Safety Regulations (UVV) with motor, pneumatic clutch/brake combination, mechanical overload protection in ram, tie rods to improve rigidity of the press body, two-hand operation as is where is, WITHOUT electrical cabinet / WITHOUT additional work The putting into operation in our warehouse (with new control) / Safety adaptations / mechanical overhaul can be offered additionally on request

Condition: used, Year of construction: 1970, pressure:63 t throat:250 mm stroke:8-100 mm Predpfx Ascxxx Hjc Hef table depth:710 mm table width:500 mm ram head dimension:450x280 mm ram adjustment:63 mm no. of strokes:140 Hub/min total power requirement:7 kW weight of the machine ca.:3,5 t

Condition: used, Year of construction: 1981, pressure 080 t throat 345 mm stroke 8 - 112 mm Stroke rate 65 / min Distance table/ram, max. stroke up, adjustment up 472 mm Table surface area 840 x 610 mm Hole in the table 280 / 315 mm Table height above floor 800 mm Passage to the back 500 mm Ram surface 650 x 400 mm Ram adjustment 70 mm Predpfxevuua As Ac Hof Power capacity 7,5 kW Weight 6,8 t Dimensions (WxDxH) 1,2 x 1,95 x 3,05 m permitted for manual put-in according to the German Safety Regulations (UVV) with motor, pneumatic clutch-brake combination, hydraulic overload protection in ram, manual stroke adjustment, manual ram adjustment, pneumatic counterbalance in ram, motoric centralized lubrication, two-hand operation

Condition: used, Year of construction: 1977, pressure 80 t stroke 8 - 112 mm no. of strokes 65 /min throat 345 mm passage to the back 500 mm Podpfxjvut Npj Ac Herf dayligth 472 mm table surface area 840 x 610 mm hole in the table 280 / 315 mm table height over floor 800 mm ram surface 650 x 410 mm ram adjustment 71 mm power requirement 13,5 kW Weight 6,10 t dimensions of the machine ca. 1,5 x 1,9 x 3,0 m x m x m permitted for manual loading according to the German Safety Regulations (UVV) with motor with two speeds, pneumatic clutch/brake combination (Ortlinghaus), mechanical overload protection in ram, manual stroke adjustment, motoric ram adjustment, fix table, motoric centralized lubrication, two-hand operation

Year of construction: 2002, condition: used, pressure 63 t throat 315 mm Podpfx Acslp U D Te Hjrf stroke 8-100 mm no. of strokes 140 Hub/min ram - range of adjustment 63 mm table surface area 1200x630 mm ram surface 800x315 mm hole in the table Ø 110 mm table height 820 mm tool hole in ram Ø 50 mm dayligth 335 mm total power requirement 7,5 kW weight of the machine ca. 5 t

Condition: used, Single-column eccentric press WEINGARTEN type EV 63 Machine. No. 738 / 61 Year of construction 1962 Pressure capacity 63 ton. throat 260 mm Table surface 630 x 530 mm Table opening Ø 210 mm ram surface 315 x 260 mm Prodpjk S Htxsfx Ac Hef Plunger stroke adjustable 8-100 mm Plunger adjustment 63 mm Installation height max 450 mm Stroke rate 115 strokes / min. Compressed air requirement min. 4.5 bar Motor power 4 kW Mains connection 380 Volt, 50 Hz Table height above floor approx. 750 to 900 mm - Electric lift release via foot switch or two-hand operation - Overload protection by breaker plate - Clutch/brake combination with WEINGARTEN friction threaded clutch with TDC overrun protection - Front crankshaft support bearing - Press table height-adjustable via 2 threaded spindles - Manual central grease lubrication - Control cabinet adjacent - UVV for manual insertion work Space requirement L x W x H 1750 x 1600 x 2430 mm Weight 4.5 tons good condition

Condition: used, Year of construction: 1959, pressure 063 t throat 280 mm stroke 8 - 100 mm no. of strokes 65 /min distance table/ram, max. stroke up, adjustment up 550 mm table surface area 630 x 500 mm hole in the table 230 mm table height over floor 740 mm table adjustable 200 mm ram surface 320 x 260 mm ram adjustment 63 mm power capacity 5,5 kW weight 4,6 t Dimensions (WxDxH) 1,4 x 1,8 x 2,4 m Prsdpfx Acjvuk Rwe Hof permitted for manual loading according to the German Safety Regulations (UVV) with motor, friction clutch, mechanical overload protection in ram, manual stroke adjustment, manual ram adjustment, adjustable table, manual centralized lubrication, two-hand operation Press is currently under revision

Condition: excellent (used), pressure 50 t throat 245 mm Predpfxotrhf Ae Ac Hof stroke 14 / 90 mm ram adjustment 75 mm table height adjustment 150 mm strokes per minute 42/85 table surface area 700 x 490 mm ram surface 400 x 230 mm tool hole in ram 40 mm total power requirement 4 kW weight of the machine ca. 3,41 t dimensions of the machine ca. 0,8 x 1,75 x 2,1 m Machine was partially overhauled in our house as follows: - disassembly, cleaning and inspection - table milled over - new paintwork of the machine - shaft crack test carried out - disassemble Ortlinghaus clutch and additional brake, clean, check, replaceseals - additional air storage tanks - new control cabinet with safety control and touchscreen display - new wiring of the machine - new Vogel central lubrication system with piping - new Herion press safety valve + maintenance unit - new Balluff cam swith - new 2-hand control panel - new footswitch - Current UVV test with braking time measurement - Machine safe for hand inlay work

Condition: used, Year of construction: 2007, pressure 63 t stroke 8 - 120 mm no. of strokes 40 - 120 /min throat 280 mm passage to the back 325 mm dayligth 440 mm table surface area 820 x 580 mm hole in the table 200 mm table height over floor 830 mm ram surface 470 x 340 mm ram adjustment 100 mm power requirement 4,0 kW Weight 5,2 t dimensions (WxDxH) 1,3 x 1,8 x 2,8 m Pjdpfewc U Inex Ac Herf permitted for manual loading according to the CE-norm with infinitely variable drive, pneumatic clutch/brake combination, light guard (make Sick), hydraulic overload protection in ram, pneumatic counterbalance on ram, manual stroke adjustment, manual ram adjustment, central lubrication, two-hand and foot operation

Condition: good (used), pressing force: 50 t, stroke length: 320 mm, Capacity 50 Ton Throat 225 mm Prsdpfxett A T Ts Ac Hsf Adjustable stroke 8 - 100 mm Number of strokes 320 p/min Ram size 300 x 280 mm Table size 500 x 800 mm Machine LxWxH: 160 x 120 x 260 cm Machine weight: 6 Ton
