Automatic bundle packaging machine

Smipack BP 800

Professional automatic packaging system from a renowned European manufacturer. Suitable, for example, for packing food products, technical goods, print and paper products, household items and toys, as well as textiles. The machine can be used in various industries such as beverages, food, chemicals, wine & spirits, cosmetics, detergents, wood, textiles, and graphics. It is capable of packaging diverse products including glass and PET bottles, cans, cartons, trays, jars, and boxes of various sizes.

The shrink wrap machine is equipped with multiple monitoring sensors, light barriers, and photocells for automatic process control. User-friendly LCD control panel with extensive functions and setting options, such as automatic and setup modes, 20 memory slots for different packaging formats, piece counter, packaging performance calculation, and communication functions.

Technical data:
- Maximum product dimensions: width up to 760 mm x height up to 380 mm
- Suitable for LD-PE film from approx. 20 to 100µm thickness
- Maximum film roll width: 750 mm flat film
- Packaging performance up to 10 units per minute
- Working height approx. 940 to 1100 mm

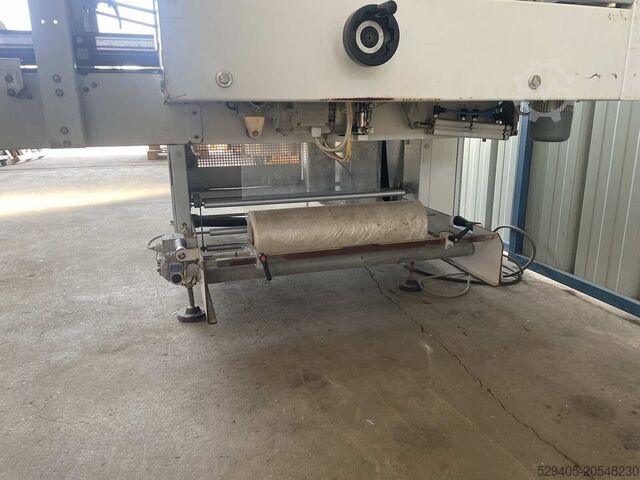

- Motorized unwinding of bottom and top film
- Transport rods made of heat-resistant fiberglass
- Frequency-controlled shrink tunnel belt with adjustable speed
- Adjustable air flows in the tunnel
- Cooling fan at the outlet of the shrink tunnel
- Conveying rollers for product centering at the machine's outlet
- Low energy consumption

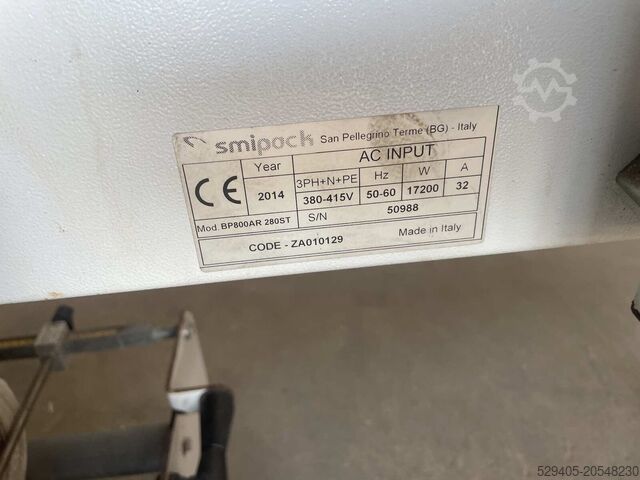

- Connected load: 3 x 400 V / 50 Hz / 3 phases
- Machine dimensions approx. L 2.6 x W 1.3 x H 2.1 to 2.2 m
Iedpfx Asxxzzksd Deii
- Weight approx. 600 kg

The machine was in operation for only a few weeks for a specific order. Afterwards, it was taken out of service and placed in storage.

The listing was translated automatically. Translation errors are possible.
