Extrusion Line (Extruder & Co-Extruder)

SML PP extrusion

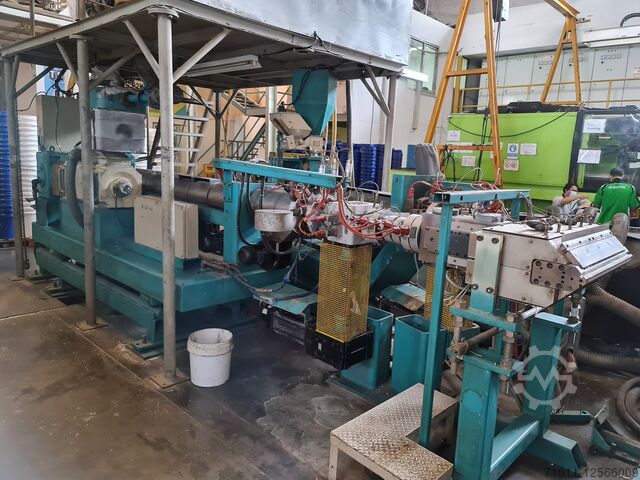

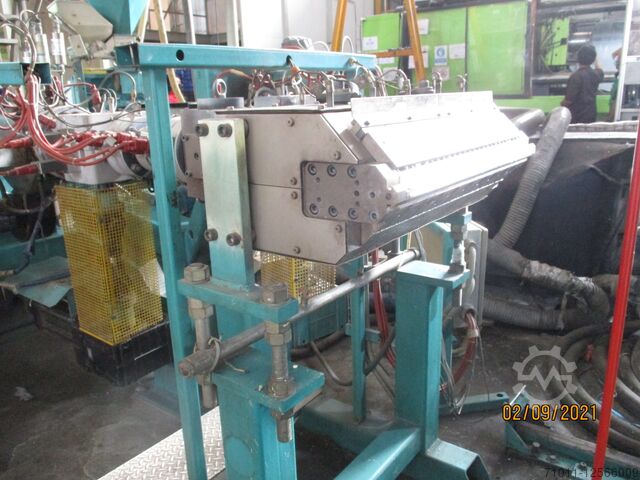

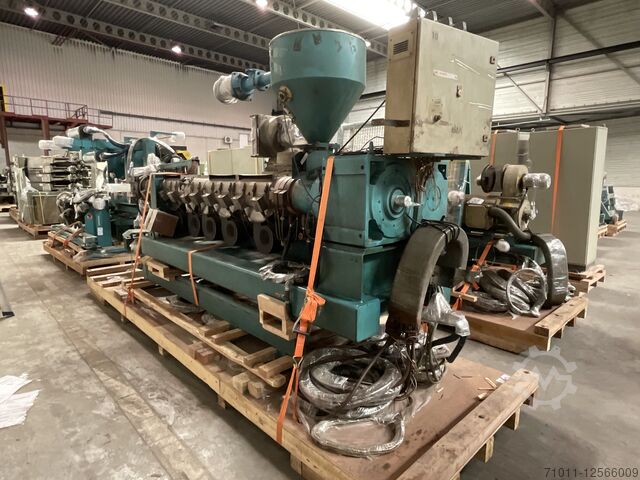

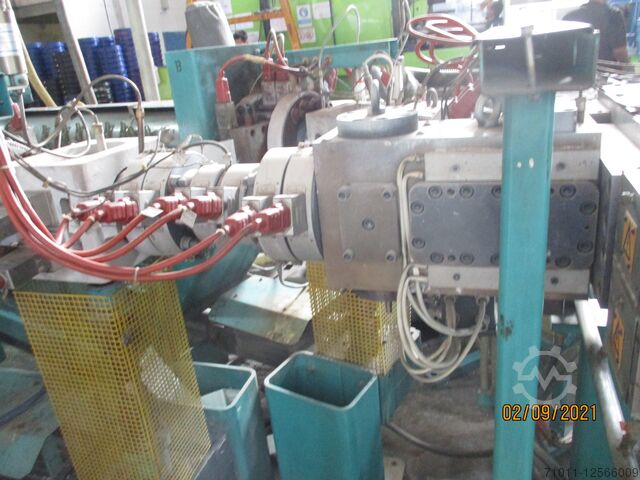

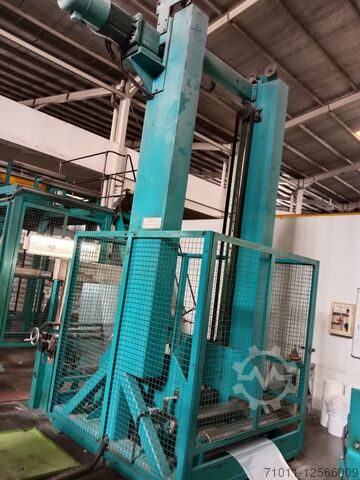

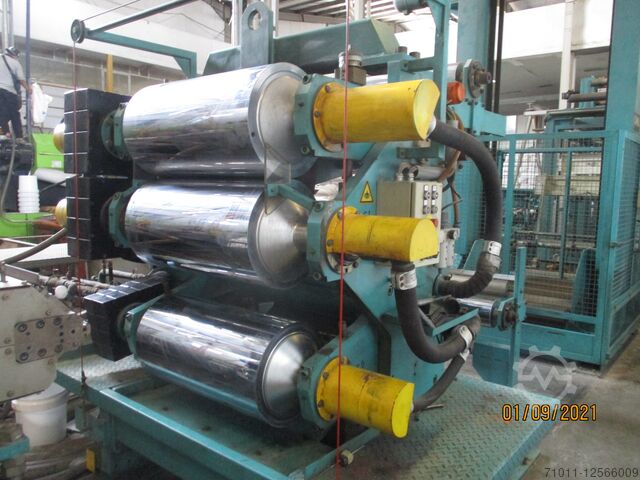

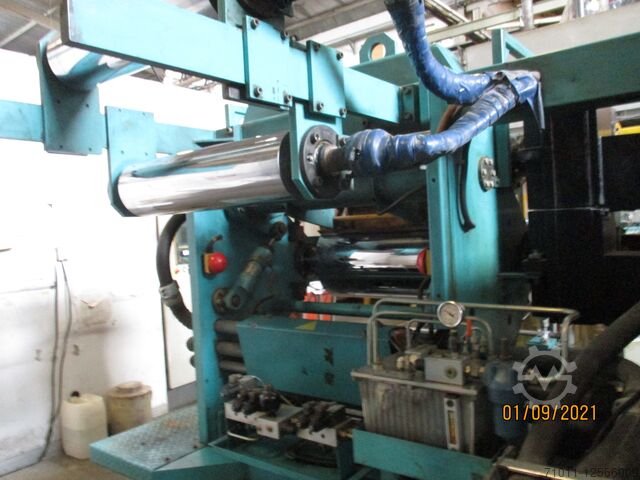

Year of construction: 1981, condition: refurbished (used), functionality: fully functional, Previous application: Production of TPE films up to 6 mm thick. Many other polymers possible. The plant has been in operation until now and can be inspected at any time in Nuremberg. The line consists of: Kuhne K45-24D single-screw extruder Screw diameter: 48 mm Process length: 24D Drive power: Heating capacity: 6.0 kW Net weight: 1150 kg Wide slit nozzle: Foils up to max. 330 mm width Calender Gross roller width: 1200 mm Net roller width: 1100 mm (max. film width) Ndjdpfx Aeu Ttf Nelnec Take-off device and impact shears

Year of construction: 2010, condition: good (used), USED CNC BIESSE BREMA EKO 902 INSERTING MACHINE TECHNICAL DETAILS: 3-AXIS (X-Y-Z) CNC MACHINING CENTER - Complete protection of the machining head and the work area on the machine. - Numerical control system with BIESSE Works software on Windows. - Vertical positioning of the panels, with 2 panel clamping jaws. - Panel feed (in the direction of the X-axis, on the lower support with rubber wheels), movement (in the X-axis) of the panel/board clamping jaws. PANEL DIMENSIONS (WORKING DIMENSIONS): Ndodpfxshknbrs Alnjc - Minimum length: 160 mm / Maximum length: 3200 mm - Minimum width: 35 mm / Maximum width: 900 mm - Minimum thickness: 8 mm / Maximum thickness: 80 mm WORKING GROUPS: - No. 1 Vertical spindle (electro-spindle) ER32 (4.5 kW) with inverter (up to 18000 RPM) - No. 1 Circular saw (for grooves) diameter 120 mm (X-axis fixed) - No. 13 Independent vertical spindles for drilling (6 on the X-axis + 7 on the Y-axis) - No. 8 Independent horizontal spindles for drilling (3+3 on the X-axis and 1+1 on the Y-axis) - No. 1 Head group for hinge drilling - Total installed power: 20 kW AUTOMATIC DOWEL INSERTING GROUP ON BOTH SIDES WITH A PRESSURE PUMP FOR APPLYING THE GLUE.

Year of construction: 1980, condition: good (used), strip width: max. 1.650 strip thickness: max. 3 mm Nsdpfx Alsd Ha Hmjnodc blade shaft Ø: 165 mm speed: max. 150 m/min

Condition: ready for operation (used), Year of construction: 2008, A complete filling line from filler to packer is available. Format: Gable top/pyramid pack 0.50l/0.75l/1l, output: approx. 7000 packs/h, dimensions X/Y/Z: approx. 9500mm/3200mm/3500mm, weight: approx. 13000kg, operating hours: approx. 32500h. Applicator: 3x Elopak E-PLA-S30, year of construction: 2009, air pressure: 700kPa, weight: approx. 1000kg. Packer: Oystar A+F Traypacker TF, year of construction: 2011. Nedpfxstul Raj Alnedc

Condition: excellent (used), LOADER (BRIDGE-FRAME) WITH DOUBLE PICK-UP STATION Vacuum system (with its pump) Nodod Rg Dpspfx Alnodc N. 4 Vertical supporting columns of the top supporting beam N. 1 Horizontal top supporting beam (where the carriage slide on) N. 1 Motorized sliding carriage with horizontal metal arms N. 2 Horizontal metal arms with vacuum cups, adjustables N. 2 Out-side rollers ways (on gound) to in-feed pile of panels to the Loader N. 1 Out-side motorized rollers table (which in-feed the panels to the Unloader), with also cross motorized conveyor belts (at 90°), dimensions mm 7232 (ca.) Separate electric and command panel Electronic Programmer OMRON Perimetral safety metal grids Working capacity (cycles/min) 16 - 20 (ca.) Min/Max panels thickness mm 10 - 50 (ca.) Min dimensions of the panels mm 250 x 320 (ca.) Max dimensions of the panels mm 1200 x 3200 (ca.) Total installed motor power Kw 23.3

Condition: excellent (used), Year of construction: 2003, PET bottle blowing machine Manufacturer: KRONES Model: CONTIFORM K781 Efficiency: 12,000 bph Includes 1.5 L and 0.5 L bottle molds Power: 150 kW Air requirement: 10 bar - 1500 m3/h, 30 bar - 1000 m3/h Set dimensions (blow mold + preform feeder): 1100 x 340 cm, h: 450 cm Blow mold dimensions: 500 x 340 cm, h: 250 cm Feeder dimensions: 600 x 250 cm, h: 450 cm Air requirement: 10 bar - 1500 m3/h, 30 bar - 1000 m3/h Nsdevddkvjpfx Alnjdc Year of production: 2003 Technical documentation of machine operation Very good condition

Condition: used, Year of construction: 2014, for sale Machine types + quantity: - 1 unit: Linear transport system for 14 stations, type: LT-14-270 (original from sp280) - 1 unit: Automatic loading station - 1 unit: New infeed station Nedpfx Alennz Hwsnsdc - 1 unit: Double spiral mixer + power box, type: W240A, no.: 7402-978 - 1 unit: Dough return station - 1 unit: Lift-tilt unit, type: HK1200 - 2 units: 2 mixing bowls, type: W240A - The frames and platforms for this line - 1 unit: 1 weighing hopper - 1 unit: 1 screw feeder - Power box - The small parts you need for the line Inspecting the line is possible on-site. If you have any questions or comments, please do not hesitate to contact us. The seller will carefully load all goods into the container/truck. The buyer will be responsible for arranging the transportation. Sincerely, Leo Holland

Condition: used, Cut To Length CTL 2000x8, made by BRONX Strip width: 600 - 2.000 mm Strip Thickness: 2 - 8 mm Coil max. weight: 30 Tn Coil Outer Diameter: Up to 2.100 mm Coil Inner Diameter: 508mm - 610mm - 762mm with filler segments Ndedpfeymclbex Alnjc Sheet Length Stacker: 600 - 8.000 mm Stacking Capacity: 1 x 8000mm long x 2000mm wide packs Stacking: 10000kg maximum uniformly distributed over 5000mm sheet length Pack Height: 750 mm Max. speed: 60 m/min

Condition: used, Year of construction: 2015, Wall line, manufactured to produce walls for modular manufacturing. Used by a Swedish producer between 2015 and 2021. NOTE: Sold in its current condition. Station lengths: 7000 mm Station width: 2700 mm Station nr1: Framing station CAD/CAM (includes two nail tools) Station nr2: Working table Nodpfexv Arxox Alnsdc Station nr3: Semi automatic nailing bridge (includes two nail tools) Station nr4: Working table - Upraiser table Station nr5: Multifunction portal CAD/CAM (includes four screw tools and milling unit) Station nr6: Working station - Receiver table - Moveable sideways Station nr7: Working station - Angle transmission Station nr8: Working station - Upraiser table Station nr9: Working station - Angle transmission Station nr10: Working station - Upraiser table

Condition: ready for operation (used), Year of construction: 1998, Travel X/Y/Z: 3200mm/300mm/250mm, speed: 18000rpm, motor power: 7.4kW, tool holder: SK30, tool positions: 8, tool changer: turret, materials processed: aluminum/steel (max. 5mm thick)/PVC (steel-reinforced and unreinforced), wood and plastics. Documentation available. On-site inspection is possible. Ndedpfouzlfajx Alnjc
