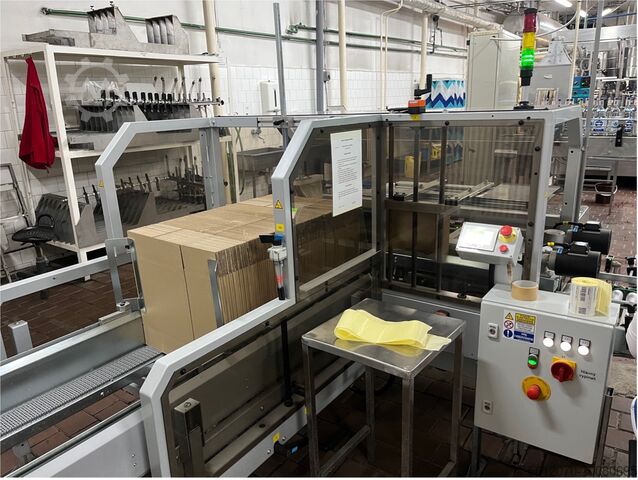

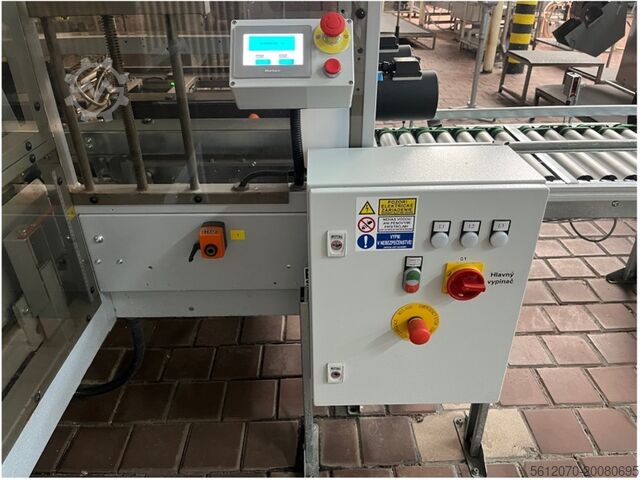

Carton erector

SOCO SYSTEM BE 2200 ATS RIGHT

Condition: used, Year of construction: 2020, operating hours: 200 h, functionality: fully functional, machine/vehicle number: 8051021613, total length: 2,095 mm, total width: 1,800 mm, total height: 1,680 mm, input voltage: 400 V, type of input current: three-phase, input frequency: 50 Hz, You will find this and other machines that belonged to our dispatch line in our listings. If you are looking for a turnkey solution in this area or require several components, feel free to contact us and we will get back to you promptly. Brief overview of the dispatch line and the application of the offered item: The dispatch line was used for pallet shipping, i.e., cartons were erected (SOCO ATS 2300 + 2200) and sealed on the underside before being conveyed to the main shipping line for packing. The finished packages were then top-sealed by a carton sealer (SOCOT-4200) and passed to a labeler (LOGOPAK LOGOMATIK 415-T). Once the scanner of the Logomatik confirmed the integrity of the package, it was transferred to the palletizing robot (SOCO PRS-LRS-1218-H3) to create a pallet packed according to our specifications and dimensions. You can see the full dispatch line in operation in our video. The item offered here is one of the two SOCO ATS machines that erect and seal the cartons before they are passed on to the main conveyor (marked in the layout image in the blue circle). Further information about this item: Credpexc E Snsfx Abwsh Performs erection and bottom sealing of cartons with adhesive tape – the carton is then ready for filling. The SOCO Pack ATS is a fully automatic high-speed case erector with integrated bottom sealer. The machine is designed as standard for handling FEFCO 0201 cartons. Carton size min.: 180 x 130 x 100 mm, max.: 440 x 315 x 450 mm Capacity cartons/min.: up to 18 (varies depending on quality, design, and carton size) Powered blank magazine – easy to load, no production interruption Carton material: Corrugated board thickness 2.0–7.0 mm (A, B, C, B/C flute). Blank magazine capacity: approx. 190 pieces with C-flute corrugated board. Suction plate: Exchangeable suction plate. Supplied as standard with a vacuum head. Electrical data: 0.5 kW, 400 V, 50 Hz, 3-phase with protective earth. Air consumption: 38 l free air per cycle, min. 600 kPa, 1/2" connection. Noise level: max. 74 dBA. Colour: RAL 9006 (light grey) Backlog control: included as standard feature. The pneumatic components are from Festo, and the PLC is from Siemens. Compact machine. Easy installation. User-friendly software with many options. Low noise emissions and air consumption.
