Carton erector

SOCO SYSTEM BE-2300 ATS Right 8051021513

You will find this and other machines that were part of our shipping line in our listings. If you are looking for a turnkey solution in this area, or if you just require several components from it, feel free to contact us and we will get back to you as soon as possible.

Brief overview of the shipping line and the item offered:
The shipping line was used for pallet dispatch, meaning cartons were erected (using SOCO ATS 2300 + 2200) and sealed on the bottom so they could be packed on the main shipping line. The completed packages were then sealed on top by a carton sealer (SOCO T-4200) and passed on to a labeler (LOGOPAK LOGOMATIK 415-T). Once the LOGOMATIK scanner verified the packages as error-free, they were transferred to the palletizing robot (SOKO PRS-LRS-1218-H3) to produce a pallet packed according to our specifications/dimensions. You can see the complete shipping line in operation in our video.

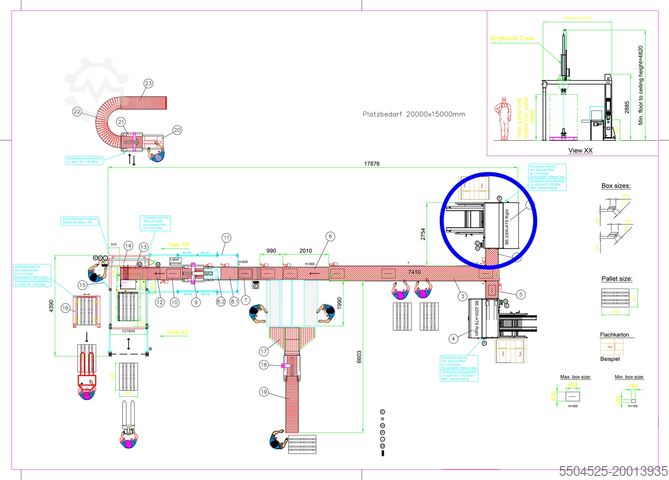

The item offered here is one of the two SOCO ATS units that erect and seal the cartons before they are transferred to the main conveyor (as shown in the layout image in the blue circle).

Further details about this item:

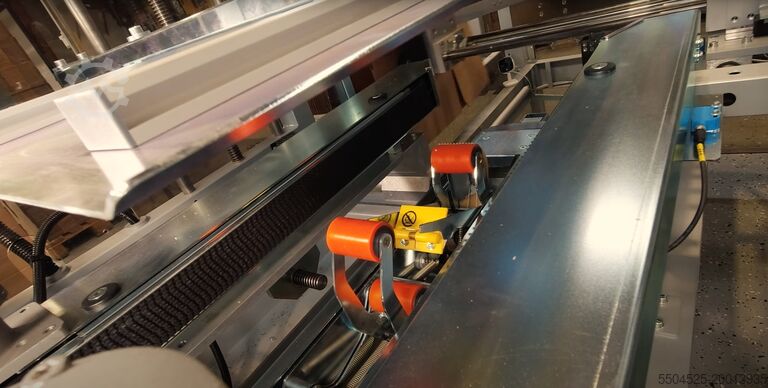

It performs erecting and bottom sealing of cartons with adhesive tape, leaving them ready for filling.
The SOCO Pack ATS is a fully automatic high-speed carton erector with integrated bottom sealer.

The machine is designed as standard for handling FEFCO 0201 cartons.
Carton size min. 250 x 190 x 130 mm, max. 620 x 440 x 550 mm
Carton capacity per minute: up to 15 (varies depending on quality, design, and carton size)

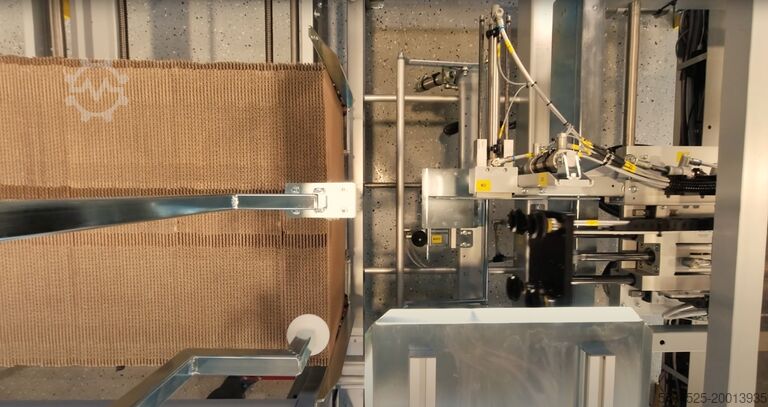

Powered flat carton magazine – easy to load, no production interruptions
Cjdpjxc E Ntsfx Agmorh

Carton material: Corrugated board thickness 2.0–7.0 mm (a-, b-, c-, b/c-flute corrugation).
Flat carton magazine capacity: approx. 190 pcs. with c-flute corrugation.

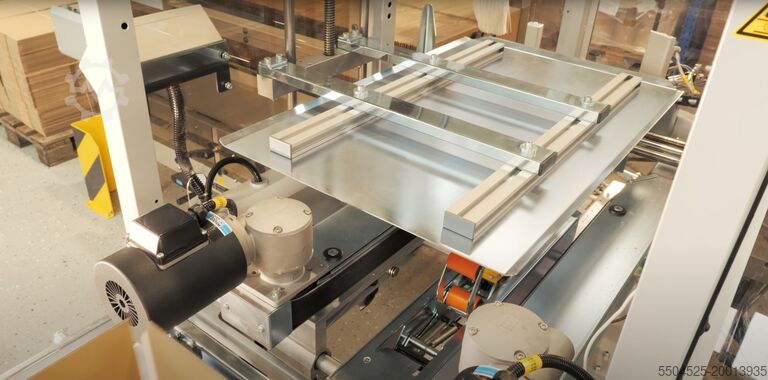

Suction plate: interchangeable, machine is supplied as standard with a vacuum head.
Electrical data: 0.5 kW, 400 V, 50 Hz, 3-phase with protective earth.
Air consumption: 38 l free air/cycle, min. 600 kPa, 1/2'' connection.
Noise level: Max. 74 dBA.
Colour: RAL-9006 (light grey)
Backlog control: included as standard.

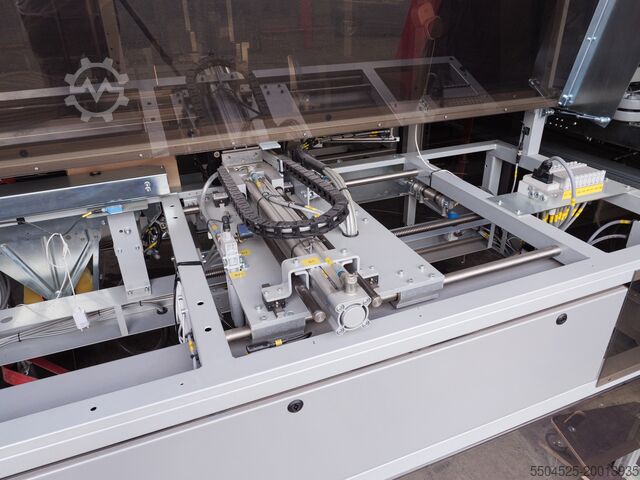

All pneumatic components are from Festo, and the PLC is from Siemens.
Compact machine. Easy installation.
User-friendly software with numerous features.
Low noise and air consumption.
