Crushing and/or screening plant

Sonstige/Other Gasparin Backenbrecher GI86C VULCANO

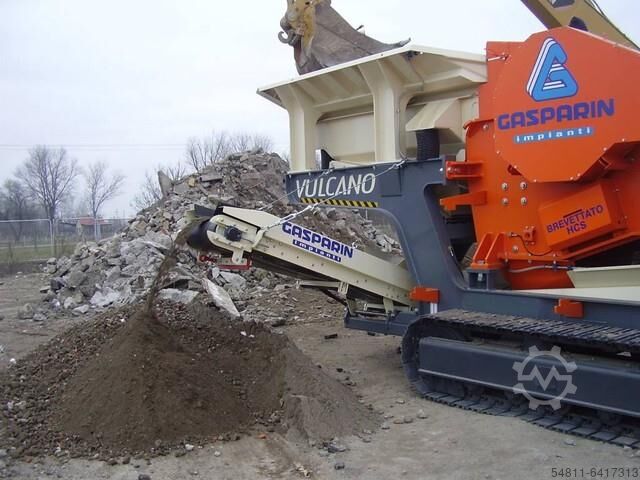

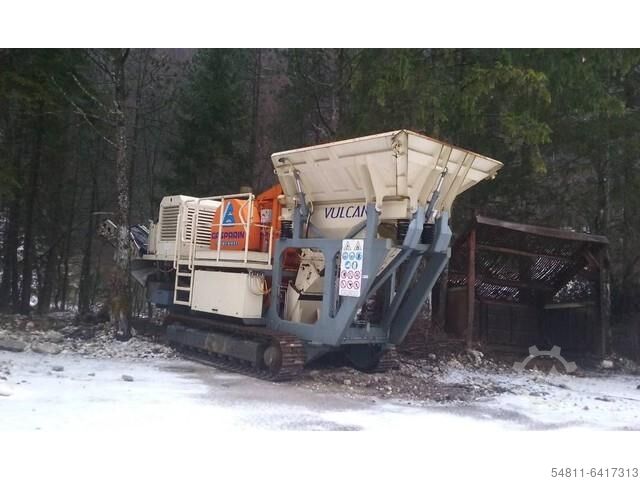

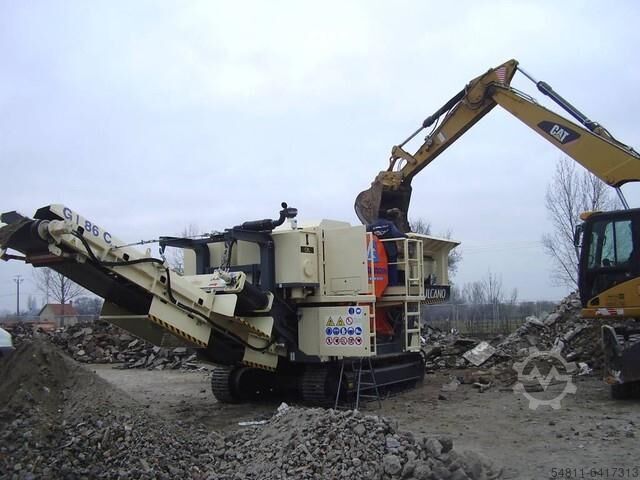

Mobile jaw crusher on tracked chassis

The VULCANO crusher is the most modern and compact machine in its category, weighing 25 tons and representing the latest generation.
The feed hopper, with road-legal loading dimensions and the option to fold down the conveyor belt, enabling transport even on trailers, makes it versatile for transport and just as quick to set up.

From arrival at the construction site to the moment the crushing process begins, only the time required for warm-up is needed. Equipped with state-of-the-art control and operating systems, it is simple and user-friendly, and also environmentally friendly.

The HCS control system (Hydraulic Crushing System) actively supports the automatic operation of the machine, guaranteeing the highest profitability in terms of maintenance costs and productivity, making it unparalleled.

The structural reinforcement between the frame and the crusher gives the machine the highest robustness against stresses.
The special design of the supporting structure guarantees excellent access to all machine parts during maintenance operations. The GI CRUSHER VULCANO certainly offers convincing and unparalleled performance both in natural stone applications and in recycling, as well as for rental purposes.
Godpfohd I Sbox Aptebp

Production capacity: approx. 190 tons/hour
Patented HCS system
Proportional valve with "Load Sensing" for system optimization and a reduction in fuel consumption of approx. 30%.
Optional pre-screening
Gap size hydraulically adjustable, even during the crushing process
Fast locking system with wedges and folding cylinders
Discharge height 2750 mm
Dust extraction
Tank pump
Magnet separator
Warranty: 1 year or up to a maximum number of operating hours from the start of operation of the plant.

Technical data:

Jaw crusher 830 x 580 mm
Crushing gap from 30 to 160 mm
Feed hopper 3.5 m³ - 1800 x 2970 mm
Grizzly feeder 770 x 2750 mm
Main conveyor belt 800 x 8700 mm
4-cylinder diesel engine with constant speed 82 HP / 60 kW, emission stage V
Control panel
Tracked chassis 400 x 2920 mm
Weight: kg
Transport length 10850 mm or 9170 mm with folding discharge belt
Transport width: 2520 mm
Transport height 3100 mm

Further information:

Application: Construction, Drive: Crawler
