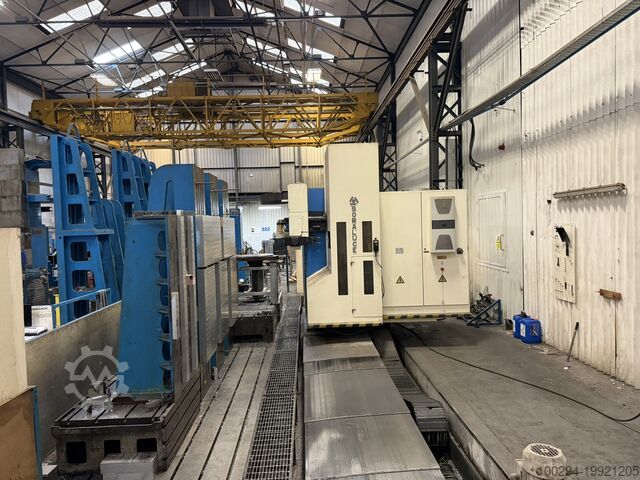

CNC travelling column bed-type milling machine

Soraluce FL 8000

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Soraluce model FL8000 high performance travelling column, floor type CNC milling machine TRAVEL (X) 7,500 mm TRAVEL (Y) 1,400 mm TRAVEL (Z) 1,000 mm RAPID TRAVERSE (X,Y,Z) 25,000 mm/min WORKING FEED RANGE (X,Y,Z) 1 – 10,000 mm/min ACCELERATION RATE (Instantaneous not maximum) 1 m/sec2 SPINDLE SPEED 20 - 4,000 Rpm SPINDLE TAPER ISO 50 SPINDLE POWER 28 Kw NC15C - HEIDENHAIN iTNC 530 (Flat 15.1" TFT Screen with digital drives). Single processor version. Prepared for a machine of 10 motors (9 CNC axes + spindle motor). Main push button panel with individually operated push buttons for linear axes (X+, X-, Y+, Y-, Z+, Z-) K20 smarT.NC option for the i530M. Independent AC. Heidenhain digital drive servomotor for each axis HEIDENHAIN HR-410 portable electronic handwheel with 5m spiral cable Automatic Indexing head 28Kw, 760Nm, 0.001°x 0.001°, 4000 Rpm. Continuous air and oil mist lubrication system for head gears. Automatic Tool Clamping device – 15,000N. Automatic hydraulic tool releasing device Spindle taper: BT50 High Torque spindle motor 28kW, 100% ED, digital motor. R10 – ZF gearbox two speed including cooling unit Spindle Speed Range 20 – 4,000Rpm Rapid Feed X-Y-Z axes 25.000mm/min Working Feed range X-Y-Z axes 0 - 10.000mm/min Acceleration rate X- Y -Z axes 1 m/s2 (instantaneous, not maximum) Hydraulic counterbalance system for head/ram assembly X axis driving system by two servomotors, two gearboxes and a double rack & pinion Preloaded ballscrews with double recirculating nuts in Y and Z axes. Automatic centralized lubrication system. Linear Guiding System with recirculating cylindrical rollers in each axis. Automatic centralized lubrication system for the guides. HEIDENHAIN Linear measuring scales in X-Y-Z axes with compressed air purge system - (Precision +/- 0,005mm) H48 – Coolant through the spindle type AD. M3 – Automatic tool changer 40 stations. M6 – Horizontal-vertical tool changing facility. M8 – Motorized tool changing device. Tool changer is driven by a servo motor Hydraulic equipment Front metallic roller blind cover to both upper and lower ram area, together with metallic protection to the lateral side of the column, between the machine table and the rear guideway support, which protects the vertical movement of the ram. CE10 - PROTECTION on the back and both lateral sides of the machine column P20 - Operator's platform fixed to the column and travels together with it in the "X" axis direction. The main operator’s panel is mounted within the operator's platform area for machines without an operator’s pendant and is accessed from the rear of the machine. Nedpfxsw U Tlzj Ah Dodd D7 + D50A - Coolant system with 1000L capacity tank with two pumps providing high and low pressure providing 5 & 12bar and 50L/min flow rate. Paper and Magnetic filtering. E30A – swarf conveyor FL8000 Hinge conveyor belt. Width 350mm PW11B – Pendulum working area system. PM2 x 2 – Machine prepared by Soraluce for the inclusion of two rotary tables. Working area lighting. Electrical cabinet cooling system Electrical cabinet lighting Working methods - According to CE safety regulations Filter to assure electromagnetic compatibility. Protection to both sides of the column with security bumpers Anchoring Bolts Standard Colour - Blue RAL 5005 / Grey RAL 7035 K19 – Two sets of machine documentation (One hard copy, one on CD ROM) Floor plate 8,000 x 1,500 x 300mm

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : SK50 - Spindle power : 60 [kW] - Spindle speeds : 50-8000 [rpm] - Gearbox - Speed ranges : 2 LINEAR AXES - Travels on X/Y/Z axes : 1250 / 1200 / 1400 [mm] - Rapid traverses rates (X/Y/Z) : 50 [m/min] A ROTARY AXIS - Travel : [°] - Indexing precision : 0.001 [°] B ROTARY AXIS - Travel : (+/-) 360 [°] - Indexing precision : 0.001 [°] - Cutting feed rate : 10 [rpm] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 50 - Tool exchange time : 6.3 [sec] TABLE - Table dimensions : 1100 [mm] - Maximum weight upon table : 2000 [kg] - Maximum part dimensions (diameter x height) : 1810 x 1400 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 50 [kW] WEIGHT & DIMENSIONS - Machine floor space : 7400 X 5400 [mm] - Machine height : 4800 [mm] MACHINE HOURS - Number of hours under power : 14238 [h] EQUIPMENT - CNC : Siemens 840 D SL - Interface : Ethernet / RS232 / USB / PCMCIA - Interactive programming : Shopmill - Electronic handwheel - Linear scales - Rigid tapping - 3 colors status lamp - Coolant tank : 2450 [l] * with high-pressure pump : 50 [bars] * with cooling unit for coolant * with magnetic filter Njdpfx Ahouhb D Ao Djdd * With washing gun - Coolant through spindle - Micro-lubrification coolant - Chips conveyor - Oil mist extractor - Spindle cooling unit - Tool probe : Renishaw - Workpiece probe : Renishaw - Tool breakage detection - Electric transformer - Tool-holders

Condition: like new (used), Year of construction: 2014, Siemens 840 D Swivelling control panel including SIEMENS 840 D Solution Line control system. Travel X axis: 8000 mm Travel Y axis: 1300 mm Travel Z axis: 2200 mm Tool system: SK 50; Capto C8 Main spindle: 20–4000 RPM 3D volume model of the machine HEIDENHAIN measurement system on all axes. Automatic central lubrication with pressure and time monitoring for all axes and moving components. Measuring probe system RENISHAW RMP60 M Tool breakage detection via probe BRANKAMP CMS collision monitoring with two measuring channels: Center height, Fibro rotary clamp: 1100 mm Center width, Fibro rotary clamp: 900–3000 mm Max. swing diameter, Fibro rotary clamp: 2200 mm Fibro rotary table D=1600; 250 RPM Carousel rotary table FIBRODYN 1600 mm: Njdpfx Ahow Syv Ue Dedd Table surface 6000x2000 mm d’Andrea facing slide Universal milling head Automatic tool changer ATC, 80 tool magazine slots in M version: 3 milling head slots High-pressure pump 30 bar Operating hours: 4261 h

Year of construction: 2017, condition: ready for operation (used), - USED - TRAVELLING COLUMN CNC MILLING MACHINE WITH AUTOMATIC A/B-AXIS HEAD LONGITUDINAL TRAVEL: 3500 mm Nedpfxswla Hzj Ah Djdd TRANSVERSAL TRAVEL: 1100 mm VERTICAL TRAVEL: 1500 mm RAPID FEEDS L-T-V: 40 m/min TABLE SIZE: 3800 x 1000 mm HEAD: A/B AXIS AUTOMATIC ; MILLESIMAL POSITIONING ; ISO 50 ; 5000 rpm; 34 kW TOOL MAGAZINE: CHAIN-TYPE ; 40 POS CONTROL UNIT: HEIDENHAIN TNC 640 HIGH PRESSURE COOLANT: 40 Bar WEIGHT: 35020 Kg OVERALL DIMENSIONS: 8760 x 4950 x 3780 mm ACCESSORIES: SWARF CONVEYOR ; LASER TOOL SETTER ; TOUCH PROBE ; PORTABLE HANDWHEEL

Condition: ready for operation (used), Number of axis: 6, nominal load: 90kg, controls: Engel, weight: 1.13t. Njdpek N Dnhefx Ah Dedd

Condition: good (used), Year of construction: 2000, travel distance X-axis: 4,300 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,460 mm, table width: 2,130 mm, table load: 40,000 kg, table length: 5,000 mm, Duplex milling are two machines located one opposite the other which can work seperately or as single machine, workpiece can be machined with 2 simultaneous spindles. Production increase of up to 50% in relation to conventional solutions, i.e. individual milling machines Improvements in part precision, by managing to do the machining of the part in one single setup, in most of the cases One sole operator can control the DUPLEX milling machines Reduced space and investment requirement comparing with two single machines Fast investment amortisation due to the high productivity Duplex solution admits different configurations: single working area, pendulum working areas For machining excavator arms / boom like, CAT, Caterpillar, Komatsu, Hitachi, Hyundai, Doosan, Case, Bobcat, JCB, Kobelco, Liebherr, Kubota, Takeuchi, Volvo X-Axis: 4300mm Nodpswrcydsfx Ah Djdd Y-Axis: 1200mm Z-Axis: 1460mm Table Length: 5000mm Table Width: 2130mm Table load: 40000 Power on spindle: 22/30kW Spindle speeds: 60 - 3000Rpm Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis: 10000mm/min. Feed rate Y-Axis: 10000mm/min. Feed rate Z-Axis: 10000mm/min. Millinghead auto-index:2.5 x 2.5° Length: 10060mm Width: 9100mm Height: 3990mm Weight: 40000kg
