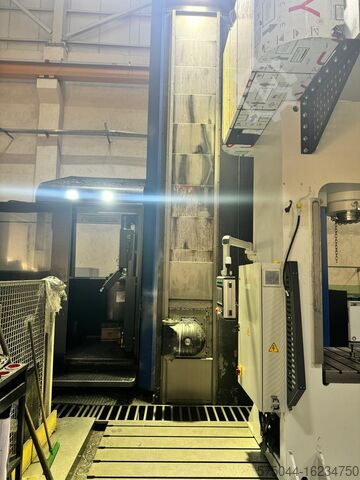

Portal milling machine

Soraluce FR-6000

Condition: good (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,400 mm, travel distance Z-axis: 1,500 mm, table length: 6,000 mm, table width: 3,000 mm, spindle speed (min.): 3,000 rpm, A CNC portal milling machine FKD-Feichter with double column is available. Travel range X/Y/Z/W: 6000mm/4800mm/1500mm/1300mm, table dimensions X/Y/Z: 6000mm/3000mm, max. workpiece weight: 115,000kg, max. table load: 6,400kg/m², total machine bed length: 14,500mm, portal dimensions X/Y: 3,000mm/4,400mm, C-axis: 360°, A-axis: +/-120°, ram section: 700mm/700mm, feed rate: 10m/min. Total system dimensions X/Y/Z: approx. 15,100mm/6,100mm/7,000mm, total system weight: approx. 115,000kg, control system: Heidenhain. Includes chip guard, coolant system, and hydraulic unit. The machine was built at the site in 2022. The ram and spindle have been freshly overhauled. Documentation is available. On-site inspection is possible. Immediately available. Bjdjxp Rgkspfx Ahmoln Three heads: Fork milling head with A-axis, 90-degree angular head, spindle extension – straight head, tool holder SK 50.

Condition: used, Year of construction: 2007, functionality: fully functional, feed length Z-axis: 1,250 mm, turning diameter: 3,200 mm, turning height: 2,000 mm, faceplate diameter: 3,200 mm, DOUBLE RAM VERTICAL CNC LATHE KOLOMNA 1532 T KOLOMNA VERTICAL LATHE (VTL) • Table Ø 3,200 mm • Maximum turning diameter Ø 3,200 mm • Maximum workpiece height 2,000 mm • Two CNC-controlled RAMs • RAM travel 1,250 mm • FAGOR 8070 CNC • Motor power 115 kW • Mechanical, hydraulic, electrical and electronic retrofit new in 2007 Bjdpfex Nhm Rjx Ahmjln • Chip conveyor • Complete enclosure • Cooling system • Work light • Refrigerated electrical cabinet

Condition: used, Year of construction: 2002, feed length Y-axis: 1,200 mm, feed length Z-axis: 900 mm, Make: Daewoo-Doosan Model: PUMA V-1200M Category: Vertical CNC Turning Center Year of manufacture: 2002 CNC Control: FANUC Series 18-T Machine weight: 23,000 kg Machine dimensions Bodpfx Aeziavnshmsln Length: 8,500 mm Width: 4,900 mm Height: 5,650 mm Capacities Maximum turning diameter: Ø 1,600 mm Maximum machining diameter: Ø 1,600 mm Maximum machining height: 1,200 mm Maximum load on spindle: 6,000 kg Main spindle Chuck diameter: Ø 1,200 mm Spindle speed: 2 ÷ 320 rpm Number of ranges: 2 Motor power: 37/45 kW (continuous / 30 min) Powered spindle (RAM) Tool holder: ISO-50 Speed: 15 ÷ 1,500 rpm RAM section: 240 × 240 mm Travels X-axis: 1,200 mm Z-axis: 900 mm C-axis: 360° (minimum resolution 0.001°) Feed rates Rapid traverse X/Z axes: 10,000 mm/min Working feed rate X/Z: 3,000 mm/min Turret Number of stations: 16 Tool holders: BT-50 Drawbar type: 403 P50T-I Maximum tool diameter: Ø 400 mm Maximum tool length: 450 mm Maximum tool weight: 50 kg Maximum tool weight in the magazine: 600 kg Accessories Chip conveyor Coolant tank with washing pumps Spindle line cooler Powered and fixed tool holders Manuals, electrical diagrams, and CE Declaration.

Condition: excellent (used), Year of construction: 1999, travel distance X-axis: 1,500 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 500 mm, total length: 5,179 mm, table length: 1,800 mm, table width: 650 mm, total width: 3,345 mm, rapid traverse X-axis: 28,000 m/min, rapid traverse Y-axis: 28,000 m/min, rapid traverse Z-axis: 28,000 m/min, table load: 1,500 kg, overall weight: 7,500 kg, X - Travel: 1500mm Y - Travel: 800mm Z - Travel: 500mm Table Length: 1800mm Bledpfx Ahjyhph Esmen Table Width: 650mm Table load: 1500 Feed rate X-Axis: 28000mm/min. Feed rate Y-Axis: 28000mm/min. Feed rate Z-Axis: 28000mm/min. Spindle Taper: 40ISO/Bt/Mk Power on spindle: 13.5kW Speeds / ranges: 8000Rpm ATC / revolver: 24 Coolant through spindle / Bar:10 Number of controlled axis: 3 Chip conveyor: yes Coolantsystem: yes Length: 5179mm Width: 3345mm Height: 2595mm Weight: 7500kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 2008, functionality: fully functional, machine/vehicle number: B-0312, travel distance X-axis: 3,200 mm, travel distance Y-axis: 2,600 mm, travel distance Z-axis: 920 mm, total length: 10,000 mm, table length: 3,200 mm, table width: 2,050 mm, total width: 6,400 mm, spindle speed (max.): 8,000 rpm, total height: 4,700 mm, distance between stands: 2,700 mm, type of input current: three-phase, table load: 11,000 kg, workpiece weight (max.): 11,000 kg, overall weight: 36,000 kg, spindle mount: MK 5, spindle motor power: 21,000 W, CNC Gantry Machining Center VISION WIDE VTEC VF-3026 We are offering for sale an advanced, heavy-duty, large-format Vision Wide VTEC VF-3026 gantry machining center. The machine was manufactured on September 15, 2008. Designed for precise and high-performance machining of large molds, dies, and heavy steel and cast iron components. Featuring a renowned Heidenhain iTNC 530 control and extensive, progressively added equipment (two factory heads, probe, CTS), the machine provides significant production capabilities, excellent rigidity, and machining dynamics. GEOMETRIC PARAMETERS AND WORK AREA: Table dimensions: 3200 x 2050 mm Travel in the X-axis: 3200 mm Travel in the Y-axis: 2600 mm Travel in the Z-axis: 920 mm Maximum table load: 11,000 kg (11 tons) Clearance between columns: 2700 mm Distance from the spindle nose to the table: 150 - 1070 mm SPINDLE AND DRIVE SYSTEM: CNC control: HEIDENHAIN iTNC 530 Series Spindle motor power (Heidenhain): 18 / 21 kW (high torque) Spindle taper: ISO 50 / BT-50 (compatible with P50T-1 pull studs) Maximum spindle speed: 10,000 rpm Minimum spindle speed: 50 rpm EXTENSIVE PREMIUM EQUIPMENT (INCLUDED IN THE MACHINE PRICE): Automatic 90-degree tilting head, indexed every 5 degrees (Year of manufacture: 11/2011) – a modern accessory dedicated to efficient side machining. Maximum head speed is 3000 rpm. Wireless Heidenhain workpiece measuring probe – a radio measuring system integrated with the machine, enabling automatic referencing and dimension control directly on the machine table. Extension head / Spindle extension (Model: VF-3026AC, Year of manufacture: 09/2008) operating at a maximum speed of 4000 rpm. Through-spindle cooling system (CTS - Coolant Through Spindle) – a high-pressure coolant delivery system directly through the tool. AUTOMATIC TOOL CHANGER (ATC): Magazine capacity: 40 positions Tool holder type: BT-50 / CAT-50 Maximum tool weight: 18 kg Maximum tool length: 450 mm Maximum tool diameter: diameter 125 mm (diameter 215 mm with adjacent empty slots) STANDARD EQUIPMENT: Spindle cooling system Dual chip removal system: screw conveyor and belt conveyor Remote manual pulse generator for the operator Work area enclosure and work lighting Automatic lubrication system and Auto Power Off function Air blast through spindle Heat exchanger in the control cabinet Matching transformer Complete technical documentation and electrical diagrams Bljdpfx Ahsztzl Semen DIMENSIONS AND POWER SUPPLY: Power consumption: 60 kVA (Three-phase AC power supply) Machine weight (net): 36,400 kg (36.4 tons) Overall footprint dimensions: approx. 10,000 x 6,400 x 4,700 mm

Condition: like new (used), Year of construction: 1998, Retrofitted: 2026 Numerical control: SIEMENS 840D Blodpfx Aoyf Rq Aehmsn Technical features Dimensions Table dimensions: 5000 x 2000 mmNumber of T slots: 13T slots dimensions: 22 mm Traverses of axis X axis traverse: 5000 mmY axis traverse: 3250 mmZ axis traverse: 1000 mmDistance between columns: 2500 mm Milling head Head type: C5E- 2 axis continuous headTool clamping system: HydraulicTaper nose: BT 50Speed range: 40 - 4000 rpmSpindle power: 37 kW / 372 Nm Feedrates Feedrate: 2 - 5000 mm/minX-Y,Z Rapid feedrate: 7200 / 12000 mm/min Weight and dimensions Max Weight on table: 25000 kgMachine weight: 40500 kgMachine dimensions: 12700 x 5070  x 4900 mm Accessories Guarding: 2 doors + perimeter wire-mesh fenceAutomatic tool changer: ATC-60Electronic handwheel: New SIEMENS 6FX2007-1AC04Coolant: External Sale conditions Warranty: 6 months mechanical partsPrice and sale conditions: On request   View all technical features

Condition: good (used), Year of construction: 2008, Vertical CNC-Lathe Machine type: Gildemeister CTV 400 V3 Control: Sinumerik 840D powerline (XP) Year: 2008 SPECIFICATIONS X-Axis: 700 mm Z-Axis: 340 mm C-Axis Max. revolution: 3.500 rpm Spindle power: 47 kW Torque: 1.100 Nm Direktantrieb Blodszing Uepfx Ahmsn Amount of turrets: 1 Tool capacity: 12 Driven Tools: 12 Tool: VDI 50 Amount of paletts: 15 Accessories

Condition: ready for operation (used), Year of construction: 1998, total height: 4,900 mm, overall weight: 51,000 kg, controller manufacturer: SIEMENS, controller model: SINUMERIK 840D, This 4-axis MIKROMAT 20V gantry milling machine was manufactured in 1998. Ideal for precision milling, it offers robust construction and reliable performance. Consider the opportunity to buy this MIKROMAT 20V gantry milling machine. Contact us for more information. Additional equipment • Automatic Tool Changer: Included / Number of Places in the Magazine: 90 / Max. Tool Diameter: 125 mm (300 mm with free secondary positions) / Max. Tool Length: 450 mm/ Max. Tool Weight: 30 kg /Tool Change Time: Approx. 5 sec • Compressed Air Connection / Air Volume: 6 bar - 5 m³/h / Nominal Voltage: 3 AC 400 V / Control Voltage: DC 24 V / Connected Load: Basic machine 65 kW • Cooling Lubricant Supply and Filter System: Included / Tank Capacity: 1500 l / Pump for External Cooling: Q= 20/40/60 l/min switchable / Pump for Internal Cooling: Q= 35 l/min at 50 bar Work Area Guard with Lighting: Included / Set of Chip Conveyors: Included, with scraper belt type, discharge height 1000 mm Machine Benefits Technical Machine Benefits • Traverse path: x (table): 5200 mm/ y (slide): 3400 mm /z (spindle): 1250 mm • Traverse path: x (table): 5200 mm y (slide): 3400 mm /z (spindle): 1250 mm • Max. Feed force (x, y, z): 15 kn • Clamping surface: 2000 x 5000 mm / max. Table load: 100 kn / width / spacing of table grooves: 22 / 160 mm / passage width: 2400 mm / distance between spindle nose and table surface: 500 to 1750 mm • Spindle speeds: 10 to 5000 rpm / max. Power of the spindle motor: 37/46 kw / max. Spindle torque: 1000/1250 nm / spindle head for tool shank: sk 50 • Control type: microprocessor control siemens sinumerik 840d / screen: colour screen 10. 4 inch tft display / number of axes: 3 (x, y, z) • Control system: integrated with various functionalities including spindle orientation, interpolation, and an electronic handwheel • Programming and data transfer: includes comprehensive programming capabilities and data transfer options via the universal interface v24/rs-232 Bodsx D Hcwspfx Ahmsln • Accessories: multiple accessories and additional device functionalities included, focusing on enhanced efficiency and safety Dimensions Machine Depth 10500 mm

Condition: excellent (used), functionality: fully functional, workpiece weight (max.): 12,000 kg, spindle motor power: 55,000 W, chuck outer diameter: 2,000 mm, total length: 5,600 mm, total height: 6,000 mm, total width: 6,000 mm, turning height: 1,300 mm, mount diameter: 2,050 mm, overall weight: 31,000 kg, Turning diameter: 2050 mm Table diameter: 2000 mm - 4 independent Morse tapers Maximum workpiece height: 1300 mm Number of rams: 1 Ram stroke: 1000 mm Ram section: 230 x 230 mm Spindle motor power: 55 kW Maximum permissible weight: 12 tons Spindle rotation speed: 0-160 rpm Number of speed ranges: 3 Tool changer: 14 stations Machine footprint: 5,600 mm x 6,000 mm x 6,000 mm (height) Weight: 31,000 kg Bjdpfjznl Rnox Ahmoln USED MACHINE

Condition: like new (used), Year of construction: 2002, Retrofitted: 2026 Numerical control: HEIDENHAIN TNC-i530 Technical features Dimensions Table dimensions: 2000 x 1000 mmNumber of T slots: 8T slots dimensions: 22 mm Traverses of axis X axis traverse: 2000 mmY axis traverse: 1250 mmZ axis traverse: 650 mmVertical capacity (VC): 150 / 800 mmDistance between columns: 1250 mm Milling head Kessler electrospindleTool clamping system: HydraulicTaper nose: HSK-63Speed range: 20 - 12000 rpmSpindle power: 25 kW Feedrates Rapid feedrate (X,Y,Z): 20000 mm/min Weight and dimensions Maximum weight on table: 5000 kgMachine weight approximate: 14000 KgMachine dimensions approximate: 6500 x 3934 x 4000 mm Accessories Guarding: PerimetralAutomatic tool changer: ATC-24Chip conveyor:2 longitudinal and 1 hinge type transversalElectronic handwheel: HR-410Coolant: External internal high pressure through spindle Sale conditions Warranty: 6 months mechanical spare partsPrice and sale conditions: On request View all technical features Bljdezlu Scopfx Ahmsn
