Travelling column milling machine

Soraluce SP10000

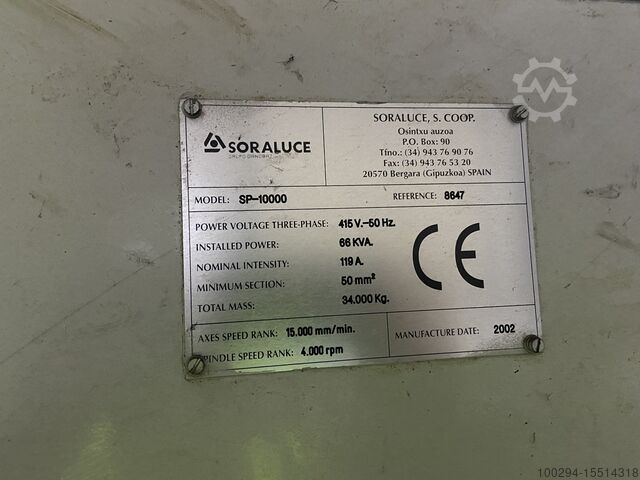

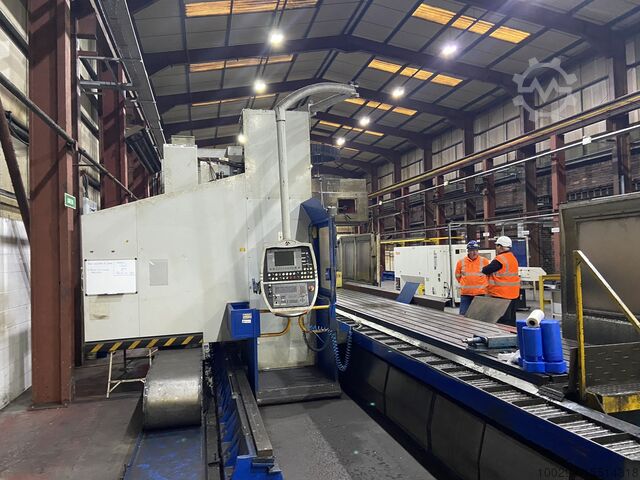

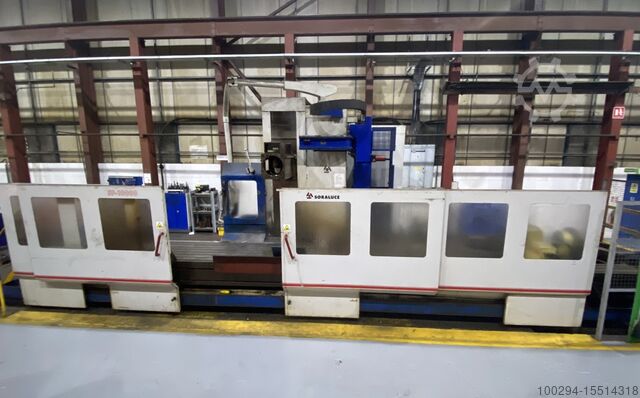

Condition: good (used), Year of construction: 2002, functionality: fully functional, USED Soraluce Soramill Model SP 10000 Travelling Column, Table Type CNC Milling Centre, with Automatic Oil Mist Lubricated Orthogonal Milling Head with 1 X 1 Degree Indexing and HEIDENHAIN TNC 430 M Control System. Year 2002 SN 8647 Table Area - 10000 x 1100 mm Column Traverse (X) - 8500 mm Vertical Traverse (Y) - 1600 mm Ram Traverse (Z) - 1200 mm Spindle Motor - 28 kW Spindle Taper - Standard ISO 50 BT50 tooling Pullstud - DIN 6987 2-Form A. ISO 7388/2-Form A Independent Gearbox with 2 Ranges Speed Range - 20 to 4000 RPM Feed Range - 5 to 5000 mm/min Rapid traverse rate - (X, Y, Z) 15,000 mm/min Preloaded double nuts and recirculating ballscrews to each axis. Linear Guiding System with recirculating cylindrical rollers and steel guideway assemblies in X, Y and Z axes Independent A.C Drive motor to each axis. Linear Transducer in X, Y and Z-axes with air purge system. Automatic tool clamping. Automatic hydraulic tool releasing device. CNC Control HEIDENHAIN TNC-430-M. (Flat TFT screen with digital drives) 9 axes CNC and 1 spindle, 5 of them simultaneously interpolated. Working area lighting Electrical cabinet cooling system Ksdpfx Agor Hr Aro Iodw Electrical cabinet lighting Heidenhain HR410 portable electronic handwheel with 3m spiral cable Horizontally articulated pendant for CNC control Orthogonal head 28KW, 800Nm, 1deg x 1 deg, 4000rpm oil lubricated Price includes oil cooling unit for both head and gearbox. Option G2, Ram prepared for 4000rpm, is also included. Coolant through the spindle type AD. Coolant system with 500l capacity tank with two pumps providing low and high pressure of 3 and 8 bars and 50l/min flow. The system includes a combined paper and magnetic drum-filtering unit. Standard operators platform fixed to the column 40 tools capacity toolchanger magazine, BT50 Max. Tool length = 400 mm. Max. Tool diameter: - With full magazine = 120 mm. With adjacent position empty = 250 mm. Max. Tool weight = 20 kg. Mean tool weight with full magazine = 10 kg. Max. Permitted total weight = 20 kg. Swarf Conveyor Hinge type conveyor belt Machine preparation for the addition of a 4th axis electro-mechanical table. Splash Guarding against swarf at the table front and both sides. Consists of four sliding front doors with a height from the floor of 2.100mm and a length of 1.700mm each one. Manually operated opening and closing with mechanical interlock. The doors can be opened for the full longitudinal traverse. The rear of the table is open. Protection in the back and both lateral sides of the machine column.

Condition: like new (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 9,000 mm, travel distance Y-axis: 4,000 mm, travel distance Z-axis: 1,000 mm, CME TRAVELING COLUMN MILLING / BORING MACHINE CME TECHNICAL FEATURES - VISIBLE IN OPERATION Brand: CME Kodpfxou R Rk Ho Ag Iedw Model: MB 9000 Year: 2007 CNC: Siemens Sinumerik 840D X-axis: 9000 mm Y-axis (Vertical): 4000 mm Z-axis: 1000 mm W-axis (Ø 150 mm): 700 mm 2 rotary translation tables (linear travel: 2000 mm) 2500 x 2500 mm (25 TN) capacity Heidenhain optical scales on all axes Direct spindle 90-position tool change ZF range change Internal coolant Chip extractors

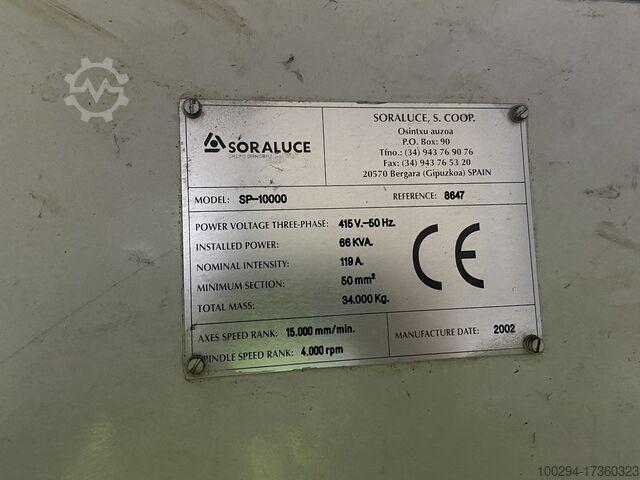

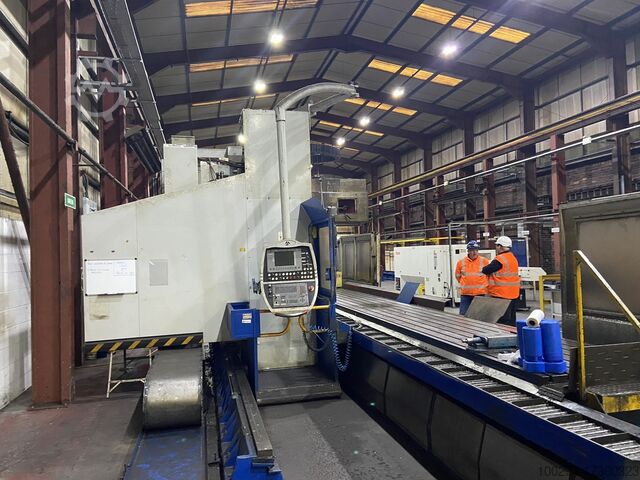

Condition: good (used), Year of construction: 2002, functionality: fully functional, USED Soraluce Soramill Model SP 10000 Travelling Column, Table Type CNC Milling Centre, with Automatic Oil Mist Lubricated Orthogonal Milling Head with 1 X 1 Degree Indexing and HEIDENHAIN TNC 430 M Control System. Year 2002 SN 8647 Kedpfx Agouv Hrdj Iedw Table Area - 10000 x 1100 mm Column Traverse (X) - 8500 mm Vertical Traverse (Y) - 1600 mm Ram Traverse (Z) - 1200 mm Spindle Motor - 28 kW Spindle Taper - Standard ISO 50 BT50 tooling Pullstud - DIN 6987 2-Form A. ISO 7388/2-Form A Independent Gearbox with 2 Ranges Speed Range - 20 to 4000 RPM Feed Range - 5 to 5000 mm/min Rapid traverse rate - (X, Y, Z) 15,000 mm/min Preloaded double nuts and recirculating ballscrews to each axis. Linear Guiding System with recirculating cylindrical rollers and steel guideway assemblies in X, Y and Z axes Independent A.C Drive motor to each axis. Linear Transducer in X, Y and Z-axes with air purge system. Automatic tool clamping. Automatic hydraulic tool releasing device. CNC Control HEIDENHAIN TNC-430-M. (Flat TFT screen with digital drives) 9 axes CNC and 1 spindle, 5 of them simultaneously interpolated. Working area lighting Electrical cabinet cooling system Electrical cabinet lighting Heidenhain HR410 portable electronic handwheel with 3m spiral cable Horizontally articulated pendant for CNC control Orthogonal head 28KW, 800Nm, 1deg x 1 deg, 4000rpm oil lubricated Price includes oil cooling unit for both head and gearbox. Option G2, Ram prepared for 4000rpm, is also included. Coolant through the spindle type AD. Coolant system with 500l capacity tank with two pumps providing low and high pressure of 3 and 8 bars and 50l/min flow. The system includes a combined paper and magnetic drum-filtering unit. Standard operators platform fixed to the column 40 tools capacity toolchanger magazine, BT50 Max. Tool length = 400 mm. Max. Tool diameter: - With full magazine = 120 mm. With adjacent position empty = 250 mm. Max. Tool weight = 20 kg. Mean tool weight with full magazine = 10 kg. Max. Permitted total weight = 20 kg. Swarf Conveyor Hinge type conveyor belt Machine preparation for the addition of a 4th axis electro-mechanical table. Splash Guarding against swarf at the table front and both sides. Consists of four sliding front doors with a height from the floor of 2.100mm and a length of 1.700mm each one. Manually operated opening and closing with mechanical interlock. The doors can be opened for the full longitudinal traverse. The rear of the table is open. Protection in the back and both lateral sides of the machine column.

Condition: ready for operation (used), Year of construction: 2008, Fanuc 21ITB 16-tool changer BT50 1600 mm table, maximum rotation speed 250 rpm, maximum admissible weight 8000 kg maximum diameter 2000 mm, maximum machining height 1250 mm travel 250 x 250 mm, Z-axis travel 900 mm Kedpfx Aowzyndsg Ijdw chip conveyor

Condition: good (used), Year of construction: 2005, travel distance X-axis: 3,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,250 mm, In good technical condition. Year of modernization: 2005. Main electric motor power: 37 kW Installed machine power: 50 kVA Maximum machine length and width (including control cabinets): 7800 x 7200 mm Maximum machine height: 4900 mm Assembled floor space: 50 square meters Required installation height: 5800 mm Maximum workpiece weight: 12000 kg Work spindle diameter: 130 mm Spindle taper: ISO 50 Work spindle throat: 800 mm Work spindle speed range: 5 to 1800 rpm Distance of spindle axis from table clamping surface (Y): 70 mm Kodswc Sm Iepfx Ag Isdw Table clamping surface: 2500 x 1800 mm

Condition: used, Year of construction: 1997, travel distance X-axis: 3,708 mm, travel distance Y-axis: 1,208 mm, travel distance Z-axis: 1,002 mm, feed length X-axis: 5,000 mm, feed length Y-axis: 5,000 mm, feed length Z-axis: 5,000 mm, rapid traverse X-axis: 15 m/min, rapid traverse Y-axis: 15 m/min, rapid traverse Z-axis: 15 m/min, spindle speed (max.): 3,000 rpm, spindle speed (min.): 35 rpm, CNC Bed-Type Milling Machine – Universal ZAYER 20 KF 4000 Year of manufacture: 1997 CNC control: HEIDENHAIN TNC 426/430 Technical specifications: Kedpjwtpfpofx Ag Ijdw X travel: 3708 mm Y travel: 1208 mm Z travel: 1002 mm Table size: 4000 x 1000 mm Tool holder: SK 50 Spindle speeds: 35–3000 rpm Spindle motor: 22 kW Feed range: 6–5000 mm/min Rapid traverse: 15 m/min Machine weight: approx. 19.5 t ADDITIONAL INFORMATION Electronic handwheel Automatically swivelling milling head vertical/horizontal +/-120° (stepless) Milling head automatically swivelling in the rear axis / 90° rotation Coolant system The machine can be inspected under power. Delivery time: immediately Sale from location Westerkappeln Dismantling, loading available on request.

Condition: used, Year of construction: 2007, control Siemens Sinumerik 840 D weight 57.000 kg voltage 400 V Gleason PFAUTER CNC gear hobbing machine P 2400/2800 for gear cutting of cylindrical and worm gears as well as all other regularly occurring rollable profiles and shapes on the cylindrical workpiece circumference. Large gear hobbing machines from Gleason offer maximum productivity for roughing and finishing cylindrical gears for many industries: wind turbines, industrial gearboxes, mining and shipbuilding, gear machining and many more. The power range of the drive takes future tool developments into account. Of course, the gear hobbing head drive is also backlash-free. These machines are particularly well suited for use with state-of-the-art, cutting materials, regardless of whether dry or wet machining is preferred. The machine can be used for dry or wet machining and is also equipped with the appropriate chip conveyor for both machining methods. The machine is equipped with an internal profile milling head as a motorised milling head. --> Working range and technical data Nominal workpiece diameter: 2.400 mm --> Largest millable diameter approx.: 2.800 mm --> Smallest/largest distance between cutter and workpiece axis: 100/1.200 mm --> Largest axial slide travel (special design): 1.300 mm --> Largest clampable cutter (internal milling head): --> Diameter max: 440 mm --> Max. cutter width: 90 mm --> Swivel range of the internal profile milling head/vertical axis: +/- 15° --> Milling mandrel taper: HSK-B160 --> Maximum milling cutter travel: 300 mm --> Table diameter: 2.500 mm --> Part wheel diameter: 2.200 mm --> Table bore --> Diameter: 800 mm --> Depth: 875 mm --> Maximum table load approx.: 40.000 kg --> Max. feed and rapid traverse speeds: --> axial (Z-axis): 4.000 mm/min Kedpfx Aewzyp Isg Iodw --> radial (X-axis): 3.000 mm/min --> tangential (Y-axis): 3.000 mm/min --> Milling cutter cooling lubrication device/electric centrifugal pump: approx. 150 l/min --> Increased drop height of magnetic chip conveyor: 1,600 mm --> Increased main stand: 1,300 mm axial slide travel --> Internal profile milling head as motor milling head instead of standard motor milling head --> Max. millable profile depth in steel with approx. 600 N/mm² strength: approx. 65 mm --> Infinitely variable milling speed: 50 - 150 min?¹ --> Max. milling cutter diameter: 440 mm --> Min. milling cutter base circle diameter: 310 mm --> Max. milling cutter width: 90 mm --> Min. internal diameter at 0° bevel angle: 800 mm+) --> Max. workpiece height at 0° bevel angle: 600 mm --> Max. workpiece ring thickness (including clamping device): 500 mm

Condition: used, Year of construction: 2025, faceplate diameter 1.600 mm swing diameter 2.000 mm turning height 1.400 mm Control Fanuc max. Torque 23.863 Nm cutting capacity max. 3.000 kgf max. workpiece weight 10.000 kg table: table diameter 1.600 mm table speeds 0,7 - 280 1/min power capacity - table 37/45 kW C - Axis: resolution 0,001 ° Working speed 0 - 1.200 °/min max. table speed 3,333 1/min turret slide: Shank diameter 32 mm spindle cone ISO 7/24 / No.50 Spindlespeed 30 - 3.000 min/-1 Ksdpfx Agevp Scwj Ijdw power capacity - Tool Spindle 15 / 18,5 kW max. Torque 235 Nm ram cross section 220 mm axis stroke: x-axis 1.900 mm z-axis 900 mm cross rail adjustment 700 mm Tool-Presetter: tool taper MAS-BT 50 number of toolpositions 24 (12 + 12) pos. max. tool weight 50,0 kg draw bolt DIN 69872.50 feeds: rapid feed (X / Z) 7,5 m/min feed speeds max. 7.500 mm/min rapid traverse of the crossrail 300 mm/min total power requirement 80 kVA weight of the machine ca. 34,0 t dimensions of the machine ca. 7,50 x 6,50 x 5,20 m Chief-Agency by JS-MachineTools GmbH CNC - Vertical Turret Lathe HANKOOK - VTC 160 E - NEWMACHINE

Condition: like new (used), Year of construction: 2007, travel distance X-axis: 3,000 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 900 mm, LAGUN FIXED BED MILLING MACHINE TECHNICAL SPECIFICATIONS Brand: Lagun Model: GBM 31 Table: 3100 x 900 mm Kdjdpfxjwyv Nus Ag Isw CNC: Heidenhain iTNC 530 X-axis: 3000 mm Y-axis: 900 mm Z-axis: 900 mm Table weight: 6000 kg Operating speed: 3000 rpm Feed rate: 20000 mm/min Tools: 24 Motor: 22/27 kW Automatic milling head: 2.5 x 2.5° The machine is not equipped with through-spindle coolant. PRICE AND FURTHER INFORMATION ON REQUEST (CNC, SIEMENS, HASS, LAGUN, FAGOR, CINCINNATI, HEIDENHAIN, MACHINING, PINACHO, MORISEIKI, MILLING MACHINE, LATHE, GRINDER, BORING MACHINE, PRESS, LASER, SHEAR, PRESS BRAKES)

Condition: used, Year of construction: 2007, control Siemens 840D Kdjdpfjwzypuex Ag Iew
