CNC turning and milling centerSpinner
TC600
Machine data
- Machine type:
- CNC turning and milling center
- Manufacturer:
- Spinner
- Model:
- TC600
- Machine number:
- AT0980
- Year of construction:
- 2018
- Condition:
- used
- Functionality:
- fully functional
- Operating hours:
- 28,500 h
Price & Location
- Location:
- , Slovenia
Technical details
- Turning length:
- 650 mm
- Turning diameter over cross slide:
- 400 mm
- Turning diameter:
- 400 mm
- Spindle motor power:
- 21 W
- Spindle speed (max.):
- 4,000 rpm
- Spindle bore:
- 65 mm
- Travel distance X-axis:
- 275 mm
- Travel distance Y-axis:
- 90 mm
- Travel distance Z-axis:
- 700 mm
- Mount diameter:
- 250 mm
- Rapid traverse X-axis:
- 15 m/min
- Rapid traverse Y-axis:
- 15 m/min
- Rapid traverse Z-axis:
- 24 m/min
- Rotational speed (max.):
- 6,000 rpm
- Type of input current:
- three-phase
- Feed length X-axis:
- 275 mm
- Feed length Y-axis:
- 90 mm
- Feed length Z-axis:
- 700 mm
- Torque:
- 258 Nm
- Bar passage:
- 65 mm
- Feed rate X-axis:
- 15 m/min
- Feed rate Y-axis:
- 15 m/min
- Feed rate Z-axis:
- 24 m/min
- Total height:
- 2,500 mm
- Total length:
- 2,800 mm
- Chuck outer diameter:
- 250 mm
- Total width:
- 1,600 mm
- Bar diameter (max.):
- 65 mm
- Spindle nose:
- A8/DIN
- Swing diameter over bed slide:
- 600 mm
- Overall weight:
- 6,000 kg
- Swing diameter over top slide:
- 400 mm
- Spindle diameter:
- 65 mm
- Turning diameter over bed slide:
- 400 mm
- Equipment:
- documentation/manual
Details about the offer
- Listing ID:
- A223-76917
- Update:
- 20.08.2026
Description

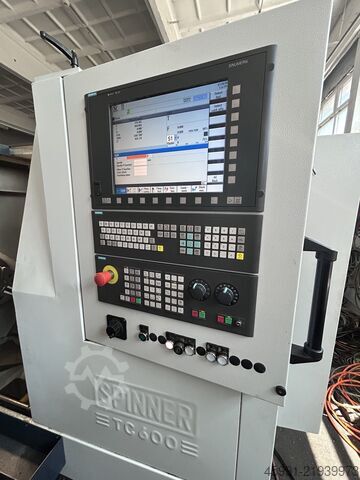

SPINNER TC600 65SMCY CNC turning center, manufactured in 2018, equipped with a Siemens SINUMERIK 840D sl control.
The machine is suitable for complex turning operations and serial production. It is equipped with a Y-axis, sub-spindle, driven tools, chip conveyor, and parts catcher.
Machine details
• Manufacturer: SPINNER
• Model: TC600 65SMCY
• Year of manufacture: 2018
• Serial number: AT0980

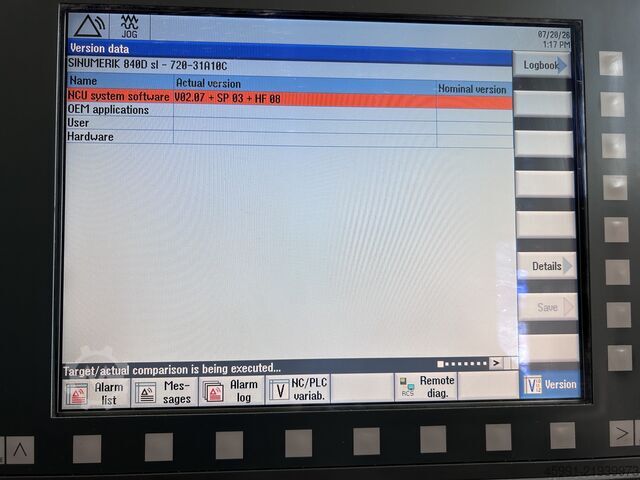

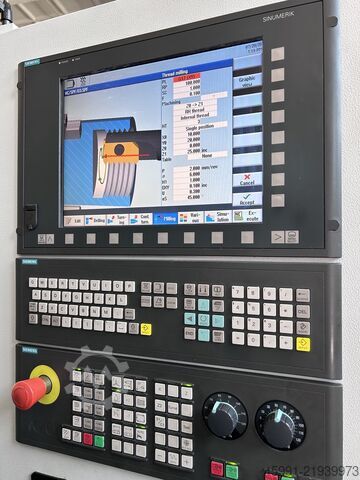

• Control: Siemens SINUMERIK 840D sl
• Power supply: 400 V, 50/60 Hz
• Maximum swing diameter: approx. 600 mm
• Maximum turning diameter: approx. 400 mm
• Maximum turning length: approx. 650 mm
• Axis travel: X 275 mm / Y +50 to −40 mm / Z 700 mm
• Rapid traverse X/Y/Z: 15 / 15 / 24 m/min
Main spindle
• Maximum spindle speed: 4.000 rpm
• Spindle nose: A8/DIN
• Chuck size: 250 mm
• Spindle power: 21/27 kW
• Torque: 201/258 Nm
Sub-spindle
• Maximum spindle speed: 6.000 rpm
• Chuck size: 165 mm
Knsdpfx Akszm Rrzewob
• Power: 10/12 kW
• Torque: 64/76 Nm
Turret and driven tools
• Up to 16 tool positions
• Driven tool speed: up to 6,000 rpm
• Driven tool power: 2.3/4.5 kW
• Driven tool torque: 5/10 Nm
Included equipment
• Chip conveyor

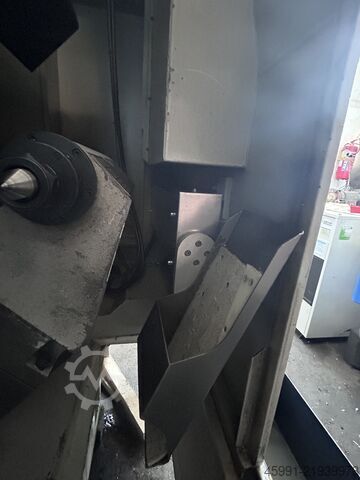

• Parts catcher

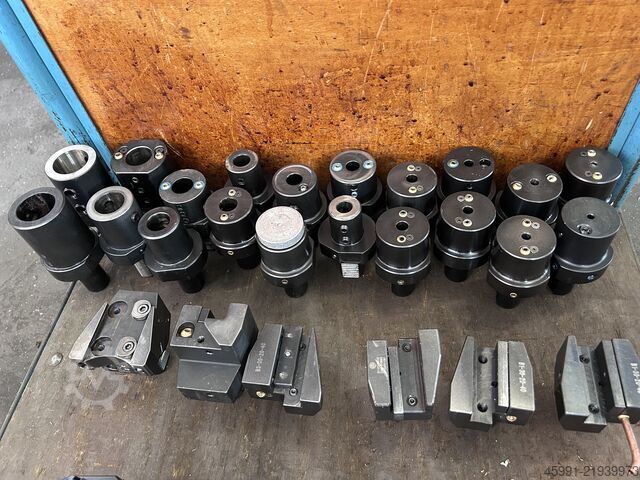

• Tool holders shown in the photos

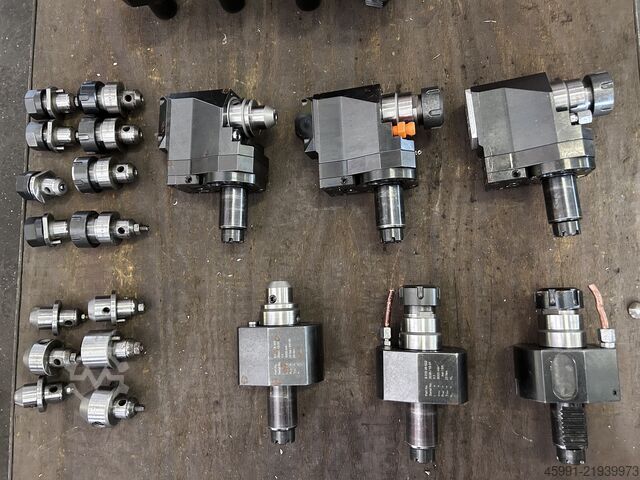

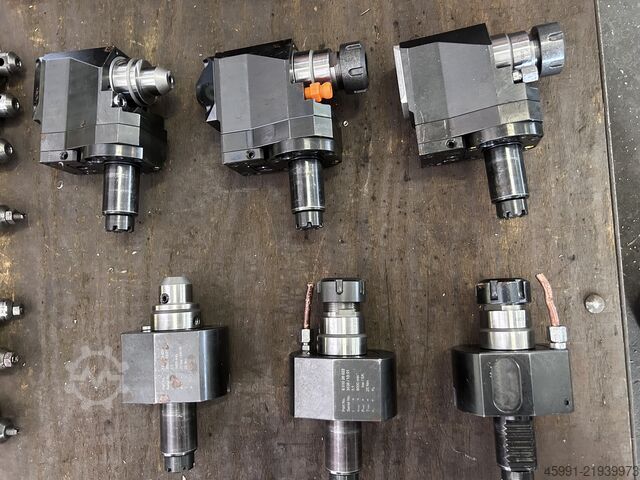

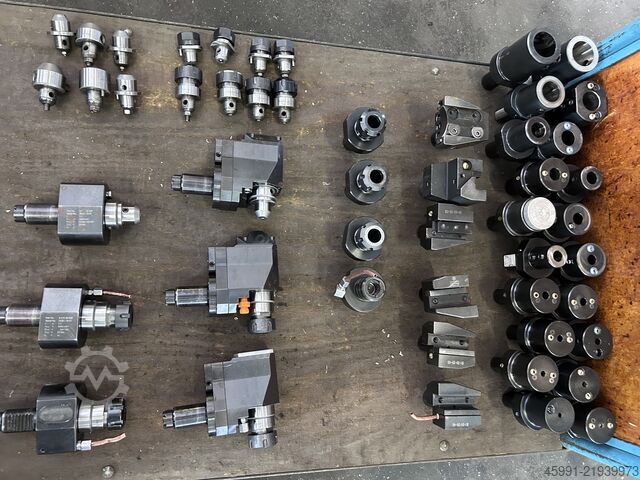

Included driven tool holders: 8
• 3 radial driven tool holders
• 5 axial driven tool holders
• 2 of the axial holders are double-sided
Bar feeder

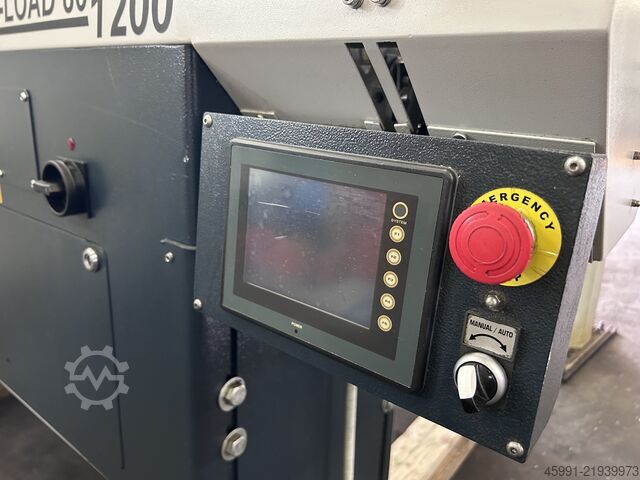

The machine is sold together with a Breuning IRCO ILS-SSL 70 bar feeder.
• Manufacturer: Breuning IRCO
• Model: ILS-SSL 70
• Type: SSL-7012-III
• Year of manufacture: 2018
• Voltage: 200–500 V
• Power: 1 kVA
• Weight: 500 kg
Operating hours
• Main spindle operating hours: approx. 9.300 h
• Sub-spindle operating hours: approx. 3.300 h
• Total machine power-on hours: approx. 28.500 h
It is connected and available for inspection and testing by prior arrangement.
The machine is available immediately.
