Crane chassis hoist 4000 kg

Stahl GO 24 20 16 AS 2010

Condition: excellent (used), Motor-driven NC rotary table Stepless rotary table (pitch 0.001°) Attached pallet station: pallet changing table (2 pallets) Manufacturer: Rückle Type: PKTF 1200 Table size: 1200 mm x 1200 mm Total height: 660 mm Centring hole: 100 H6 mm Clamping grooves: 7 pieces Slot dimension: 22 H7 mm Slot distance: 160 mm The displacement is measured via a ROD 250 rotary encoder. Condition: Very good (used) Optionally with machine bed (travel = 2000 mm ) Fedpsfk R Tdefx Aa Nogi About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH, is a free specialist for SHW machine tools. Our main focus lies in the field of tool milling machines. Our services include the supply of spare parts, on-site customer service, machine overhauls and control modernization. Services: - Used machines - spare parts - after-sales service - machine service - machine overhauls - control modernization

Condition: used, Year of construction: 1984, x-travel 2500 mm y-travel 750 mm z-travel 1000 mm table surface area 2550 x 800 mm spindle taper SK 50 Fgedpfstqqnwjx Aa Nsi control HEIDENHAIN, TNC 150 B weight of the machine ca. 16 t

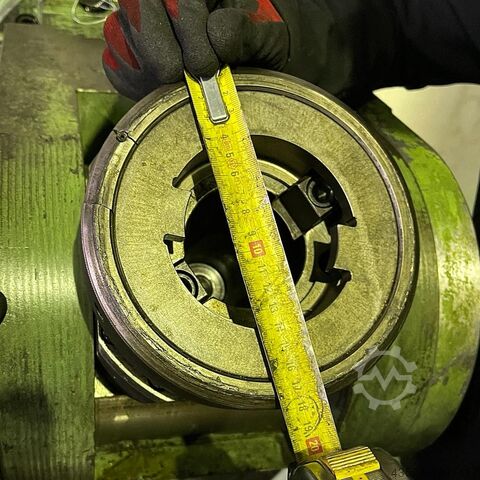

Condition: used, inner taper of milling spindel / Fedpfx Ashwt Elsa Negi collet diameter / turning speed range 1500 U/min

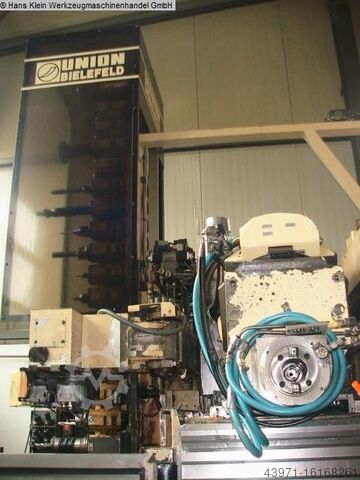

Condition: used, Year of construction: 1990, x-travel 2800 mm y-travel 1000 mm z-travel 1200 mm table surface area 2000 x 800 mm rotary table dia. 800 mm spindle taper SK 50 spindle turning speed - stepless 50 - 2000 U/min max. torque on the spindle 3000 Nm spindle drive 30 kW feeds longditudinal/cross/vertical 2 - 2000 mm/min rapid motion -longitudinal/cross/vertical 7 m/min Fgjdpfxjtqqmgs Aa Noi control SIEMENS control SINUMERIK 850 M no. of tools in magazin 56 workpiece diameter at full load 114 mm wotkpiece diameter with 2 vacant positions 200 mm workpiece length 400 mm weight of tools max. 16 kg tool changing time ca. 8 - 9 sec internal coolant system feed ja / yes total power requirement kW weight of the machine ca. 25,4 t dimensions of the machine ca. 6,6 x 3,15 x 2,98 m = 5-axis CNC-bed-type milling machine with integrated NC-rotary table and NC-swivelling milling head - Acc.: tool pre-setting device, various tool fixtures, chip conveyor, coolant with high pressure pump and filtration device, electron. handwheel, fixators

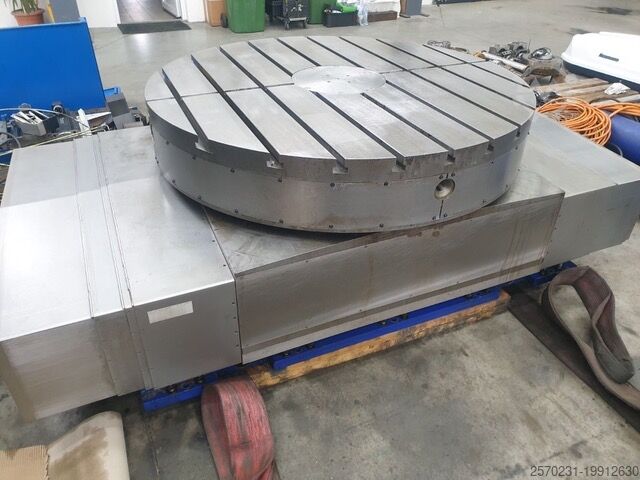

Condition: excellent (used), Year of construction: 2005, table load: 15,000 kg, rotary table diameter: 1,600 mm, Specification Dimension of bed – width 1170 mm height 290 mm length 2000 mm Dimension of slide - width x length (with no extensions) 1340 x 1300 mm height over the sliding surface 320 mm Length of travel along the „W“ axis 500 mm Rotary table surface clamping dimensions Ø 1500 mm Centering hole 100 H7 mm Height of the rotary table from the sliding surface 590 mm Number of clamping slots 9 Size of clamping T-slots. 22H7 Spacing of the T-slots 160 mm Speed of rotation smoothly controllable within the limits 1 ÷720 °/min Maximum centric load on the rotary table due to the workpiece mass 15000 kg Maximum eccentric load on the rotary table due to the workpiece weight (up to 750 mm distance of the workpiece center of gravity from the rotary table axis) 5000 kg Maximum rotary table bearing capacity – centre of gravity from table axis 500 mm Maximum torque on rotation 15000 Nm Maximum torque on stiffening 10000 Nm Fedpfx Aaow Uz S Aj Njgi Maximum tilting moment to a plane perpendicular to clamping surface 15000 Nm Total time required for the table turning cycle through 360° 30 sec Working feed along the W-axis 1÷5000 mm.min-1 Fast feed along the W-axis 5000 mm.min-1 Oil working pressure (table stiffening) 5 MPa (drive pre-stressing) - MPa Table positioning accuracy Rotation Bilateral accuracy of the A-position setting by the ISO 230-2 16 µm Unilateral repeatability of the R-position setting by the ISO 230-2 8 µm Linear axis Bilateral accuracy of the A-position setting by the ISO 230-2 0,02 µm Unilateral repeatability of the R-position setting by the ISO 230-2 0,01 µm Table turning part peripheral accuracy ±0,01 mm
