Crane

STAHL SWL 75

Technical details:

lifting capacity: 75 t
track width center: 2400 mm
length in width: 2570 mm
weight: ca. 7,3 to pro Hubwerk t

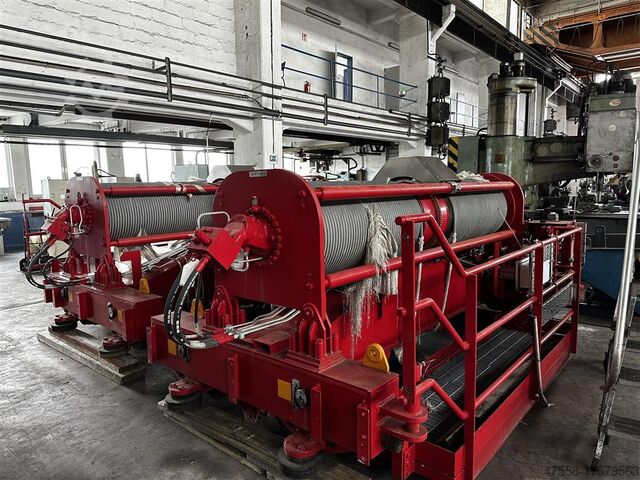

4 trolley hoists / wire rope hoists / lifting units, each rated at 75 t, walkable access platform, external control (price per piece)

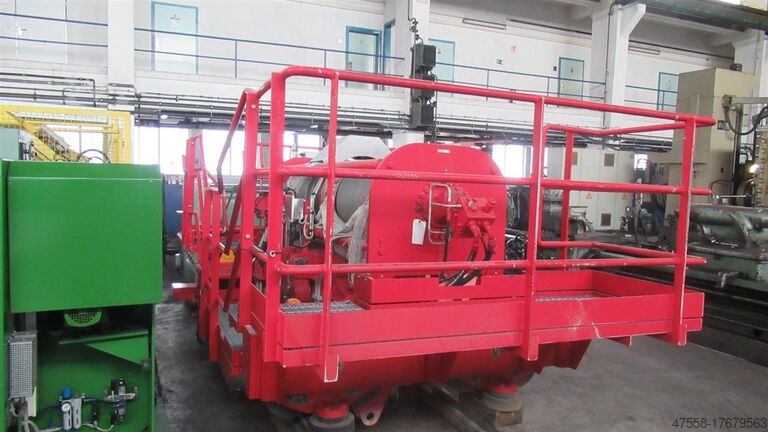

No. 2: TAG No. 10-MX0214 (with 3 walkways and handrail)
Dimensions: L 4.5 m × W 2.3 m × H 1.7 m
No. 1: TAG No. 10-MX0215 (with 1 walkway and handrail)
Dimensions: L 4.5 m × W 1.2 m × H 1.7 m
No. 3: TAG No. 10-DV0324B (with 1 walkway and handrail)
Dimensions: L 4.5 m × W 1.2 m × H 1.7 m
No. 4: No TAG number available (without crane hook)
Fedpju Nvhnofx Accegc

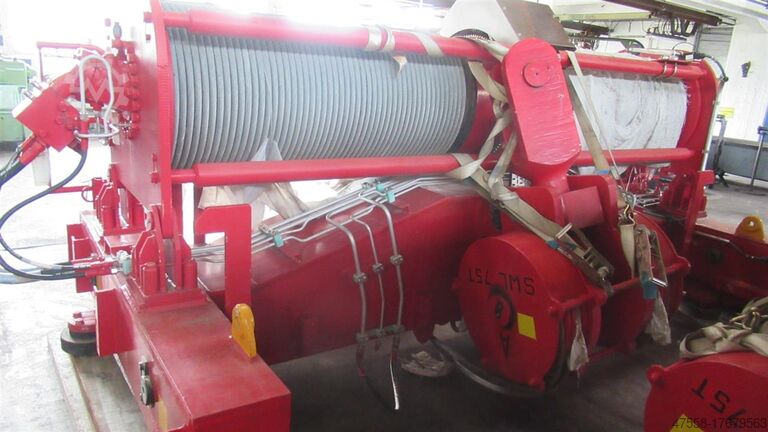

Hoists

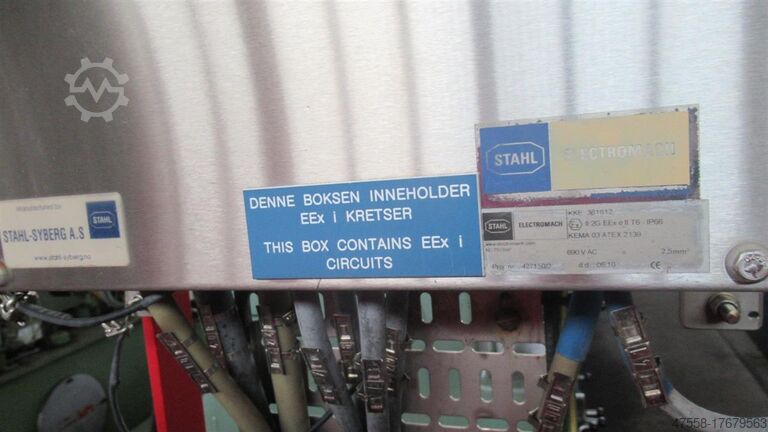

·Hydraulic drive (Ex-proof)
·Rope blocks with 8 falls/parts of line for 28 m lifting height, without load hook
·Load hook rope: 2 × double rope, Ø 22 mm
·Hook pin diameter: Ø 90 mm
·One hoist is supplied without a crane hook

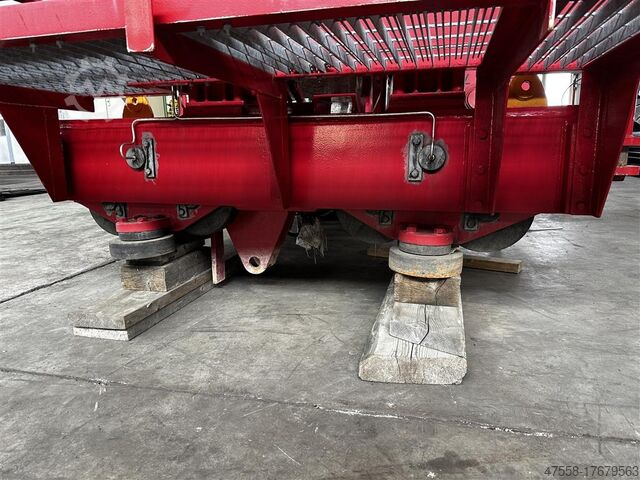

Traveling Gear
·2 × double-wheel assemblies on each side, wheel size Ø 280 × 80 mm
·Axle spacing: 350 mm
·Track gauge: 2,400 mm
·Center distance: 1,100 mm
·4 × pairs of support wheels, Ø 233 × 58 mm
·Axle spacing: 3,500 mm


*
