Swiss-type cnc lathe

STAR SB20R type G

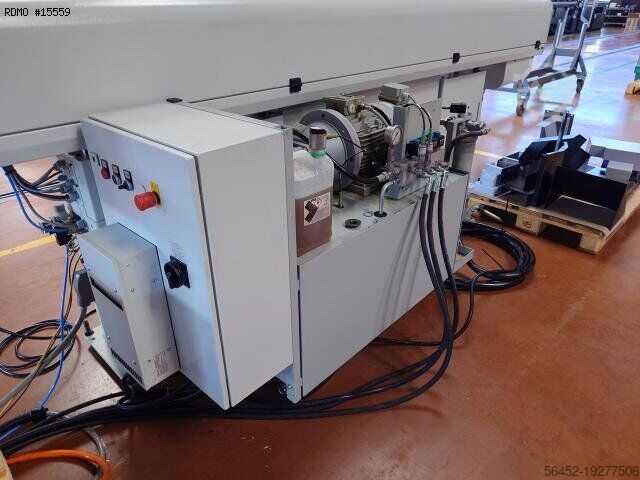

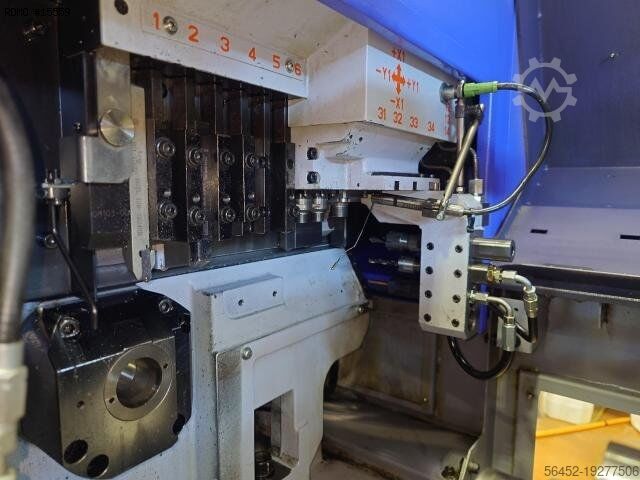

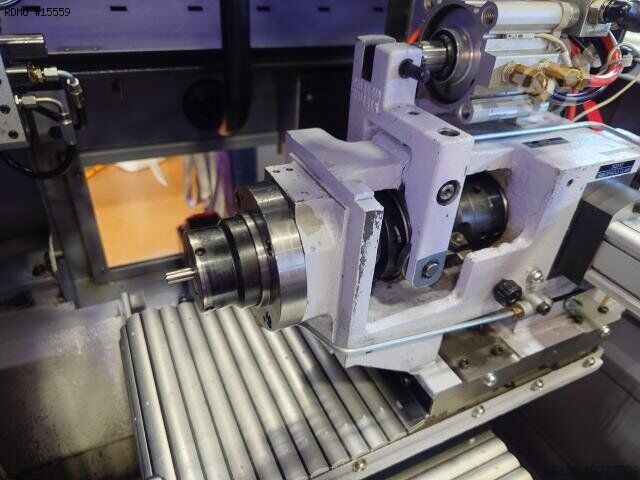

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 Crsdoxfwh Topfx Agmoh MAIN SPINDLE - Max. bar diameter : 20 [mm] - Z stroke : 205 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 2.2/3.7 [kW] - C axis indexing precision : 0.0001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 9000 [rpm] - Spindle power : 0.55/1.1 [kW] - C axis indexing precision : 0.0001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] - Live tools power : 0.75 [kW] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 3.7 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.070 x 1.177 [mm] - Machine height : 1.760 [mm] - Machine weight : 1750 [kg] MACHINE HOURS - Number of hours under power : 12642 [h] - Number of working hours : 10972 [h] EQUIPMENT - CNC : Fanuc series Oi-TF - 3 colors status lamp - Rotating guide bush - Parts catcher - Parts conveying strip - Chips conveyor - Coolant tank - Bar loader : FMB TURBO 2-20 / 3200 A - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

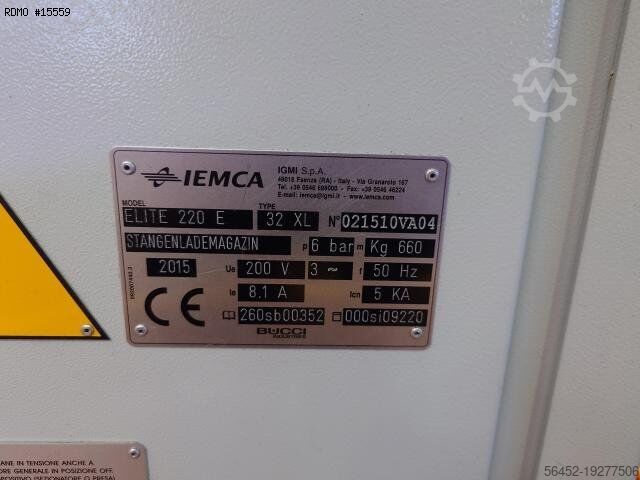

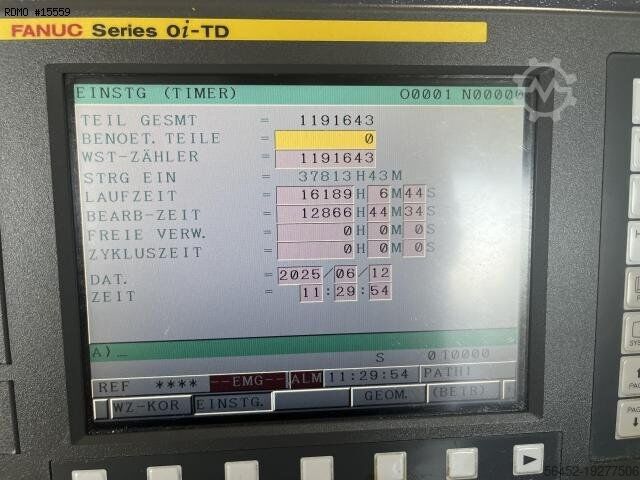

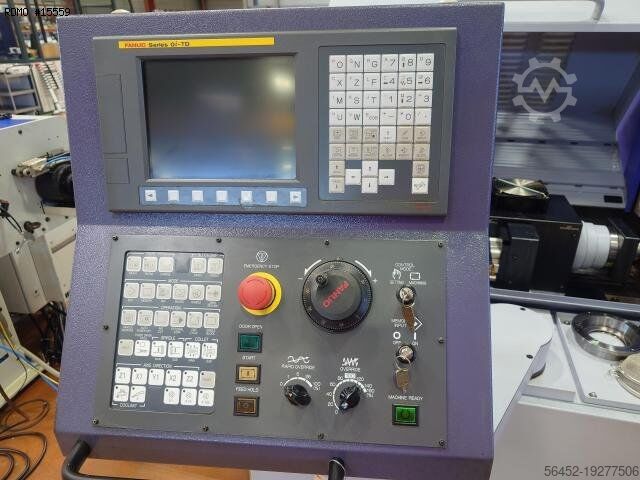

Condition: excellent (used), Year of construction: 2015, Tailstock stroke: 205 mm Spindle stroke (without bushing): 50 mm No. 6 turning tool holders on main spindle, 12 x 12 mm square No. 3 motorized radial tool holders ER 11 (main spindle) No. 4 positions for fixed drill holders (spindle – sub spindle) No. 4 rear motorized positions ER 16 Crjdpfx Agexbyy Dsmjh CNC Fanuc Oì TD Main spindle and sub spindle with C axis Chip conveyor High-pressure pump Spring ejector on sub spindle IEMCA Boss 338 HD bar feeder

Condition: ready for operation (used), Year of construction: 2018, Max. clamping diameter: 20mm, max. workpiece length: 205mm (GB type), 45mm (NGB type), sub-spindle diameter: 20mm, sub-spindle bore: 21mm, max. sub-spindle speed: 9000/min, main spindle motor power: 2.2kW (continuous)/3.7kW (10min / 25% DC), sub-spindle motor power: 0.55kW (continuous)/1.1kW (15min / 40% DC), driven tool capacity: max. 6000/min, tool motor power: 1kW (continuous)/1.2kW (5min / 30% DC), control: Fanuc 0i-TD, connected load: 3.74kVA, noise level: 74dB(A), length: 2070mm, width: 1177mm, height: 1760mm, weight: 1700kg. With bar feeder for bars max. 3200mm and automatic bar loading magazine for bar diameter: 2-20mm. An on-site inspection is possible. Cjdpfow U T Trsx Agmjrh

Condition: ready for operation (used), Year of construction: 2020, General Data Measurements width 1177 mm Measurements depth 2070 mm Measurements height 1760 mm Machine weight 1750 kg Cjdpfx Aewvmtpegmorh Control Unit Brand FANUC Model 0i-TF Plus Main Drive Spindle speed range 10000 rpm Spindle motor power 2.2 kW / 3.7 kW Number of axis 7 Turret Number of turrets 2 Media Power consumption 3.7 kVA Additional Equipment Units Available: 3 This 7-axis Star SB-20R type G was manufactured in 2020, featuring a Fanuc Oi-TF Plus CNC control and a rapid traverse speed of 35 m/min. It has a coolant tank capacity of 180 liters and can handle a maximum machining diameter of 20 mm. Ideal for precision turning, this machine weighs 1750 kg and has dimensions of 2070 × 1177 × 1760 mm. Consider the opportunity to buy this Star SB-20R type G swiss type turning machine. Contact us for more information. Application Types Turning
