Turning automatic lathe

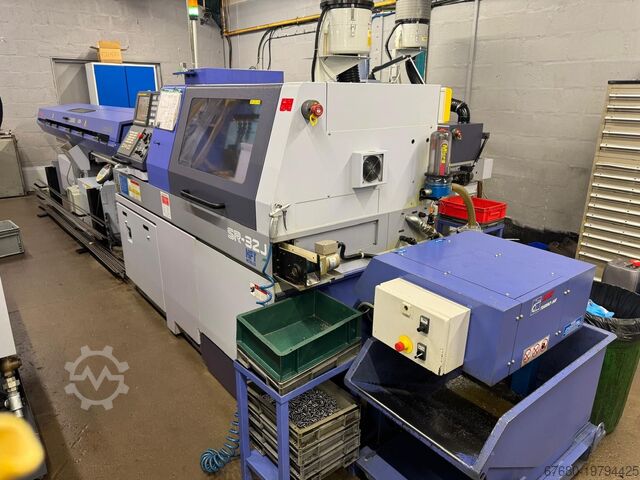

Star SR-32J

Condition: used, Year of construction: 2015, Star SR-32J Type N Swiss Type Automatic Lathe. Serial No. 3098 (2015), FMB Turbo 3-36 Bar Loader – Serial No. 55-262949 R 1307678, Absolent Amist10 Filtration Unit, Serial No. 11001282, GP20-2000-6 High Pressure Unit, Serial No. 627, LNS Turbo MH500 Swarf Conveyor, Serial No. 14570000256, Machine Manuals, Firetrace Automatic Fire Suppression System, Bar Loader channel – 36mm, Tooling Holders, etc included: Main Spindle 301-24 3-off Drill Sleeves ER16 671-21 1-off Drill Sleeve ER20 331-50 2-off Cross Driven Tools ER16 (cartridge type) 671-57 3-off Cross Driven Tools ER16 (fixed) 673-53 Main Spindle Collet sleeve MR32 (F37/740) Sub Spindle 571-61 2-off Mill/Drill Driven Tools ER16 Itedsxug E Hopfx Ad Dop 671-22 4-off Drill Sleeves ER20 673-73 Sub Spindle Collet Sleeve MR32 (F37/740) L14.022.025 Graf D Style Turning Holder R16.022.025 Graf Screw cutting Holder

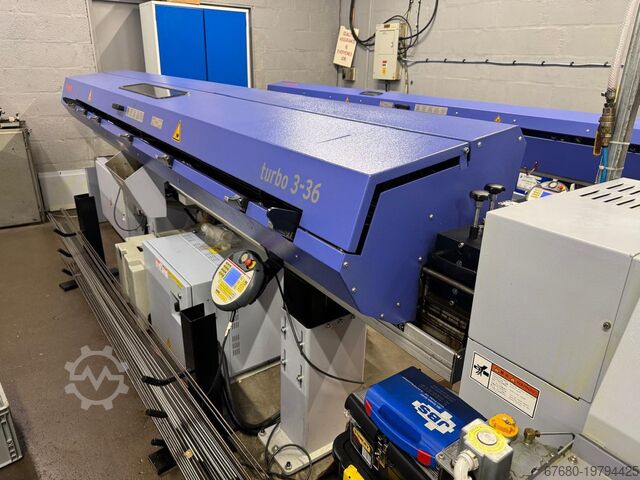

Condition: ready for operation (used), Year of construction: 2007, General Data Measurements width 1275 mm Measurements depth 2711 mm Measurements height 1705mm Main Drive Spindle speed range 7000 Spindle motor power 5.5kw Stroke 310 mm Number of axis 3 Movement X-Axis Rapid Traverse 24m/min Y-Axis Rapid Traverse 24m/min Z-Axis Rapid Traverse 24m/min Additional Equipment With FMB bar loader The Star SR32J is sold together with an FMB trubo 3-36 stage loader. Itedpfsxd H U Hjx Ad Djp The bar loader was built in 2008, and the machine itself is from 2007. The machine features a JBS guide bushing system for increased precision thanks to flexible guide bushings. It also features a Star ER 16/ER11 front-end drilling unit with three spindles for front and rear machining. This 3-axis Star SR-32J swiss type turning machine was manufactured in 2007. It features a FANUC control system, FMB bar loader, and a maximum machining diameter of 32mm. The machine offers a rapid feed rate of 24m/min and a main spindle speed up to 7,000min. Ideal for high precision turning, it includes a coolant tank capacity of 174 liters. Contact us for more information about this machine. Application Types Turning

Condition: good (used), Year of construction: 2007, Control: FANUC 18i-TB Max. bar diameter: 32 mm Max. spindle head stroke: 310 mm Itodpsxcx D Defx Ad Dop Spindle speed: 350 - 7,000 rpm Max. bar diameter on sub-spindle: 32 mm Max. sub-spindle speed: 350 - 7,000 rpm Number of usable tools: 21 Turning tools in multi-tool holder: 6 Driven tools for cross machining: 3 Front drilling tools: 4 Rear drilling tools: 4 Back machining: 4 Driven tool speed: 5,000 rpm Bar feeder: FMB turbo 3-36

Condition: used, Year of construction: 2007, functionality: fully functional, machine/vehicle number: 0506, Control: FANUC 18i-TB Max. bar diameter: 32 mm Max. spindle head stroke: 310 mm Spindle speed: 350 - 7,000 rpm Max. bar diameter on sub-spindle: 32 mm Max. sub-spindle speed: 350 - 7,000 rpm Number of usable tools: 21 Iedpfx Asxgnvdjd Djtp Turning tools in multi-tool holder: 6 Driven tools for cross machining: 3 Front drilling tools: 4 Rear drilling tools: 4 Back machining: 4 Driven tool speed: 5,000 rpm Bar feeder: FMB turbo 3-36

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 32 [mm] - Travel : 310 [mm] - Spindle speeds : 7.000 [rpm] - Spindle power : 7,5 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 32 [mm] - Spindle speeds : 7.000 [rpm] - Spindle power : 3,7 [kW] - C axis indexing precision : 0,001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 11 - Number of motorized positions : 5 - Live tools speed : 5.000 [rpm] - Live tools power : 1,2 [kW] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 POWER SUPPLY Iedpfeuhazajx Ad Detp - Supply voltage : 200 [V] - Total installed power : 6,2 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.711 x 1.275 [mm] - Machine height : 1.705 [mm] - Machine weight : 3.100 [kg] MACHINE HOURS - Number of working hours : 35.367 [h] EQUIPMENT - CNC : Fanuc 18i-TB - 3 colors status lamp - Coolant tank * with high-pressure pump - Bar loader : FMB Turbo 3-36/3200/A (2008)) - Ejection of workpiece - Parts catcher - Parts conveying strip - Chips conveyor - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, Machine equipped with Nakanishi tools for the dental sector that has always operated in oil – fire prevention system – Iemca Boss 338HD/32, new in 2015 – well tooled – Fanuc 32i-B Control. Isdpfx Adsw Ibpnj Detp
