Steinel BZ 20

Steinel BZ 20

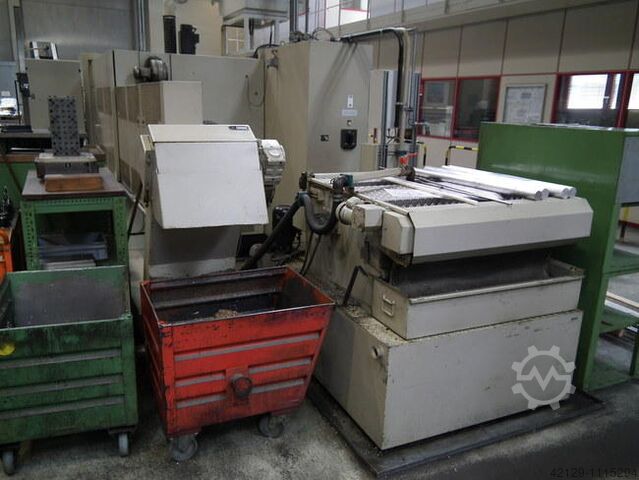

Condition: used, Year of construction: 1985, x-travel 560 mm y-travel 450 mm z-travel 450 mm rotary table dia. 270 mm rotary table tiltable 0 - 24 ° spindle taper ISO 30 spindle turning speed range 31,5 - 7100 U/min feed speeds 1 - 10.000 mm/min control SINUMERIK System 8 no. of tools in magazin 40 workpiece length 255 mm weight of tools max. 6 kg total power requirement 32 kW weight of the machine ca. 11,6 t Isvnzeq = 5 axis machining centre Accessories: various tool fixtures, coolant

Year of construction: 1990, Condition: used, Horizontal machining center with pallet changer STEINEL type BZ 24 FFZ with CNC control SIEMENS Sinumerik 850 M make no. 77 year of construction 1990 travel X: 630 mm, Y: 500 mm, Z: 500 mm table size per pallet 400 x 400 mm pallet rotation B-axis spindle speed max. 7100 rpm infinitely variable tool holder ISO 40 Mains connection 380 Volt, 50 Hz, 80 Amp. - tool changer with 60 tool places and double arm gripper - Pallet changer with 4 pallets - Horizontal pallet position for machining, axis movement = X-axis - Pallet rotation = B axis - spindle ram as Z-axis - spindle ram with transverse movement as Y-axis - KSS spraying nozzles at the spindle ram and in the working area - Coolant device with chip conveyor under the working area - CNC control SIEMENS Sinumerik 850 M - Interface for data transfer space requirement L x W x H 9000 x 3100 x 3200 mm Weight 13,5 ton. Transport dimensions on truck: Wxyso Machine with tool magazine L x W x H 9000 x 3000 x 3000 mm Chip conveyor L x W x H 4700 x 1000 x 1450 mm Container loading into a 40" OT HC is possible. good condition

Year of construction: 1990, Condition: used, Horizontal machining center with pallet changer STEINEL type BZ 24 FFZ with CNC control SIEMENS Sinumerik 850 M make no. 58 year of construction 1990 travel X: 630 mm, Y: 500 mm, Z: 500 mm table size per pallet 400 x 400 mm pallet rotation B-axis spindle speed max. 7100 rpm infinitely variable tool holder ISO 40 Mains connection 380 Volt, 50 Hz, 80 Amp. - tool changer with 60 tool places and double arm gripper - Pallet changer with 4 pallets - Horizontal pallet position for machining, axis movement = X-axis - Pallet rotation = B axis - spindle ram as Z-axis - spindle ram with transverse movement as Y-axis - KSS spraying nozzles at the spindle ram and in the working area - Coolant device with chip conveyor under the working area - CNC control SIEMENS Sinumerik 850 M with TFT monitor - Interface for data transfer space requirement L x W x H 9000 x 3100 x 3200 mm weight 13,5 ton. good condition transport dimensions: Machine with tool magazine L x W x H 9000 x 3000 x 3000 mm chip conveyor L x W x H 4700 x 1000 x 1450 mm 2Rbs0E

Year of construction: 1982, Condition: ready for operation (used), Two Steinel BZ20 milling machines are available. Travel X/Y/Z: 560mm/450mm/450mm, speed: 7000rpm, feed: 10000mm/min, tool holder: ISO30, tool positions: 40, rotary table diameter: 270mm, rotary table swivel range: 0°-24°, max. workpiece weight: 6kg. Control: Siemens System 8, weight: approx. 12000kg. Spare parts carrier. Sevxvqix27

Color: other, Year of construction: 2018, Operating hours: 216 h, Condition: used, Field of application: Construction Drive: Wheel Lifting capacity: 230 kg Working height: 2.020 cm Dpjvrz General condition: very good Technical condition: very good Visual appearance: very good Delivery terms: EXW Please contact Sales Department Collé Sittard for more information

Condition: excellent (used), Pull down jaws (28370) Bb9Dipz Make Hilma type BZT 160 3722-04 well suited for bright drawn material weight 3,5 kg

Condition: used, Year of construction: 2001, x-travel 4200 mm y-travel 2750 mm z-travel 1650 mm Control Fidia C20 total power requirement / kW weight of the machine ca. 40 t required space L9,5 x B5,9 x H6,4 m Handtmann NT 300 / 220 T: - Year of construction: 2001 - Traverse paths: X - axis approx. 4,200mm, Y - axis approx. 2,750mm, Z - axis approx. 1,650mm, °C axis approx. +/-275° and A axis +95° / -120° - Fixture space: approx. 3,000mm x approx.2,200mm x approx.980mm - Table size: 3,000mm x 2,200mm with T-slots in a 150mm grid - Table load: 1,000kg / m² table surface - Working and rapid traverse speed: max. 20m/min - Controller: Fidia C20 - Spindle: HSK 63 from Fischer (Switzerland), 24,000 rpm (grease lubricated) - Spindle hours: 6,939 hours (as of 05/16/22) - Total hours: 76,793 hours (as of 05/16/22) - Tool changer: 2 tool magazines with 30 tool places each, max. - - Tool weight 4kg, max. tool diameter 80mm or Ø125mm if no two sister tool places, max. tool length 280mm cover plate pneumatic - Cooling: tool spray device with a container of 19.5 l, spray head with adjustable output 0.04 - max. 2.3l/h - Tool control: Blum Laser - Wireless probe: Manufacturer M&H, type 25.10, year of construction 2021 - Exchange ball screw X - axis 10.07.2018 Cp7Tk23Dwc - Telescope cover 26.02.2019 exchanged on one side Machine dimensions: Length approx. 9,500mm (without housing) Width approx. 5,900mm Height approx. 6,400mm (Z axis extended) Weight: approx. 40,000kg

Axe configuration: 3 axles, Wheelbase: 9,810 mm, Loading space length: 13,400 mm, Loading space width: 2,500 mm, Loading space height: 2,600 mm, First registration: 07/2006, Suspension: air, Color: other, Year of construction: 2006, Condition: used, Equipment: Abs, Axle configuration Make axles: BPW Brakes: drum brakes Suspension: air suspension Rear axle 1: Lift axle; Max. axle load: 9000 kg Rear axle 2: Max. axle load: 9000 kg Rear axle 3: Max. axle load: 9000 kg E2Oxy2Y Measures Dimensions (LxW): 1400 x 260 cm Weights Empty weight: 10.520 kg Carrying capacity: 34.480 kg GVW: 45.000 kg Functional Make of bodywork: Carrier Maxima 1200 Cooling engine: diesel and electric Condition General condition: good Technical condition: good Visual appearance: good Damages: none Identification Registration number: OJ-62-KF Other information Cargo space outer length: cm Cargo space outer width: cm Cargo space outer height: cm Additional information Please contact Cees, Pedro or Arie for more information

Condition: ready for operation (used), Year of construction: 1987, Machine/vehicle number: 40353, Travel distance X-axis: 2,000 mm, Travel distance Y-axis: 560 mm, Travel distance Z-axis: 500 mm, Spindle speed (max.): 6,000 rpm, Tool mount: 40 mm, Power: 30 kW (40.79 HP), Year of construction: 1987 SK 40 receiver Magazine spaces: 36 Working area XYZ (mm): 2,000 / 560 / 500 Cofz90Gipa Machine currently still in use. Available from October 2024.

Year of construction: 1988, Condition: excellent (used), New entry hydraulic surface grinding machine Z&B Ziersch FS 2045 T Bj.88 grinding area 500 x 200 mm - vertical dividing gear - my-Tipp- feed - electronic handwheel - autom. feed - digitalaz. automatic cross feed, continuous and intermittent, micro-fine adjustment cross - magnetic plate with demagnetization Sqkj2 hydr. overhead puller - adjustable feet - machine checked through - all functions there - runs very nice ! Pricing; ex stock - subject to prior sale and error.

Year of construction: 2024, Condition: new, For dispensing double-sided adhesive tape and tear tape. However, this series is also designed for processing corrugated board. Due to the automatic non-stop feeder also larger quantities can be processed. Most paper tapes, plastic tapes, foamed tapes or reinforced tapes up to a thickness of approx. 3mm can be dispensed with the RAP applicator. The RAP applicators are available in three working widths up to approx. 100 mm tape width. In addition to solid board and cardboard, Athos machines can process a wide range of materials up to a thickness of approx. 10 mm. Also wood, metal, plastic and much more. Qbyup7K7 With the RAP Mag, an applicator for magnetic tapes is also available. You are welcome to send us samples and we will clarify the suitable machine configuration with APR Solutions. For special shapes and applications, there is the Athos Industrial model series. There are different models of these machines. Please contact us which one is the right one for you.

Year of construction: 1990, Condition: good (used), Functionality: fully functional, Machine/vehicle number: 41290, The machine is ready for operation and can be tested. TECHNICAL DETAILS travel X x X x Z: 2000 x 560 x 500 mm 8Serzhax9F Swivel head: horizontal / vertical rotary table with Hirth toothing: 1° tool changer: with 50 places tool holder: SK40 Control: Heller NC 80 C

Year of construction: 1988, Condition: used, Horizontal machining center with 2-fold shuttle table STEINEL type BFZ 5 with CNC control SIEMENS Sinumerik 810 M serial no. 34 year of construction 1988 Travel X: 500 mm, Y: 400 mm, Z: 320 mm Clamping surface, table surface 500 x 400 mm Tool holder ISO 40 Spindle speed max. 6300 rpm infinitely variable Main spindle drive 12 kW Mains connection 380 Volt, 50 Hz, 30 kVA Uwul8Gz0Mh - Tool changer with 24 tool positions - Changing table with 2 stations - Interface for data transfer - Coolant unit with chip conveyor Space requirement L x W x H 4100 x 2500 x 2650 mm Weight approx. 8 tons good condition Transport dimensions: Machine L x W x H 3200 x 2500 x 2650 mm, approx. 7.5 tons. Chip conveyor L x W x H 3500 x 1100 x 2100 mm, approx. 600 kg

Condition: used, Year of construction: 2010, 3500 kVA cast resin transformer, SGB, 2010, 20 kV +-2x2.5% / 0.69 kV, Dyn5 Ccnnrcdz

Condition: refurbished (used), Year of construction: 2018, Functionality: fully functional, Load capacity: 20 kg, Arm reach: 1,810 mm, Controller manufacturer: Kuka, Controller model: KRC-4, Equipment: Documentation/Manual, Kuka KR 20 R1810 industrial robot D7V8Qto - refurbished and completely tested industrial robot - we can offer you a 6 month component guarantee separately - building year 2018 - control system Kuka KRC 4 - payload 20 kg - working range 1810 mm - complete with cable set and teach panel - good condition - test under power is possible - if you need more robots or other models, please contact us. - we always have many robots in stock We can offer you the complete installation of the robot into your production. Please contact us if you need more or other robots. We always have many robots of different manufacturers in our stock. We can teach your staff to program robots from Kuka, ABB or Fanuc.

Year of construction: 2024, Condition: new, Functionality: fully functional, The universal laser marking system LAS 28 from Systemtechnik Hölzer GmbH can be used for a very wide range of marking applications. With the integrated fiber laser you can mark almost all materials such as steel, carbide, aluminum and plastics. Depending on the requirements, the system can be equipped with a 20, 30 or 50 watt fiber laser. For permanent marking, the use of the laser is necessary in many industries. With the powerful laser software, texts, numbers, 2D codes, QR codes and logos can be realized with just a few clicks without extensive programming knowledge. Serial and article numbers are automatically incremented by the software after prior setting. In addition, the software can read data (variable information such as drawing numbers, project designations, etc.) from existing tables and automatically transfer them to predefined areas. The use of a hand scanner is also possible. The standard equipment includes a laptop incl. holder with Windows operating system. Optionally, the laser model LAS 28 can be equipped with a rotary axis (3-jaw chuck) for marking cylindrical parts. Further options, such as lateral cantilevers for marking long parts, can be realized. Made in Germany Bmrczc0Vfy - Fiber laser 20W (Optional: 30W, 50W) - Wavelength 1064nm - marking field size 150x150mm (optional: 200x200) - optional: rotary axis (3-jaw chuck) - optional: digital height measuring system - optional: exhaust system (incl. activated carbon filter) - optional: autofocus function for automatic determination of the focus distance - marking software EZCAD - Pilot laser (simple preview, clear text preview) - focus finder (easy focus adjustment) - max. part height approx. 240mm - electrically adjustable Z-axis (adjustment of working plane) - frame made of aluminum profile - connection 230V - air cooled - Laptop with operating system Windows - dimensions: 800x 600 x 1660mm (LxWxH) - Weight: approx. 80 Kg

Condition: as good as new (ex-display), Functionality: fully functional, Year of construction: 2024, Forklift battery with 1 year warranty 24V 3PZS 375AH SPECIAL TROUGH REMA 160 A plug installed - alternative plugs can be converted by arrangement incl. Aquamatik for automatic filling of the cells with distilled water Year of delivery 2024 Dimensions: 790 x 210 x 630 mm Weight: approx. 298 kg Capacity: min. 90-100% (C5 protocol is enclosed with delivery) Suitable for the following models: Linde L 20 - 4525-00 Linde L 20 - 4525-00 - lateral exchange Still CN 14 Still EGV 14 Still EGV 20 Still EGV-S 14 Urhryavdmt Hyster 1.0 Komatsu MWS14-1R OM-Pimespo-Fiat CN 20 and others. Please enquire about other battery sizes.

Condition: used, Used guillotine shears for sale -Manufacturer: Voest Alpin -Type: BTHS 6x3150 -Drive: Hydraulic -Manual cutting gap adjustment -Useful length approx. 3150mm, max. 6mm -Electric backgauge with position indicator -Length approx. 4m, width approx. 2m, height approx. 1.8m -Weight approx. 8000kg Forklift available for loading. Shipping on request You will receive an invoice without VAT. The differential taxation according to § 25 UstG applies to the sale, no sales tax will be charged. Upd0Saqdfn All information in the advertisements is non-binding to the best of our knowledge and without guarantee. Errors, misprints and prior sale expressly reserved! The specified performance data are manufacturer's specifications, these may vary due to age-related wear!

Condition: used, Year of construction: 2004, Frequency: 50 Hz, Secondary voltage: 410 V, Primary voltage: 20,500 V, For sale ABB 500kVA transformer. Vector group Dyn11 - voltages 20,5/0,41kV. 30kVA-3500kVA transformers in stock - available immediately. For more informations please contact us (email, whatsapp, phone). Uj2O2Sq3Ft

Condition: used, Year of construction: 2009, Functionality: fully functional, 3150 kVA cast resin transformer, 15-20 kV +- 2x2.5 % / 660 V, Dyn5, SGB, year of manufacture 2009, dimensional drawing, test report Rvbs3S9Nrt

Year of construction: 2024, Condition: new, Functionality: fully functional, The universal laser marking system LAS 28 from Systemtechnik Hölzer GmbH can be used for a very wide range of marking applications. With the integrated fiber laser you can mark almost all materials such as steel, carbide, aluminum and plastics. Depending on the requirements, the system can be equipped with a 20, 30 or 50 watt fiber laser. For permanent marking, the use of the laser is necessary in many industries. With the powerful laser software, texts, numbers, 2D codes, QR codes and logos can be realized with just a few clicks without extensive programming knowledge. Serial and article numbers are automatically incremented by the software after prior setting. In addition, the software can read data (variable information such as drawing numbers, project designations, etc.) from existing tables and automatically transfer them to predefined areas. The use of a hand scanner is also possible. The standard equipment includes a laptop incl. holder with Windows operating system. Optionally, the laser model LAS 28 can be equipped with a rotary axis (3-jaw chuck) for marking cylindrical parts. Further options, such as lateral extensions for marking long parts, can be realized. Made in Germany Bhd8B72Edld - Fiber laser 20W (Optional: 30W, 50W) - Wavelength 1064nm - marking field size 150x150mm (optional: 200x200) - optional: rotary axis (3-jaw chuck) - optional: digital height measuring system - optional: exhaust system (incl. activated carbon filter) - signal light for indication of operating status - marking software EZCAD (optional additional laser software) - Pilot laser (simple preview, contour preview) - focus finder (simple focus adjustment) - max. part height approx. 270mm - electrically adjustable Z-axis (adjustment of working plane) - frame made of aluminum profile - connection 230V - air cooled - Laptop with Windows operating system - dimensions: 800x 600 x 1660mm (LxWxH) - weight: approx. 80 Kg

Condition: as good as new (ex-display), Functionality: fully functional, Year of construction: 2024, Forklift battery with 1-year warranty 48V 5PZS 930AH REMA 320 A plug installed - alternative plugs can be converted by arrangement incl. Aquamatik for automatic filling of the cells with distilled water Year of delivery: 2024 Dimensions: 1,220 x 500 x 770 mm Weight: approx. 1,300 kg Capacity: min. 90-100 (C5 protocol is enclosed with delivery) Suitable for the following models and others: Linde A (1250) - 5022-00 Linde A - 5224-00 Linde R 16 - 1120-00 Linde R 16 - 1120-00 - frontal change Gxcdhfi Linde R 16 HD - 1120-00 Linde R 16 HD - 1120-00 - frontal exchange Linde R 20 - 1120-00 Linde R 20 - 1120-00 - frontal change Linde R 20 - 1122-00 Linde R 20 F - 8923-00 Linde R 20 F - 8923-00 - side change Linde R 20 G - 1120-00 Linde R 20 G - 1120-00 - frontal change Linde R 20 HD - 1120-00 Linde R 20 HD - 1120-00 - frontal change Linde R 20 W - 1120-00 Linde R 20 W - 1120-00 - frontal changeover Linde R 25 - 1120-00 Linde R 25 - 1120-00 - frontal exchange Linde R 25 F - 8922-00 Linde R 25 F - 8922-00 - side change Linde R 25 F - 8922-00 - vertical changeover Linde R 25 F - 8923-00 - lateral change Linde R 25 F - 8923-00 - vertical changeover Linde R 25 W - 1120-00 Linde R 25 W - 1120-00 - frontal changeover Style FM 20 Still FM-X 20 Still FM-X 25 Jungheinrich ETV 214 Jungheinrich ETV 320 Jungheinrich ETV 325 Jungheinrich ETV 460 Toyota/BT VR 1.25 Toyota/BT VRE 150 Crown ESR 4000-1.6 Crown ESR 4500-1.6 Crown ESR 4500-2.0 Crown ESR 5000 Crown ESR 5000 S Crown ESR 5260 Crown ESR 5280S-2.0 Atlet REACH TRUCK Atlet UHX 200 Caterpillar NR2042H Caterpillar NR20NH Caterpillar NR25N2X Hyster R2.0H Hyster R2.0HD Hyster R200HD Mitsubishi RB14-25 Mitsubishi RB20NH Yale MR 25 All common battery sizes available

Condition: used, Year of construction: 2018, Secondary voltage: 400 V, Primary voltage: 20,000 V, 2000 kVA cast resin transformer, eco-design Tier 1, IP00, , 20 kV / 400 V, Dyn5, uk 6.5 %, PTC thermistor, rollers, dimension drawing, test report available Bkmjhiygmbe

Condition: as good as new (ex-display), Functionality: fully functional, Year of construction: 2024, Forklift battery with 1-year warranty 48V 4PZS 500AH REMA 320 A plug installed - alternative plugs can be converted by arrangement incl. Aquamatik for automatic filling of the cells with distilled water Year of delivery 2024 (battery is approx. 1-2 years old) Dimensions: 827 x 519 x 625 mm Weight: approx. 730 kg Capacity: 90% (C5 protocol is enclosed with delivery) Suitable for the following industrial trucks and others: Linde E 12 - 386-00 Linde E 14 - 335-00 Linde E 14 - 386-00 Linde E 14 - 386-02 - lateral change Linde E 15 S - 335-00 Linde E 16 - 386-00 Linde E 16 C - 386-00 Linde E 16 C - 386-02 - lateral change Linde E 16 L - 335-00 Linde E 18 - 386-02 - lateral change Linde E 18 C - 335-00 Linde E 20 L - 386-00 Linde T 30 R - 143-00 Still FU-X 20 Still R 20-14 Jungheinrich EFG series Jungheinrich EFG 110 K Jungheinrich EFG 213 Jungheinrich EFG 215 Jungheinrich EFG 216 K Jungheinrich EFG 312 Jungheinrich EFG DF 16 Jungheinrich EFG W 1 Jungheinrich EKE 20 Toyota 7FBEST10 Toyota 8FBE15T Toyota 8FBKT16 Toyota 8FBMT15 Toyota/BT C3E120 Toyota/BT CBE 1.2 Toyota/BT CBE 1.5 Toyota/BT SSE 135 Crown 3 Crown RT 3000 Crown SC 1016 Crown SC 1018 Crown SC 3210 Crown S6 5320 - 1 Osdkojw2Ed Crown SCT 6020 Balkancar EV698 Caterpillar EP13PNT Caterpillar EP15PNT Cesab 5 Cesab B315 Cesab B315A Cesab CBE1 Clark GEX16 Clark SC5310-1.3 Clark TM 16N Hyster J1.5XNT SW Komatsu FB15M Mitsubishi FB13PNT Mitsubishi FB15PN Mitsubishi FB15PNT OM-Pimespo-Fiat XE 15 OM-Pimespo-Fiat XE 18 Yale ERP 15 VT Yale ERP 16 VT

Condition: as good as new (ex-display), Functionality: fully functional, Year of construction: 2024, Forklift battery with 1 year warranty 48V 5PZS 625AH - DIN B REMA 320 A plug installed - alternative plugs can be converted by arrangement incl. Aquamatik for automatic filling of the cells with distilled water Year of delivery 2024 Dimensions: 1,025 x 525 x 630 mm Weight: approx. 870 kg Capacity: min. 90-100% (C5 protocol is enclosed with delivery) Suitable for the following models and more: Still FM 20 Still R 20-15 Still RX 20-14 Still RX 20-15 Still RX 20-16 Still RX 20-18 Still RX 20-20 C93Bn8Y Still RX 20-20 P Jungheinrich EFG Heli CPD 18 Mitsubishi FB18KT Utilev UT20PFH and others, please inquire. All common battery sizes available
