Pallet manufacturing machine

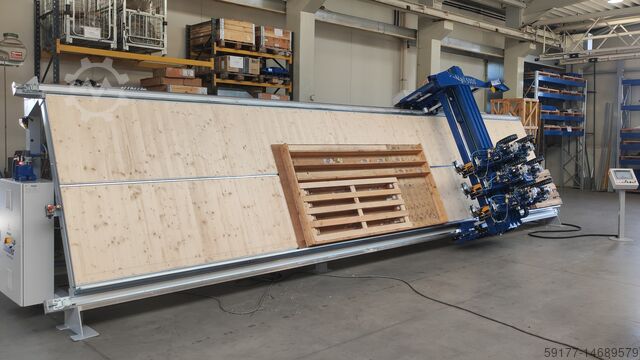

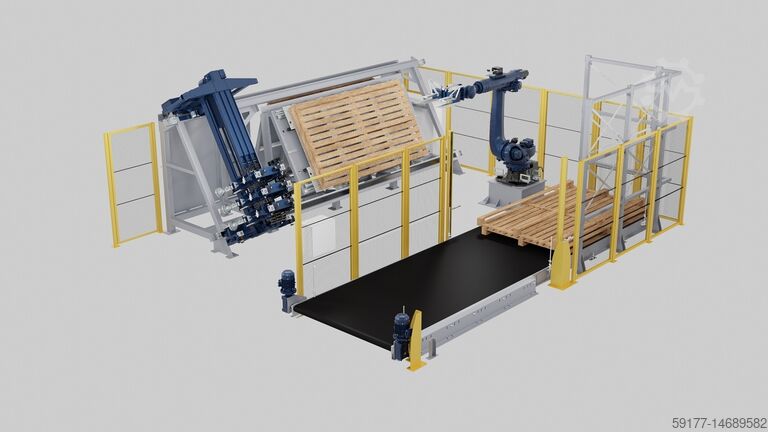

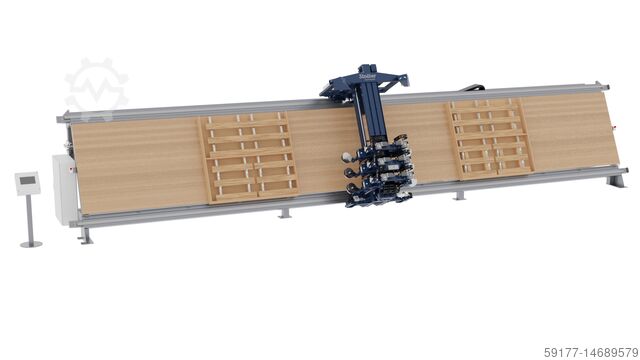

Stoiber GmbH StoNail 7000

Condition: new, Year of construction: 2026, functionality: fully functional, The StoNail 7000 is a fully automated portal nailing machine for the flexible production of pallets and crates, even with large workpiece dimensions. With up to three individually adjustable nailing head pairs, two work areas, and a generous Y-axis travel of 1,250 mm, it is designed for maximum efficiency and high flexibility. A 12-inch touch display, automatic height adjustment, and numerous expansion options support user-friendly operation. Offline programming allows new programs to be created and simulated outside the machine, reducing setup times and preventing downtime. The integrated automatic path optimization further increases the cycle output and ensures resource-efficient operation. Applications: Standard stringer and block pallets Special pallets & custom solutions Double-deck pallets & mixed pallets Transport frames & packaging elements Crate walls & wooden packaging Nailing bridge with rotary table: Robust frame construction with a tilt angle of 65° for ergonomic operation Machine length: approx. 7000 mm Rotary table with 2 work areas: Work area per side (L x H): 3000 x 1700 mm Cladding of the rotary table with plywood panels for custom templates Option: Clamping brackets for use with custom templates Option: Modular pallet clamping system for inserting loose boards and blocks Frequency-controlled nailing bridge: Up to three independently controlled nailing head pairs for complex nailing patterns Accommodation of up to 6 nailing heads Coverage of the entire work area with the nailing heads Collision monitoring: The movement of the feed cylinder is constantly monitored Nailing heads: Industrial nailing heads or hand-held devices Nail length max.: 130 mm Equipment of the nailing heads with Maxi-Coil magazines for up to 1000 nails Nailing shoes for limiting the insertion depth Option: Stapling devices, drilling heads Robot: Type: Kuka KR210 R3100-2 (Alternatively: similar manufacturer or refurbished robot possible) Gripper with clamping jaws for pallet removal and stacking Product weight max.: 80 kg Stacking height max.: 2800 mm Normal and interleaved stacking Option: Retrofitting the robot at a later date Bsdpfx Aqorallrowowt Buffer conveyor (Optional): For buffering several pallet stacks Fully enclosed by a robust plastic modular belt Programming: Simple, intuitive programming on the 12-inch touch panel directly on the machine. With the entered parameters, the pallets or crate parts are completely recorded or visualized. Programming of the removal and stacking process via robot is also done directly on the touch panel – no robot knowledge required by the customer. Siemens PLC control with control panel: Touch panel for operating the machine Pallet programming directly on the control panel Storage of the created pallet programs Pallet counter Nail counter: The machine stops as soon as the nails are used up Internet connection for remote maintenance Operating language available in German and English Option: Board width measurement for decreasing board widths Safety equipment: Safety fence around the entire system including access monitoring Emergency stop button on the outside of the machine and on the control panel Safety laser scanner to protect the rotary table Safety light curtain for pallet removal

Condition: new, Year of construction: 2025, All-round sheet fiber laser metal cutting machine Equipped with automatic functions of nozzle changing and one-click processing, P-Series is competent for all cutting demands. Flake graphite in the cutting machine bed improves greatly the shock absorption and wear resistance, and residual stress almost disappears after age hardening, therefore, precision and lifetime of the equipment are improved, and costs saved. The special fiber laser nozzle and cutting process ensure faster carbon steel oxygen cutting, more gas-saving low-pressure stainless steel nitrogen cutting, and better-quality carbon steel air cutting. Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. The fully closed-loop control adjusts according to feedback to ensure that the actual motion position is consistent with the theoretical input value. With One-click Processing, one laser cutter is able to process multiple sheets in batches with a one-off setup, achieving batch processing. Condition: New Laser Type: Fiber Laser Laser Power: 1500W - 30000W Cutting Area: 3048*1524mm - 6100*2500mm Bodpfx Ajhv U S Noqwowt Cutting Speed: 0-169m/min Positioning accuracy: ±0.03mm - ±0.05mm Repositioning accuracy: ±0.02mm - ±0.03mm Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING
