Cylindrical Grinding Machine

STUDER Favorit CNC

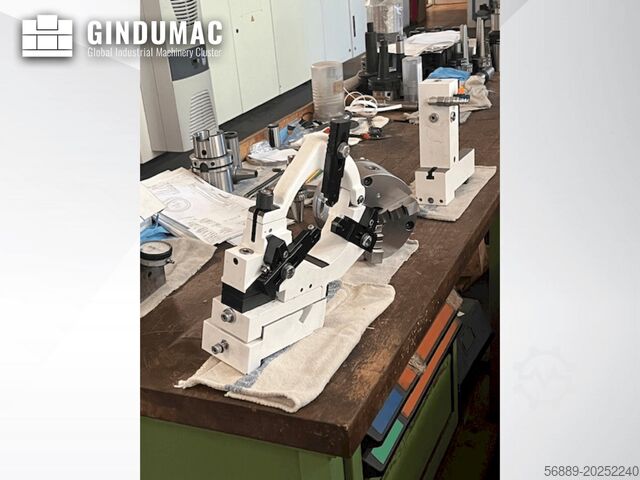

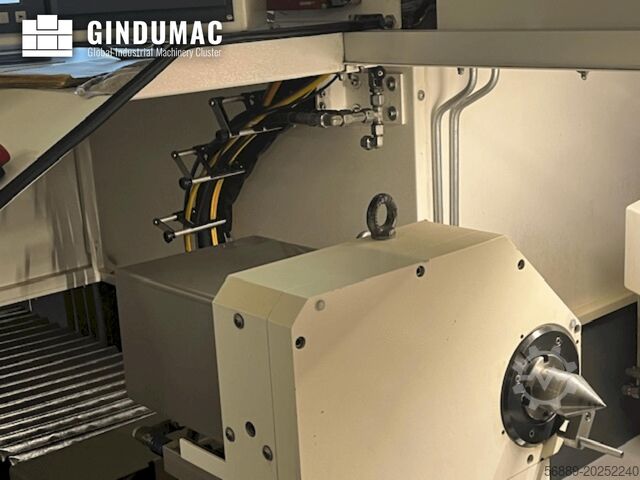

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, center height: 175 mm, workpiece weight (max.): 120 kg, center width: 1,000 mm, grinding wheel diameter: 500 mm, grinding diameter: 349 mm, workpiece weight between centers: 120 g, grinding wheel width: 80 mm, feed length X-axis: 285 mm, feed length Z-axis: 1,150 mm, feed rate X-axis: 10 m/min, feed rate Z-axis: 20 m/min, grinding spindle motor power: 9 W, overall weight: 5,300 kg, pivoting range: 210 °, Equipment: rotational speed infinitely variable, Universal cylindrical grinding machine from our demonstration center in Stuttgart. 1x external grinding wheel 1x internal grinding wheel. Manual swivel. Hirth coupling 2.5° to grinding headstock swivel axis B1. Swivel angle -15° to +195°. Workpiece table swivels +8.5° with fine adjustment and pneumatic lift for swiveling (incl. dial gauge holder for radial dial gauge) Direct measuring system for X and Z axis Resolution 0.0001mm (linear, absolute measuring system, Fpedpfx Afotvxbnspsn Internal grinding device for belt spindles Ø100mm Universal workpiece headstock MK5, roller bearing mounted, spindle nose with internal mounting MK5 Spindle passage Ø30mm. Internal grinding spindle 40'000min-1 with belt drive for drive motor with belt pulley Ø105mm with frequency converter. (for bores Ø13-45mm). Spindle type 102540B Ø100mm with oil mist lubrication. With tool holder HJND 35. Incl.: 1 pulley Ø31mm on spindle 5 medium length mandrels 45 threaded bolts C-axis with indirect measuring system, Resolution 0.0001°, referencing accuracy +/-0.5° Tailstock with mounting cone MK4 and 35mm stroke. Pinole diameter 50mm with sliding guide. Mounting option for height-adjustable dressing tool holder Dressing device with G01 interface can be mounted on workpiece table, movable in X-direction Portable operating device for setting up H1 Swivel-in touch probe 1 (switching) at an angle to the working plane for probe arm with M3 thread Paper belt filter 375 liters Interface for sanding mist extraction system Grinding detection Sensitron 6, Portable balancing device
