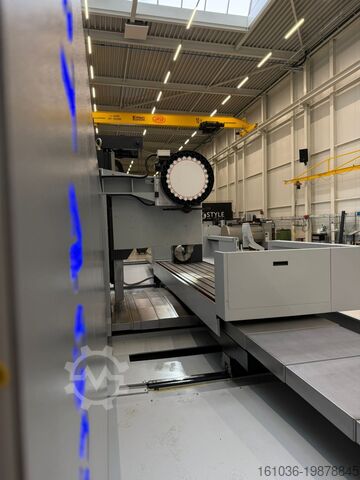

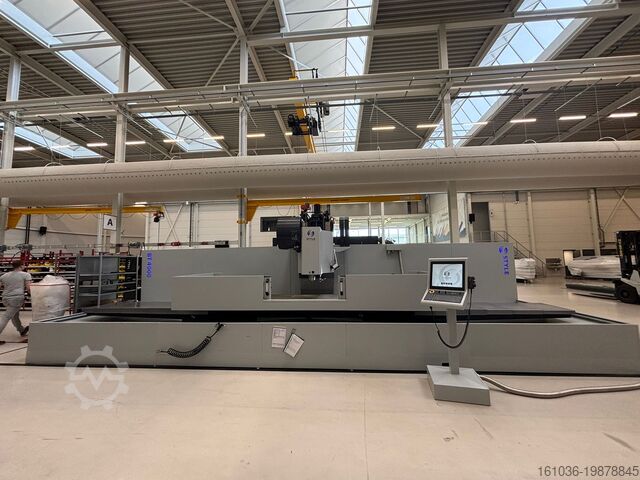

Bed milling machine

STYLE CNC Machines BT 4000 (XYZ:4000x1000x1000 mm)

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Hsdpfotk It Ssx Ai Tsw Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MAIN SPINDLE - Spindle nose : A2-8 - Spindle power : 18,5 [kW] - Spindle speeds : 4000 [rpm] - Max. bar diameter : 80 [mm] - Max. turning diameter : 366 [mm] - C axis indexing precision : 0.001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 280 x 785 [mm] - Y stroke : +/- 50 [mm] - Live tools speed : 6000 [rpm] * Live tools power : 5,5 [kW] Hjdpfxjyxr U Re Ai Tjw TAILSTOCK - Tailstock type : Numérique - Type of cone : CM5 - Distance between centers : 705 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 39 [kVA] MACHINE HOURS - Number of working hours : 7261 [h] WEIGHT & DIMENSIONS - Machine floor space : 3800 x 2143 [mm] - Machine height : 2232 [mm] - Machine weight : 6100 [kg] EQUIPMENT - CNC : MORI MSX-850 III (Mitsubishi 720BM) - Tool probe - 3 colors status lamp - Coolant tank - Chips conveyor - Chuck 3 jaws : hydraulique - Number of turning tool holders : 3

Condition: excellent (used), Year of construction: 2018, operating hours: 15,845 h, functionality: fully functional, machine/vehicle number: S6E182501, spindle bore: 65 mm, spindle speed (max.): 5,000 rpm, spindle motor power: 22 W, The machine is very well maintained, with 90% of its operation carried out by a single user. Serviced according to the manufacturer's recommendations. Hodpoyvtugsfx Ai Tow

Condition: good (used), Year of construction: 2006, operating hours: 9,911 h, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, rapid traverse X-axis: 75 m/min, rapid traverse Y-axis: 75 m/min, rapid traverse Z-axis: 75 m/min, nominal power (apparent): 17 kVA, total height: 2,300 mm, total length: 1,500 mm, total width: 2,600 mm, overall weight: 3,400 kg, spindle speed (max.): 30,000 rpm, spindle nose: HSK40, number of slots in tool magazine: 40, input voltage: 400 V, Equipment: documentation/manual, CNC machining center CHIRON FZ08 KS Magnum High Speed Plus (HSP) Hodpfx Aijx Iiw Ij Tew TECHNICAL CHARACTERISTICS: Year of manufacturing: 2006 CNC control : FANUC 18i-MB5 Number of axes : 7 Stroke X axis : 450 [mm] Stroke Y axis : 270 [mm] Stroke Z axis : 310 [mm] Traversing feeds X, Y and Z axes : 75000 [mm/min] Max. bar diameter in turning spindle : 32 [mm] Main spindle max. speed : 8000 [rpm] Main spindle max. power : 12 [kW] Angular A axis stroke : 360 [°] A axis indexing precision : 0.001 [°] B axis swivelling stroke : -20° / +115 [°] B axis indexing precision : 0.001 [°] Spindle type : HSK40 Max. spindle speed : 30000 [rpm] Tool changer magazin number of stations : 40 Part turnaround by robot (6th side machining) : Yes RS232 Interface : Yes Total power required : 17 [kVA] Supply voltage : 400 [V] Number of running hours : 9911 [h] Dimensions : 1500 x 2600 x 2300 [mm] Weight : 3400 [Kg] EQUIPMENT INCLUDED: x1 RENISHAW TS27R tool probe x1 spindle cooling unit x1 parts catcher x1 coolant tank x1 unit for 6th face machining (gripping system not included) x29 tool holders type HSK40 BIG KAISER x10 collets type F37 SCHAUBLIN x1 washing gun x1 3-color status light x1 maintenance manual x1 electrical diagrams manual x1 operator's manual x1 programming manual Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed Machine similar to brands such as Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm. Internal and external grinding (ID/OD) also to be considered. Surface grinder, lathe, machining center, milling machine.

Condition: used, operating hours: 9,974 h, total height: 2,700 mm, total length: 7,700 mm, total width: 2,420 mm, Year of manufacture: 2012 Empty weight: 7.390 kg CNC machining centre SCM Morbidelli M-600 5-axis machine Year of construction 2012 Machine no. AA2/002032 Working distance X-axis 5020 mm Working distance Y-axis 1680 mm Working distance Z-axis 250 mm Tool positions 36 Vertical drilling spindles 24  Software SCM XILOG MAESTRO SCM PRISMA K SCM TTS system Milling spindle liquid-cooled SCM TecPad MORBIDELLI TV Matic SCM PRO-SPACE SCM RAPID 12 SCM RAPID 24 Including vacuum pump Capacity 250 m3/h Disassembled for transport Weight 7450kg - Details: - └ Description: Machine gives malfunction spindle - Year: 2012 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: AA2/002032 - Operating hours: 9974 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 5 - Type milling table: Beam table - Drilling unit present: Yes - └ Horizontal drill spindles [pcs.]: 6 - └ Vertical drilling spindles [pcs.]: 24 - Saw unit present: Yes - Tool changer positions [pcs.]: 36 - System/software: SCM Maestro - Vacuum pump present: Yes - └ Number [pcs.]: 1 - └ Brand: Becker - └ Capacity [m³/h]: 250 - CNC options: Offcut conveyor - Working range X [mm]: 5020 - Working range Y [mm]: 1680 - Z-axis working range [mm]: 250 - Transport dimensions: 7700mm x 2420mm x 2700mm (l x w x h) - Transport weight [kg]: 7390kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Hsdpfx Aswnhccei Tow Yorick Diebels

Condition: ready for operation (used), Year of construction: 2003, operating hours: 57,202 h, controller manufacturer: TRUMPF, stroke length: 365 mm, number of axes: 8, overall weight: 18,000 kg, total height: 3,100 mm, pressing force: 173 t, This 8-axis TRUMPF TrumaBend V170 press brake was manufactured in 2003. It features a pressing force of 1700 kN, a stroke of 365 mm, and a maximum bending length of 4080 mm. The distance between columns is 3680 mm. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V170 machine we have for sale. Contact us for further details regarding this machine. Machine Benefits Technical Machine Benefits Hedpfx Asx D Ilyoi Tjw • Distance between column: 3680 mm • Distance beam - table: 535 mm Extra Information Machine still under power Technical Specification Bending Length 4080 mm Dimensions Machine Depth 5000 mm

Condition: used, Year of construction: 2013, x-travel 500 mm y-travel 400 mm z-travel 330 mm Hedpfx Aisy Nn Dvs Tsw weight of the machine ca. 2100 kg

Condition: excellent (used), Year of construction: 2009, operating hours: 87,000 h, functionality: fully functional, turning length: 600 mm, turning diameter over cross slide: 410 mm, spindle speed (min.): 22,000 rpm, For sale is a CNC turning center from the manufacturer DMG, type CTX beta 800, built in 2009. Available immediately. The machine is in good condition and fully functional. Technically sound and ready for immediate use. Technical data: Machine type: CNC turning center Manufacturer: DMG Type: CTX beta 800 Year of manufacture: 2009 Control: Heidenhain 4290 Max. turning length: 600 mm Tool turret: 12-position Tool holder: VDI 40 Operating hours: approx. 87,000 h Spindle hours: approx. 22,000 h Linear guide Z1 recently renewed Turret drive S2 recently replaced Machine regularly serviced by customer support technically sound and fully functional Hsdpfx Aeyq Hq Nei Tew Inspection under power possible by arrangement Service and maintenance reports available large accessory package powered tools from WTO further documentation and images available upon request If interested, please write or call. Maschinenhandel Nord Gerstenstraße 2 17034 Neubrandenburg

Condition: used, Year of construction: 2011, pressure: 400bending length: 4050column width: 3400electricity performance: 37,5weight approx.: 25.000messurements (LxWxH): 5750 x 2110 x 3440STOCK CLEARANCE – UNBELIEVABLE PRICE!CNC Press Brake – DURMA AD-S 40400 (4 m x 400 tons) (Original price approx. EUR 170,000) Technical Specifications:Manufacturer: DURMA Model: AD-S 40400 Year of manufacture: 2011 Bending length: 4,050 mm Hodpfx Aiovfy Sxe Tew Pressing force: 400 tons Axes: Y1, Y2, X, R + CNC-controlled crowning Motor power: 37 kW Features & Equipment:CNC crowning system, motorized adjustment via control Upper tool: 1010/A/75°, segmented and gooseneck-style Die: Multi-V die Backgauge: CNC-controlled 2 front sheet supports on linear guides CE-certified laser safety system (Lasersafe) mounted on the upper beam Machine fully complies with CE standards new pump installed The machine is being sold in its current condition. The machine was purchased from an insolvency sale and transported to our warehouse. The basic up and down functions have been tested and are working. Apart from that, we have no further information regarding the technical condition or overall functionality of the machine. An on-site inspection can be arranged upon request. The machine is sold as is, without any warranty or guarantee. One-time offer – available immediately!Only 1 unit in stock – ready for fast delivery – no lead time!Take advantage of this rare opportunity to own a high-performance CNC press brake at a fraction of the original price.

Condition: ready for operation (used), Year of construction: 2007, Brand: Holz Her Model: PRO-MASTER 7123K Serial no: 527/0-705 5010147 Year of manufacture: 2007 - 2 HSK cones included + various drills for drill box - Comes with a number of suction cups and some spare parts Tech. info: 4-axis (c-axis) 6 beams Motor-controlled adjustment of beams Number of vertical boring bits: 24 Number of vertical boring bits in X axis: 10 Number of vertical boring bits in Y axis: 8 Centres distance: 32 mm Horizontal double spindle in X axis: 2 Horizontal double spindle in Y axis: 1 Centres distance: 64 mm Working area: 3200x1260 mm Maximum travel path: X= 3866 mm Y= 1650 mm Z= 325 mm Workpeice pass height for tool change spindle with HSK 63F tool connection: 345 mm Max. machining thickness/ feed-in height (rear stop): 175 mm Max. workpiece size for vertical bores: X=3730R/ 3460L mm Y=1570 mm Max. workpiece size for horizontal bores X: X=3450R/ 3370L mm Y= 1315 mm Max. workpiece size for horizontal bores Y: X=4760R/ 3300L mm Y= 1385 mm Max. workpiece size for edge milling, less cutter radius (tool 25 mmdiameter x 125 mm, HSK): X=3510R/ 3525L mm Y=1445 mm Z=280 mm Max. workpiece size for grooving in X (dim. centre grooving tool approx. 120 mm): X=3300R/ 3760L mm Y=1585 mm Max. workpiece size for grooving in Y (dim. centre grooving tool approx. 120 mm): X=3200R/3860L mm Y=1485 mm Max. travel speed X axis: 100 m/min Max. travel speed Y axis: 100 m/min Max. travel speed Z axis: 25 m/min Max. travel speed C axis: 60 m/min Motor power of boring unit: 3 kW Motor power of saw: 1,5 kW Motor power of electro spindle unit with clamping system: 6 kW Speed electro spindle 1000-18000rpm Power: 22 kW, 50 Hz, 400 V, 3-phase Compressed air: operating pressure 6,0 bar permissible limit pressure 8,0 bar Air requirement: 300 l/min Extraction capacity: approx. 5300 m3/h Dust nozzle diameter: 250 mm Size: Length with control cabinet: 6420 mm Overall width: 3760 mm Height with extractor hood: 2475 mm Weight: 4200 kg Program Campus NC-HOPS Hodpferz Irrox Ai Tew Operating system Microsoft Windows Graphic variants system with HOP and CAD/CAM properties For the creation of parts variants with macro technology Program operation Windows-conform surface configuration and operator guidance Macro / variant programming Indication and simulation modes Export and import facility to the various branch programs Interaction possibilities with a variety of branch programs Stock no: 2002061BXA with reservation for incorrectly presented technical data
