Honing machine

Sunnen

Condition: used, Year of construction: 1995, Sunnen Eclipse EC-3500 CGM-27 Bore diameter – Honing range 1.5 – 165 mm Stroke length – Honing length 6 – 170 mm Spindle speeds: 200 – 3,000 RPM Stroke rates: 60 – 500 strokes Hfsdpfszl U Evjx Ahzsi Total power consumption – Spindle drive: 4.1 kW Stroke motor: 1.1 kW Machine weight: approx. 1,200 kg

Condition: used, honing diameter 165 mm stroke 120 mm centre height 100 mm total power requirement 1,5 kW weight of the machine ca. 1 t We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : SUNNEN (USA) Horizontal Automatic Honing Machine model MBC 1804 G year Serial no 1K1-190075 _____ Honing range – Ø with gauge control 1,5 – 51 mm with automatic stroke 1,5 – 95 mm Hodpfx Asw U U Iqohzsfi with manual stroke 1,5 – 165 mm Workpiece honing length max. approx. 400 mm Workpiece honing lengthe with gauge control 254 mm 12 spindle speeds 200 – 2.500 rpm 5 stroke rates 80 – 310 stroke/min Length range of automatic stroke 6 – 120 mm Power of spindle 0,75 kW - 380 V - 50 Hz Total drive appro. 1,5 kW - 380 V - 50 Hz Accessories / Special Features • Automatic Working Cycle with aut. mechanical stroke, aut. hydr.-mechanic Honingtool-feed and aut. cycle stop when the nominal size is reached • Elektro-mechanical gauge control with a probe in the nominal diameter-size mounted opposite to the main spindle, which initiates the cycle stop when the nominal diameter is reached. • Steplessly adjustable honing tool pressure feed • Footswitch for manual operating • Built-in honing oil supply system • Manuals. Unfortunately there is no tooling with the machine Condition : very good, universal machine for all sorts of honing tasks ! Soon : Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 100 % Net, after conclusion of contract, before loading

Condition: excellent (used), Horizontal Manual With automatic feeds Hfedpjzhl Tvofx Ahzsi Honing lenght -406 mm Honing diameter 1.5 - 165 mm Spindle speeds 200- 2500 rpm Misc. accessories MARCELS MASCHINEN AG

Condition: used, functionality: fully functional, input voltage: 400 V, Equipment: documentation/manual, Precision cross honing machine Used Sunnen Eclipse EC-3500 CGM-27 Hsdoyx Dv Hspfx Ahzofi Bore diameter – honing range 1.5 – 165 mm Stroke length – honing length 6 – 170 mm Spindle speeds 200 – 3,000 rpm Stroke rates 60-500 strokes Total power requirement – spindle drive 4.1 kW Stroke motor 1.1 kW Machine weight approx. 1,200 kg SICK safety light curtain Horizontal cross honing machine / honing machine, type EC 3500, and operating manual An inspection while the machine is running is possible after prior appointment. Documentation/manual, nameplate available Price on request All technical data subject to typographical errors and errors Sale exclusively to countries within the EU.

Condition: used, Sunnen brand honing machine, model MBB 1400 EMS. Hfjdeza Hd Iepfx Ahzoi

Condition: used, Year of construction: 1999, functionality: fully functional, workpiece weight (max.): 5,000 kg, spindle speed (max.): 2,987 rpm, total width: 3,000 mm, total length: 36,000 mm, space requirement height: 2,500 mm, space requirement length: 37,000 mm, space requirement width: 3,000 mm, We are offering this used Sunnen HTC 16000 honing machine, year of manufacture 1999. It can also be adapted for 6m lengths... Manufacturer: Sunnen HTC 16000 Model: HTC 16000 Hsdpfeyx Hazex Ahzsfi Year of manufacture: 1999 Condition: used Category ID: 222 Type ID: 2524 Machine type: honing machine • Max. stroke: 12,000 mm • Current working length for tubes: 17,200 mm (divisible into 6 m sections) • Spindle speed (idle): 2,987 rpm • Rated power: 5,500 Watts • Internal diameter range: Ø23.2 mm to Ø205.00 mm • Clamping fixture: prism/chain • Max. workpiece weight (internally used): approx. 5 tons If you have any questions or require further information, please feel free to send us a message or give us a call.

Condition: excellent (used), Sunnen GH210 Horizontal Hone Year 2010 Max Stroke 8000mm, Spindle Speed:0 - 300 rpm Hodpfx Aow U Uh Dehzofi Maximum Spindle Power: 40 Hp (29.83 kW) Maximum Stroker Power: 18 Hp (13.42 kW) Stroke Speed Range: 0 – 100 ft/min (0 – 30.5 m/min) I.D. Range: 2 – 24 inches (50.8 – 609.6 mm) O.D. Range: 26 inches standard (660.4 mm) Maximum Part Weight: 8000 kg Approximate Machine Weight: 12,066 kg 400 VAC 50 Hz, 3-Phase (85 A) Siemens Simatic Control,

Condition: used, Year of construction: 2004, functionality: fully functional, Well used Sunnen honing machine with Felsomat loading system. Diameter range (INSIDE Ø)¹: Krossgrinding® tools: 5.46 to 32 mm when loaded with CGT tools TurboHone® tools: 3.81 to 32 mm when loaded with MMT tools Connecting rod tools: 53.8 to 63.8 mm when fitted with CRT tools Larger tools: 25.4 to 101.6 mm Workpiece²: 8 to 150 mm Max. Workpiece weight: 2.0 kg Spindle speed range: 250 to 3,700 rpm, adjustable Standard speed: High torque in the low speed range: 20 to 1,000 rpm, adjustable Hjdpsud Nm Rsfx Ahzefi Stroke speed range: 33 to 500 H/min, adjustable Coolant system Pump motor: 0.18 kW Coolant pump: 5.6 l/min Coolant capacity: 132 l and 11.2 l/min Coolant requirements: Compressed air requirements: 566 l/min at 4.48 bar, 5.52 bar is recommended Temperature range: 0° to 35° C Floor space requirements: (concrete floor) At least 150 mm thick Machine dimensions: L 2946 mm x W 2971 x H 1829 Color: Pearl grey with pewter grey and burgundy decorative stripes Stand weight: 1,579 kg Noise emissions: < 71 dB (A) continuous load, < 75 dB (A) peak load Special features: Automatic set-up: spindle speed, stroke speed, stroke length, infeed value and sparking Automatic finishing: Standard Machine operating modes Automatic: Manual: Series production Individual production Clamping optional

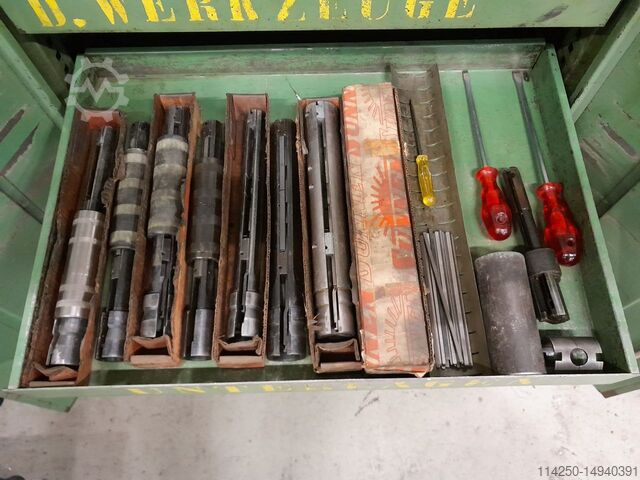

Condition: like new (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 2D1-1116, total height: 1,905 mm, total width: 1,626 mm, total length: 1,219 mm, overall weight: 725 kg, For sale: as new, barely used, highly precise (±0.001 mm) automatic hole honing machine, sold together with numerous precision instruments, measuring devices, and extensive accessories for honing bores from D6 to D25 mm. The machine is connected to the power supply and ready for immediate operation. Hedpfjy E N R Nox Ahzsfi

Condition: ready for operation (used), Year of construction: 2007, A vertical cross grinding machine Sunnen is available. Bore diameter range: 3mm-65mm, max. workpiece length: 250mm, working area dimensions X/Y/Z: 150mm/150mm/150mm, slide speed range: 0.001mm-0.8mm/s, stroke rate range: 30-400, spindle speed: 4000rpm, feed force: 3800N, grinding oil tank volume: 280l. Machine dimensions X/Y/Z: approx. 2150mm/2200mm/2900mm, weight: approx. 2200kg, operating hours: approx. 5000h. Including indexing table and grinding oil tank with magnetic separator and filter. Documentation available. An on-site inspection is possible. Hfodpfxoy Ax Tnj Ahzei
