Mineral Spiral Concentrator

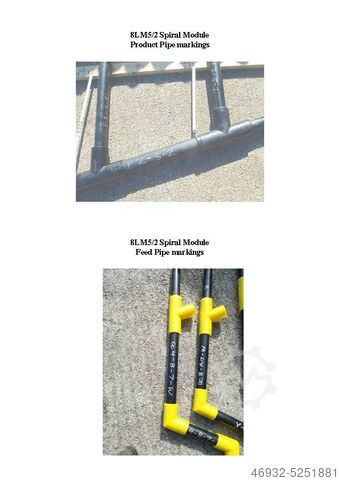

SWMS - South West Metallurgical Services K8LM5/2

Year of construction: 2014, condition: repair required (used), functionality: fully functional, The machine has been idle unused for a few years now, so it needs maintenance before commissioning, which should be the responsibility of the buyer. Dwodotu U Ebjpfx Akmec

Condition: new, Year of construction: 2024, Gold River SWZ-700 water separators Application description: The GOLD RIVER SWZ series separator has been designed for special tasks, it can cope with the most difficult materials that contain many properties that disturb the separation process in separators commonly available on the market. SWZ water separators separate heavy fractions (non-ferrous metals) from, among others, plastics in the process of recycling secondary raw materials. SWZ separator equipped with a four-section copper water system equipped with radial nozzles with variable linear geometry. The separator uses the latest divided type of separation mat. The development of a modern module for preliminary division and preparation of material guarantees the purity of recovered raw materials in a very short time (plastics, metals). Why a water system? Our device uses a system similar to that used in the gold recovery industry. We use water as a carrier and a force that affects the materials in a gentle way. In the water system, all particles with higher mass are gently washed out and separated, generating no losses during the entire separation process. The properties of water together with our proprietary solutions are unrivaled compared to, for example, air separators. SWZ type separators are used: Separation of heavy from light materials (metal granulates contaminated with plastic, foil, paper, cotton, fibers) Cleaning plastics after air separators (dry) Separation of metals in cable and non-ferrous metal recycling lines The SWZ-700 water separator, thanks to the use of the latest module, performs the separation process in a very short time, therefore it is characterized by a high hourly efficiency of separated material of approximately 1200 kg/h. Description of action: The material fed into the separator goes through the transport channel to the module for initial fraction division into its mass and humidity changes. Some of the material is separated at this stage. In the second part of the module, the humidity of the remaining batch changes. Then the material falls onto the separation table where the final fraction separation takes place. As a result of this process, we obtain valuable materials from both sides of the separator. Dedjua Tbwepfx Akmewc Construction description: The massive structure and the inertial drive of the separator are made of materials appropriately selected to withstand the overloads resulting from vibrations. The supporting frame ensures excellent stiffness and failure-free operation for many years. Due to the type of vibration drive, the design does not require the installation of a soil separator. Separation table equipped with hydraulic adjustment of the angle of inclination. The separation table has a special module for initial division of fractions into their mass and preparation for final separation. The water system has several water pressure valves. The water circulation in the separator is closed. There is no need for constant access to an external water source because the device works using the water already in the tanks. Based on experience and continuous research in our laboratories. We are able to provide you with separators individually adapted to the specific nature of the material being separated. In various versions and sizes. SWZ-700 separators are manufactured to individual order.

Condition: excellent (used), Year of construction: 1995, machine/vehicle number: 47070001, For separating and separating light and impurities Drum diameter x width: 1,400 x 1,200 mm Vibrating feeder Dwedpfxsqi Eh Ho Akmjc Blower with V = 7,000 m³/h incl. steel construction, platform, railings, etc.

Condition: like new (used), Year of construction: 2000, operating hours: 25,000 h, functionality: fully functional, Longitud de entrada // Intake length: 2200 mm Anchura de entrada // Intake width: 2000 mm Longitud de rotor // Rotor length: 2000 mm diam. rotor // rotor diam.: 495 mm n.º de cuchillas // n. of knives: 56 (60x60) velocidad del rotor // rotor speed: 125 rpm potencia motor // main motor power: 132 kW voltaje // voltage: 400 V frecuencia // frequency: 50 Hz Peso de la máquina // machine weight: 14000 kg * Máquina especialmente diseñada para la trituración de plásticos, los rodamientos del rotor están completamente aislados. Dwodpji Elyljfx Akmjc * Máquina completamente reconstruida; 1 año de garantía ó 2000h, lo que antes suceda * Incluye: - Rotor de repuesto - Sujetador superior; ideal para la trituración de residuos voluminosos de baja densidad - Soporte de acero - Tolva de alimentación - Cuadro de control eléctrico - Planos de implantación disponibles, asi como plano de soporte de máquina y tolva de alimentación - Manual de instrucciones & esquemas eléctricos Includes: - Machine supplied with bridge breaker (upper feeder); suitable to shredd bulky waste with low density - Machine fully refurbished; 1 year guarantee or 2000h, whatever happens first - Machine specially designed for shredding of plastic waste. - Steel support - Infeed funnel - Electric control pannel - Dimmensional drawings available in Acad for the machine, funnel and steel support - Operation & maintennace mannuals available

Condition: new, Year of construction: 2025, Turbo mill MTR-800 This turbo mill is designed for grinding, crushing, and granulating materials to improve the quality of final separation in subsequent recycling processes. Dwodov I S Ukjpfx Akmec Technical data: - Installed power – 75kW or 90kW - Chamber width – approx. 910mm - Chamber diameter – approx. 620mm - Number of abrasive knives – approx. 89 pcs. - Number of abrasive counterknives – 18 pcs. - Structure mounted on adjustable vibration isolators - Dimensions – 2200 x 1600 x 1550mm - Chamber opening via a manual hydraulic pump - Engine base with a rocker-type tensioner - Weight – approx. 1950kg - Discharge ends with an orifice of fi-150 - Electrical installation with inverter included in the price.

Condition: new, Year of construction: 2026, The TRM Series Turbo Mills is an advanced grinding system used primarily in the recycling of electronic boards and cables for the effective crushing and grinding of these materials. Plastics, metals, and other components found in electronic boards and cables are reduced to fine particles and transformed into recyclable raw materials thanks to this machine. With its high-speed rotors, the Turbo Mill carries out the grinding process, reducing materials to micron sizes through friction and impact forces. ✅ Superior Grinding Performance – Friction & impact forces ensure ultra-fine particle sizes. ✅ High-Speed Rotors – Maximum efficiency in material reduction. ✅ Durable & High-Efficiency – Designed for continuous, long-term operation. ✅ Eco-Friendly & Sustainable – Ideal for electronic waste recycling. 🔸 Choose the Right Model for Your Needs! Technical Specifications 🔹 TRM S1 Power: 15 kW Rotor Diameter: 380 mm Length: 1420 mm Width: 700 mm Height: 700 mm Weight: 660 kg 🔹 TRM M1 Power: 30 kW Rotor Diameter: 500 mm Length: 1680 mm Width: 820 mm Dodpfx Aev Hm S Ijkmowc Height: 920 mm Weight: 870 kg 🔹 TRM L1 Power: 45 kW Rotor Diameter: 620 mm Length: 1790 mm Width: 940 mm Height: 1040 mm Weight: 1000 kg

Condition: refurbished (used), Manufacturer: Steinert Type: UMS 45 70 80/61 Dwsdpjwvaidsfx Akmjc 3,1 kW / 51 A. / 61 V. 100% ED Magnet L x W: 806 x 750mm. Conveyor Belt: 800mm. (new) AA.: Ca. 1.300mm. Weight: 1.550 KG With new transformer rectifier of 380V. Primary.

Condition: ready for operation (used), Year of construction: 2001, operating hours: 56,927 h, functionality: fully functional, Manufacturer: ATM Recyclingsystems GmbH Dodpoxy E H Hsfx Akmswc Model: ArnoBrik 15 Year of manufacture: 2001 Briquette diameter: 150 mm Technical Data Briquette diameter: 140 or 150 mm Capacity: - Cast iron chips: 4.8 – 5.3 t/h - Steel chips: 4 – 5 t/h - Mixed briquetting: 4 – 5 t/h - Aluminium chips: 1.6 – 1.8 t/h Mixed briquetting: 4 – 4.5 t/h Tyre wire: 2.5 – 3 t/h Hourly throughput depending on material Briquette density for steel and cast iron: 5.5 kg/dm³ Operating pressure: 300 bar Required space (L x W x H): 13,500 x 6,500 x 2,000 mm Machine weight: 30 t Main cylinder force: 5,300 kN Oil requirement: 2,800 litres Main drive: 4 x 30 kW Connected load including ancillary equipment: approx. 150 kW Briquette height: 110 - 140 mm Briquette weight – depending on material: approx. 10 - 16 kg Cycle time: approx. 10 sec

Condition: used, functionality: fully functional, For sale is a sorting system set consisting of the following machines: 1. TRENNSO Circular Vibrating Screen Asking Price: €19,500 - Model: SIK 750/1800/4 - Year of manufacture: 2008 - Condition: used, fully functional - Usage: approx. 400 operating hours, pilot plant system, used exclusively for trials - Includes 4 screen decks 2. TRENNSO Separation Table Asking Price: €9,500 - Model: TTS 300 / 1000 / 1 KV - Year of manufacture: 2001 - Condition: used, little utilised - Usage: approx. 400 operating hours, pilot plant system, used exclusively for trials 3. TRENNSO Separation Table Asking Price: €12,000 - Model: TTS 600 / 1000 / 1 KV - Year of manufacture: 2011 - Condition: as new, unused - Note: small dent, see photo Terms of sale: - Preferably sold as a set - Individual sale possible on request - Offer without screens - Various screen sizes available, €500 per screen deck Circular Vibrating Screen - Available screen sizes: • 0.35 mm • 0.71 mm • 1.0 mm Dwodpsyh Huasfx Akmoc • 2.0 mm • 3.0 mm • 4.0 mm • 5.0 mm • 7.0 mm • NSL 1.5 mm • NSL 3.0 mm • NSL 6.0 mm • NSL 9.0 mm • NSL 12.0 mm • NSL 16.0 mm

Condition: like new (used), Manufacturer: Hazemag Djdpfewp Rhqox Akmowc Year of manufacture: 2005 Type: AP-SA 1006 Jaw opening: approx. 690 x 515 mm Mill weight: approx. 4,600 kg unused
