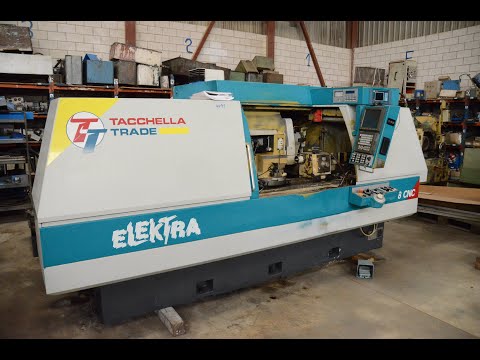

Cylindrical grinding machine

TACHELLA ELEKTRA 1018 CNC

Condition: excellent (used), Year of construction: 1997, grinding diameter 80 - 250 mm grinding length 600 mm centre height 175 mm longitudinal feed 750 mm workpiece turning speeds 6 - 600 U/min grinding spindle speed 1500 - 3600 U/min Ksdpfx Adsu D I Tls Iodw cross movement - autom. and by hand 320 mm Control Kelco 80 total power requirement kW weight of the machine ca. 4,4 t dimensions of the machine ca. 3,1 x 2,1 x 2,0 m

Condition: like new (used), Year of construction: 2019, absolutely as good as new condition, 2 external wheels, 1 internal grinding spindle Siemens control Ksdpovt R Awsfx Ad Isdw controlled B-axis suitable for Capto grinding (out of round) center width 1000 mm center height 200 mm

Condition: excellent (used), Year of construction: 2000, The machine can be inspected and tested in our warehouse after prior appointment. Kodpfx Adowl Uq Ij Isdw

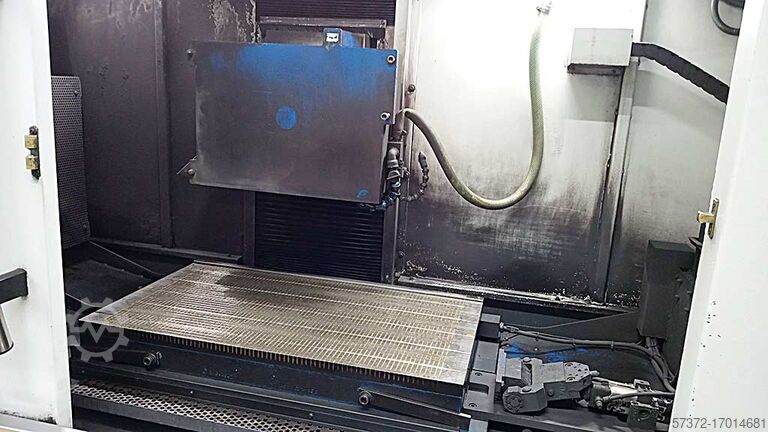

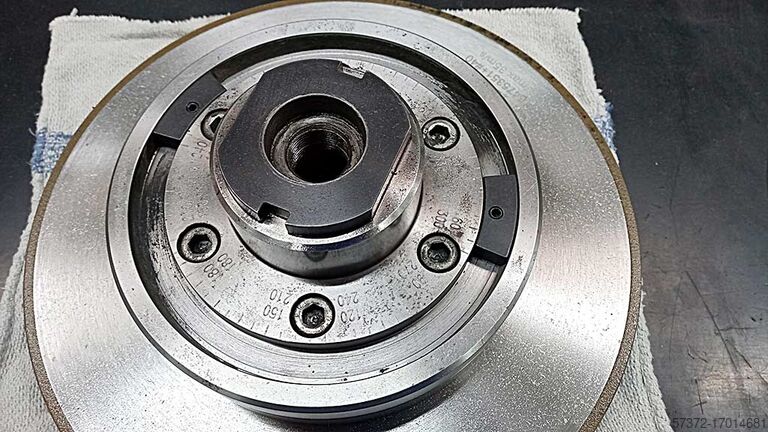

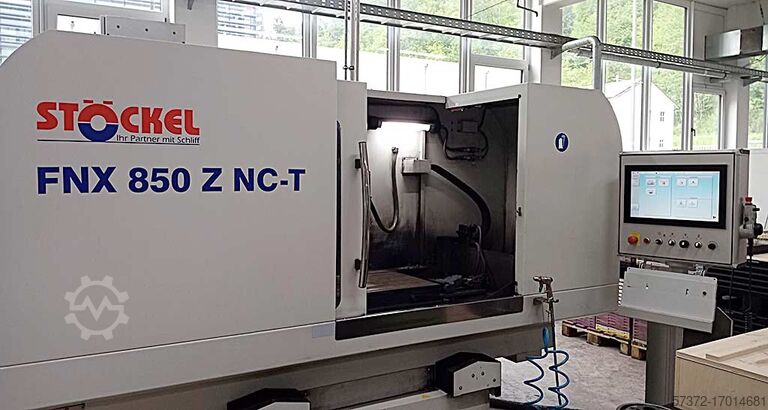

Year of construction: 2020, condition: ready for operation (used), A CNC profile and surface grinding machine Stöckel is available. Travel X/Y/Z: 850mm/680mm/475mm, guide X/Y/Z: sliding guide/linear guide/linear guide, table dimensions X/Y: 800mm/500mm, table feed: 30m/min, drive X/Y/Z: Toothed belt/ball screw/ball screw, feed: Y/Z: 2000mm/min, fine adjustment X/Y/Z: from 0.001mm, speed: 4000rpm, spindle taper: 60mm, spindle power: 11kW, grinding wheel dimensions X/Y/Z: 400mm/50mm/127mm. Machine dimensions X/Y/Z: approx. 3500mm/2700mm/2300mm, weight: approx. 4300kg, operating hours: 16156h, control: NC-T. Documentation available. On-site inspection is possible. Kdedpfx Aouii R Hsd Iow

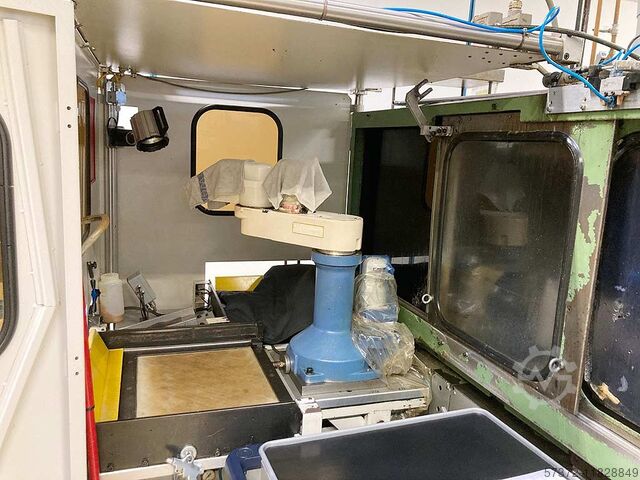

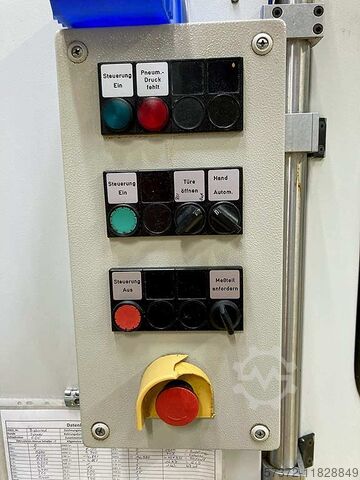

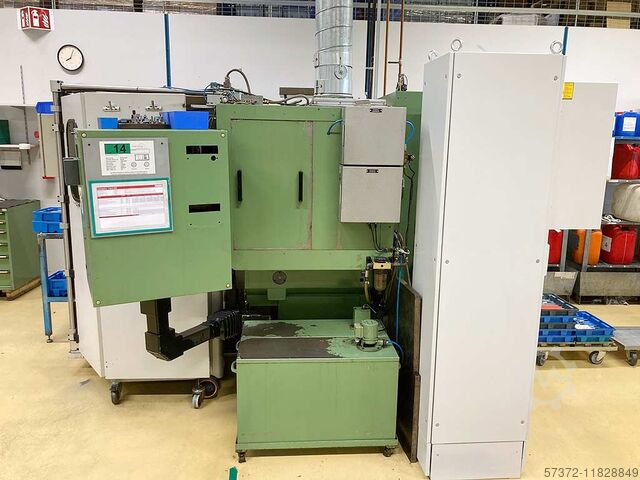

Condition: used, Year of construction: 1975, max. bore diameter to be ground 6 bis 100 mm Ksdpjucgwkefx Ad Isdw stroke - stepless adjustable 550 mm grinding depth ca. 250 mm workpiece weight 150 kg total power requirement 15 kW weight of the machine ca. 4.300 kg dimensions of the machine ca. 2,7 x2,4 x 2,2 m

Condition: used, Year of construction: 2004, Solid drill diameter 200 mm bore depth / mm number of spindles / Technical data Power: 129 kW Control: Siemens NC control Speed range (stepless): 2 - 300 rpm Feed range (in steps): 3 - 4500 mm/min Oil system capacity: 20,000 litres Maximum delivery rate: 1500 l/min Circular diameter in steady rest: 1100 mm Circular diameter over bed: 1250 mm Centre distance: 11000 mm Clamping diameter face plate: up to 1100 mm Max. workpiece weight with one tailstock: 10 t Clamping range of the two steady rests: 150 - 1100 mm Clamping range BOZA: 1 = 200 - 400 mm 2 = 400 - 800 mm Dimensions Min. outer diameter: 406 mm Max. outer diameter: 850 mm Wall thickness: 10–150 mm Kodpexgic Esfx Ad Iedw Max. workpiece length: 11,000 mm Max. workpiece weight: 10 t Max. strength: 800 N/mm² Specific cutting resistance (Ks): 2000–2100 N/mm² Machine data Machine length: 28,800 mm Centre height: 560 mm Swing diameter over bed: 1120 mm Full drilling diameter: 200 mm Core drilling diameter: 350 mm Reaming diameter without drilling: 350 mm Reaming diameter with drilling: 350 mm Headstock: Main drive motor: Siemens Type: 1 PH 7228 Performance data at 1,000 min: 113 kW / 1,079 Nm Performance data at 1,150 min: 129 kW / 1,017 Nm Main gearbox: Z-F manual gearbox Type: 2 K210 Switchable gear ratios: i = 1:1 i = 1:4 Fixed gear ratio for spindle: i = 11.68 Max. torque: 50,000 Nm Speed range I: 2...300 min Speed range II: 2 ...75 min

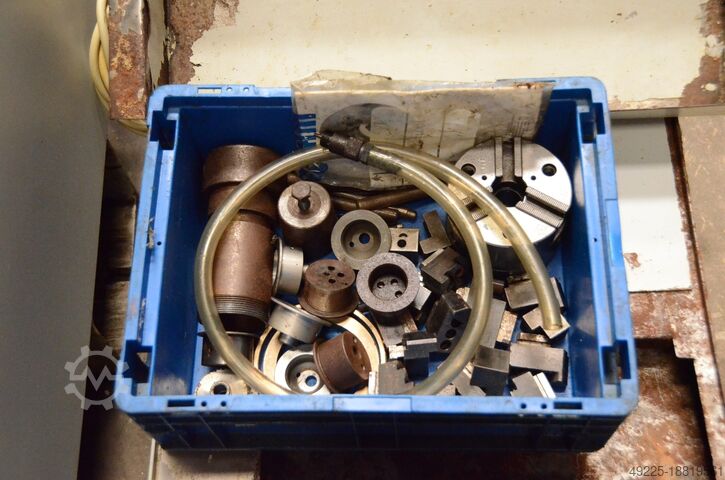

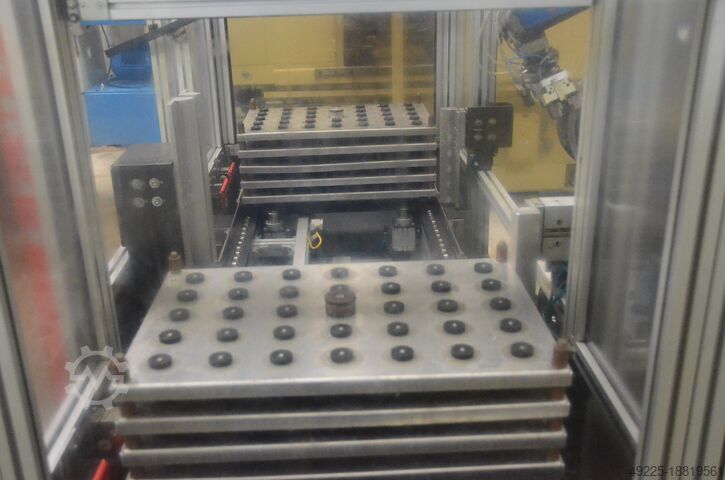

Condition: good (used), Distance between centers: 760 mm Maximum travel on the Z axis: 650 mm Maximum grinding length: 430 mm Maximum grinding diameter: 250 mm Height of centers: 125 mm Maximum grinding wheel diameter: 500 mm Maximum travel on the X axis: 320 mm Kedpov Tmtlsfx Ad Iedw CNC brand: FANUC CNC model: 18TB Main motor power: 7.5 kW Z and X axis resolution: 0.1 µmm Workhead taper: MORSE 5 Workhead hole diameter: 38 mm Tailstock taper: MORSE 4 Workhead rotation speed: 8 to 800 rpm Dimensions (length x width): 2500 x 2000 mm Weight: 4700 kg

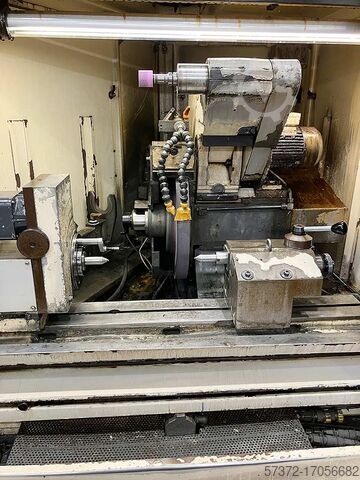

Year of construction: 1996, condition: ready for operation (used), Sanding length: 650mm, max. sanding diameter: 508mm, center height: 125mm, workhead speed: 1500rpm, max. workpiece weight: 30kg, workpiece swivel range: 30°-90°, tailstock: MK3. Grinding wheel diameter: 508mm, grinding wheel width: 40mm, bore: 203mm, max. internal grinding diameter: 150mm. Machine dimensions X/Y/Z: approx. 4300mm/3100mm/2200mm, weight: approx. 4000kg, control: Siemens Sinumerik 820G. Documentation available. On-site inspection is possible. Expected to be available from February/March 2025. Kedpfx Ajuku Smod Ijdw

Year of construction: 1988, condition: ready for operation (used), Connected load: 9.5kVA, was maintained regularly, an inspection is possible. Ksdpfx Adjnk Uxvs Iedw
