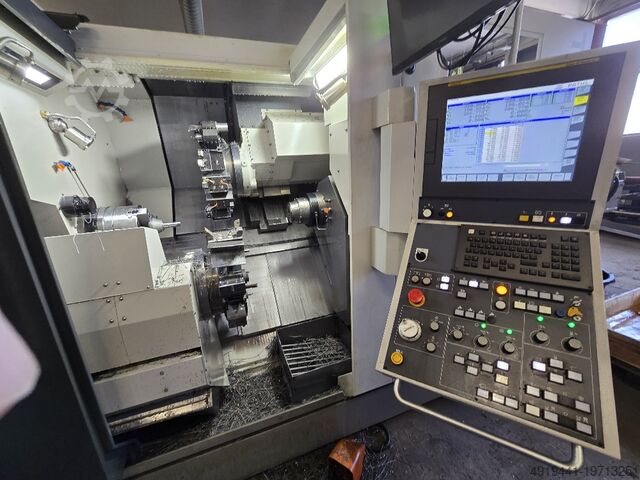

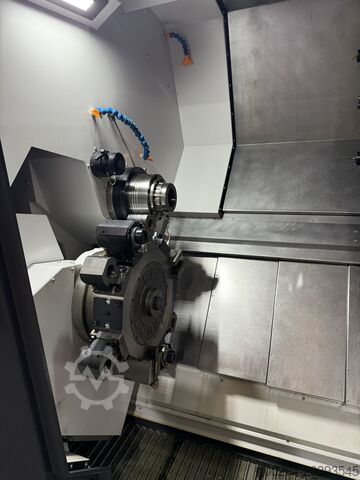

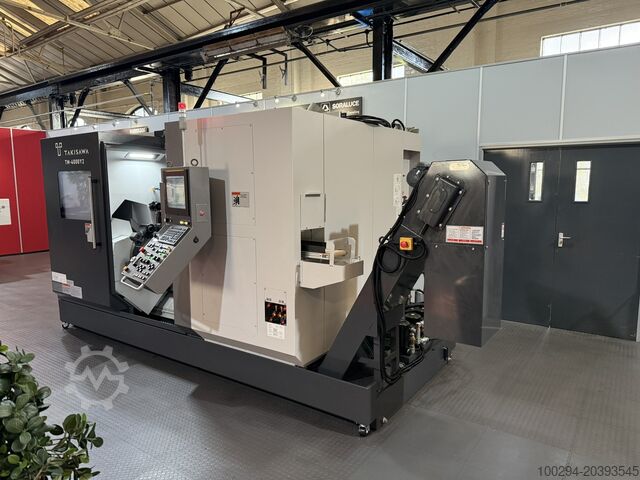

CNC turn-mill center

TAKISAWA TM 4000 Y 2

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, machine/vehicle number: TJGP2065, TAKISAWA TM-4000Y2 FANUC 31i B2 - TOTALLY AS NEW BUILT 2023 CNC MULTITASKING LATHE WITH UPPER & LOWER Y-AXES 10 INCH + 8 INCH STANDARD CHUCK SIZE. WITH:- Y-AXIS TRAVEL -50 +70 MM - UPPER TURRET (Y1 AXIS) Y-AXIS TRAVEL -50 +30 MM - LOWER TURRET (Y2 AXIS) CHIP CONVEYOR - RIGHT SIDE DISCHARGE HINGE TYPE (MORETECH JAPAN) AIR BLOW SYSTEM - RH SPINDLE ABNORMAL LOAD DETECTION FUNCTION WORK PHASE POSITIONING FUNCTION (C-AXIS TORQUE SKIP FUNCTION) COOLANT DELIVERY PIPE ABOVE THE SPINDLE - LH & RH SPINDLE COOLANT PUMP - 400W - 3 OFF OIL SKIMMER (OIL / WATER SEPARATOR) OIL SEPERATOR BOX HYDRAULIC PRESSURE SWITCH LED LIGHTING AUTO LUBRICATION SYSTEM AND COLLECTOR MACHINE MANUALS & OPERATOR HANDBOOKS TURRET MOUNTED MACHINE LEVELLING PLATE AUTO POWER OFF TRANSFORMER - 415V / 3PH / 50HZ STANDARD TOOLING PACKAGE TURRET COVER (6 EA) X 2 SERVO TURRET (LOWER) Y2 AXIS - 12 STATION WITH DRIVEN TOOLS SERVO TURRET (UPPER) Y1 AXIS - 12 STATION WITH DRIVEN TOOLS 8" 3-JAW THRU-BORE HYDRAULIC CHUCK ~ KITAGAWA BR-08 RH SPINDLE 10" 3-JAW THRU BORE HYDRAULIC CHUCK (KITAGAWA BR-10) - LH SPINDLE DIRECT DRAWING DIMENSION INPUT HELICAL INTERPOLATION FUNCTION RAKU-RAKU MONITORING SYSTEM BAR HI PRESS COOLANT PUMP (NIHON) 2 OFF CALL LAMP (3 COLOUR) BAR FEEDER INTERFACE FOR MULTI BAR MAGAZINE UNLOADER WITH PARTS DISCHARGE CONVEYOR QUICK TOOL SETTING DEVICE - MANUAL TYPE BOTH TURRETS AI CONTOUR CONTROL II CHIP CONVEYOR UPGRADE (MORETECH JAPAN) AXIAL DRIVEN TH, ER32 OUTPUT, 6000 RPM, 1:1 RATIO, EXT COOLANT - 4 OFF RADIAL DRIVEN TH, ER32 OUTPUT, 6000 RPM, 1:1 RATIO, EXT COOLANT - 4 OFF MACHINE FEATURES TWIN SPINDLE, TWIN TURRET Y-AXIS CNC TURNING CENTRE. 2 OFF 12 STATION HIGH ACCURACY SERVO TURRETS LEFT HAND SPINDLE – 4,200 RPM RIGHT HAND SPINDLE - 5,000 RPM UPPER & LOWER TURRETS - 6,000 RPM LIVE TOOLING SPEED UPPER TURRET Y1-AXIS (- 50 + 70 MM) LOWER TURRET Y2-AXIS (- 50 + 30 MM) 10” + 8” STANDARD CHUCK SIZE MACHINE CAPACITIES Standard Turning Diameter Ø 215 MM Maximum Turning Diameter Ø 215 MM Maximum Turning Length 800 MM Bar Capacity Left Spindle Ø 82 MM Bar Capacity Right Spindle Ø 65 MM AXIS TRAVELS Upper Turret Travel X1 230 / 120 MM Upper Turret Travel Y1 120 (- 50 + 70) MM Upper Turret Travel Z1 800 MM Lower Turret Travel X2 210 / 80 MM Lower Turret Travel Y2 80 (- 50 + 30) MM Lower Turret Travel Z2 800 MM Travel A (RH Spindle) 900 MM Lhsdpfxexrnwls Ac Hor LEFT SPINDLE Chuck Size Ø (10”) 254 MM Spindle Speed (RPM) 4,200 RPM Min. Indexing Angle (C-Axis) 0.001 DEG Spindle Nose A2-8 Spindle Bore Ø 94 MM RIGHT SPINDLE Chuck Size Ø (8”) 203 MM Spindle Speed 5,000 RPM Min. Indexing Angle (C-Axis) 0.001 DEG Spindle Nose A2-6 Spindle Bore Ø 77 MM Inner Bearing Dia.120 TURRETS Number of Tools (Upper/Lower) 12 Turning Tool Shank 25 MM Boring Bar Shank Dia. 40 MM Milling Shank Diameter 20 MM Driven Tool Speed 6,000 RPM Number of Driven Tools (Upper & Lower) 12 FEEDRATES Upper Turret Rapids- X1 / Y1 / Z1 20 / 12 / 30 M / MIN Lower Turret Rapids - X2 / Y2 / Z2 20 / 12 / 30 M / MIN Rapids on A (Right Spindle) 30 M / MIN MOTORS Spindle Motor - LH 18.5 / 15.0 KW Spindle Motor - RH 15.0 / 11.0 KW Turret Driven Tool Motor 7.5 / 3.7 KW Axis Feed Motors - X1 / Y1 / Z1 2.5 / 2.5 / 2.5 KW Axis Feed Motors - X2 / Y2 / Z2 2.5 / 1.2 / 2.5 KW SUPPLY 50 KVA MACHINE L 4,741 MM W 2,748 MM H 2,444 MM 9,370 KG

Condition: good (used), Year of construction: 2003, Main spindle: Speed range - main spindle max. 6,000 min/-1 Drive power - main spindle 16 kW Max. torque 155 Nm C-axis 360 ° Tool turret: Ljdpfxov Drigo Ac Hehr Number of tool positions 12 pos. Number of driven tool stations 12 pos. Speed range - driven tools max. 5,000 min -1 Drive power - driven Tools 10 kW Tool holder (VDI 30) Tool shaft 20 x 20 mm Travel paths: x-axis 160 mm z-axis 450 mm Feed rates: Rapid traverse X: 60 m/min Rapid traverse Z: 45 m/min Feed force X: 2.5 kN Feed force Z: 4 kN Rapid traverse C: 200 1/min Max. torque C: 155 Nm Total power requirement Machine weight approx. 3.7 t Space requirement approx. 4.5 x 2.5 x 2.5 m Heidenhain control Hollow clamping cylinder C-axis and tool drive a Chip conveyor Oil and emulsion mist separator with electrostatic filter

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, turning length: 810 mm, turning diameter over cross slide: 800 mm, turning diameter: 320 mm, spindle motor power: 25,000 W, spindle speed (max.): 5,000 rpm, spindle bore: 73 mm, travel distance X-axis: 210 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 810 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 50 m/min, rotational speed (max.): 6,000 rpm, CNC FANUC MSX-701 / MAPPS IV CAPACITY Swing diameter over bed: mm 800 Swing diameter over cross slide: mm 800 Maximum turning diameter: mm 320 Standard turning diameter: mm 200 Maximum distance between the center: mm 1.130 Maximum turning length: mm 810 Ledpjwlvlgjfx Ac Hohr Maximum workpiece size: mm 300 TRAVELS X axis turret 1 and 2: mm 210 Y axis turret 1 and 2: mm +65 / -45 Z axis turret 1 and 2: mm 810 B axis headstock 2: mm 920 MAIN SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 SUB SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 FEED DRIVES Rapid traverse turret 1 X/Y/Z: m/min 30/20/50 Rapid traverse turret 2 X/Y/Z: m/min 30/20/50 TOOL TURRET Number of turrets: 2 Number of tool stations per turret: 16 Shaft cross – section for turning tools: mm 20 x 20 Maximum shaft diameter for boring bars: mm 32 Turret switching time (1 station): s 0,18 Maximum speed of the driven tools: rpm 6.000 Drive power for driven tools (5 min/continuous operation): kW 7,5/5,5 DIMENSIONS Installation area with chip conveyor: mm 5.120 x 2.720 Net weight: kg 8.300 Macchina equipped with: • High pressure cooling system • Bar loader interface • Gantry-type piece unloading arm • Cutting effort management system and load monitor • No. 1 double radial motorized tool holder • No. 3 axial motorized tool holders • No. 2 external tool holders • No. 2 double boring bar holders • No. 2 single radial motorized tool holders • No. 2 internal boring bar holders • No. 2 Kitagawa BD 208 self-centering chucks diam. Mm 210 • No. 1 set of jaws for each self-centering chuck • Instruction manuals and CE declaration Year of manufacturing: 2010

Condition: used, Year of construction: 2011, functionality: limited functionality, bar passage: 51 mm, overall weight: 6,000 kg, bar capacity 51 mm – three turrets – three Y axes – fixed/driven tool holders – LNS Sprint 552 bar feeder new in 2011 – Fanuc Control Lhodpfxewvvyrj Ac Hjr

Condition: used, Year of construction: 1999, swing dia. 680 mm max. turning diameter 429 mm turning length 440 mm control MORI SEIKI - MSC-501 turning speeds 5.000 U/min max. bar material dia. 56 mm travel -x axis 233 mm travel -z axis 510 mm number of tapers in turret head 2x12 CNC Turning- and Milling Center | MORI SEIKI - ZL-150SMC equipped with main/counter spindle, c- axis, 2x turret for driven tools, bar feeder and chip conveyor. The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. Ljdpfx Aowplulec Hohr - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: ZL 150SMC | ZL150SMC | ZL-150 SMC | ZL 150 SMC

Condition: used, Year of construction: 2010, turning diameter max. 320 mm turning length 810 mm control MSX 701 Number of revolutions max. 6.000 U/min power capacity - main spindel 22 / 18 kW max. usable bar diameter 52 mm C-Axis 0,001 ° spindle nose JIS A2-5 collet chuck 140 mm Number of revolutions max. 6.000 U/min power capacity - Sub spindle 22 / 18 kW max. usable bar diameter 52 mm C-Axis 0,001 ° spindle nose JIS A2-5 collet chuck 140 mm number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW Y - Axis 110 mm Lhsdpfx Asv E R E Asc Hor number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW x-travel 1/2: 210 mm y-travel 110 mm z-travel 1/2: 810 mm b-axis 900 mm total power requirement 86 kVA weight of the machine ca. 8,1 t dimensions of the machine ca. 8,0 x 3,5 x 2,8 m CNC - Turning- and MillingCenter MORI SEIKI - NZ 1500 T2Y - Main- and Subspindle - 2 turrets, up and below - Y-Axis - 2x 16 driven tool positions

Condition: good (used), Year of construction: 2002, operating hours: 18,000 h, CNC MULTITASKING LATHE MORI SEI MOD. MT 2000 SZ Main Spindle Kw 22 6,000 RPM X/y/z/b Travels: 565 - +/- 80 - 1077 - +/- 120° Milling Head Capto C6 6,000 RPM Motorized Lower Turret 12 Stations Tool Magazine 40 Posts Year 2002 Lhsdpfeu Sg Auex Ac Hor
