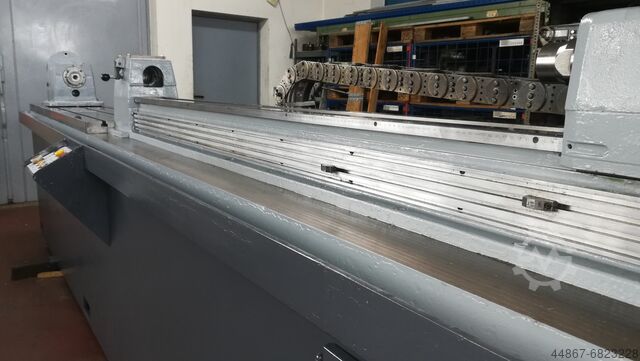

Deep hole drilling machine

TBT T20-1-1500

Condition: used, Year of construction: 2006, functionality: fully functional, center height in crank: 1,100 mm, workpiece weight (max.): 180,000 kg, grinding length: 11,000 mm, grinding wheel diameter: 1,066 mm, total length: 11,700 mm, quill travel distance: 11,700 mm, workpiece weight between centers: 180,000 g, distance between centers: 11,700 mm, POMINI CNC Roll Grinder Model HD-425-2-7L Siemens 840D, 12 Axes. Built in 2006. Two flatbed system grinding and workpiece ways are separate. Machine accuracy. Straightness 0.001-0.002 mm/m. Klsdpfx Afswdmy Sedor Roundness 0.001-0.002 mm. Eccentricity 0.002 mm. Profile for crown height up to 0.1 mm ±0.002 mm/m. Surface finishing without chatter marks and no feed marks after finishing grinding stage. On an independent bed: Auto Caliper Diameter 870 - 2,250 mm. Eddy current crack and bruise detector probe. Ultrasound depth probe up to 180 mm. High Pressure wheel cleaner. Wheel dynamic balancing electromagnetic automatically or manually. Wheel dressing device with diamond. 2 Hydrostatic Steadies. 2 Hydrodynamic Steadies. 4 Soft landing for roles. Wheel quick change device incl motor. Jib crane. Vibration Measurement, recording on: Headstock base Neckrests Foot stock Wheel head Wheel head back Carriage Lateral side. Working Capacity. Grinding length 11,000 mm Max diameter with 1,066 mm Grinding wheel 2,200 mm Min diameter with 1.066 mm Grinding wheel 800 mm Center distance 11,700 mm Max Roll weight 80 Tons Max Roll weight with Steadies 180 Tons Min distance between wheel center and roll axis 845 mm Max distance between wheel center and roll axis 1,635 mm Carriage Axis Z, Hydrostatic Feeds, Infinitely variable 0-6,000 mm/min Oil film thickness 0.020 mm Distance between carriage ways 1,500 mm Ways width 160 mm Total length of the carriage on ways 3,385 mm Wheelhead on Carriage Axis X, Wheel Probe Axis A, Inspector Axis A1, Wheelhead cross travel Ballscrew, Axis X 940 mm Resolution axis X 0.0001 mm Wheel Spindle length 1,695 mm Spindle bearing, hydrostatic, diameter 254 mm Resolution Infeed micrometer handwheel, Axes X 0.00001 mm / division Continuous wheel infeed, U axis on radius 0 - 0.35 mm/min Rapid wheel indeed, axes X 0-830 mm/min Wheel motor, AC 130 kW Wheel Speed 400-1,100-1,600 rpm Wheel Cutting Speed infinitely variable Surface speed wheel diameter 1,066 mm 45 m/sec Surface speed wheel diameter 670 mm 45 m/sec Wheel hole, diameter 508 mm Wheel thickness 76 - 152 mm Wheel diameter 670 - 1,066 mm Crowning, Axis U. Max crown on the diameter 10 mm Max concavity on the diameter 10 etc Head stock Workpiece rotating speed 5 - 50 rpm Headstock motor 200 kW Max transmissible torque 76.5 kNm Faceplate control system V Belts Max Center diameter, metric type 160 mm Stroke of Quill 150 mm Length of headstock 3,110 mm Tail stock Quill diameter 260 mm Stroke of quill 750 mm Maximum center diameter, metric type 160 mm Taper Metric 5% on the diameter Tailstock length 1,300 mm Stroke of tailstock 8,000 mm Caliper, Arm Axis C, Carriage Axis V, Rotation Axis B. Max measurable diameter 2,250 mm My measurable diameter 870 mm Machine Dimensions. Machine weight 130 tons Length 19.5 m. Width 5.5 m. Height 3.2 m. Foundation depth 3.8 m.

Condition: used, Year of construction: 2021, functionality: fully functional, total height: 2,900 mm, total width: 1,350 mm, total length: 1,710 mm, rotational speed (min.): 1,000 rpm, power: 5.5 kW (7.48 HP), SPYRA chip centrifuge 600H - For removing oil or emulsion from wet chips Kedsw Nqu Ajpfx Afdjlr - Fully operational and ready for use - Warranty available on request! - Tramp material within the chips presents no issue for this machine; it is specially designed and patented for this purpose. Throughput capacity for broken chips: - Steel: 4 t/h - Aluminum: 0.8 t/h - Brass: 2.7 t/h - Grey cast iron: 2.7 t/h The machine can be inspected in 71384 Weinstadt near Stuttgart.

Condition: used, Year of construction: 2016, measuring range X-axis 0 - 200 mm measuring range Z-axis 0 - 300 mm tool adaptor SK 40 / BT 40 Resolution 0,01 mm repeating accuracy 0,01 mm Ambinent temperature 0 - 40 °C dimensions of the machine ca. 0,30 x 0,19 x 0,64 m Klsdpfxeynbfcs Afdjr weight 44 kg Tool Presetter KELCH - set line V123

Condition: repair required (used), Year of construction: 1990, functionality: not functional, machine/vehicle number: 418.364.077, drilling depth: 800 mm, feed length Z-axis: 1,000 mm, total length: 4,200 mm, total width: 2,100 mm, total height: 2,800 mm, workpiece weight (max.): 500 kg, overall weight: 7,000 kg, travel distance X-axis: 800 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 1,050 mm, spindle speed (max.): 7,000 rpm, drill diameter: 25 mm, type of input current: three-phase, number of spindles: 1, feed length W-axis: 120 mm, TBT - Deep hole drilling machine, single spindle, with CNC cross table, "x/y" axes and "W" positioning slide! Control: EST - Error in CPU rack. Machine is not operational. All actuators/hardware were functional until decommissioning. Kodpfx Ajyz Rd Nsfdolr The rack error occurred during the downtime after decommissioning. Power electronics/inverter: Bosch Clamping table and various accessories Dismantling preferably by the buyer; machine components (control cabinet, body, oil tank) can be placed onto machinery skates using the existing hall crane, but loading inside the hall is not possible! Dismantling and loading upon agreement. Transport exclusively by the buyer.
