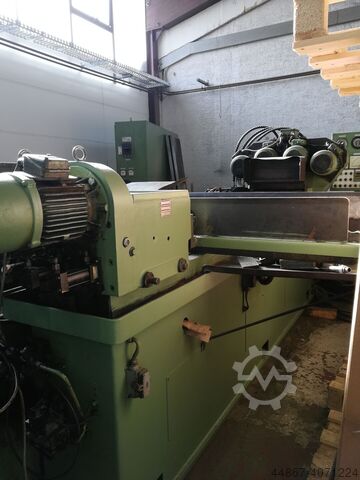

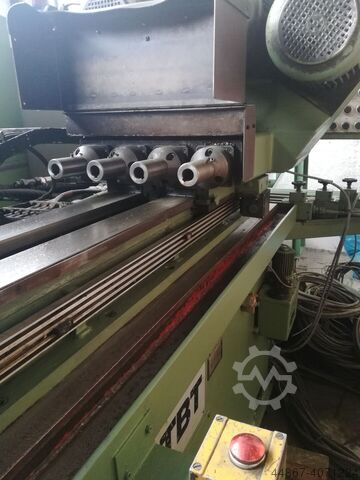

Deep Hole Drilling Machine

TBT T30-4-750

Condition: good (used), Year of construction: 1997, TBT ML 200-2-850 deep hole drilling machine TECHNICAL DATA Type: M200-2-850 Number of spindles: 2 Drill carriage stroke: 850 mm Drilling method: Single-lip drilling Drilling depth with: Submersible spindle: 120 mm Sealing housing: 400 mm Sealing housing with bezel: 350 mm Spindle drive Power: 2 / 3.5 / 1.5 kW Iaodpfevca Rcjx Apcor Voltage: 140 / 350 / 350 V Speed: 14 / 11 / 6 / A Feed - own drive Feed speed: 20 - 500 mm/min Rapid traverse speed NC operation: 12 m/min Feed force: 1.5 kN Motor power: 2.2 Nm at 3000 rpm Clamping tailstock Motor power: 0.75 kW at 1000 rpm Spindle speed: 500 rpm Stroke max: 200 mm Main dimensions L x W x H: 4600 x 2500 x 2100 mm Transport weight: 3200 kg Control: Sinumerik 805 M No liability is assumed for the correctness, completeness and up-to-dateness of the information provided

Condition: good (used), Year of construction: 1970, Brand HILGELAND Type CH 5 ALL Year of build 1970 Serial number 5282 Electric connection 380V Dimension l 5500mm Dimension w 2200mm Dimension h 1900mm Isdpfx Apsu Szucocsar (screw and rivet), capacity : M6 - M14, cutting length max. 200mm, variable speed: ... up to pieces 90 p/min, diameter 16mm

Condition: good (used), Year of construction: 1986, functionality: fully functional, machine/vehicle number: 39035, National Machinery 750 S3 Operational - Working 5 FORGING STATION Supplied with control process and soundproof cabin Machine Size: 750 S3 Number of dies and punches: 5 Total heading load (kN): 2730 Number of strokes/min. (min/max): 90 Cutoff diameter: 22 mm. Iasdpfx Aetnhp Ropcjr Cutoff length (min/max): 4,75/80 mm. Kickout stroke - die (min/max): 19/100 mm. Kickout stroke - punch: 52,4 mm. Motor size (kW): 55 Net weight (kg): 41.500

Condition: used, Year of construction: 1981, National 2-3 Hot Former Iedpfxewl Iw Uj Apcoar induction heater, feeder, straightener

Condition: used, Year of construction: 1966, Voumard 3A Iajdpjt D Uxyjfx Apcjr 1966 YEAR

Condition: used, Year of construction: 2002, Technical details: max. wheel diameter: 130 mm gear width: 170 mm max. module: 3 Isdpfxowdyx Ue Apcear min. module: 0,5 total power requirement: 48 kVA weight of the machine ca.: 9 t dimensions of the machine ca.: 7,64 x 3,14 x 3,25 m For technical data, see PDF-File enclosed *

Year of construction: 1984, condition: ready for operation (used), A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible. Isdjwkih Eepfx Apcoar

Condition: used, voumard Isdpfx Aotzarnspcear

Condition: used, Year of construction: 1988, max. wheel diameter 150 mm gear width . mm max. module 5 min. module 0,5 Control . total power requirement . kW weight of the machine ca. 10.000 t Iasdpjwhq Eaofx Apcor dimensions of the machine ca. 6500 × 2700× 3600 m

Condition: used, Year of construction: 1996, core drilling diameter max. 25 mm bore depth 1000 mm swing diameter mm total power requirement 25 kW weight of the machine ca. 12,5 t dimensions of the machine ca. m T B T (Germany) CNC-Controlled Horizontal Deep Hole Drilling " Centre " Model BWP 250 Year 1996, but reconditioned mechanically and electrically in 2006 _____ Isdpst Hw Aysfx Apcear Working range: X Axis, machine column cross 2,000 mm Z Axis, drilling slide horizontal 1,200 mm Drilling depth 1.000 mm Y Axis, drilling slide vertical 1,100 mm Table clamping area 1,200 x 2,000 mm Drilling capacity in solid material, approx. 4 - 25 mm Tool holder taper HSK 50 Spindle speeds 1.260 - 15,000 rpm Feed rates / quickfeed, XYZ, infinitely variable 100 - 10,000/15.000 mm/min. Force rate of feed motors 27 Nm / 1.000 daN Spindle drive steplessly adjustable 7 kW Total electrical load, approx. 30 kW - 400 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features: " Ideal machine for the complete processing of large workpieces like tool a. dies (cooling holes) mould- and dieplates, hydraulicparts etc. by means of deep hole drilling up to 25 x 1.000 mm, face milling up to Ø 60 mm, spiral twist drilling, counterboring and threading up to M 24 x 3 mm. " SIEMENS Continuous Path Control in 4 axes Model 840 D, with process monitoring for coolant pressure, operation data control function, toollife, feed force,Error diagnostics and easy dialogueprogramming directly on the panel, etc. " High Frequency Spindle Make GAMFIOR with stepless speeds " Hydraulically movable drill bush carrier, swivels 90° for holding gun drills (ELB) or picking up regular tools from the tool changer like twist drills, milling tools, taps, etc. " With automatic tool changer made by MIKSCH, Model CTM 40, using a 12-position tool changer, which is mounted on the r.h.side of machine housing, in fixed position, only moving forward and backward for tool changing operation. " Built-on indexing table as B-Axis made by FIBRO Model RTN 400 = 420 x 420 mm, " Extra Rotary Table made by FIBRO with Ø 1.000mm, for indexing 3-144 positions " Built-in coolant device with chip conveyor and various filters. " 2 steady rests. " Completely covered working area with access at the front and at the side. Condition : Very good condition. This is a rare and valuable machine. Under Power Delivery : immediately ex our Stock Payment : Net, after conclusion of contract.
