Ram-Type Floor Boring and Milling M/C
TITAN (PAMA) AFP 200 CNC

Name: TITAN (PAMA) AFP 200 CNC
Brand: TITAN (PAMA)
Availability: InStock

Year of construction

2008

Condition

Used

Location

Germany

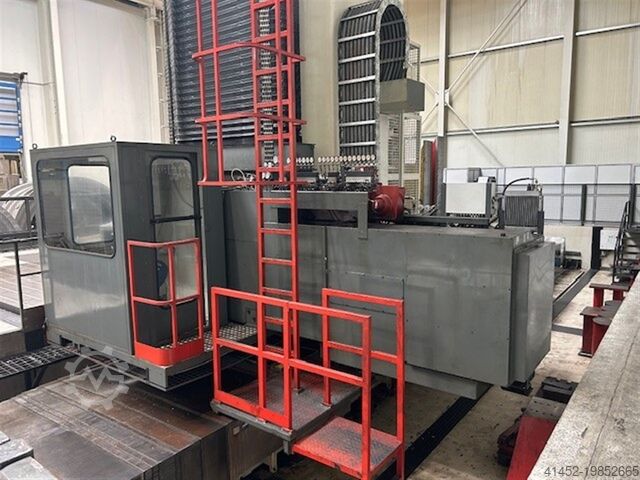

Ram-Type Floor Boring and Milling M/C TITAN (PAMA) AFP 200 CNC

Machine data

Machine type:: Ram-Type Floor Boring and Milling M/C

Manufacturer:: TITAN (PAMA)

Model:: AFP 200 CNC

Year of construction:: 2008

Condition:: used

Price & Location

Location:: , Germany

Call

Details about the offer

Listing ID:: A198-52665

Reference number:: 1034-13923

Update:: 15.06.2026

Description

Technical details:

spindle diameter: 200 mm
x-travel: 10000 mm
y-travel: 4000 mm
z-axis: 1500 mm
W-axis (spindle longitudinal): 1000 mm
bore spindle turning speed range: 1 - 2000 U/min
dimension of the ram: 600 x 530 mm
high speed spindle taper ISO: 60/50
rapid motion - x-axis: 8000 mm/min
rapid motion - y-axis: 8000 mm/min
rapid traverse Z-axis: 5 m/min
total power requirement: 120 kW
weight of the machine ca.: 135 t
dimensions of the machine ca.: 16,0 x 5,0 x 10,0 m
Ijdpjw S Nn Hefx Anwsth

with CNC Steuerung HEIDENHAIN iTNC 530
hydrostatic guideways x and Y- axis
autom. toolchanger 40-pockets
autom. Pickup Station for angular milling head,
universal milling head and facing head
rotary table 3000 x 3000 mm , max load 60 to.
v-axis 2500 mm
chip conveyor and coolant attachment

*
