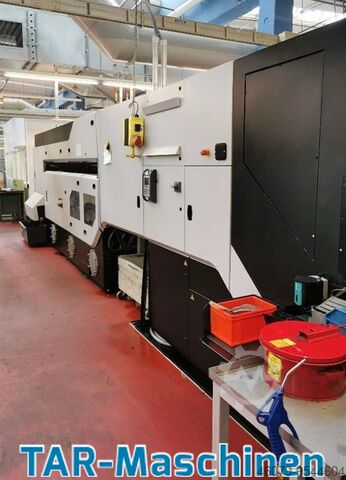

Bar Automatic Lathe - Multi Spindle

TORNOS MultiSwiss 8x26

Condition: like new (used), Year of construction: 2022, operating hours: 3,800 h, functionality: fully functional, Year 2022 - 3800 hours Isdpjxrfunefx Abbotf MultiSwiss 8x26, 6 Y-axes 8 motor spindles, 11 kW – 8000 rpm max Spindle capacity 26 mm, Z stroke 75 mm (max. workpiece 65 mm) 2 X-slide units in positions 1-8, stroke 80 mm 6 X-Y slide units in positions 2-3-4-5-6-7, X stroke 55 mm, Y +/-16.5 mm Counter spindle 11 kW – 8000 rpm max Z stroke 150 mm, X 170 mm HP ejector adaptation for counter spindle (requires 3010 or 3020) Fanuc 30iB CNC control Integrated PC with Windows 10 operating system 21.5" color touchscreen Independent C axis on each spindle in main and counter operations (requires 0060 or 0065 or 0070 or 0075)

Condition: ready for operation (used), Year of construction: 2018, Max. measuring dimensions X/Y/Z: 600mm/300mm/200mm, repeatability: +/-3µm, display error: +/-8µm, measuring modes: program measurements/single measurements/statistical measurements. Various accessories included. Documentation available. Iodpfx Abot H Rd Rebotf

Condition: used, Year of construction: 2019, Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Tornos Type: MultiSwiss 8x26 Yob: 2019 Itsdpfx Asldk R Hobbsf full cross slide configuration, counter spindle, part-pre-drawing device, 2 x driven tools, 1 rigid backworking, 1 x driven backworking, 2x 80 bar high pressure pumps optional: setting robot make HandlingTech. The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more informations and pictures on or *

Year of construction: 2001, condition: excellent (used), Multispindle lathe Schütte AG20 Itsdpfx Abshrihyebef

Condition: good (used), max. wheel diameter 1600 mm gear width 250 mm max. module 30 Itedpfxeu Dbuce Abbof min. module 8 range of tooth size 58 mm tooth width 250 mm weight of the machine ca. 42,3 t dimensions of the machine ca. 4,45 x 6,00 m - Cone spacing in mm. for spiral angle 30° minimum: 150 maximum: 800 - Taper angle, in degrees minimum: 5 maximum: 85 - Tooth angle minimum: 0° maximum: 45° - Number of teeth to be cut minimum: 10 maximum: 150 The machine is complete, fully functional and in good condition. Equipment / accessories: - complete set of change wheels - 4 pcs. cutter heads - various milling cutters - Operating instructions in English

Condition: like new (used), Year of construction: 2020, functionality: fully functional, For sale is a measuring system from Keyence, type XM- C1000 The measuring system is something special, as the points to be measured are scanned by hand Very user-friendly and intuitive system. Compact and easy to maintain Control unit and PC XM-1600 are included in the offer Also Measuring probe, exchangeable probes, alignment station, various clamping devices Clamping vice Mouse Touch probe Operating instructions On request, transport and loading can be organized throughout Europe for an additional charge. Ijdpfxorq Ebie Abbjtf Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 32 [mm] - Travel : 240 [mm] Ijdeuhax Eepfx Abbotf - Spindle speeds : 8000 [rpm] - Spindle power : 7.5 [kW] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 32 [mm] - Spindle speeds : 6000 [rpm] GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] END ATTACHMENT - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 6000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] MACHINE HOURS - Number of working hours : 56.433 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2,S3,S5 V+H - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor - Coolant tank * with high-pressure pump - Number of turning tool holders : 3 - Number of fixed tool holders : 7

Condition: used, functionality: fully functional, In this offer you purchase a used mobile coordinate measuring system ‘Keyence WM-3500’ Object of sale: 1 x Keyence WM-3500 with the following equipment: incl. camera tripod incl. laptop with measuring software incl. WM-B1 measurement battery incl. battery charger WM-BC1 incl. transport case Condition: This is a used device, which may show signs of use (minor scratches or yellowing). (minor scratches or yellowing). The device has been tested for function Iedpfev Id Uvjx Abbetf For further information you can of course contact us personally.

Condition: ready for operation (used), Year of construction: 2023, spindle speed (max.): 6,000 rpm, travel distance Z-axis: 700 mm, spindle motor power: 32,000 W, controller manufacturer: SIEMENS, controller model: C200-sl, number of axes: 5, This 5-axis Index C200 was manufactured in 2023, offering advanced capabilities for horizontal turning. Ideal for precision and efficiency in metalworking, this machine represents a significant asset for enhancing production quality. Consider the opportunity to buy this Index C200 horizontal turning machine. Contact us for more information. Additional equipment • Software options: OPC UA for master computer connection (max. 200 variables). ChipMaster cycle for chip breakage control. • Environmental data: Noise level: 73.8 dB(A) Machine Benefits Technical Machine Benefits • Control system: based on sinumerik 840d solutionline (sl) with sinamics s120 drives. 18. 5" tft color display with pct-touch (ip65). Siemens operate user interface in german. • Interfaces: 4x usb 2. 0 (2 on the control panel, 2 in the control panel). Network-capable for nc data transfer (logical drives). • Safety: siemens safety-integrated (profisafe). • Turret mechanics: hydraulic locking, ac motor with face gearing. Drive power per tool carrier: 10 kw (25 % ed), max. 8,000 rpm. • Tool holder: cylindrical shank d25x48 (din69880) with w-slots for higher repeat accuracy. Driven tools possible in every station (only rotating in working position). • Cooling unit: 13 kw for hydraulics, spindles and control cabinet. Connection for cooling water (20°c ±2°c, 30 l/min, glycol 25 %). • Chip conveyor: hinged belt conveyor (made by knoll) with 180-liter container, discharge height 840 mm. Cooling lubricant system: 750-liter container, 8-bar/20-80-bar pumps. • Bar loader interface: unimag4-compatible (external loaders require specific cover). Maximum bar length: 1,035 mm (short bar operation). Gantry pick-up device: pneumatic gripper (Ø 10-90 mm, max. 3. 5 kg). Conveyor belt with switch for finished parts/remaining parts. Extra Information Control Unit Operating voltage: 400V Control voltage: 24V DC Frequency: 50Hz Rated power: 54kW Connected load: 65kVA Rated current: 94A Max. back-up fuse: 100A Main Drive Main spindle and counter-spindle Spindle head mounting: OD 140mm, ID 85mm Front bearing diameter: 110mm Torque max. (100%/40%): 125/170 Nm Clamping pressure min./max.: 8/80 bar Piston area pressure: 57cm² Piston area tension: 57cm² Compressive force max.: 45600 N Tensile force max.: 45600 N C-axis: Drive: Hollow shaft motor of the spindle; angle measuring system directly on the spindle Position spread (VDI/DGQ 3441): Psmax = 0.01 degrees Turret Tool carrier 1 X-axis working path: 110mm X-axis rapid traverse: 30m/min X-axis acceleration: 9m/s² X-axis feed force: 5000N Z-axis working path: 320mm Z-axis rapid traverse: 50m/min Z-axis acceleration: 9m/s² Z-axis feed force: 5000N Y-axis working path: 100mm Y-axis rapid traverse: 15m/min Y-axis acceleration: 9m/s² Y-axis feed force: 5000N Stations: 14 with cylindrical shank holder D25x48 Tool carrier 2 X-axis working path: 110mm X-axis rapid traverse: 30m/min X-axis acceleration: 9m/s² X-axis feed force: 5000N Z-axis working path: 550mm Z-axis rapid traverse: 50m/min Z-axis acceleration: 9m/s² Z-axis feed force: 5000N Y-axis working path: 100mm Y-axis rapid traverse: 15m/min Y-axis acceleration: 9m/s² Itsdpfxjyyuvto Abbef Y-axis feed force: 5000N Stations: 14 with cylindrical shank holder D25x48 Tool carrier 3 X-axis working path: 180mm X-axis rapid traverse: 30m/min X-axis acceleration: 9m/s² X-axis feed force: 5000N Stations: 14 with cylindrical shank holder D25x48

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, Equipment: rotational speed infinitely variable, Citizen R07-VI CNC Swiss-type lathe Year of construction 2015, in very good condition, annual maintenance has been carried out every year since new 2 identical machines are available, both ready for immediate delivery Control: Fanuc Max. machining diameter: 7mm Number of servo axes: 6 Z1/X1/Y1/X2/Y2/Z2 Number of C-axes: 2 main and sub-spindle Number of tool positions: 5x turning tool holders / 2x driven tool positions / 3x drilling stations front and rear Including accessories: Itodpfeyk Iv Tjx Abbof Iemca Elite 112 EVO bar feeder Büchele SFB-100 high-pressure unit Kraft und Bauer fire extinguishing system
