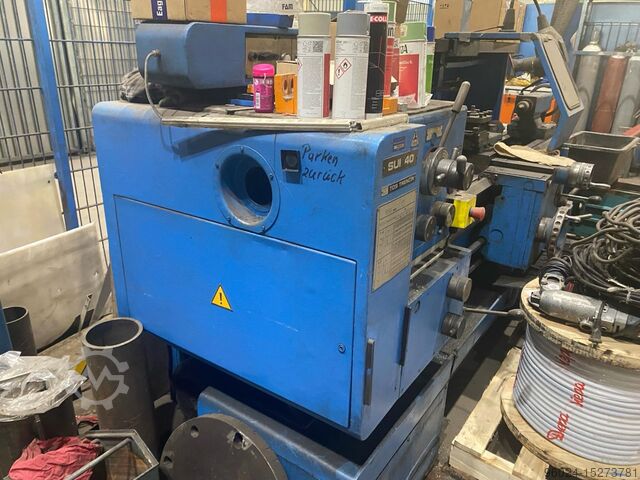

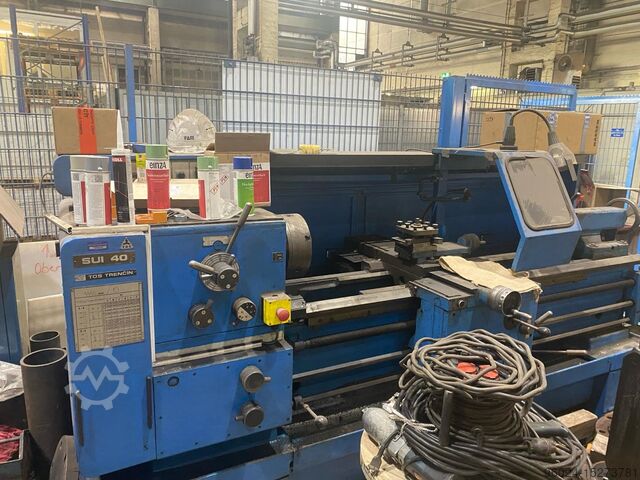

Lead/traction spindle lathe

TOS Trenčín SUI 40

Condition: ready for operation (used), Spindle bore: 60 mm Swing diameter over bed: 500 mm Center length: 1000 mm Kjdpfsiqtzkjx Ahuoll Dimensions: 3100x1400x1600mm

Condition: excellent (used), Year of construction: 2013, Alpha 1550XS - Cycle lathe incl. accessories Center distance is 1500 not 2000 Multifix holder 16 pieces Year of construction 2013 Top condition (really in top condition) Various interchangeable jaws (soft jaws) steady rest face plate Spindle bore 104mm Turning over bed 550mm Kljdpfx Aheunruyeujl Three-jaw chuck 315mm

Condition: used, turning diameter over bed / mm turning diameter over slide rest / mm turning length / mm total power requirement / kW weight of the machine ca. / t required space / m Conventional lathe with copying attachment and extensive accessories Kedpov Rgzwofx Ahusll Turning diameter over cross slide: 240 mm Spindle bore: 52 mm Turning diameter: 360 mm Center height: 180 mm Turning length: 1,000 mm Overall length: 2,200 mm Overall width: 750 mm Overall height: 1,400 mm Maximum spindle speed: 1,750 rpm Min. spindle speed: 60 rpm Total weight: 1,800 kg All technical specifications are subject to change without notice. Deviations may occur depending on the year of manufacture, model, or condition of the machine. We assume no liability for the accuracy or completeness of this information.

Condition: good (used), For sale is an external cylindrical grinding machine of the brand VEB Werkzeugmaschinenbau and of the type SU 200/1x800 Kjderdf Hgjpfx Ahujll The machine is fully functional and ready for immediate use Technical data Grinding diameter: 200 mm Sanding length: 800 mm orbital diameter: approx. 160 mm Headstock speed: 200-1000 1/min Headstock: MK2 Grinding wheel diameter: approx 330 mm Table size: 900 x 200 mm Dimension: 3050x1300x1430 Weight: 4.6 tons On request, loading and transport (Europe-wide) can be organized for an extra charge. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: used, machine/vehicle number: 217 0055/5, Heavy-duty lathe, lathe, lathe, lead and tension spindle lathe, lead and tension spindle lathe, automatic lathe Kedpsha Hvvsfx Ahusll -Manufacturer: WMW, automatic lathe type DRT 50m -Turning length: 550 mm -Turning Ø over bed: 530 mm -Spindle bore: Ø 63 mm -Spindle speeds: 9 - 450 rpm -Three jaw chuck: Ø 200 mm -Turret: with accessories, see photos -Drive motor: 5.3 / 6.8 kW -Dimensions: 2420/1040 / H1460 mm -Weight: 2200 kg

Condition: reconditioned (used), Year of construction: 1956, Lead and Feed Screw Lathe WEIPERT Klodsw Ew D Dspfx Ahuel Year of manufacture: 1956 Spindle bore: 90 mm Centre distance: 3000 mm Swing over bed: 800 mm Swing over cross slide: 610 mm Swing in gap: 1120 mm Speed range: 7.5 – 475 rpm Comes with the following accessories: Multifix toolholder with 11 inserts Coolant system 3-jaw chuck 315 mm 3-jaw chuck 400 mm 3-jaw chuck 500 mm Faceplate 400 mm Faceplate 800 mm Faceplate 1000 mm Travelling steady Various turning tools (30 insert tools) 2 revolving centres 1 drill chuck Operating manual

Condition: good (used), Year of construction: 1988, Lathe KMK 40 Speed 1800 rpm Turning length 1000 mm with 3 jaws 4 jaws Multix with 4 inserts Rotating center point Face plate Collet chuck with collet set Kjdpfsu Uh U Isx Ahujll

Condition: good (used), Year of construction: 1989, functionality: fully functional, total height: 18,700 mm, total width: 14,600 mm, total length: 35,350 mm, grinding length: 320 mm, grinding wheel diameter: 200 mm, Shaft and bore grinder. Prod. STANKO(USSR) - 1989. Diameter of the ground hole 50 - 300mm. Kledpfetzwzxjx Ahujl Max. diameter of the workpiece 560mm. Distance between table and spindle 340mm. Maximum length of the workpiece 320mm. Upper diameter of the inner grinding head 125; 100; 80mm. Distance from the front face of the grinding head to the spindle flange 150 - 400mm. Size of grinding disc 200 x 75 x 63 mm. Workpiece spindle speed range 60 - 600 rpm. Table movement 800mm. Power of main motor 7,5 kW Total required power 14,63 kW Dimensions of the machine (Length x Width X Height) 3535 x 1460 x 1870 mm Weight of the machine 6400kg.

Condition: good (used), Year of construction: 1970, functionality: fully functional, turning diameter over cross slide: 310 mm, spindle bore: 68 mm, turning diameter over bed slide: 500 mm, center height: 250 mm, center width: 1,500 mm, spindle speed (max.): 1,800 rpm, spindle speed (min.): 9 rpm, power: 11 kW (14.96 HP), Tailstock holder MK5 Chuck Steel holder Weight 3500kg Kedpfxjr Ikq Te Ahuell Loading and delivery is no problem

Condition: excellent (used), Year of construction: 2013, operating hours: 1,719 h, functionality: fully functional, feed length X-axis: 470 mm, feed length Z-axis: 2,040 mm, feed rate X-axis: 5 m/min, feed rate Z-axis: 10 m/min, turning diameter over cross slide: 650 mm, turning diameter: 1,030 mm, spindle bore: 375 mm, spindle speed (max.): 500 rpm, spindle speed (min.): 5 rpm, overall weight: 23,000 kg, Okuma CNC Oil Country Hollow Spindle Lathe Model: LOC 650 Control: Okuma OSP P300L Kljdjxzgkiepfx Ahujl Year: 2013 Max Swing Over Bed: 1030mm Max Turning Dia: 650mm Spindle Bore: 375mm Spindle Speeds: 5-500 RPM Double Air Chucks 850mm Dia 12 Station Upper Turret Swarf Conveyor Coolant System
