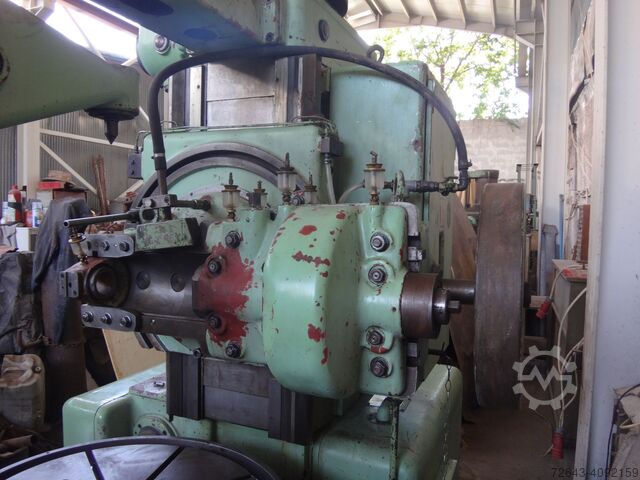

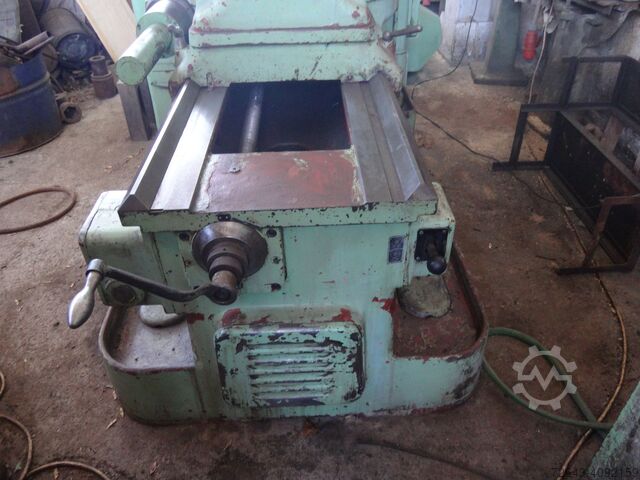

Gear cutter TOS-FO 10

TOS FO-10

Condition: used, BROACHING MACHINE Gsdpfxst Hr Dfj Acajuh

Condition: excellent (used), 1. Permanent-magnet chuck, D = 315 mm, with mounting flange according to DIN 55027, size 6. Gjdpfxod Eaaue Acajuh

Condition: excellent (used), workpiece diameter 60 mm Guedpfx Asunt Egecash grinding depth 30 mm clamping length 1000 mm weight of the machine ca. 0,6 t dimensions of the machine ca. 0,5 x 0,5 x 2,1 m

Condition: used, Year of construction: 1964, Technical details: shaft diameter: max. 120 mm work piece - max.: 800 mm height of profile: Tiefe: max. 90 mm grinding spindle speed: nicht bekannt U/min Table dimensions: Ø 150 mm voltage: 380 V total power requirement: 1,1 kW weight of the machine ca.: 0,675 t dimension machine xH: 0,75 x 0,70 x 2,0 m Godpsu Ngr Defx Acasuh Application: vertical internal cylindrical grinding of shafts face, and center grinding with shaft grinder. Spindle head technical details: -equipment shank grinder Ø 13mm 60°; clamping element Ø 6mm shank clamping head. -travel=vertical 950mm by handwheel and transversal 80mm by crank handle -abrasive device with diamond, adjustment crosswise= 80mm. Table other specifications: -with fixed tip holder 60°. -speed 63 / 125 rpm. -adjustment vertical 600mm, in height 1.100mm, operation manual. centering block: -prismatic guide accessories: -fixed tip L=180mm -fixed tip L=300mm -div. shank grinder -div. clamping and auxiliary tools *

Condition: ready for operation (used), Romanian Slotters MH500, M 320 And M 200 Stroke 500mm, 320mm and 200mm Godpfxotz S Hcj Acaeuh

Condition: reconditioned (used), Year of construction: 1970, functionality: fully functional, Table size 800 x 200 mm Magnet table 600 x 200 mm Grinding capacity 630 x 200 mm Max grinding high 320 mm Dia of grinding wheel max:250 mm Spindle speed 2750 rpm Power required 3,6 kW Weight 2200 kgs Dimensions L x W x H =: 1900 x 1500 x 2000 mm Guedpfx Acsw R Dnxsajh Dimensions of coolant tank L x W x H = 400 x 300 x 500 mm

Condition: used, High-performance grinding spindle, internal grinding machine, internal grinding device, internal grinding spindle -Grinding spindle: for lathe -Electrically operated Gusdpfxoc N N H Ds Acajh -Max. Speed: 6900 rpm -Admission: M42 x 1.5 mm -Dimensions: 600/390/H355 mm -Weight: 64 kg

Condition: excellent (used), Year of construction: 2008, Table size 600 x 300 mm Max. grinding area 600 x 300 mm Dimensions of the grinding wheel 406 x 50 x 127 mm Min. / max. distance table / spindle center 500 mm Table speed, hydraulically adjustable 5 - 25 m/min. Cross feed 0.1 – 20 mm Cross travel 900 mm/min. Handwheel, cross 1 revolution 5 mm 1 division mark 0.02 mm Automatic vertical feed 0.001 - 0.999 mm/cycle Handwheel, vertical 1 revolution 2 mm 1 division mark 0.01 mm With AD 5 (automatic feed) 0.005 mm Grinding motor speeds 1450 / 2900 rpm Grinding motor 1.5 / 3.7 kW Hydraulic pump motor 0.75 kW Gjdpjizka Ijfx Acaouh Drive motor, cross 1.1 kW Drive motor, vertical 1.1 kW Machine dimensions L x W x H approx. 2300 x 1800 x 2100 mm Weight 1700 kg Accessories / Special features: • 2-axis digital display • Automatic vertical feed with spark-out and subsequent retraction • Electro-magnetic clamping table L x W 600 x 300 mm • Manual grinding wheel dressing device • Grinding wheel speed, 2 stages • 1 grinding wheel with flange • Control panel • Lighting • Coolant system with band filter and magnetic separator • Machine feet • CE compliant Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 11-153 DE - 44143 Dortmund - Wambel / Germany

Condition: ready for operation (used), Year of construction: 2011, controller manufacturer: HAAS, This 3-axis HAAS VF-4 was manufactured in 2011. It features a generous X-axis travel of 1270 mm, Y-axis travel of 508 mm, and Z-axis travel of 635 mm. The machine is equipped with a 40-tool automatic tool changer and includes a probe and toolsetter for enhanced precision. If you are looking to get high-quality machining capabilities, consider the HAAS VF-4 vertical machining centre we have for sale. Contact us for further details. Gusdpfjzxp D Hsx Acaeh

Condition: used, TECHNICA ZSM 5100 center grinder for long shafts max L = 1000 Centering bore diameter 3 - 60 mm, workpiece clamping range 4 - 220 mm, workpiece length 50 - 1000 mm, workpiece weight max. 120 kg, centering bore angle 60°, grinding head adjustement max. 160 mm, grinding spindle speed 10000 - 45000 rpm, dressing stroke of the grinding disc dressing unit max. 40 mm Machine under power in our warehouse Mimu Machine Tools Gussago BS Italy Gjdpfx Aoy Tp Dxjcaeuh
