Lead/traction spindle lathe

TOS SU 50 A 1500

Condition: excellent (used), functionality: fully functional, machine/vehicle number: 70.0961.000.253, TECHNICAL DETAILS: Turning diameter: - Over bed: 800 mm - Over carriage: 560 mm - Diamter of face plate: 750 mm Height of centers: - Over flat ways: 380 mm - Over Vee ways: 358 mm Gap, bed and gap piece: - Turning diameter in gap: 980 mm - Width of gap in front of face plate: 380 mm - Swing in gap: 1040 mm Hsdpfx Aisup A Rze Tsw - Width of gap in front of face plate within swing diamter: 330 mm - Width of bed: 560 mm Headstock spindle: - Diameter of spindle bore: 90 mm - Spindle diamteres in front bearing: 145 mm - Taper in spindle: 6 Morse Spindle speeds: - Number: 18 - Spindle speed ranges: 7,1 - 355 RPM 9,0 - 450 RPM 11,2 - 560 RPM Power required: 7,5 - 14 kW Feeds: - Number: 32 - Sliding feeds per revolution: 32 longitudal feeds: 0,071 - 2,5 mm/rev. 32 cross feeds: 0,04 - 1,4 mm/rev. Extras: additional equipment, manuals for machine

Condition: good (used), Year of construction: 1968, Malcus MC40 Centerless Cylindrical Grinding Machine Manufacturer: Malcus Halmstad, Sweden Model: MC-40 Year of Manufacture: 1968 Control Panel: Mechanical push-button control with main switch and emergency stop Hjdpfx Asx Aq A Eei Tsw Grinding Units: Two opposing units with adjustable guide and grinding supports Machine Construction: Heavy-duty cast iron frame Condition: Used, fully functional The Malcus MC40 is a robust centerless cylindrical grinding machine made in Sweden, renowned for its reliable precision during continuous industrial operation. The machine features a solid cast iron construction which minimizes vibration and ensures consistent grinding results. Its opposing grinding and guide assemblies can be precisely adjusted, making it ideal for machining rotationally symmetrical workpieces. An integrated dressing device keeps the grinding wheel in optimum condition during use. The mechanical control panel with its clearly arranged elements enables intuitive operation of the grinding process. Designed for high stability and long service life, this machine is an excellent choice for workshops and production facilities seeking a dependable solution for centerless grinding. No guarantee is provided for the accuracy, completeness, or currency of the information given.

Year of construction: 1984, condition: used, machine/vehicle number: 57051/4, Manufacturer: Rhode & Doerrenberg (May) Model: SS 40 U Serial No.: 57051/4 Year of Manufacture: 1984 Weight: 950 kg General / Technical Data: Used drill grinding machine from German production for 2, 3, and 4-edged tools, in good condition. Diameter range: 5 mm to 40 mm Tool length: 500 mm Point angle: 80° to 160° Clearance angle: 1° 30“ to 10° Grinding wheel: 210 x 127 x 50 mm (cup wheel) Hsdsc Nv S Aepfx Ai Tow Tool body: 2, 3, and 4-edged drills and countersinks Grinding direction: Left and right-hand cutting tools Machine dimensions (l x w x h): 1350 mm x 1100 mm x 1400 mm Power connection / Control voltage: 380 V 50 Hz / 220 V Motor power / Total power: 2.2 kW / 2.55 kW Accessories / Special equipment: • 2 grinding wheel holders with grinding wheel • 8 collets for drill chuck, manufacturer Forkardt • 6 MK tool holders & drill extensions • Coolant system • Machine documentation & electrical wiring diagram Remarks: The machine is located in our warehouse, connected to power, and can be demonstrated by appointment.

Condition: good (used), Heavy-duty lathe, lathe, lathe, lead and tension spindle lathe, lead and tension spindle lathe, automatic lathe -Manufacturer: WMW, automatic lathe type DRT 50m -Turning length: 550 mm -Turning Ø over bed: 530 mm -Spindle bore: Ø 63 mm -Spindle speeds: 9 - 450 rpm -Three jaw chuck: Ø 200 mm -Turret: with accessories, see photos -Drive motor: 5.3 / 6.8 kW Hsdpfx Ajha Hvvsi Tow -Dimensions: 2420/1040 / H1460 mm -Weight: 2200 kg

Year of construction: 1987, condition: not inspected (used), Chuck for workpiece pickup is missing Hodpfx Aijhaqv Do Tsw

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, SHARPENING MACHINE MOD. APE 40 UP TECHNICAL SPECIFICATIONS: Sharpening diameter from 2 to 40 mm Right and left cutting edges from 1 to 12 Drill angle 40°-180° Horizontal wheel center electric spindle power 0.76 kW Vertical wheel center electric spindle power 0.18 kW Hedpfxjzhplcs Ai Tew Pump motor power 0.06 kW Approximate weight 230 kg Machine dimensions mm 1040 x 750 x 1330

Condition: good (used), Year of construction: 1989, functionality: fully functional, Turning diameter on the table: 300 mm Distance between centers: 1,000 mm Max. external grinding diameter with 355 mm wheel: 270 mm Max. external grinding diameter with 405 mm wheel: 220 mm Max. external grinding diameter with 510 mm wheel: 115 mm Max. workpiece weight between centers: 130 kg Grinding headstock Swivel angle left/right: +/- 30° Standard wheel dimensions: 355 x 152.4 mm Special wheel dimensions: 405 x 152.4 mm Hedezi Dvxopfx Ai Tew Standard wheel width: 25-50 mm Special wheel width: 100 mm Handwheel feed rate per division: 0.0025 mm Automatic infeed speed: 0.02-1.5 mm/min Automatic feed speed during surface grinding: 0.001-0.1 mm/min Workpiece headstock Swivel angle: 120° Spindle speed, 50 Hz: 24-302 rpm Spindle speed, 60 Hz: 29-363 rpm Taper of the center: MK 4

Condition: ready for operation (used), Cylindrical grinding machine for sale. In good working order and ready for use. The price stated in the advertisement is the net price, to which VAT must be added. This is a universal centerless (cylindrical) grinding machine for external and internal grinding. Max. grinding length: 1000 mm Max. workpiece diameter: 315–320 mm Center height: 160 mm Grinding wheel up to Ø500 mm Grinding wheel width: approx. 80–90 mm Workpiece spindle speed: 15–375 rpm Longitudinal table travel: 1250 mm Transverse travel: approx. 170 mm Machine dimensions: approx. 4500 × 2075 mm Weight: approx. 4888 kg Hedpfx Asz Hlr Tji Tjw Control: conventional. The machine can be viewed in Starachowice at ul. Kwiatkowskiego 13. Contact by phone between 7:00 a.m. and 3:00 p.m.

Condition: ready for operation (used), 440-20 CINCINNATI-MILACRON 'DE' Twin Grip Centerless Grinder Capacity – 254 mm Grinding Wheel Diameter – 609.6 mm Grinding Wheel Power – 29.8 kW Hjdpfsxwm E Sjx Ai Tew Regulating Wheel Diameter – 355.6 mm Regulating Wheel Power – 1.5 kW Regulating Wheel Speed – 300 RPM Approximate Weight – 14 tons Video of machine under power available

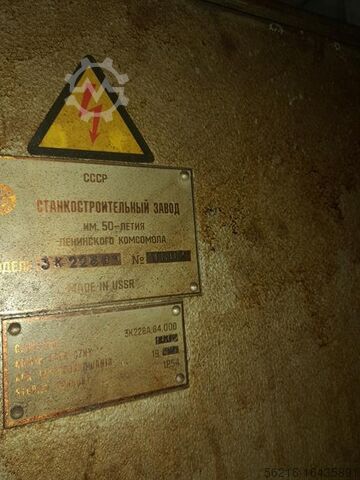

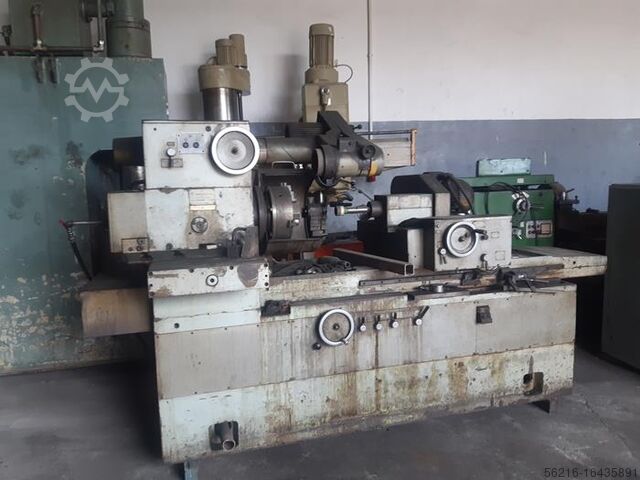

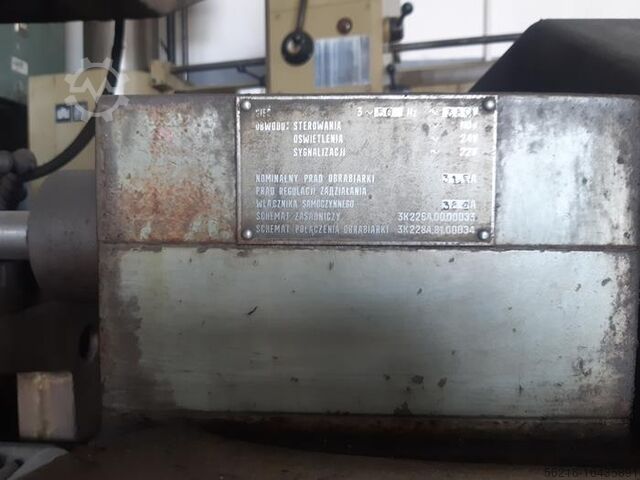

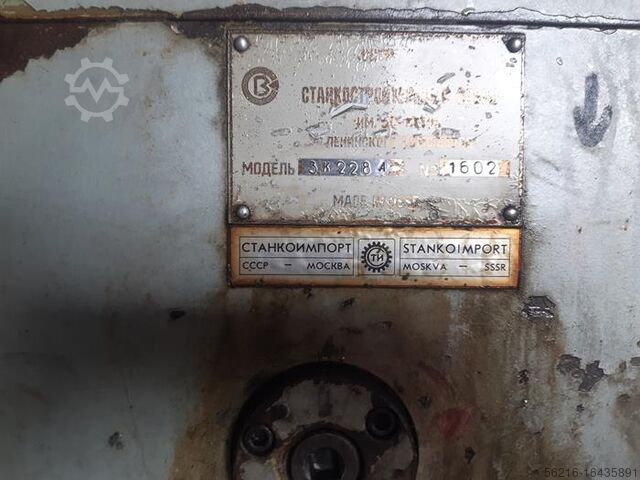

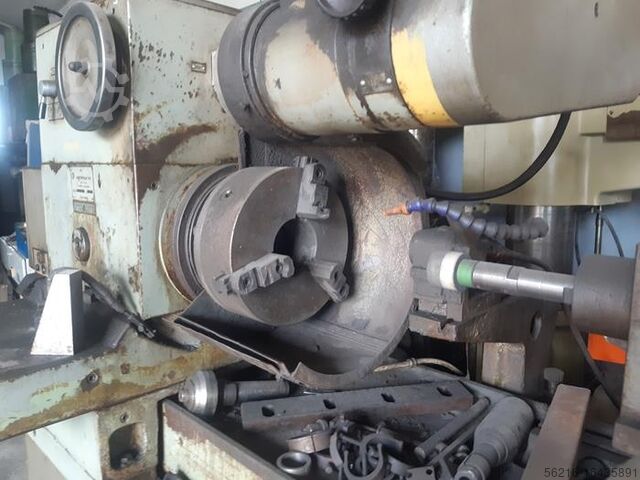

Condition: good (used), Year of construction: 1989, functionality: fully functional, total width: 14,600 mm, total length: 35,350 mm, total height: 18,700 mm, grinding length: 320 mm, grinding wheel diameter: 200 mm, Shaft and bore grinder. Prod. STANKO(USSR) - 1989. Diameter of the ground hole 50 - 300mm. Max. diameter of the workpiece 560mm. Distance between table and spindle 340mm. Hjdpfx Aijtzwzxs Tew Maximum length of the workpiece 320mm. Upper diameter of the inner grinding head 125; 100; 80mm. Distance from the front face of the grinding head to the spindle flange 150 - 400mm. Size of grinding disc 200 x 75 x 63 mm. Workpiece spindle speed range 60 - 600 rpm. Table movement 800mm. Power of main motor 7,5 kW Total required power 14,63 kW Dimensions of the machine (Length x Width X Height) 3535 x 1460 x 1870 mm Weight of the machine 6400kg.
