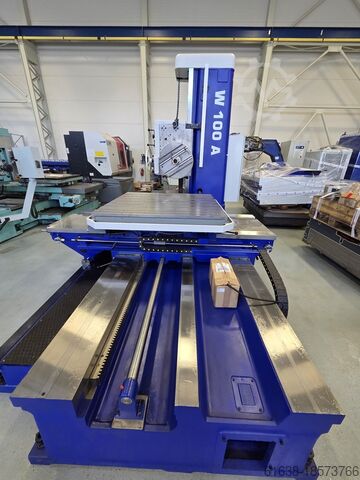

Horizontal boring mill

TOS W100

Condition: used, Year of construction: 1998, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,400 mm, travel distance Z-axis: 1,000 mm, rapid traverse X-axis: 10 m/min, rapid traverse Y-axis: 10 m/min, rapid traverse Z-axis: 15 m/min, feed rate X-axis: 5 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 5 m/min, torque: 1,200 Nm, controller manufacturer: SIEMENS SINUMERIK 840D, workpiece weight (max.): 18,000 kg, total height: 4,950 mm, total length: 10,270 mm, total width: 5,640 mm, table width: 1,000 mm, table height: 800 mm, table length: 6,000 mm, table load: 18,000 kg, rotational speed (min.): 16 rpm, rotational speed (max.): 3,200 rpm, overall weight: 21,000 kg, spindle speed (max.): 3,200 rpm, spindle motor power: 22,000 W, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, FFQ 100W-A6(A8) CNC – TOS KUŘIM Machining Center, Table Length 6m (8m) Control System: Siemens 840 C Availability: According to selected refurbishment Warranty: According to selected refurbishment Can be supplied as used, after medium repair, or after general overhaul, including modernization. FFQ 100W-A6(A8) CNC – Technical Specifications: Basic Machine Data: Manufacturer: TOS Kuřim Overall Length: 10,270 mm Overall Width: 5,640 mm Overall Height: 4,950 mm Total Weight: 21,000 kg Total Connected Load: 40 kVA Working Range: Longitudinal Travel X-axis: 4,000 mm (6,000 mm) Cross Travel Z-axis: 1,000 mm Vertical Travel Y-axis: 1,400 mm Horizontal Spindle Head with Extendable Quill: Tool Taper per ČSN 22 0433 ISO 50 Max. Power: 22 kW Speed Range: 16 – 3,200 rpm Number of Speed Steps: Infinitely variable Max. Torque: 1,200 Nm Quill Diameter: 170 mm Quill Extension: 400 mm Quill Working Feed Range: 1 - 2,000 mm/min Quill Rapid Traverse: 4,000 mm/min Max. Quill Feed Force: 10,000 N Spindle Head (IPS head): Tool Taper per ČSN 22 0433 ISO 50 Max. Power: 22 kW Speed Range: 16 – 3,200 rpm Number of Speed Steps: Infinitely variable Max. Torque: 1,200 Nm Machining H-V, spindle automatically adjustable to vertical or horizontal position Feed Range X – Y / Z: Number of Steps / Range: Infinitely variable / 1 – 5,000 mm/min Rapid Traverse Y – Z / X: 10,000 / 15,000 mm/min Table: Table Area: 1,000 x 6,000 mm (8,000 mm) Nwodpfx Aoxp Iz Ssfxen Max. Load: 3,000 kg/m2 Tool Magazine: Number of Positions: 40 pcs Control System: SIEMENS 840 C Details upon request.

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,120 mm, travel distance Z-axis: 900 mm, nominal power (apparent): 10 kVA, table width: 1,120 mm, table height: 1,120 mm, spindle speed (max.): 1,100 rpm, tool weight: 15,000 g, The machine is like new after a complete overhaul, 4-axis digital measurement Newall. Nwedpev A Irhjfx Afxjn

Condition: used, Year of construction: 1984, functionality: fully functional, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,120 mm, travel distance Z-axis: 900 mm, table load: 3,000 kg, spindle diameter: 100 mm, spindle speed (max.): 1,100 rpm, total height: 3,000 mm, total length: 6,020 mm, total width: 3,500 mm, table height: 960 mm, overall weight: 14,000 kg, We purchased the machine in 2011 after it had been completely overhauled. Nedpjw Hru Tsfx Afxjwn
