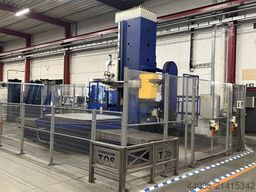

Table Type Boring and Milling Machine

TOS WHN 13 CNC

Condition: good (used), Year of construction: 2013, Ref. -No.: 10636 Manufacturer: TOS VARNSDORF Type: WHN 13 CNC Year of construction: 2013 Type of control: CNC Control: Heidenhain 530 Storage location: Halberstadt Country of origin: Czech Republic X-Travel: 3500 mm Y-Travel: 2000 mm Z-Travel: 1250 mm W-Axis: 800 mm B-Axis: 360 ° Table Load: 15.000 kg Tool Taper: SK 50 Turning Speeds: 1400 RPM Spindle Speed: 2000 RPM Further information: - The control system was converted to a HEIDENHAIN 530i in 2013. - All drives were upgraded to digital. Thrust bearing replacement on the tower also renewed in 2013. - Accessories: - 3D probe - Heidenhain, large spindle support - 1x Heidenhain axis module (completely overhauled), - 1 new axis module is installed in the machine. - Newly packaged spare parts, covers from the machine. - All bearings have been replaced on the machine in recent years. Blodpfxeyqmvxe Ah Ied - Tools and milling cutter heads are available. The machine is first-hand. The machine is still powered up and in production. The machine can be viewed by appointment.

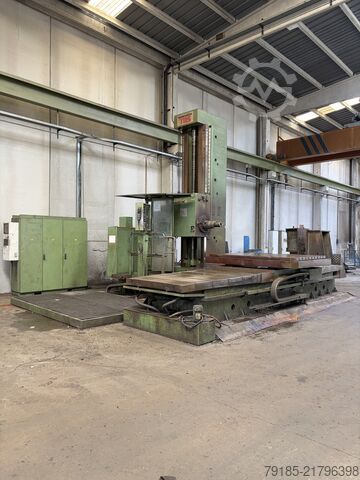

Condition: used, Year of construction: 1986, TOS - WHN 13.8B CNC - 1986/ 1995 - system Heidenhain TNC155 - 5 motor/ driven axis - moves X/Y/Z/W=3500/2000/800/200 mm - table 1600x1800 - table load 4000 kg - spindle d130 mm Blodpfxoyl I Hus Ah Ied - spindle RPM max 800

Condition: used, Year of construction: 1998, functionality: fully functional, Tabulka 1800 x 1800 mm Průměr vřetena 130 mm Osy X x Y x Z ... 2000 x 2000 x 800 mm Vřeteno 800 ot/min Max. zatížení stolu 12 t Strojní dimesniony 6700 x 6000 x 4420 mm Hmotnost stroje 32 000 kg Řídicí systém MEFI 872 Series. Přestavěn v roce 1998. Blodpfxowhpv Rs Ah Iod

Condition: good (used), Year of construction: 2013, Ref. -No.: 10484 Manufacturer: TOS VARNSDORF Type: WHN 13 CNC Year of construction: 2013 Type of control: CNC Control: HEIDENHAIN 530 Storage location: Halberstadt Bodpfxew Iu Nho Ah Iold Country of origin: Czech Republic X-Travel: 3500 mm Y-Travel: 2000 mm Z-Travel: 1250 mm W-Axis: 800 mm B-Axis: 360 ° Table Load: 15.000 kg Tool Taper: SK 50 Turning Speeds: 1.400 RPM Spindle Speed: 2000 RPM Further information: The control system was converted to a HEIDENHAIN 530i in 2013. All drives were upgraded to digital. The thrust bearing tower was also replaced in 2013. Accessories: 3D probe - Heidenhain, large spindle support Additional table dimensions: 3850 x 900mm 1x axis module Heidenhain (overhauled), 1 new axis module is installed in the machine. Newly packed spare parts, covers from the machine. All bearings have been replaced by the machine in recent years. Tools and milling cutter heads are available. Machine is from 1st hand. The machine is still under power and in production. The machine can be viewed by appointment.

Condition: excellent (used), Year of construction: 2018, Heidenhain iTNC 640 CNC control Bljdsw Hbnvepfx Ah Isd Table dimensions: 1800 x 2200 mm Max. workpiece weight: 25,000 kg X-axis travel: 3,500 mm Y-axis travel: 2,500 mm Z-axis travel: 1,600 mm Spindle/cone diameter: 130 mm Speed range: 3,000 RPM Spindle power: 46 kW Max. torque at 100% duty cycle: 1,000 Nm Machine weight: 38,000 kg Power-on hours: 16,631 Spindle hours: 4,430 Accessories: – Controlled B-axis – 40-position tool changer / chain-type magazine – Belt filter system with high-pressure pump – Chip conveyor – Heidenhain TS 460 workpiece probe – Automatic milling head type HUI 50 – Movable operator cabin Yp = 1,600 mm, Zp = 600 mm – Centralized lubrication system – Pfannenberg oil cooler – Documentation

Condition: good (used), Year of construction: 2013, operating hours: 11,427 h, functionality: fully functional, travel distance X-axis: 3,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,250 mm, spindle speed (max.): 3,000 rpm, controller model: Heidenhain iTNC 530, TECHNICAL DETAILS Type: Horizontal drilling and milling machine (T-table design) Control: CNC Heidenhain iTNC 530 Travel paths Bljdpowc Ryaofx Ah Ijd X-axis travel: 3,500 mm Y-axis travel: 2,000 mm Z-axis travel: 1,250 mm Table Table dimensions: 1,800 × 2,200 mm B-axis: 360° continuous rotary table Spindle Spindle speed: 3,000 rpm Spindle diameter: 130 mm Table load: 12 t Feed rate Working and rapid traverse speed: 10 m/min Cooling system Internal cooling through spindle: 20 bar (CHOV 20) External cooling: available MACHINE DETAILS CNC system switched on: 41,414 h Total machine runtime: 40,471 Program runtime: 9,805 Spindle runtime: 11,428 Runtime with increased spindle speed: 70 h EQUIPMENT - Blum TC60 touch probe - Heidenhain DNC - Through-spindle cooling - Continuously rotating rotary table - No chip conveyor
