CNC - Machining Center - Horizontal

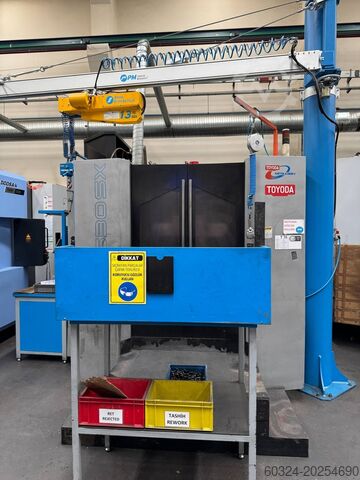

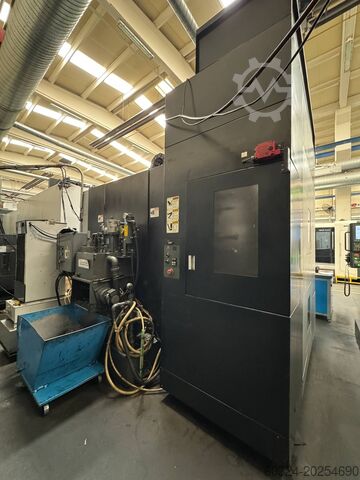

TOYODA FH 630 SX

Condition: good (used), Year of construction: 2011, Ref. -No.: 10565 Manufacturer: TOYODA Fgsdjxc Tukspfx Afpjh Type: FH 630 SX Year of construction: 2011 Type of control: CNC Control: Fanuc 31i - A Storage location: Halberstadt Country of origin: Japan Serial no.: NS3XXXX X-Travel: 1000 mm Y-Travel: 800 mm Z-Travel: 850 mm B-Axis: 360 ° Distance Spindle /Table: 200 - 1050 mm Max. Workpiece Weight: 800 kg Max. Tool Weight: 27 kg Max. Tool Length: 545 mm Max. Tool Diameter: Ø120 mm Max. Size Of Workpiece Lxwxh: Ø 1000 x 1000 mm Tool Taper: BT - 50 Tool Piece Magazine With: 60 Pcs./pcs. Spindle Speed: 6000 RPM Rapid Travel X/Y/Z: 60 mm / min Tool to tool: 2,4 sec Machine length: 7000 mm Machine width: 3500 mm Weight Of The Machine Ca.: 20,1 t Pallet height: 1200 mm Positioning (X, Y and Z axes):: + - 0,003 mm Repeatability (X, Y and Z axes):: + - 0,0015 mm Payload pallet: 800 kg Axial: 14700 N Further information: - Cutting feed (same for X-, Y- and Z-axis): 0.001 - 30m/min - Distance between spindle center and upper edge of the area: 100mm - 900mm - Table size range: 630 mm - Positioning of the lower table: 1 ° - Positioning of the rotary table: 0.001 ° - Tools used: SK 50 - Operating oil: 53l - Slide lubricating oil / spindle head lubrication: 3.0 l - Coolant for spindle & ball screw head: 37l Machine can be inspected under power by arrangement.

Condition: used, Year of construction: 2007, number of spindle speeds 6.000 U/min tool taper BT50 numbers of positions in the tool changer 121 Fsdpst I Ec Dsfx Afpegh control FANUC31iMA Milling machining centers - horizontal | TOYODA - FH630SX equipped with ITC and chip conveyor. Additional equipment: + Full NC table 360.000 * 0,001 deg The machine is in a well-maintained condition. Technical data of the machine will follow soon. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: FH 630SX | FH630 | FH-630 | FH 630 SX

Condition: excellent (used), Year of construction: 2011, Year: 2011 (Commissioned in 2015) Table - Size range: 630mm - Positioning of the sub-table: 1 ° - Positioning of the turntable: 0.001 ° - Height of pallet: 1200mm Travel - X-axis: 1000mm - Y-axis: 800mm - Z axis: 850mm - Distance between spindle center and table top: 200mm - 1050mm - Distance between spindle center and top of range: 100mm - 900mm feed - Rapid (same for X-, Y-and Z-axis): 60m/min - Cutting feed (equal to X, Y & Z axis): 0,001 - 30m/min spindle - Spindle speed: - min 14,000 rpm / 35 ATC (Automatic tool changer) Fgedpfenmx Tpjx Afpoh - Number of tools: 60Stk. - Tool change time (tool to tool): 2.4 s - Tools used: SK 50 / debit pin BT Capacities - Operating Oil: 53l - Slide lube oil / lube spindle head: 3,0 l - Coolant for spindle & ball screw head: 37l Services - Positioning (X, Y, and Z-axes): + - 0.003 mm - Repeatability (X, Y, and Z-axes): + - 0.0015 mm!! - Payload Pallet: 800kg - Axial: 14700N
