Mandrel tube bending machine

Transfluid DB 648 K

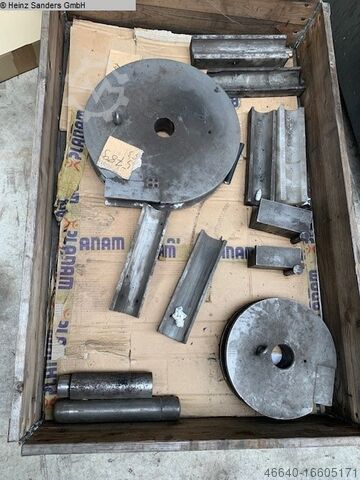

Condition: used, Year of construction: 1997, tube diameter 60 mm Kjdpot I D Uxofx Ad Isdw wall strength 6 mm bending radius min. 180 mm total power requirement 5,5 kW weight of the machine ca. 1300 t dimensions of the machine ca. 3500 x 1250 x 1300 m Description: Round tube steel (S235): 60.0 x 6.0 mm Round tube stainless steel (S 355): 60.0 x 4.0 mm Square tube steel: 50 x 50 x 4.0 mm Rectangular tube steel: 60 x 40 x 2.0 mm max. usable length: 3048 mm Bending speed: 10°/sec including tools (see photos) Mandrel is no longer available, can be retrofitted

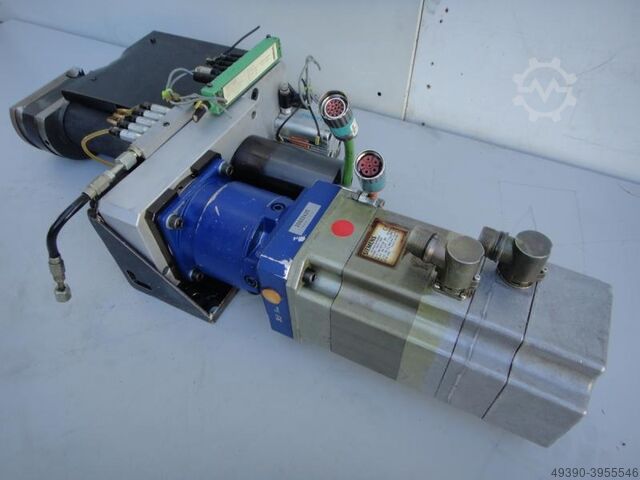

Condition: used, Tube bending machine, mandrel bending machine, bending machine for tubes and profiles Tube bending unit with SIEMENS servo motor and planetary gearbox Year of construction: 2003 Bending capacity: max. Ø 20 x 1 mm Bending radius: max. R 70 mm Bending angle: max. 200° - last used for round tube Ø 15.4 x 0.8 mm, R60 mm - Bending tools and bending jaws interchangeable - Bending tool drive via AC servo motor and Alpha spur gear, planetary gearbox - 2-part bending tool opens and closes via hydraulic stroke movement - MERKLE hydraulic round block cylinder, item 014445 for hydraulic tool opening - Pneumatic height adjustment of the bending jaw via Festo compressed air cylinder - without electrical control - without hydraulic unit Dimensions L/W/H 760 x 400 x 150 mm weight: approx. 60 kg good condition Removed from a functional special machine, tested before removal. Drive: Brushless permanent magnet servo motor SIEMENS Typ:1FK6061-7AF71-1EG0 Nominal torque = MO: 6.4 Nm Rated current = Io: 6.1 A Speed = n. max.: 5500 rpm - Brushless permanent magnet servo motor SIEMENS Kdedped E A I Iofx Ad Iow ----- 5 pieces available in right-hand version. 5 pieces available in left-hand version. The price quoted refers to 1 bending unit with servo motor. If required, we also sell individual assemblies of the bending unit. We also offer the electrical components for controlling the servo motor. We also offer hydraulic units.

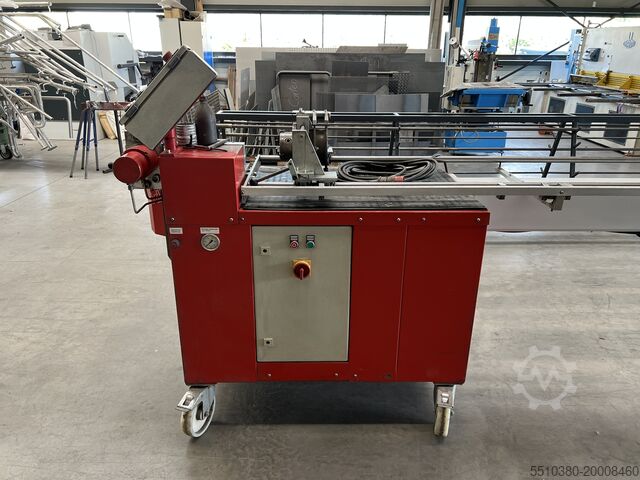

Condition: excellent (used), functionality: fully functional, Year of construction: 1989, pipe diameter (max.): 42 mm, pipe length (max.): 3,000 mm, bending radius (max.): 180 mm, wall thickness: 3 mm, Pipe bending machine with electric control, 4-fold bending angle pre-selection and digital display  Hydraulic bending drive operated by hand lever valve Kdedeuccw Hjpfx Ad Iow Hydraulic bending drive, operated by hand lever valve Follower-type pressure die (sliding guide) Hydraulic mandrel retraction Pipe circular saw with coolant lubrication and automatic feed 6 mandrels up to 24 mm included x 3000 mm Pipe deburring unit for internal and external deburring Hydraulic power unit as basic seating for attaching a cutting ring assembly or flaring device  Machine mobile and flexible to use Max. tube Ø: 42mm Min. tube Ø: 6mm Max. Wall thickness: 3mm Max. Bending radius:5mm Min. bending radius:180mm Max. bending length:3000mm Deburring attachment:Yes Sawing attachment: Yes Flair attachment: Yes Length: 3500mm Width: 1000mm Height: 1200mm Weight: 1000kg

Condition: new, functionality: fully functional, Year of construction: 2025, operating hours: 1 h, control type: CNC control, degree of automation: automatic, actuation type: hydraulic, pipe diameter (max.): 38 mm, pipe length (max.): 3,700 mm, tube wall thickness (max.): 2 mm, bending angle (max.): 180 °, bending radius (min.): 60 mm, working width: 3,700 mm, number of axes: 5, working height: 1,500 mm, overall weight: 2,700 kg, total length: 5,500 mm, total width: 1,800 mm, total height: 1,800 mm, warranty duration: 12 months, Equipment: CE marking, emergency stop, foot remote control, 5 Axis 38 CNC Mandrel Pipe Bending Machine – PUMA Liv Makina’s 5-axis, 38 mm CNC mandrel pipe bending machine is among the most referenced machines across four continents, especially in the Automotive, White Goods, and Defense Industries. Its Solidworks-compatible interface ensures highly user-friendly operation. Our Industry 4.0-ready machine provides daily reporting directly to users. With its rolling die, the machine can coil the pipe similar to a spring. Its ability to mount dies with 3 different radii allows for easier handling of complex bends. The collision simulation software enables you to preview bends on-screen prior to production, saving time and increasing efficiency. This software is offered free of charge on all our CNC tube and profile bending machines for our valued customers. Kedjw Hpfcepfx Ad Ijdw Key Features: - Import drawings directly from Solidworks - Fully automatic and manual mode operation via interactive PLC control system - Multiple language support - 3D visualization of created programs - 3D collision simulation for pipe bends - Automatic pipe length calculation - CE-compliant - On-screen error display - Integrated safety warning system - User-friendly Livmak interface Technical Specifications – PUMA 5 Axis 38 CNC: - Maximum Bending Capacity: Ø38 mm x 2 mm - Minimum/Maximum Die Diameter: 60 / 250 mm - Material Processing Length: 4000 mm - Machine Dimensions: 5500 x 1600 x 1600 mm - Total Motor Power: 15 HP - Machine Weight: 2.5 tons

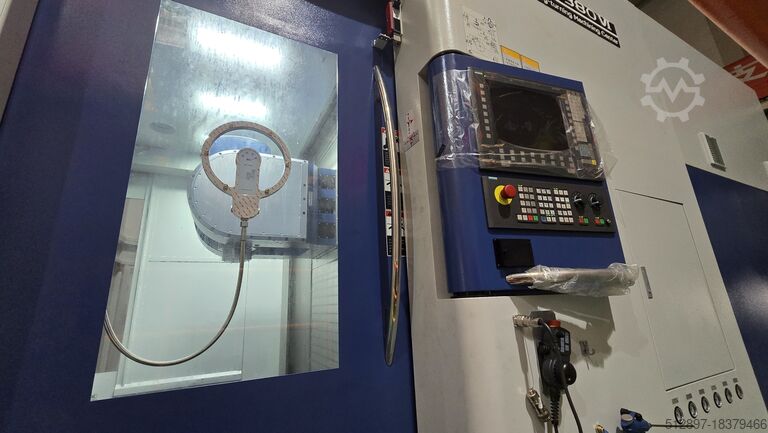

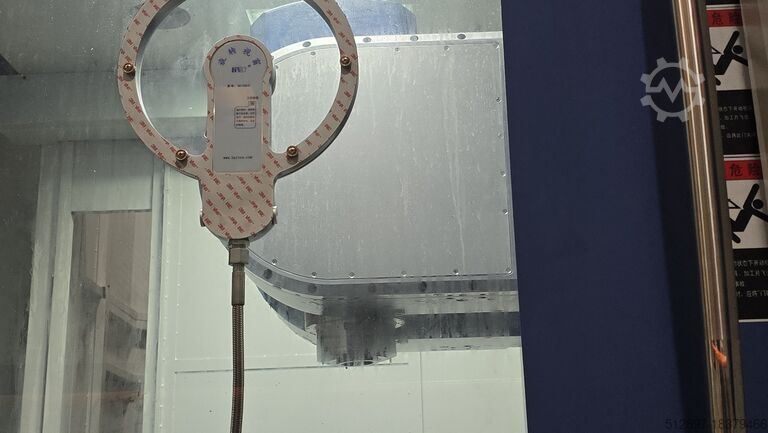

Condition: as good as new (ex-display), Year of construction: 2024, operating hours: 48 h, machine/vehicle number: BD38CNCOMPACT, Max. pipe OD 38mm CNC control Ksdpfjvu R Amjx Ad Isdw Compact Model

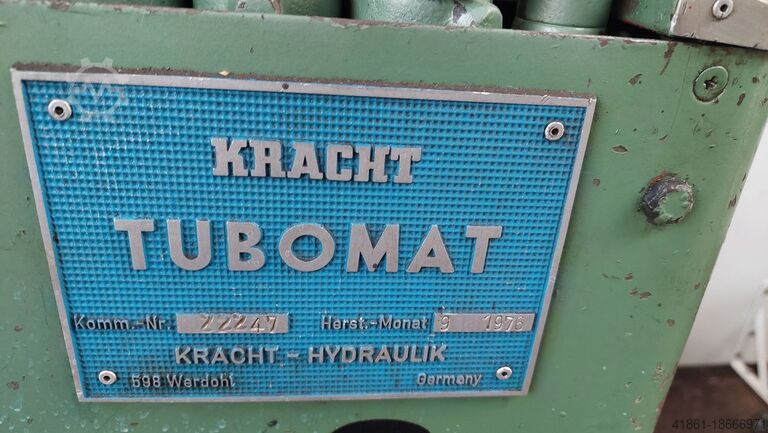

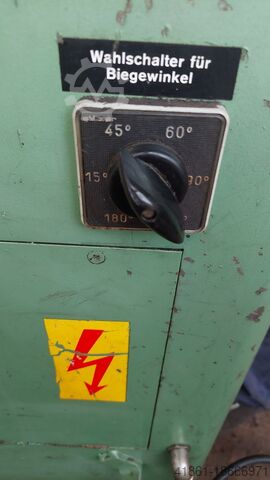

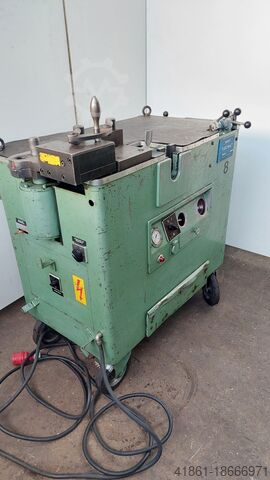

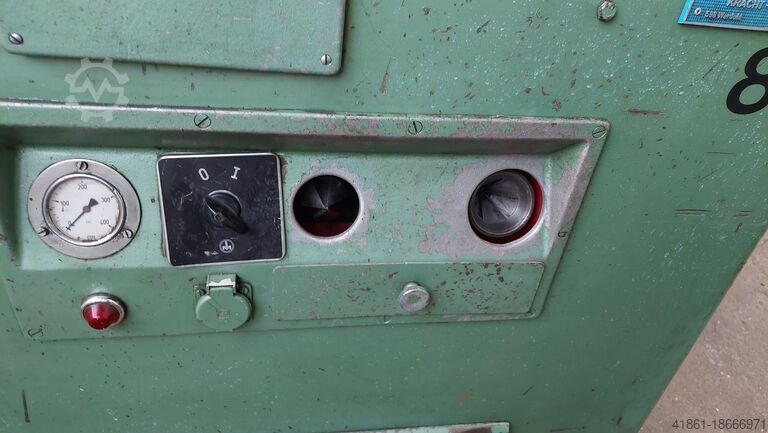

Condition: good (used), Year of construction: 1977, machine/vehicle number: 22247, Offered 23250 Kjdpfjv Hzr Nex Ad Isdw Technical data: - Bending performance - Pipe at 45 kg / mm² Ø 6 - 48 mm - Max. bending angle 180 ° - Max. bending radius 145 mm - Drive 400 V / 1.7 kW - Space requirement approx. W 900 x H 1100 x D 1400 mm - Weight approx. 600 kg - with - Pipe circular saw - Inside and outside pipe deburring device - Pipe necking device - Without tools

Condition: used, Year of construction: 1993, Technical details: Kdedpfx Aou Ibyyed Isw tube diameter: 80 mm tube diameter min.: 6 mm control for program: Gelma MM-1 tube pipe draw up length: 1800 mm weight of the machine ca.: 0,232 t dimension machine xH: 1,9 x 0,7 x 1,3 m Semi-automatic PIPE BENDING MACHINE Operating modes are manual but also semi-automatic Application: for multiple bending of pipes The swivel unit with bending preselection for 3 different bending angles in single and automatic mode. The machine is currently equipped with a stop bar for tube size Ø 10mm for 6 angle settings. The bending machine is movable/adjustable. Equipment/accessories: 6 cam rods/stop rods 6 control disks Bending tool for Ø 12mm *

Condition: good (used), Stock number: 2878 Manufacturer: Tracto Technik Paul Schmidt Year of construction: Kjdpeuqypdjfx Ad Ijdw Type: Mini pipe bender TUBOFORM Machine number: 1841091 Pipe diameter: up to 16 mm Maximum bending angle: 180 Bending radius: 2 x D Equipment: digital bending angle display Accessories: various bending tools between 5 and 16 mm diameter Drive: 0.75 kW 220 V Dimensions: 2,400 x 700 x 1,000 mm Weight: approx. 0.4 t

Condition: used, functionality: fully functional, Year of construction: 2006, degree of automation: semi-automatic, pipe diameter (max.): 30 mm, Well-functioning tube bending machine with double bending blocks. fully adjustable single bending blocks present Ksdpfx Aowtgydjd Iodw

Condition: used, Year of construction: 2000, Suitable for manual and automatic grinding of all types of wood and metal milling cutters. Accesories: Motorized height adjustment of the grinding head Optical measuring microscope with camera Stepless grinding spindle drive 1 grinding wheel protective cover Length measuring system with digital display Kdjdjxd S Hzspfx Ad Iow 5 grinding wheel holders. Workpiece diameter: Max. 240 mm Manual/motorized grinding stroke: Max. 200 mm Workpiece carrier mounting hole: 32 mm Transverse adjustment of the workpiece carrier: 150 mm Cross adjustment grinding head: 80 mm Quick adjustment grinding head: 850 mm Height adjustment grinding head: 320 mm Grinding wheel diameter: 175x20mm max Grinding spindle speed stepless: from 2000 - 10,000 rpm, Connected load approx.: 3.0kW (400V/50Hz) Dimensions W x D x H =: 1300 x 1400 x 1870 mm Weight approx.: 800 kg colour: light grey RAL 7035
