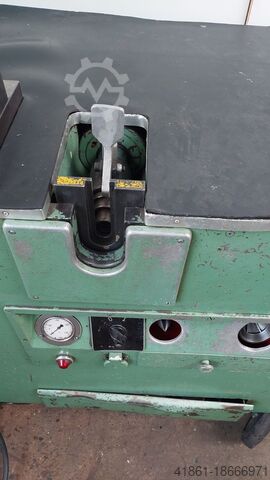

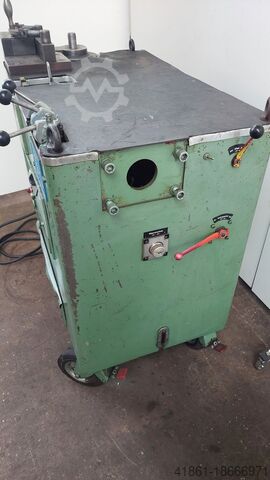

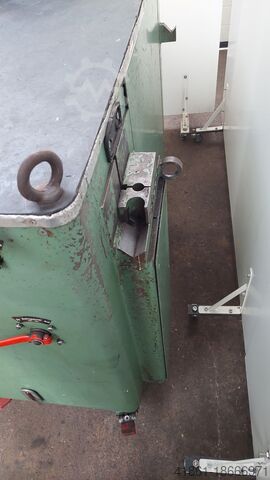

Electro-hydraulic pipe bending machine

KRACHT TUBOMAT 48

Condition: excellent (used), functionality: fully functional, Year of construction: 1989, pipe diameter (max.): 42 mm, pipe length (max.): 3,000 mm, bending radius (max.): 180 mm, wall thickness: 3 mm, Pipe bending machine with electric control, 4-fold bending angle pre-selection and digital display  Hydraulic bending drive operated by hand lever valve Dcedpfx Asuccw Hsf Hsr Hydraulic bending drive, operated by hand lever valve Follower-type pressure die (sliding guide) Hydraulic mandrel retraction Pipe circular saw with coolant lubrication and automatic feed 6 mandrels up to 24 mm included x 3000 mm Pipe deburring unit for internal and external deburring Hydraulic power unit as basic seating for attaching a cutting ring assembly or flaring device  Machine mobile and flexible to use Max. tube Ø: 42mm Min. tube Ø: 6mm Max. Wall thickness: 3mm Max. Bending radius:5mm Min. bending radius:180mm Max. bending length:3000mm Deburring attachment:Yes Sawing attachment: Yes Flair attachment: Yes Length: 3500mm Width: 1000mm Height: 1200mm Weight: 1000kg

Condition: used, Tube bending machine, mandrel bending machine, bending machine for tubes and profiles Tube bending unit with SIEMENS servo motor and planetary gearbox Year of construction: 2003 Bending capacity: max. Ø 20 x 1 mm Bending radius: max. R 70 mm Bending angle: max. 200° - last used for round tube Ø 15.4 x 0.8 mm, R60 mm - Bending tools and bending jaws interchangeable - Bending tool drive via AC servo motor and Alpha spur gear, planetary gearbox - 2-part bending tool opens and closes via hydraulic stroke movement - MERKLE hydraulic round block cylinder, item 014445 for hydraulic tool opening - Pneumatic height adjustment of the bending jaw via Festo compressed air cylinder - without electrical control - without hydraulic unit Dimensions L/W/H 760 x 400 x 150 mm weight: approx. 60 kg good condition Removed from a functional special machine, tested before removal. Drive: Brushless permanent magnet servo motor SIEMENS Typ:1FK6061-7AF71-1EG0 Nominal torque = MO: 6.4 Nm Rated current = Io: 6.1 A Speed = n. max.: 5500 rpm - Brushless permanent magnet servo motor SIEMENS ----- 5 pieces available in right-hand version. 5 pieces available in left-hand version. Dcedpfx Afsd E A I Io Hjr The price quoted refers to 1 bending unit with servo motor. If required, we also sell individual assemblies of the bending unit. We also offer the electrical components for controlling the servo motor. We also offer hydraulic units.

Condition: new, functionality: fully functional, Year of construction: 2025, operating hours: 1 h, control type: CNC control, degree of automation: automatic, actuation type: hydraulic, pipe diameter (max.): 38 mm, pipe length (max.): 3,700 mm, tube wall thickness (max.): 2 mm, bending angle (max.): 180 °, bending radius (min.): 60 mm, working width: 3,700 mm, number of axes: 5, working height: 1,500 mm, overall weight: 2,700 kg, total length: 5,500 mm, total width: 1,800 mm, total height: 1,800 mm, warranty duration: 12 months, Equipment: CE marking, emergency stop, foot remote control, 5 Axis 38 CNC Mandrel Pipe Bending Machine – PUMA Liv Makina’s 5-axis, 38 mm CNC mandrel pipe bending machine is among the most referenced machines across four continents, especially in the Automotive, White Goods, and Defense Industries. Its Solidworks-compatible interface ensures highly user-friendly operation. Our Industry 4.0-ready machine provides daily reporting directly to users. With its rolling die, the machine can coil the pipe similar to a spring. Its ability to mount dies with 3 different radii allows for easier handling of complex bends. The collision simulation software enables you to preview bends on-screen prior to production, saving time and increasing efficiency. This software is offered free of charge on all our CNC tube and profile bending machines for our valued customers. Key Features: - Import drawings directly from Solidworks - Fully automatic and manual mode operation via interactive PLC control system - Multiple language support - 3D visualization of created programs - 3D collision simulation for pipe bends - Automatic pipe length calculation - CE-compliant - On-screen error display - Integrated safety warning system - User-friendly Livmak interface Technical Specifications – PUMA 5 Axis 38 CNC: - Maximum Bending Capacity: Ø38 mm x 2 mm - Minimum/Maximum Die Diameter: 60 / 250 mm - Material Processing Length: 4000 mm - Machine Dimensions: 5500 x 1600 x 1600 mm - Total Motor Power: 15 HP Dcedpew Hpfcjfx Af Her - Machine Weight: 2.5 tons

Condition: as good as new (ex-display), Year of construction: 2024, operating hours: 48 h, machine/vehicle number: BD38CNCOMPACT, Max. pipe OD 38mm CNC control Djdpfx Asvu R Amjf Hecr Compact Model

Condition: used, Year of construction: 1993, Technical details: tube diameter: 80 mm tube diameter min.: 6 mm Dcjdju Ibyyopfx Af Her control for program: Gelma MM-1 tube pipe draw up length: 1800 mm weight of the machine ca.: 0,232 t dimension machine xH: 1,9 x 0,7 x 1,3 m Semi-automatic PIPE BENDING MACHINE Operating modes are manual but also semi-automatic Application: for multiple bending of pipes The swivel unit with bending preselection for 3 different bending angles in single and automatic mode. The machine is currently equipped with a stop bar for tube size Ø 10mm for 6 angle settings. The bending machine is movable/adjustable. Equipment/accessories: 6 cam rods/stop rods 6 control disks Bending tool for Ø 12mm *

Condition: good (used), Stock number: 2878 Manufacturer: Tracto Technik Paul Schmidt Dcedpfouqypdsx Af Hor Year of construction: Type: Mini pipe bender TUBOFORM Machine number: 1841091 Pipe diameter: up to 16 mm Maximum bending angle: 180 Bending radius: 2 x D Equipment: digital bending angle display Accessories: various bending tools between 5 and 16 mm diameter Drive: 0.75 kW 220 V Dimensions: 2,400 x 700 x 1,000 mm Weight: approx. 0.4 t

Condition: used, functionality: fully functional, Year of construction: 2006, degree of automation: semi-automatic, pipe diameter (max.): 30 mm, Well-functioning tube bending machine with double bending blocks. fully adjustable Dcjdpfxjwtgyde Af Her single bending blocks present

Condition: used, Year of construction: 2000, Suitable for manual and automatic grinding of all types of wood and metal milling cutters. Accesories: Motorized height adjustment of the grinding head Optical measuring microscope with camera Stepless grinding spindle drive 1 grinding wheel protective cover Length measuring system with digital display Dcodpfx Afexd S Hzs Her 5 grinding wheel holders. Workpiece diameter: Max. 240 mm Manual/motorized grinding stroke: Max. 200 mm Workpiece carrier mounting hole: 32 mm Transverse adjustment of the workpiece carrier: 150 mm Cross adjustment grinding head: 80 mm Quick adjustment grinding head: 850 mm Height adjustment grinding head: 320 mm Grinding wheel diameter: 175x20mm max Grinding spindle speed stepless: from 2000 - 10,000 rpm, Connected load approx.: 3.0kW (400V/50Hz) Dimensions W x D x H =: 1300 x 1400 x 1870 mm Weight approx.: 800 kg colour: light grey RAL 7035

Condition: used, functionality: fully functional, Year of construction: 1998, machine/vehicle number: 7385, degree of automation: semi-automatic, actuation type: electric, controller manufacturer: Transfluid, controller model: IPU 20, pipe diameter (max.): 648 mm, pipe length (max.): 6,000 mm, tube wall thickness (max.): 3 mm, bending angle (max.): 180 °, bending radius (max.): 125 mm, bending radius (min.): 50 mm, working width: 6,000 mm, mandrel length: 5,500 mm, number of axes: 3, working height: 1,300 mm, table length: 7,000 mm, table width: 900 mm, table height: 1,300 mm, overall weight: 1,000 kg, total length: 7,000 mm, total width: 900 mm, total height: 1,300 mm, power: 5 kW (6.80 HP), input voltage: 400 V, input current: 25 A, input frequency: 50 Hz, type of input current: three-phase, oil tank capacity: 1,320 l, operating pressure: 200 bar, Equipment: documentation/manual, emergency stop, Bending software requires a new update. Bending mandrels are available, bending tools are not included. Dcsdpfx Afoxcxupj Her

Condition: new, Year of construction: 2025, Tube flaring machine, hydraulic flaring machine, 37° flaring machine, 90° flaring machine, ORFS flaring, JIC flaring, tube end processing, flaring device, tube processing machine, rotary forming machine Capacity: - For tubes from 6 - 42 mm Ø - Max. wall thickness (on tube-Ø 42 mm in steel) 4 mm - Cycle time (adjustable per form/shape) 4 - 15 sec. - Rotation/min 200 Machine equipment-/basic accessories: - For end forming of tube with angle between 37° to 90° (dependent on tooling) in one operation step via rotary principle - Depending on the tube diameter, 180 ° bends with a clearance of 145 mm can be machined - Length of the clamping dependent on tube size, approx. 1,0 x D - Forming length dependent on tooling - Operation and control via touch panel - Start of operation via pushbutton - Hydraulic forward movement, speed adjustable - Electric adjustable length stop to control the required flare diameter Djdpfewzbc Nox Af Hjcr - Electric adjustable front feed of the tool holder - Electric adjustable rolling time - Clamping jaw can be swiveled, for easier loading of ORFS rings - Integrated drawer for storage of tools - Including transparent safety covers of the work area - Standard norm electric and hydraulic equipment - Machine stationary with underframe - Colour RAL 7047 grey, RAL 3020 rot Drives: - Clamping of the tube: servo-hydraulic - Front feed tool holder: servo-hydraulic - Rotation tool holder: electric Machine data: - Nominal pressure 250 bar, Operating pressure 200 bar - Operating voltage 400 Volt - 50 Cyl. - 3 Ph. - 4,5 kW The average consumption of the machine is approx. 1,8 kWh/h. As the consumption is highly dependent on factors such as tube size and geometry, speeds and power supply to the machine, it can only be used as a guide. - Length 1230 mm - Width 710 mm - Height 1240 mm - Weight approx. 800 kg
