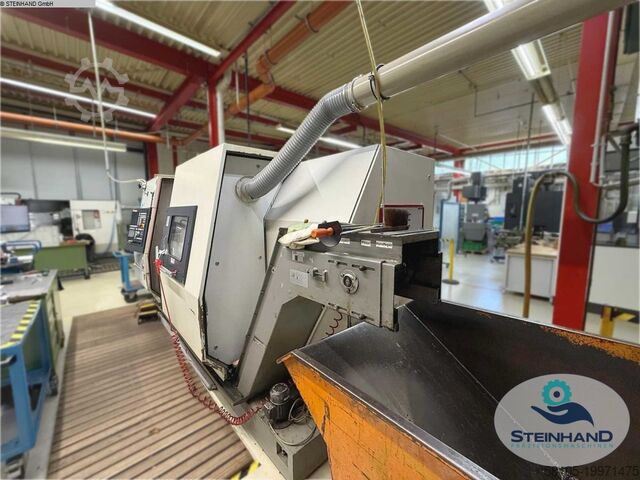

CNC Lathe

TRAUB TNA 500

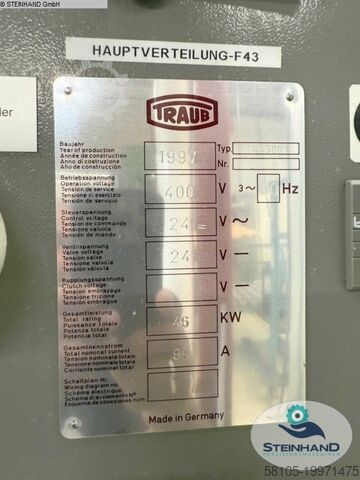

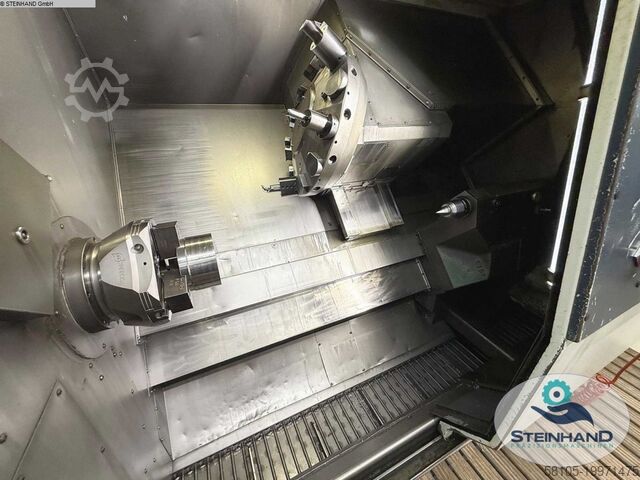

Year of construction: 1997, operating hours: 54,646 h, condition: used, Traub TNA500 Serial No. 253 Spindle speed: 2800 rpm Hjdpfx Ajyt Slwed Hjff 12-position tool turret Equipped with driven tools Power: 46 kVA

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 1114.3705-24, Used CNC Lathe Make: Boehringer Type: VDF 250Cm Year of Manufacture: 1997 VDF Boehringer 250C The machine has the following features: 1000mm turning length No tailstock Driven tools Special indexing chuck Siemens 840C control system Hfsdpowlap Aefx Ad Hsf The Boehringer VDF 250Cm is a CNC lathe designed for machining chucked parts. It is characterized by its robust construction and precise machining capabilities. Technical Specifications (Model Year 1997) Working Area: Swing over Bed: 550 mm Swing over Cross Slide: 480 mm X-Axis Travel: 405 mm Z-Axis Travel: 1,099 mm Maximum Turning Length: 1,000 mm (None) Tailstock: Tool Turret: Number of Positions: 12 Tool Holder: VDI 50 DIN 69880 Live Tools: YES Spindle: Spindle Head Size: 8 DIN 55026 Spindle Bore: 103 mm Max. Chuck Diameter: 315 mm Max. Drive Power (50% Duty Cycle): 53 kW Max. Torque: 780 Nm Speed Range: 30–3,000 rpm Feeds: Automatic Feeds: 1–10,000 mm/min Rapid traverse speed: 10 m/min (X and Z axes) Max. feed force: 15 kN Dimensions and weight: Machine dimensions (L × W × H): approx. 5,400 × 3,200 × 2,400 mm Machine weight: approx. 11,000 kg Equipment: Pivoting control panel Hydraulic system from HYDROKRAFT Coolant system with 600 l tank, max. pump pressure 5.5 bar, flow rate 60 l/min, pump power 1.1 kW Chip conveyor with 325 l tank capacity, right-hand discharge 3-jaw power chuck Oil mist extraction Control cabinet with cooling unit and temperature controller from RITTAL Control system: SIEMENS SINUMERIK 840 C Variants and Differences There are various variants of the VDF 250 series, such as the VDF 250 CU, which can be equipped with different control systems (e.g., PHILIPS B2T) and technical specifications. Some models feature driven tools and a tailstock, while others are designed as pure chuck-type lathes without a tailstock. Conclusion The Boehringer VDF 250 Cm is a versatile CNC lathe characterized by its stability and precision. With its robust construction and extensive features, it is ideally suited for machining chucked parts in a variety of production environments.

Condition: used, power capacity 1,4 kW volt 175 V ampere 9,3 A Hfedpfevt Ed Nex Ad Hof weight of the machine ca. 29 kg
