CNC turn-mill center

TRAUB TNC65DG

Condition: ready for operation (used), Year of construction: 2009, operating hours: 87,094 h, spindle speed (max.): 4,000 rpm, travel distance X-axis: 140 mm, travel distance Z-axis: 450 mm, spindle motor power: 18,500 W, total height: 1,917 mm, total width: 2,076 mm, overall weight: 5,200 kg, controller manufacturer: TRAUB, controller model: TX8i, product length (max.): 4,354 mm, number of slots in tool magazine: 10, number of axes: 7, This 7-axis TRAUB TNC 65 DG was manufactured in 2009. It features a powerful tool drive turret with a speed of 4000 rpm and a high-pressure coolant system with programmable pressure stages. The machine is designed for machining metals and plastics, equipped with a C-axis for numerically controlled turning and positioning. If you are looking to get high-quality turning capabilities, consider the TRAUB TNC 65 DG horizontal turning machine we have for sale. Contact us for further details. • Control system: TX8i with 64-bit RISC high-performance processor and additional PLC high-performance processor, integrated PC• TX8i control with TFT color flat screen and electronic handwheel• Multi-range transformer for 460V / 400V / 380V / 220V / 200V, 50 Hz• Machine operating voltage: 400V 50 Hz• Accessories operating voltage: 230V 50 Hz• Control voltage: 24V DC• Designed for machining metals and plastics with defined cutting edge• Maximum turning length: 450 mm• Main spindle bore: 65 mm• Spindle through-hole: 65 mm• Maximum clamping diameter depending on collet system: 60 mm• Front bearing diameter: 66 mm• Standard collet: DIN 6343• Maximum clamping diameter: 65 mm• Main spindle torque: 230 Nm• Main spindle C-axis numerically controlled• X-axis rapid traverse/feed speed: 7.5 m/min• X-axis feed force at 100% duty cycle: 5000 N• X-axis ball screw: 32×5 mm• Z-axis rapid traverse/feed speed: 10 m/min• Z-axis feed force at 100% duty cycle: 8000 N• Z-axis ball screw: 32×10 mm• Y-axis rapid traverse/feed speed: 3 m/min• Y-axis travel: ±35 mm• Y-axis feed force at 100% duty cycle: 8000 N• Y-axis ball screw: 25×5 mm• Tool stations: 10 (14 optional)• Tool holder size: Ø30×55 mm• Alternative tool holder size: Ø25×48 mm• Tool shank size: 20×20 mm• Alternative tool shank size: 16×16 mm• Counter spindle maximum speed: 4000 rpm• Counter spindle maximum clamping diameter: 65 mm• Counter spindle power: 11 kW• Counter spindle constant power range: 1:8• Counter spindle torque: 210 Nm• Counter spindle rapid traverse/feed speed: 10 m/min• Counter spindle travel: 520 mm• Counter spindle feed force at 100% duty cycle: 6000 N• Counter spindle ball screw: 32×20 mm• Counter spindle C-axis with speed-synchronous control• Tool drive turret 1: 3.1 kW, 4000 rpm• Tool drive turret 2: 3.1 kW, 4000 rpm• Tool monitoring TX8i with wear and breakage control via axis motor monitoring• Thread cutting without compensating chuck• TRAUB Polyform software for milling programming with C-axis (front, longitudinal, cylindrical surface)• Ethernet network connection preparation with RJ45 interface• Z/V-axis counter spindle software with defined end position (face transfer)• Hydraulic system pressure: 70 bar• Hydraulic tank capacity: 70 l• Coolant pump pressure: 12 bar• Coolant tank capacity with chip conveyor: 435 l• Electrical connected load: 39 kW• Machine weight with counter spindle and electrical cabinet: 5200 kg• Noise level: 73 dB(A)• Permissible ambient temperature: 5–40 °C• Maximum relative humidity at 40 °C: 50 %• Work area turret section: 450 mm• Work area to counter spindle: 520 mm• Total work area: 728 mm• Minimum distance F to counter spindle contour: 127 mm Rcedpey Sg Niefx Amgsb Additional equipment • Workpiece unloading device with gripper in turret 2• Hinged belt chip conveyor, discharge height 1200 mm• High-pressure coolant system with programmable pressure stages 20 / 5 bar• Preparation for extraction and filter system, connection Ø200 mm, 400V socket• Bar feeder interface preparation DNH 61

Condition: ready for operation (used), Year of construction: 1999, operating hours: 124,009 h, number of axes: 5, This 5-axis TRAUB TNC65 DG was manufactured in 1999. It features a robust control system with TRAUB TX8H technology, dual tool carriers with 10 stations each, and a maximum clamping diameter of 60 mm. The machine is equipped with a coolant cleaning system and a hinged belt conveyor for efficient chip removal. If you are looking to get high-quality turning capabilities, consider the TRAUB TNC65 DG horizontal turning machine we have for sale. Contact us for further details. • Control system: TRAUB TX8H (32-bit technology) • Main spindle: Yes • Counter spindle: Yes • Spindle synchronization: Yes • C-axis main spindle: Yes • C-axis counter spindle: Yes • V-axis: Yes (programmable position) • Tool carriers: 2 (tool carrier I and II) • Driven tools on tool carrier I: Yes Rodpfx Amey R Uvuegecb • Driven tools on tool carrier II: Yes • Number of tool stations: 10 per tool carrier • Thread cutting: Without compensating chuck • Drilling and milling units: X-direction (i=1 and i=3) and Z-direction (i=1 and i=3) • Coolant system: Cleaning system with cyclone filter • Coolant tank capacity: approx. 470 liters • Coolant pump: Supply for both turrets integrated • Hydraulic system: Yes • Operating voltage: 400 V / 50 Hz • Control voltage: 24 V DC • Accessory voltage: 230 V / 50 Hz • Multi-range transformer: 460 V / 400 V / 380 V / 220 V / 200 V • Standards: EC Machinery Directive, EMC Directive, Low Voltage Directive, DIN EN 292, DIN EN 294, DIN EN 418, DIN EN 60204 • Tool monitoring: Tool breakage and wear monitoring • Programming software: TRAUB Polyform • Coolant type: Water-based coolant compatible Additional equipment • Chip conveyor: Hinged belt conveyor • Bar feeder: TRAUB DNH 61-3000 (preparation included) • Workpiece ejection device: Yes • Workpiece removal device: Yes, with gripper • Collet system: Röhm, max clamping diameter 60 mm Technical Specification Counter Spindle Yes Driven Tools Yes

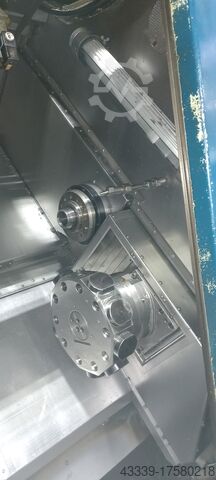

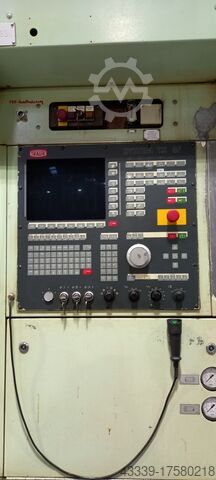

Condition: used, Year of construction: 1996, max. bar material dia. 65 mm max. swing diameter 175 mm max. bar length 3.000 mm control System TX 8F travel -x axis 140 mm travel -z axis 520 mm CNC lathe | TRAUB - TNC 42/65 DG equipped with bar loader. Rcsdpfexbtq Njx Amgob The machine is in a well-maintained condition. The machine videos from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: TNC65 | TNC-65 |TNC 42-65 DG | TNC 42/65DG
