Swiss-type cnc lathe

TRAUB TNL 12/7

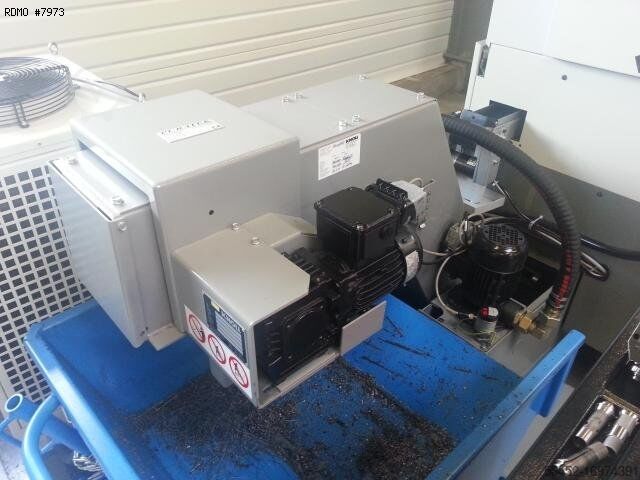

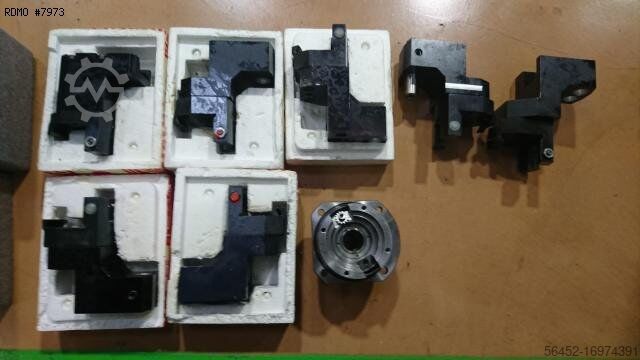

Condition: good (used), Year of construction: 2002, TRAUB TNL 12/7 CNC sliding headstock automatic lathe TECHNICAL DATA Bar capacity: 12 mm Main headstock strokes: 130 / 80 mm Spindle power: 4 kW Speed, main spindle: 12`000 rpm Upper turret: 6 positions Lower turret: 6 positions Number of driven tools, turret: 6 Max diameter, counter spindle: 12 mm Speed, counter spindle: 12`000 rpm Dimensions: 2850 x 1100 x 1480 mm SCOPE OF OFFER U.A: (list not exhaustive): Traub TNL 12/7 CNC lathe Meyrat high-frequency spindles, 2 pieces Tool holders (driven and non-driven) FMB Minimag 3200 C bar loader Hydraulic unit High pressure pump Chip conveyor Exact scope of supply according to photo gallery Hjdpfot E Dbyox Afcoi No responsibility is taken for the correctness, completeness and up-to-dateness of the information.

Condition: used, Year of construction: 2000, functionality: limited functionality, overall weight: 8,000 kg, type of input current: AC, Equipment: documentation/manual, Curd pre-pressing vat with a capacity of 12,000 litres and filling station cheese moulds from Tetra Pak Tebel. Year of manufacture 1999. In good condition, but with obsolete automation/PCL. We can provide PLC replacement and refurbishment on request. Available to visit. Documentation available. Hjdpfx Aoulnrvjfcoi

Condition: used, Swiss-type cnc lathe TRAUB TNL 12/7 Hodpfjxbtz Ujx Afcji

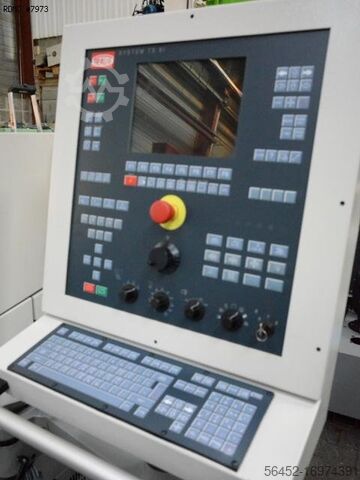

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 12.7 [mm] - Max. machining length : 130 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 2.5 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 12.7 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 2.5 [kW] - C axis indexing precision : 0.001 [°] - Number of turrets : 2 UPPER TURRET - Number of positions : 6 - Number of motorized positions : 6 - X stroke : 35 [mm] - Y stroke : -9.5/+28 [mm] - Z stroke : 48 [mm] LOWER TURRET - Number of positions : 6 - Number of motorized positions : 6 - X/Z stroke : 35/79.5 [mm] END ATTACHMENT - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 10000 [rpm] - X/Z stroke : 415/138.5 [mm] SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 10000 [rpm] Hsdpfouhaw Usx Afcsi POWER SUPPLY - Supply voltage : 400 [V] EQUIPMENT - CNC : Traub TX8i - Rotating guide bush - Coolant tank - Bar loader : FMB Minimag

Condition: new, Year of construction: 2025, functionality: fully functional, Swing over bed: 660 mm Swing over cross slide: 420 mm Swing at offset: 870 mm Between centers 2000 mm Spindle bore: 103 mm Speed: 36 - 1600 rpm Spindle power: 7.5 kW Weight: 3200 kgs Dimensions (L x W x H) = 3635 x 1050 x 1450 mm Equipment, accessories - 3-axis DRO system - Steady rest - Travelling rest - 3-jaws chuck, 315 mm diameter Hsdpfx Aswwt Szjfcsi - 4-jaws chuck, 500 mm diameter - Face plate - Rapid traverse on all axes - Coolant system - Chuck guard - Splash guard - Foot brake - Low work lighting - Manual

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 12.7 [mm] - Max. machining length : 130 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 2.5 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 12.7 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 2.5 [kW] - C axis indexing precision : 0.001 [°] - Number of turrets : 2 UPPER TURRET - Number of positions : 6 Hodpfjuhaxfox Afcei - Number of motorized positions : 6 - X stroke : 35 [mm] - Y stroke : -9.5/+28 [mm] - Z stroke : 48 [mm] LOWER TURRET - Number of positions : 6 - Number of motorized positions : 6 - X/Z stroke : 35/79.5 [mm] END ATTACHMENT - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 10000 [rpm] - X/Z stroke : 415/138.5 [mm] SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 10000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] EQUIPMENT - CNC : Traub TX8i - Rotating guide bush - Coolant tank - Bar loader : LNS TRYTON HYBRID

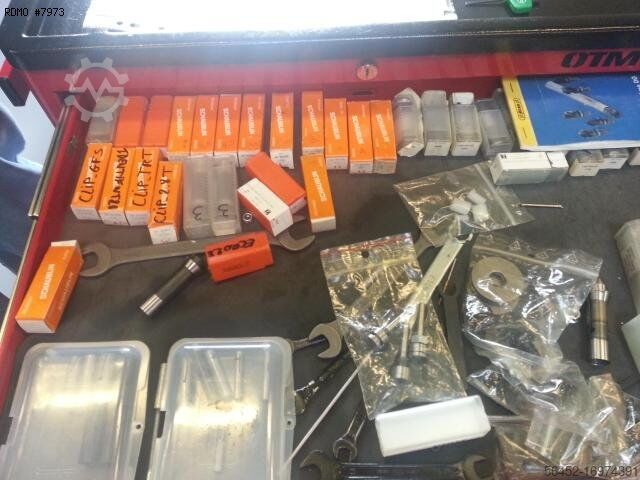

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 - Number of turrets : 1 MAIN SPINDLE - Max. bar diameter : 12,7 [mm] - Max. machining length : 130 [mm] - Spindle speeds : 12.000 [rpm] - Spindle power : 2,5 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 12,7 [mm] - Spindle speeds : 12.000 [rpm] - Spindle power : 2,5 [kW] LOWER TURRET - Number of positions : 6 Hodpouhawzefx Afcji - Number of motorized positions : 6 - X/Z stroke : 35/50 [mm] - Live tools speed : 8.000 [rpm] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 12.000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 18 [kW] EQUIPMENT - CNC : Traub TX8i - Interface : RJ45 / PCMCIA - Spindle brake : on main spindle - Parts catcher - Coolant tank : 200 [l] - Chips conveyor : KNOLL - Bar loader : FMB Minimag 3200 C - Number of turning tool holders : 2 - Number of fixed tool holders : 14 - Collets collection for chuck : F20 - Collets collection for chuck : F16 - Sockets : 4 - Set of shells and collets for bar feeder - Set of spare parts

Year of construction: 1999, condition: used, functionality: fully functional, machine/vehicle number: 99031, DD Motor 27.9KW; 2655 RPM Automatic feeding system MAAG gear Pump; Type: EXTREX EX 28 - 4STE with control system MAAG; Type: MAAX 5 Input and Output pressure sensors (up to 350 Bar) on the gear pump Possibility to add Inox tank 2m length * 0.45m width with possibility to apply calibration system: - Equipped with vacuum pump, 8 exits vacuum collector and cooling collector with 8 exits. - Manual adjustments: right/left, up/down, forward/backwards Hedpfewqrprex Afcoi

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, travel distance X-axis: 750 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 430 mm, number of slots in tool magazine: 21, controller manufacturer: GSK, controller model: GSK218MC-V, rapid traverse Z-axis: 20 m/min, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 20 m/min, spindle speed (max.): 8,000 rpm, CINCINNATI ARROW 750 GARANTIA: 2 ANOS Servomotores de eixo com encoder absoluto de 25 bits (sem pilhas). X e Y - 6N/m Z - 12 N/m Spindle de 7.5KW com 8000 Rpm máximo. Cursos de: X 750 mm Y 500 mm Z 430 mm Armazém de ferramentas do tipo umbrela com 21 ferramentas Cone BT40 Rápidos de 20m/min Controlador 218MC-V da GSK Ecrã policromático Comunicação por rede, rs232 ou USB Controlador preparado para maquinação de alta velocidade Comando MPG portátil incluído Quadro elétrico completamente refeito com material de alta qualidade (Disjuntores de nível industrial 10KA Schneider, disjuntores motores de periféricos da Schneider, fonte de alimentação Weidmuller, contactores da Schneider, relés da Weidmuller) Transformador trifásico para alimentação do sistema CNC novo incluído Sensores da máquina novos, Bomba de água nova, cablagem nova. Lubrificação da Spindle e rolamentos através de central de lubrificação com acionamento pneumático, testada e funcional. Forras telescópicas em inox originais nos eixos X e Y, lona no Z. ----- CINCINNATI ARROW 750 2 YEAR WARRANTY Axis servo motors with 25-bit absolute encoder (without batteries). X and Y - 6N/m Z - 12 N/m 7.5KW spindle with 8000 Rpm maximum. Strokes of: X 750 mm Y 500 mm Z 430 mm Umbrella-type tool magazine with 21 tools Taper BT40 Rapid 20 m/min GSK 218MC-V controller Colour screen Hjdpfev U Dncjx Afcei Network communication, RS232 or USB Controller prepared for high-speed machining Portable MPG control included Electrical panel completely redone with high quality material (Schneider industrial grade 10KA circuit breakers, Schneider peripheral motor circuit breakers, Weidmuller power supply, Schneider contactors, Weidmuller relays) New three-phase transformer for powering the CNC system included. New machine sensors, new water pump, new wiring. Spindle and bearing lubrication through a pneumatically driven lubrication center, tested and functional. Original stainless steel telescopic linings on the X and Y axes.

Condition: excellent (used), Traub TNL12 CNC Swiss 12mm Capacity Production hours: 25596 hr. Kraft & Bauer Fire Suppression System Paper filter: Kompatkt Band Filter Configured as pictured (more photos to follow) Hodpfx Afjw R E Adscei Put into production in 2009 (originally show model) 12-ft FMB Bar Feed Mist Collector Chip Conveyor “2 machines available”
