CNC machine Traub TNL 26

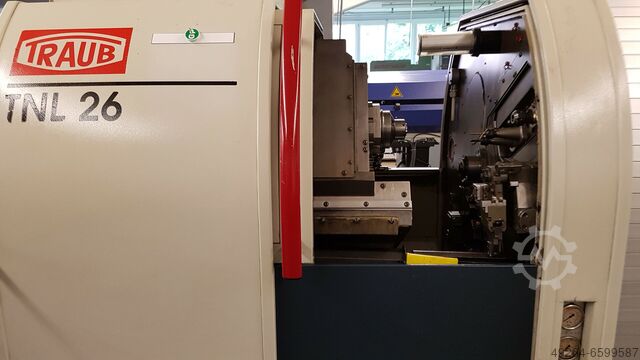

Traub TNL 26

Condition: good (used), Year of construction: 2002, functionality: fully functional, Control system: Traub TX 8i Main spindle Max. bar diameter: 26 mm Max. speed: 8,000 rpm Counter spindle Dwsdjz Erdtjpfx Ahdod Max. bar diameter: 26 mm Max. speed: 8,000 rpm Tooling system Number of turrets: 2 (upper and lower turret) Tool positions per turret: 12 stations, without drive Front tool holder, 5-position, with Z3 slide, without drive Rear machining station (5 tools), without drive Bar loader: IEMCA BOSS 432/44

Condition: used, Year of construction: 2008, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,400 mm, travel distance Z-axis: 1,500 mm, spindle speed (max.): 5,000 rpm, HEIDENHAIN iTNC 530 CNC X-AXIS TRAVEL: 3000 MM Y-AXIS TRAVEL: 1400 MM Z-AXIS TRAVEL (Vertical): 1500 mm SPINDLE SPEED: 5000 RPM SPINDLE NOSE ATTACHMENT: SK 50 TABLE MEASURES: 3200 X 1100 MM TABLE LOAD CAPACITY: 10,000 KG 24-Place Tool Changer No. 02 Chip Conveyors Dedsxvrrhjpfx Ahdjwd Automatic Indexed Head a axis 2,5 ° b axis 3 ° YOM 2008

Condition: used, Year of construction: 2003, CNC long-turn lathe with bar feeder magazine, Stamag FMB Turbo 5-42 Dedpez Aqkcefx Ahdowd Control system: TX8i with Traub tool monitoring Main spindle: - C-axis with driven tools - Mounting for driven guide bushing, max. passage 26 mm, stroke 225 mm - Electrical and pneumatic control for driven guide bushing Counter spindle: - Counter spindle as a motor spindle with hollow clamping and locking device with Z4 slide - C-axis - Tool carrier at the bottom, X1 / Y1 axes - 12 driven tool positions - Tool carrier at the top, X2 / Z2 axes - 12 driven tool positions - X3 - cross axis for front tool holder / counter spindle - Front tool holder, 5-position with Z3 slide, without tool drive - Cut-off station (5 tools) with X4 / Y4 axis, without tool drive - Articulated belt conveyor - Coolant system for externally and internally cooled tools, 20 l/min - 30 bar - System for deep-hole drilling with compact belt filter and coolant tank, 1000 L volume - Air deflection plates on the temperature control unit - Fire protection system for machining with cutting oil - Coolant mist extraction system

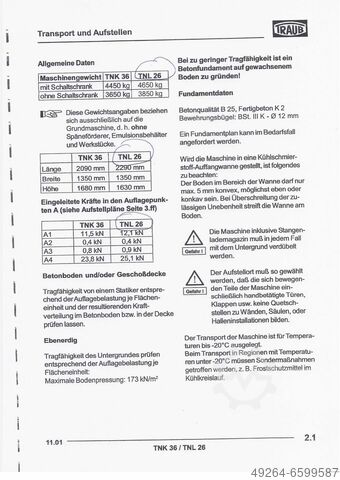

Year of construction: 2003, condition: used, Rated current: 60A, control voltage: 24V, connected load: 33kW, length: 2290mm, width: 1350mm, height: 1630mm, weight: 4.65t, operating hours: 78,439h, with documentation, chip conveyor and bar feeder. An on-site inspection is possible. Dwjdpfx Ahszuzz Ajded

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, spindle speed (max.): 8,000 rpm, bar passage: 32 mm, controller model: Traub TX8i-S, number of slots in tool magazine: 12, Equipment: chip conveyor, TECHNICAL DETAILS Bar capacity: 26 / 32 mm Max. main spindle speed: 8,000 rpm Axes: X1 / Y1 / Z1, C-axis integrated in the main spindle Turret: 1 Tool stations: 12 Drive power: 6.7 kW (100% duty cycle) / 10.7 kW (40% duty cycle) Torque: 21 Nm (100% duty cycle) / 32 Nm (40% duty cycle) MACHINE DETAILS Power-on time: 116,721 h Operating hours: approx. 48,000 h Control: Traub TX8i-S DIMENSIONS & WEIGHT Dimensions (L × W × H): approx. 4.4 × 1.4 × 1.7 m Machine weight: approx. 4,000 – 4,200 kg EQUIPMENT Chip conveyor: hinged belt, discharge height approx. 950 mm Dwodpsyzxp Tsfx Ahdod

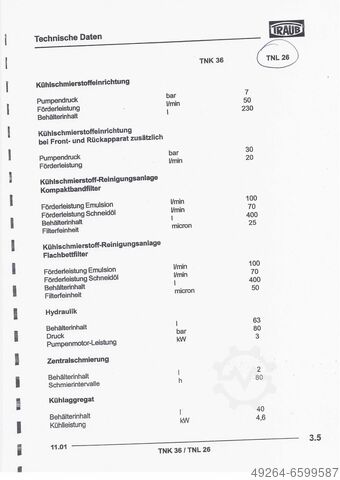

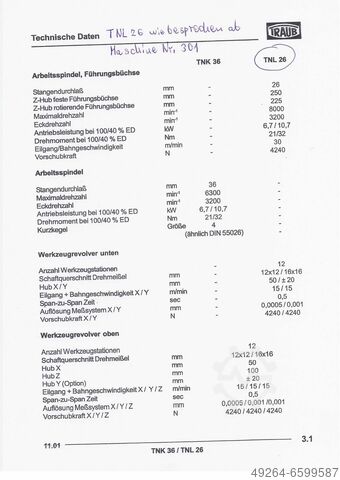

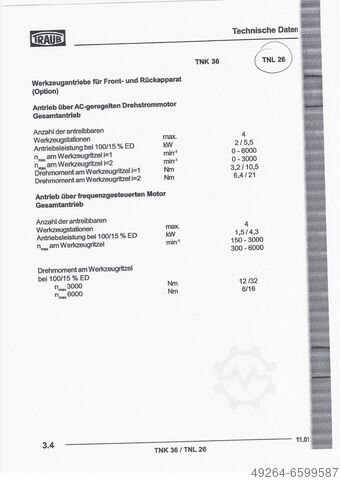

Condition: good (used), Year of construction: 2005, operating hours: 32,870 h, functionality: fully functional, machine/vehicle number: 6030578, turning diameter: 32 mm, spindle speed (max.): 8,000 rpm, bar diameter (max.): 32 mm, We offer for sale Traub TNL26K automatic cnc lathe. Machine is connected to power and can be inpected every time by prior appointment. Year of built: 2005 Spindle passage 32mm Main spindle: 6.7/10.7kW; 8000rpm Dodpfxjvldx As Ahdewd Counter spindle: 6.7/10.7kW; 8000rpm Upper turret: 12pos. 12x12/16x16, driven tools 2/5.5kW, 0-6000 rpm, 6.4/21 Nm Lower turret: 12pos. 12x12/16x16, driven tools 2/5.5kW, 0-6000 rpm, 6.4/21 Nm Connected load: 24kW Barfeeder: FMB Turbo 5-42/4200mm Swarf conweyor: Knoll 240 S1/100 Coolant Kompaktbandfilter: Resy Machine is sold with a lot of toolholders not driven and driven - list on attached photo.
