Automatic lathe

Traub TNL20

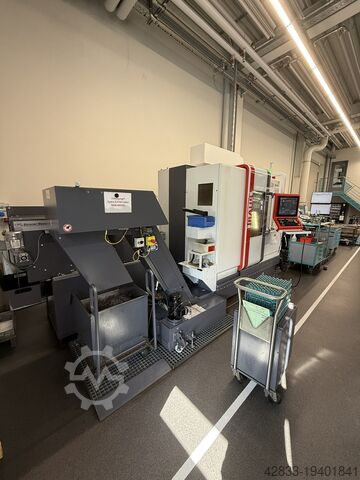

Condition: like new (used), Year of construction: 2019, operating hours: 3,000 h, functionality: fully functional, You can find all further data in the attachment. Machine complete with high-pressure unit and bar feeder. Hardly used; being sold from high-end medical technology production. Purchase price for machine + full-option peripherals: €382,036.86 (all original invoices available). Technical Data SV-20R Total number of axes: 12 Max. rapid traverse speed: 30 m/min Weight: 4,150 kg Coolant tank capacity: 220 liters Dimensions (L x W x H): approx. 2,730 x 1,350 x 1,865 mm Main Side Number of axes: 6 Main spindle axes (spindle head): Z1 / C1 Linear slide axes: X1 / Y1 Turret axes: B3 / X3 / Y3 / Z3 B-axis on turret: freely programmable Max. machining diameter: 20 mm / 23 mm (optional) Max. spindle head stroke (sliding/headstock turning): 205 mm / 50 mm Max. drive power main spindle: 5.5 kW Max. main spindle speed: 10,000 rpm Linear Slide Tools Turning tools: 7 pcs (□ 12 mm) Cross machining tools: 5 pcs (ER16) Max. drive power cross machining: 2.2 kW Max. cross machining speed: 8,000 rpm Turret Tools Cpsdpjyacvyefx Ah Iew Number of tool stations: 8 pcs (all driven) B-axis: 4 stations Max. drive power cross machining: 4.0 kW Max. cross machining speed: 5,750 rpm Back Side Number of axes: 4 Sub spindle axes: X2 / Z2 / C2 Vertical axis for back machining: Y2 Max. gripping diameter: 20 mm / 23 mm (optional) Max. sub spindle drive power: 3.7 kW Max. sub spindle speed: 8,000 rpm Back Machining Tools Tool stations: 8 pcs (all driven) Max. back machining speed: 8,000 rpm Standard Equipment FANUC 31i-B5 control with manual pulse generator C-axis control on main and sub spindle Synchronously driven guide bush unit 7-position turning tool holder on linear slide 5 + α driven tools for cross machining on linear slide 8 + α tools for turning, drilling, cross machining on the turret 4 programmable turret stations for B-axis machining 8 + α tools incl. drill sleeves for driven back machining Sub spindle for back machining Air blow-out device for sub spindle Workpiece collection tray Pneumatic system with maintenance unit Sub spindle part ejection monitoring Workpiece conveyor for unloading workpieces Central lubrication Separate coolant tank with level and flow monitoring Interface for bar feeder magazine Leveling pads and adjusting screws

Condition: excellent (used), Year of construction: 2013, Traub TNL 18-7B CNC Automatic Lathe Base machine: 2441 x 1396 mm Weight: 3800 kg Spindle height above floor: 3800 mm Connected power: 24 kW Main spindle Max. bar capacity: 18 mm Max. speed: 12,000 rpm Cross-cut speed: 5,000 rpm Z stroke: 205 mm Rapid traverse: 40 m/min Z measuring system resolution: 0.001 mm Cpsdpfx Ahjwg Tako Ijw Feed force: 3000 N Spindle head / short taper: Traub short taper mount Max. clamping force: 1400 daN Max. clamping pressure: 40 bar Min. clamping pressure: 7.5 bar Piston area: 40 cm2 Total cylinder travel: 5 mm Clamping tube thread: M25 X 1 Counter spindle Workpiece diameter: 21 mm Workpiece clamping depth: 180 mm Max. speed: 12,000 rpm Strokes: X: 120 mm Y: -20/+40 mm Z: 250 mm Rapid traverse: X: 20 m/min Y: 20 m/min Z: 40 m/min Max. clamping pressure: 30 bar Min. clamping pressure: 10 bar Top tool turret with B-axis Number of stations: 8 Shank cross-section, turning tool: 16 x 16 mm Stroke: X: 120 mm Y: -25/+40 mm Z: 250 mm Rapid traverse: X: 20 m/min Y: 20 m/min Z: 40 m/min Chip-to-chip time: 0.5 sec Measuring system resolution: X: 0.0005 mm Y: 0.0005 mm Z: 0.001 mm Lower tool turret Number of stations: 7 + counter spindle Shaft cross-section, turning tool: 16 x 16 mm Stroke: X: 120 mm Y: -20/+40 mm Z: 250 mm Rapid traverse: X: 20 m/min Y: 20 m/min Z: 40 m/min Chip-to-chip time: 0.5 sec Measuring system resolution: X: 0.0005 mm Y: 0.0005 mm Z: 0.001 mm Tool drive for upper tool turret Number of driven stations: Max. 8 Drive power: 2 kW Max. speed: 12,000 rpm Torque: 3.9 Nm Tool drive for lower tool turret Number of driven stations: 7 + counter spindle Drive power: 3.4 kW Max. speed: 12,000 rpm Torque: 7.3 Nm Tool drive for the rear unit Number of stations: 7 Number of driven stations: max. 3 Pitch spacing: 46 mm Drive power: 2 kW Max. speed: 7,500 rpm Torque: 4.7 Nm Drive power: 2 kW Max. speed: 4,000 rpm Torque: 11.8 SCOPE OF OFFER INCLUDES (list is not exhaustive): Traub CNC lathe Tool holders, driven and non-driven High-pressure and belt filter system Oil mist separator Fire extinguishing system Chip conveyor Bar loader Operational documentation For the exact scope of offer, see the photo gallery No liability is assumed for the accuracy, completeness, or timeliness of the information provided.

Condition: excellent (used), Year of construction: 2008, operating hours: 9,000 h, functionality: fully functional, TECHNICAL DETAILS Control: Mitsubishi Meldas 700 Main Spindle Machining diameter: 20 mm Machining length without repositioning: 200 mm Spindle bore: 24 mm Spindle speed: 200 - 10,000 rpm Spindle indexing C-axis: 0.001° Motor power (built-in motor): 2.2 / 3.7 kW Sub-Spindle Machining diameter: 20 mm Spindle speed: 200 - 8,000 rpm Spindle indexing C-axis: 0.001° Motor power: 0.75 / 1.5 kW Driven Tools at Vertical Holder Speed: 200 - 4,500 rpm Motor power (AC servo motor): 1.0 kW Number of tools: 6 Tool System Turning tools (12x12x130): 5 Tool holder/parting-off blade (16x12x130): 1 Drilling tools (front): min. 3 Drilling tools (rear): 5 Tool holders, quills (diameter): 19.05 mm Tool holders, turning tools (shank cross-section): 12 mm Collets and Guide Bush Collet main/sub-spindle: F25 (145E) Guide bush (Neukomm): T223 (22.001) Rapid Traverse All axes: 32 m/min Machine Specification Required space (without magazine) L/W/H: 2,430 x 1,085 x 1,770 mm Spindle height: 1,050 mm Machine weight: 2,150 kg Power supply: 8 kVA EQUIPMENT - 6 turning tools (12 mm shank cross-section), - 3 driven tools for cross machining - 3 driven tools for face machining on the main spindle - 3 driven tools for face machining on the sub-spindle - Main spindle with C-axis Cpodpfx Asxf Hqqeh Iow - Sub-spindle with C-axis - 3x powered tool rear side machining - Yellow warning light - Interior lighting - Workpiece conveyor belt - FMB Turbo 3-26 bar feeder - Option for long parts - Spindle flushing (Scherzinger pump)

Condition: excellent (used), Year of construction: 2013, operating hours: 6,000 h, functionality: fully functional, TRAUB TNL 18 – CNC Swiss-Type & Short-Turn Lathe Ex Works, previously used in medical technology, rejection rate 0.3% Machine Type: TNL 18 Machine Number: 6050338 Year of Manufacture: 2013 Condition: Used, very well maintained, productive in current use Included: High-pressure coolant system (KSS) + bar feeder Spindles & Machining Main spindle: motor spindle Max. bar capacity main spindle: 18 mm (optionally 20 mm) Max. main spindle speed: 12,000 rpm Max. torque: up to 10.5 Nm C-axis resolution: 0.001° Counter spindle: available Max. bar capacity counter spindle: 18 mm Max. counter spindle speed: 12,000 rpm C-axis counter spindle: yes Tooling System Upper turret: 8 stations Axes: X / Y / Z / B / H Codpfx Ahoycl Udj Ispw Lower turret: 7 stations Axes: X / Y / Z / H Rear tooling device: 7 stations Max. simultaneous tools in cut: 3 Tool capacity: Standard: 22 Maximum (with multiple holders): up to 52 tools Axes & Dynamics Number of CNC linear axes: 7 Rapid traverse: up to 40 m/min (Z) Large travel ranges for Swiss-type and short-turn operation Simultaneous machining with main and counter spindle: yes Coolant & High-Pressure Coolant tank: approx. 500 l Standard pressure: 3 / 8 bar High-pressure (option, included): up to 20 bar Flow rate: approx. 28 l/min Filtration fineness: 50 μm Electrical Data Rated voltage: 400 V / 3~ / N / PE Rated current: 56 A Max. fuse protection: 63 A Rated power: 35 kW Connection load: 24 kVA Frequency: 50 Hz Control voltage: 24 V DC Dimensions & Weight Machine dimensions (L × W × H): approx. 3060 × 1480 × 2420 mm Weight: approx. 4,300 kg Summary (listing short text) TRAUB TNL 18, year 2013 CNC Swiss-type & short-turn lathe Main and counter spindles 2 turrets + rear tooling device High-pressure coolant included Bar feeder included Very rigid production machine Rejection rate only 0.4% Ideal for precision and series production I am selling the following machines: TRUMARK 3010 (TMS 1000) – Laser marking – 2011 US-Bad X-tra pro 300 US (MF2) Flex2 – Cleaning / Ultrasonic cleaning – 2015 Mollart Drillsprint – Gun drilling machine / Deep hole drilling – 1996 Traub TNL 26 – Swiss-type lathe – 2004 Traub TNL 26 – Swiss-type lathe – 2007 Traub TNL 26 – Swiss-type lathe – 2009 Traub TNL 18 – Swiss-type lathe – 2013 Traub TNL 18 – Swiss-type lathe – 2014 Star SV-20R – Swiss-type lathe – 2019 Traub TNL18-9P – Swiss-type lathe – 2015 Traub TNL18 – Swiss-type lathe – 2014 Traub TNL18-9 – Swiss-type lathe – 2013 OTEK CF 1x18 T – Vibratory finishing system – 2011 Rösler FKS 04.1 E Sa-So – Vibratory finishing system – 2020 Grinding bench DP07 – Grinding & polishing (implants) – 1986 Turntable blasting unit Rösler RWT 1000-I – Blasting cabin – 2012 Bending machine C 202 M – Bending – 1990 Schmidt hydro-pneumatic press – Press / hydro-pneumatic press – 2021

Condition: ready for operation (used), Year of construction: 2012, spindle speed (max.): 6,000 rpm, overall weight: 8,500 kg, number of axes: 9, This 9-axis TSUGAMI TMB 2E swiss type turning machine was manufactured in 2012. It features a main and counter spindle both with speeds up to 6,000 rpm and 11 kW power. The machine includes a 16-position turret and a milling spindle that reaches 10,000 rpm. It supports rapid traverse rates up to 50 m/min on X and Y axes, and 36 m/min on Z-axis. Consider the opportunity to buy this TSUGAMI TMB 2E swiss type turning machine. Contact us for more information. Machine Benefits Technical Machine Benefits • Turret16-position Csdpfex R E I Usx Ah Ijpw • Tool Magazine Capacity: 30 tools • Axes Configuration: 8 axes + B-axis Technical Specification Taper Size Capto C4

Condition: excellent (used), Year of construction: 2013, operating hours: 31,008 h, functionality: fully functional, machine/vehicle number: 6050351, TRAUB TNL 18 – CNC Swiss-/Short-Turn Lathe Machine type: TNL 18, model TNL18-9 Application: Suitable for Swiss and short-turn machining Manufacturer: TRAUB Drehmaschinen GmbH & Co. KG Control / CNC Control system: TX8i-s with 64-bit RISC CNC/PLC processor USB interface PC connection via fiber optic cable, including TFT flat panel display (color) and electronic handwheel Software package: Helical, Polyform Thread cutting without compensating chuck Parting tool break monitoring Axis shut-off (GSP to block position) Spindles / Axes / Clamping Technology Main spindle with belt drive Incl. hollow clamping cylinder C-axis Change parts for collet chuck F25 (145E) TNL 18 interface for driven guide bush, adjustable, type T223 Change parts for short-turn operation Sub spindle with belt drive Incl. hollow clamping cylinder X-Z-C-axis Part flushing unit for flushing workpieces from the sub spindle Change parts for collet chuck F25 Tool System Lower tool turret: X-Y-Z-H-axis, integrated drive, 8 tool stations, 5 closure plugs Upper tool turret: X-Y-Z-H-axis, integrated drive, 8 tool stations Measuring Systems / Additional Axes Glass scale X-axis (upper/lower turret) Glass scale X4-axis (sub spindle) Actuation for driven and programmable guide bush (positioning/options package for guide bush) Workpiece Discharge / Peripheral Equipment Workpiece removal unit through the sub spindle (RSP) Front workpiece removal unit to parts conveyor Chip conveyor: hinge belt, discharge height 910 mm Hand flushing unit for the working area Central extraction connection: D 150 mm Coolant / Filtration / High Pressure Note from documentation: Machine to be operated exclusively with cutting oil (fire protection system recommended if there is fire/explosion risk) Coolant supply: 3/8 bar, 500 l tank Compact band filter on 500-l coolant tank Flow rate: approx. 100 l/min with emulsion, approx. 70 l/min with cutting oil Filtration fineness: approx. 30–40 micron VB-T internal coolant supply up to 30 bar (upper/lower tool turret) VBT 80–120 bar (valve/station details per list) High-pressure coolant pump 120 bar incl. 25 µm micro filter Immersion cooler for coolant cooling Coolant pump 20 bar Coolant: cutting oil (position in list) Cedpfxeylan De Ah Ijpw Safety / Fire Protection Automatic CO₂ extinguishing system (VBT) For customer-supplied operating materials/oils/coolants: Safety Data Sheets & technical data sheets required before delivery (see documentation note) Electrics / Standards / Documentation Electrical equipment: 400 V / 50 Hz, Europe (VDE/EN 60204) EC Declaration of Conformity & CE marking Color scheme: RAL7037 (machine/chassis), RAL7035 (covers) User documentation: on CD/paper, plus 2 German user manuals Interfaces / Monitoring TRAUB tool monitoring for TX8i-s VB-T network connection for TX8i-s control VB-T hydraulic oil supply WT lower, station 1 (for hydraulic gripper W7040021) Bar Feeder / Magazine Accessories Magazine adapter parts for use without reduction sleeves for: LNS, FMB Maschinenbaugesellschaft mbH, IEMCA Magazine must be equipped with shuttle unit for changeover operation Additions as per list: Add reduction sleeves MSP/RSP FMB-MINIMAG 20 with RSP shuttle unit The equipment is being sold at the Tuttlingen plant, furthermore for sale: MAZAK Quick Turn 200 MSY, year 2019 (installed 07/2020)

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 - Number of axes : 9 - Number of turrets : 2 MAIN SPINDLE - Spindle power : 6.7 / 10.7 [kW] - Spindle speeds : 8000 [rpm] - Max. bar diameter : 32 [mm] - Z stroke : 305 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 3.7 / 5.5 [kW] - Spindle speeds : 6400 [rpm] - Max. bar diameter : 30 [mm] - C axis indexing precision : 0.001 [°] - X stroke : 140 [mm] - Z stroke : 300 [mm] TURRET 1 - Number of positions : 10 - Number of motorized positions : 10 - Live tools speed : 12 000 [rpm] - Live tools power : 3.4 [kW] - X/Z stroke : 140/300 [mm] - Y stroke : -40/+25 [mm] Cpodpfx Ahsypxqre Ijw TURRET 2 - Number of positions : 10 - Number of motorized positions : 10 - Live tools speed : 12 000 [rpm] - Live tools power : 3.4 [kW] - X/Z stroke : 140/320 [mm] - Y stroke : -25/+40 [mm] POWER SUPPLY - Total installed power : 28 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3870 x 1670 [mm] - Machine height : 2500 [mm] - Machine weight : 6000 [kg] MACHINE HOURS - Number of hours under power : 23240 [h] - Number of working hours : 19500 [h] EQUIPMENT - CNC : Traub TX 8i-p - 3 colors status lamp - Coolant tank : 500 [l] * with high-pressure pump : 3,8,20 [bars] * with paper filtering unit - Chips conveyor - Parts catcher - Parts conveying strip - Predisposition for barfeeder
