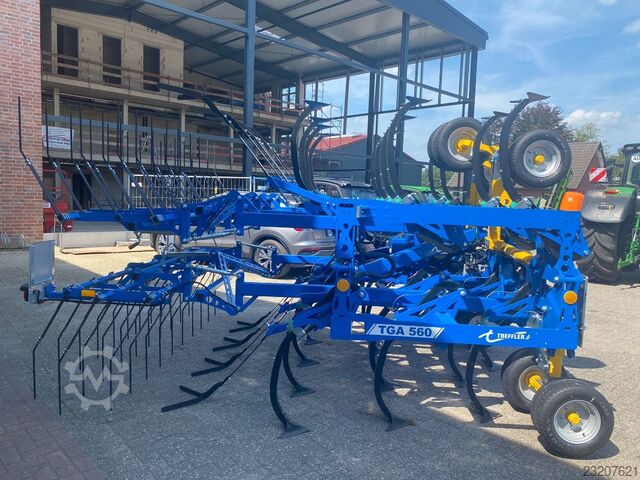

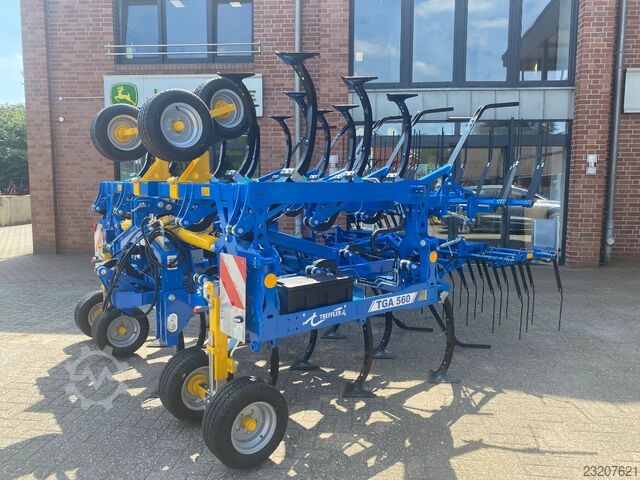

Treffler TGA 560 Präzisions Grubber

Treffler TGA 560 Präzisions Grubber

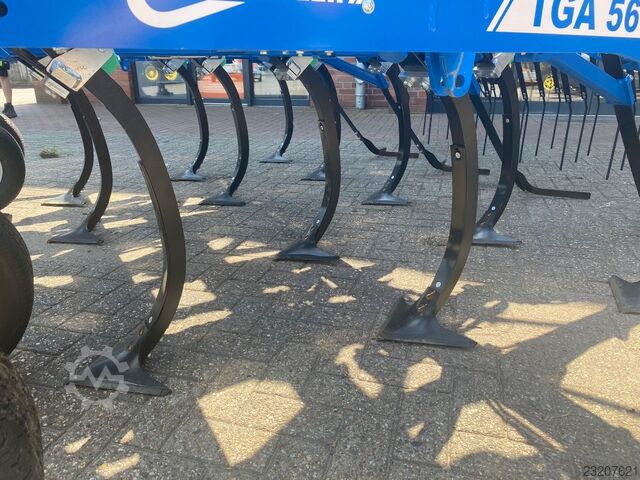

Condition: new, Year of construction: 2024, Year of manufacture 2024 - 5.60 m working width - Tillage - across the entire surface, starting from 2 cm Frame: - Center section 3 m - Side sections 2 x 1.30 m - Sturdy frame made of square tubing 100 x 100 mm - 3.5-bar design (one tine is positioned between the lower link arms to prevent lateral pull) - Frame height 70 cm - Tine carrier spacing 70 cm - 3-point hitch: lower link arms Cat 2/3, upper link arm Cat. 3 Folding: - Hydraulically foldable 180° via a scissor mechanism; the side sections rest on the center section, so there are no protruding tines during road transport - Folding of the side sections with 2 double-acting cylinders; the side sections are hydraulically pressurized in the working position Nledpfe Afi Agox Ab Rjh Hydraulics: - Hydraulic pressurization of the side sections via nitrogen accumulators - Automatic switchover to low pressure - Electro-hydraulic control Step 1: unfolding the side sections Step 2: extending the leveling tines Step 3: pressurizing the side sections Folding is done in reverse order; only one double-acting control valve is required. Tines: - 25 patented tines, sprung via a leaf spring system - Shear-stable tines; only deflection to the rear and upwards is possible - The pivoting point, approximately 1 m high and 25 cm in front of the share tip, enables fine depth adjustment based on draft resistance without significantly changing the working position of the goosefoot shares - In case of overload (from 1100 kg), the shear bolt engages - Row spacing 22 cm, overlap 8 cm - with fine-cut share 300 x 10 Front leveling bar: - with sprung leveling tines (front leveling bar) - the outer leveling tines on the left/right are hydraulically extendable Tire size, support wheels: - The front depth guidance is provided by 4 tandem support wheels with tire size 195/55R10C - They halve the influence of ground irregularities (such as combine harvester tracks) - Height-adjustable via a crank, with a depth scale made of stainless steel - The support wheels are mounted on the side sections - with 3-row rear harrow, tine spacing 10 cm, tine carrier spacing 30 cm, tine diameter 12 mm, with leaf spring and support spring - with 4-piece warning sign set incl. LED lighting to the rear and front MAS240410 Price applies to the existing condition. Offer subject to change. Errors, changes and prior sale reserved. All information without guarantee.
