Press brake

TRUMPF TruBend 3100

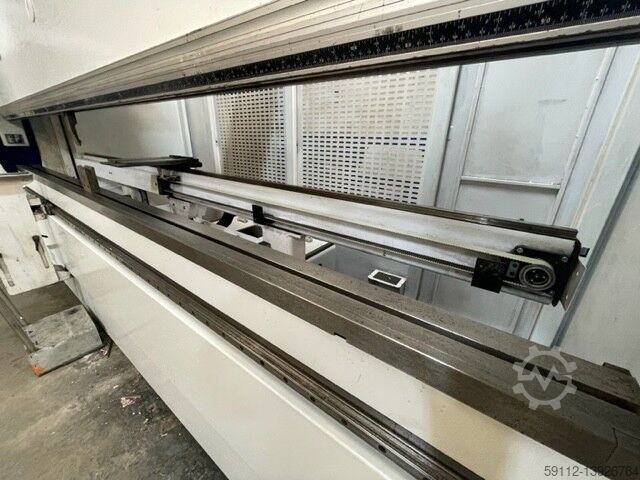

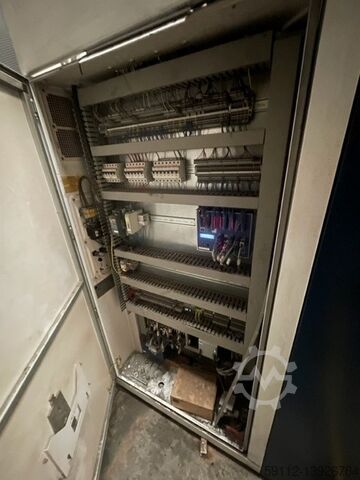

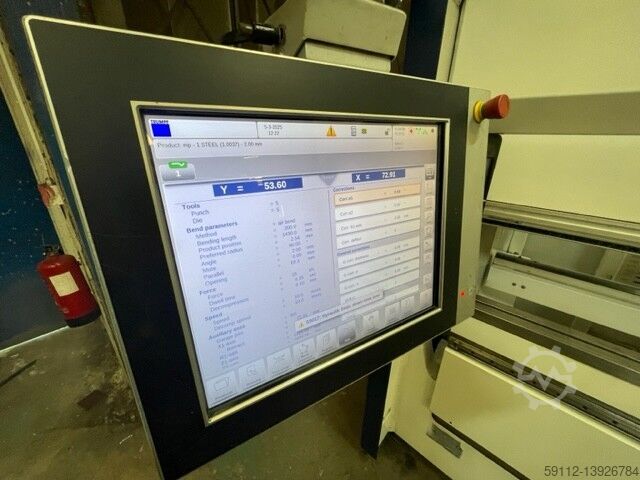

Condition: used, Year of construction: 2021, Max. pressure 100 ton Max. bending length 3060 mm Distance between uprights 3384 mm X-axis movement 600 mm Length of stroke (extended) 350 mm Duedpfx Ahoxr U Nhe Sol Daylight (Extended) 580 mm Automatic crowning on lower tool base Controlled axis: Y1, Y2, X1, X2, Z1, Z2, R1 & R2 Control: Trumpf T3500T (3D colour/grafic visualization ) Equipped with: Tool package for 15.000 euro. 2 manual “lay up” arms Trumpf manually quick clamp top tool holders in full width - made by Wila Machine appears as brand new. Price when bought in 2021: Euro. 115.000

Condition: used, Year of construction: 1997, The bending press was manufactured in 1997 in England by EDWARDS PEARSON. The folding press is in good condition, sold with tools. Always serviced and maintained on time. The machine tools are connected and can be tested and inspected. Specification: Model: EDWARDS PEARSON 100/3100 PR6 Year: 1997 Working length: 3 100 mm Dodpfx Asrfx Utsh Seul Bending capacity: 100 T Travel: 172 mm Distance between table and frame: 450 mm Working speed: 100 mm/s Return speed: 110 mm/s Axes: auto X1, X2, Y1, Y2, Z1 , Z2 , R Tools: Available Weight: 7 T Other: New screen recently replaced, keyboard attached for ease of use. If you have more questions, we will be happy to answer.

Condition: used, functionality: fully functional, Year of construction: 2018, Pressure 100 t Duedpfx Ahsx Ifr Ij Sjl Bending length 3000 mm Total power requirement 20 kW Machine weight approx. 7.7 t

Condition: excellent (used), functionality: fully functional, Year of construction: 2019, operating hours: 634 h, control type: CNC control, controller model: CN DELEM T3500T, bending force (max.): 100 t, working width: 3,060 mm, stroke length: 350 mm, distance between stands: 3,384 mm, installation height: 500 mm, type of crowning: CNC-controlled, TRUMPF TRUBEND 3100 Press Brake (X) Version with Increased Clearance to 500 mm Only 634 hours powered on! Protective laser CNC crowning table DELEM T3500T CNC control CNC axes: Y1/Y2/X/X2/R/Z1/Z2 Year: 2019 Currently tooled for a bending length of 2550 mm 1 die (V6 mm) with a length of 2550 mm included as additional equipment. MACHINE NOT ANCHORED TO FLOOR Specifications Bending length: 3060 mm Capacity: 100 tons Frame gap: 3384 mm Ram stroke: 350 mm Motorized backgauge travel: 560 mm Distance table-to-ram: 500 mm Main drive power: 24 KVA Weight: 8,300 kg Dodex E Ag Dopfx Ah Sjul Machine dimensions (L x W x H): 3,607 x 1,644 x 2,800 mm

Condition: excellent (used), Year of construction: 2007, Synchronized hydraulic press brake MECOS Mod. Syncro 200/4000. Numerco ESA KVARA control. NR.07 Controlled axes (Y1-Y2-X-R-Z1-Z1-Z1) WILA automatic compensation table. Pneumatic tool attachment: Type Promecam, Tecnostamp H=150 mm. Dodpsv S Ad Refx Ah Ssul Useful bending length: mm 4050. Power exerted: Ton 200. Front safety devices: DSP LASER. Weight: kg 24,000.

Condition: excellent (used), functionality: fully functional, Year of construction: 2016, working width: 3,100 mm, stroke length: 350 mm, pressing force: 100 t, working range: 3,100 mm, Used good condition Trumpf Trubend 3100 Series 3000 3metre CNC pressbrake for sale Used Trumpf Trubend 3100 B26 with extended stroke and daylight for sale 3metre x 100ton 6 axis pressbrake for sale Duodpfev Hru Usx Ah Sjl Brand/make: TRUMPF Model: TRUBEND 3100 b26 Type: CNC hydraulic Press Brakes New 2016 Location: United kingdom Specification: Tonnage: 100ton Type: hydraulic downstroke H frame pressbrake Overall Length 3.1 m /3metre 6axis in total with a 4 axis back gauge Touch screen control Tonnage 1000Kn Stroke 350mm Brake time 46ms

Condition: excellent (used), Year of construction: 2017, operating hours: 3,200 h, pressing force: 130 t, Space requirement: 11,500 mm x 10,000 mm + Increased installation height/lift + 230 mm + 4-axis backgauge system + Rear work area lighting + Front work area lighting - TruBend documentation Automation BendMaster (60) Standard equipment: BendMaster - Sturdy base frame and manipulator made of cast aluminum construction - Load capacity 60 kg, sheet plus gripper - Low-level floor track in welded construction - Sheet sensor for contour detection - Rotary feedthrough for quick gripper change Gripper coupling on the BendMaster - Sensor system for 4-axis backgauge system - Electric drives - Double sheet detection - NC regrip station - Vacuum generation for suction grippers Control - TRUMPF PC control with operator terminal - Teleservice via internet - Convenient operation: screen, mouse, keyboard Safety - Safety fence with access door Special equipment + Track extension to 10 m + Gripper change console + Modular vacuum gripper without separation (materials for 3 grippers) + Modular vacuum gripper with separation (materials for 3 grippers) + Clamp gripper with rotary axis + Sheet removal station with linear axis + Additional pallet for sheet removal station + Right-hand side door for safety fence (or left-hand side in combination with ToolMaster) Machine - Robust machine frame entirely in steel construction - Press beam - Spherical mounting of pressure beam with inclined position - Electro-hydraulic upper drive system with 4-cylinder technology - Optical set-up and positioning assist with control valves - Generous free space for bending - Flat front covers - Block hydraulic system Dedpfx Ahexayl Ds Sjul - Electronic pressure gauge - Measuring system with glass scale and spring-back compensation - Hydraulic oil in machine (lifetime lubrication) - Oil cooler - Electrical cabinet cooling via air-to-air heat exchanger - Modern machine design Backgauge System - 2-axis backgauge system, X and R axes Tool Clamping - Hydraulic upper tool clamping - Lower tool holder, hydraulic clamping, hardened - Lower tool displacement, 2 positions, pneumatic Crowning - CNC crowning Control - TRUMPF TASC 6000 - Graphical workshop programming - Windows XPe (embedded), Pentium 4 with 2.8 GHz clock speed - 2 GB RAM - 15-inch touch screen - Network capability - Teleservice via internet Operation - Control panel with LCD keypad and foot switch - Communication rail - MobilControl Safety - Standard safety equipment - CE marking

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2016, TRUMPF TruBend Cell 5000 – Robotic Bending Cell | Year 2015 TruBend 5130X Press Brake Dedpfx Ahjxdfqms Sjul BendMaster Robotic Bending System Control System: TASC 6000 (robot and press are programmed via the machine interface) Press Brake Specifications: Press force: 130 tons Bending length: 3,250 mm Year of manufacture: 02.2016 More information and video available on request ...

Year of construction: 2003, condition: excellent (used), High quality, very clean used Edwards Pearson Beyeler Pr 8 8axis cnc pressbrake for sale with hemming table Very late Edwards Pearson BYSTRONIC PR8 100 x 3100 100 ton x 3100mm 8 Axis CNC Hydraulic Down stroke Press Brake complete With Cybelec Modeva 1200 Control. Late Edwards Pearson the year before they became Bystronic Manufactured 2003 – fully serviced and well maintained High Specification: Year of Manufacture /new 2003 Model PR8 100/3100 Control Cybelec Modeva 1200 Hydraulic tool clamping Back gauge Programmable Guards Capacity 100 Ton Maximum length of bend 3100mm / 3metre Max stroke 215mm Rapid approach 180mm/s Tooling top and bottom Wander type footswitch Total 8 axis Y1,Y2,X1,X2,R1,R2,Z1,Z2 – 6axis back gauge With hemming table to Dutch fold / produce safety edges and flashings Crowning We can quote for delivery and installation complete with operator training We can advise and supply brand new tooling to produce your sheet metal products on this cnc pre Dedpfxspky S Ho Ah Ssul

Condition: excellent (used), pressing force: 100 t, table width: 3,000 mm, working length: 3,000 mm, Used high quality very clean Ursviken EKP Optima 100 3.1 / 2.55 3metre x 100ton cnc pressbrake for sale Used Ursviken cnc pressbrake for sale – Video at the bottom of the listing Pullmax Ursviken Optima EKP CNC 100 3.1/ 2.55 Press brake cnc Specifications Tonnage 100 T Folding length 3100.0 mm / 3metre CNC Cybelec DNC 7000 Control 6axis in total Complete with integrated hemming table to produce safety edges and flashings at 3metre length Dodpfx Ahetwyuue Soul Back gauge: 2 fingers on the backstop Fully serviced. Complete with a large selection of tooling as per photographs —————- Weight 8400.0 kg State: good condition PULLMAX URSVIKEN EKP CNC 100 3.1 / 2.55 100 ton x 3100mm Downstroke 6 Axis CNC Press Brake for sale Cybelec DNC 7000 Control Guards sick Axis: y1, y2, r, x, z1 and z2 and controlled on the Cybelec control
