CNC Bending Machine

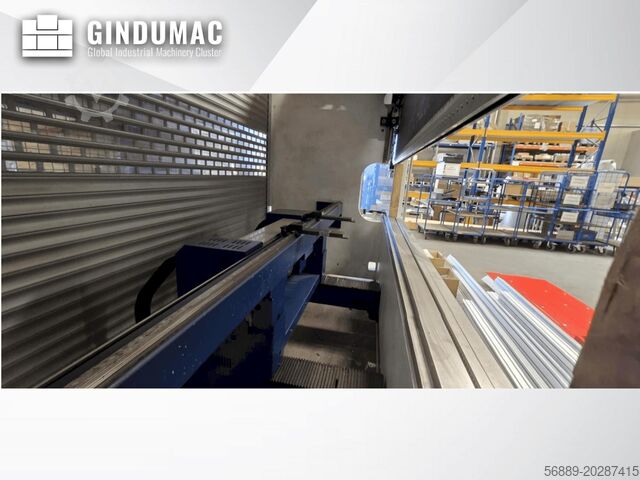

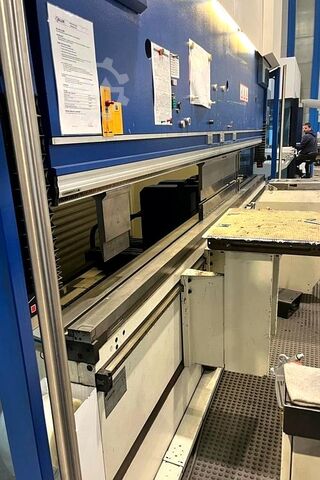

Trumpf TruBend 5230

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2005, operating hours: 49,277 h, bending force (max.): 230 t, stroke length: 445 mm, throat depth: 420 mm, distance between stands: 3,680 mm, working length: 4,250 mm, The control computer was completely renewed in 2025. In addition, the oil and filter were replaced in 2025! Gbsdpexwn Hdefx Abpsw TECHNICAL DETAILS Pressing force: 230 t Bending length: 4,250 mm Distance between uprights: 3,680 mm Throat depth: 420 mm Ram stroke: 445 mm MACHINE DETAILS Control: TASC 6000 Machine weight: approx. 19,200 kg Operating hours: 49,277 h EQUIPMENT 2 support arms 1 bending aid Light curtain in front of the machine Foot switch 6-axis backgauge

Condition: ready for operation (used), Year of construction: 2012, operating hours: 4,000 h, General Data Machine weight 19200 KG This 4-axis TRUMPF TruBend 5230 press brake was manufactured in 2012. It features a maximum press force of 2,300 kN, a bending length of 4,250 mm, and a stroke of up to 445.0 mm. Equipped with TASC 6000 control and hydraulic upper tool clamping, it's ideal for precise bending operations. Consider the opportunity to buy this TRUMPF TruBend 5230 press brake. Contact us for more information about this machine. Gbsdpfx Abjxnd S Dspjw Application Types Bending

Condition: excellent (used), Year of construction: 2009, Technical Data: Working length: 3230 mm Distance between uprights: 2690 mm Pressing force: 230 tons CNC control: TASC 6000 Number of controlled axes: Stroke: 445 mm Throat depth: 420 mm Table width: 140 mm Working height: 1065 mm Crowning: CNC-controlled Hydraulic tool clamping Die shifting CE marking Motor power: 30 kW Dimensions (L x W x H): approx. 4150 x 2350 x 3100 mm Weight: approx. 17 tons Accessories: 2 pcs. bending aids Electronic pressure gauge Measuring system with centrally mounted glass scales and temperature compensation Safety device BendGuard Network capability Support arm with height adjustment Condition: Overall in very good condition Little used, 35,000 hours Gbjdsxdt U Hopfx Abpow The seller is not liable for typographical or data transmission errors. The machine is visually, technically, and regarding wear in accordance with its age; used machines are sold without any warranty.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2008, controller model: Trumpf TASC 6000, bending force (max.): 230 t, stroke length: 445 mm, distance between stands: 2,690 mm, working length: 3,230 mm, TECHNICAL DETAILS Press force: 230 t Bending length: 3,230 mm Distance between frames: 2,690 mm Stroke: 445 mm Installation height: 615 mm MACHINE DETAILS Control unit: Trumpf TASC 6000 Gbedjxn Sumspfx Abpew Total power requirement: 42 kVA Machine weight: approx. 19,200 kg Machine height: 3,300 mm EQUIPMENT 2 bending aids Wila tool clamping system (top and bottom) 2 hand/foot controls Die shifting Lasersafe in front of the machine Side safety doors 6-axis backgauge
