Laser cutting machine

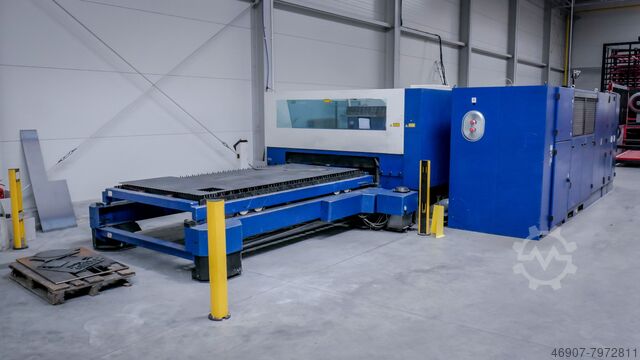

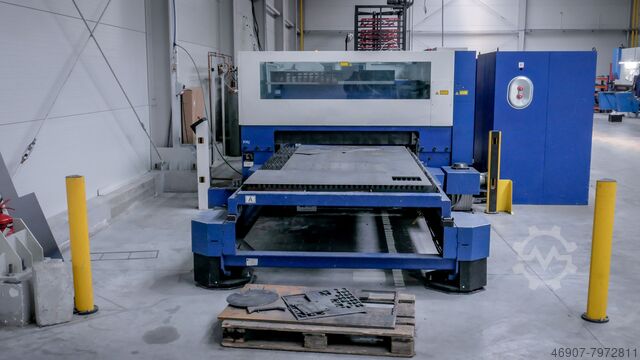

TRUMPF TruLaser 3530

Condition: excellent (used), Year of construction: 2008, A used TruLaser 3530 laser cutting system is for sale. Technical data: - Operating hours: beam on 2955 h/laser on 15464 h - X-travel 3000 mm (max. 3104) - Y-travel 1500 mm (max. 1580) - Xp-travel 300 mm (max. 305 mm) - Z-travel 114 mm - max. material thickness 20 mm - maintenance-free three-phase motors in X1, X2, Xp, Y1, Y2 and Z axes - max. positioning speed parallel to the axis 120 m/min - simultaneous 170 mm/min. - Acceleration when positioning X-axis 9 m/second - Xp + Y-axis 15 m/second Dujdpjixl Tnsfx Ah Ssl - Cutting X-axis 4 m/second - Cutting Xp and Y-axis 15 m/sec. Standard equipment - Closed machine frame with integrated laser resonator - Movement unit for optimal processing speeds - Additional highly dynamic XP axis - Automatic pallet changer - Closed beam guidance - NitroLine, high-pressure cutting - FocusLine, constant focus position - Compressed air cutting - PierceLine, reduction of the piercing process - PlasmaLine, plasma sensors - SprintLine, fast processing - LensLine - FlyLine - ContourLine, for producing small holes - Microweld - Spray device - Position laser diode - Programmable cutting gas pressure - Automatic switch-off - Work area lighting - TruTops Laser lite - CO2 laser TruFlow 3200 with high-frequency excitation, mirror telescope and maintenance-free turbo radial blower - Laser control TASC 3, logbook function and cooling unit - Laser cutting head with 5 and 7.5 lens and quick-change device - ControlLine, capacitive height control and process control - Sinumerik 840D control: Open control - Causes of error messages via diagnostic functions Extended machine equipment - Pallet changing system - Laser cutting heads 5" and 7.5" - Additional laser cutting head with 3.75" lens for high-speed cutting - Dimensions in mm: approx. 9300 x 4600 x 2000, weight in kg: approx. 11500 Year of manufacture: 2008 Special price €55,000 net Machine has been dismantled. Can be viewed by prior arrangement. If you are interested, please contact us

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2008, operating hours: 25,000 h, laser power: 4,000 W, sheet thickness (max.): 20 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 114 mm, No reserve price – guaranteed sale to the highest bidder! Regularly serviced laser cutting machine with comprehensive accessories! TECHNICAL DETAILS X-axis travel: 3,000 mm Y-axis travel: 1,500 mm Z-axis travel: 114 mm Laser power: 4,000 W Working area: 3,000 mm Max. material thickness: 20 mm Xp stroke: 300 mm (max. 305 mm) Max. positioning speed parallel to axis: 120 m/min X-axis positioning acceleration: 9 m/s² Xp + Y-axis: 15 m/s² Cutting speed X-axis: 4 m/s Cutting speed Xp and Y-axis: 15 m/s MACHINE DETAILS Control: Sinumerik 840D control Dimensions & Weight Dimensions: approx. 9,300 x 4,600 x 2,000 mm Weight: approx. 11,500 kg Laser hours: 25,000 h EQUIPMENT Cooling unit Automatic pallet changer Enclosed beam guide NitroLine high-pressure cutting FocusLine constant focal position Compressed air cutting PierceLine for reduced piercing time Dusdpfoxt Evnsx Ah Sel PlasmaLine plasma sensors SprintLine for rapid processing LensLine FlyLine ContourLine for small hole production Micro welding Spray device (unused/virgin) Positioning laser diode Programmable cutting gas pressure Automatic shut-off Work area lighting TruTops Laser lite CO2 laser TruFlow 3200 with high-frequency excitation Mirror telescope and maintenance-free turbo radial blower Laser control TASC 3 with logbook function and cooling unit Laser cutting head with 5" and 7.5" lenses, quick-change system ControlLine capacitive height monitoring and process control Error causes via diagnostic functions Additional laser cutting head with 3.75" lens for high-speed cutting Pallet changer system Note: The Trumpf LoadMaster shown in the photos is not included in the offer.

Condition: used, functionality: fully functional, Year of construction: 2007, operating hours: 20,428 h, laser type: CO₂ laser, laser hours: 20,428 h, laser power: 3,000 W, sheet thickness (max.): 20 mm, table length: 3,000 mm, working width: 1,500 mm, Equipment: CE marking, USB port, documentation/manual, Trumpf TRULASER 3530 Laser Cutting Machine, year 2007. Cutting area 3000 x 1500 mm Power 3000 Watts No. 2 cutting heads: 5 inch + 7.5 inch Includes "Libellula" nesting software. The machine is operational and is being sold to be replaced by a larger model. It can be viewed in operation until the end of 2025, after which the dismantling phase will begin. An upgrade has been carried out by adding an emulator that allows programs to be uploaded via USB stick; alternatively, the machine can be connected to a network using the dedicated port. Dodsxivy Aopfx Ah Sjul Machine is sold "as is, seen and approved" with regular invoice issued. Price negotiable.
