Press brake

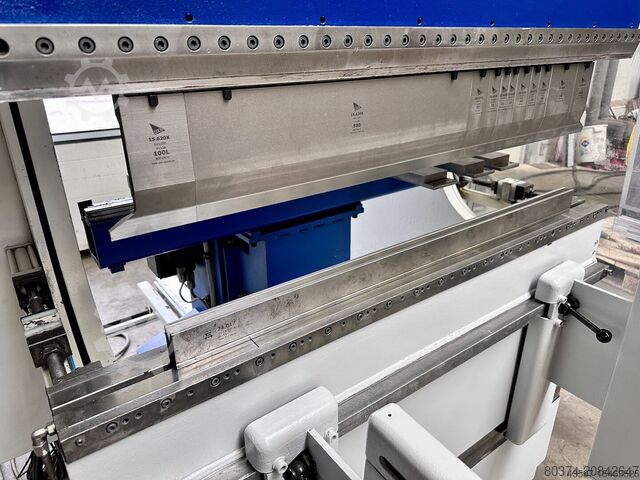

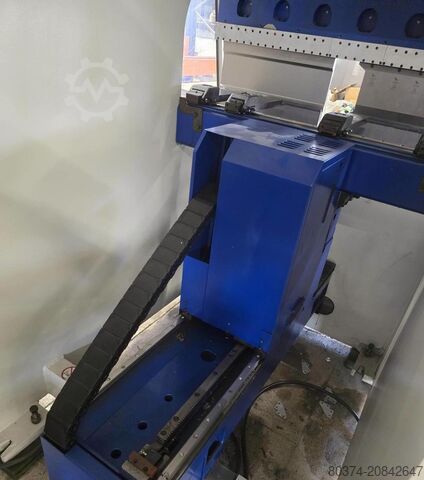

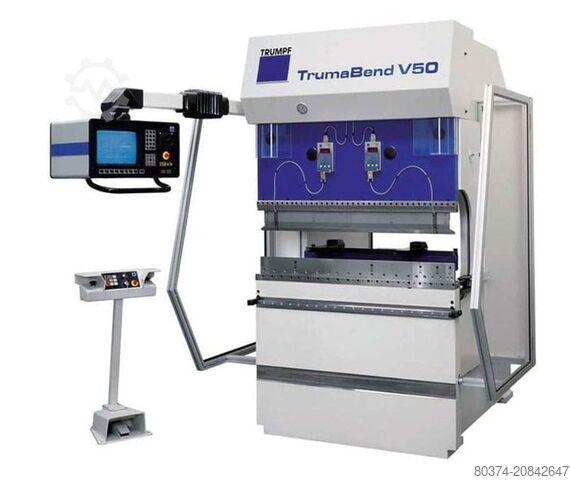

Trumpf TrumaBend V50

Year of construction: 1996, condition: ready for operation (used), A hydraulic CNC press brake Trumpf is available. Press force: 500kN, stroke: 215mm, max. operating pressure: 290bar, frame width: 1040mm, working width: 1270mm, installation height: 385mm, back gauge: 860mm. Machine dimensions X/Y/Z: approx. 2000mm/2100mm/2400mm, weight: approx. 4750kg. Documentation available. An on-site inspection is possible. Expected to be available end of May 2026. Lhodpfjyi E Drox Abzoc

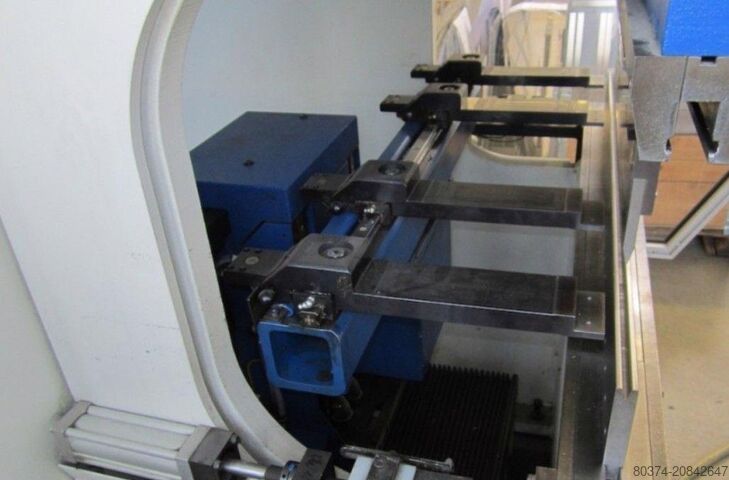

Condition: used, Year of construction: 2001, pressure 50 t chamfer lenght 1270 mm distance between columns 1040 mm stroke 215 mm throat 410 mm dayligth 385 mm back stop - adjustable 860 mm working feed 1 - 10 mm/sec return speed 135 mm/sec total power requirement 8,6 kVA weight of the machine ca. 4750 kg dimensions of the machine ca. 2000 x 2100 x 2400 mm Equipment: - Controlled axes: Y1, Y2, X, R - Pneumatic die shift - Manual upper tool clamping Lhodpfovuz Nkex Abzoc - LAN network connection - 4 stop fingers, manually adjustable, foldable to the rear, pneumatically clampable - CNC control, operation at front left - 2-hand operation/foot switch - 2-hand operation / foot switch - Rear + side protective device Operating hours: 2,140.9 h Strokes: 6,837,706

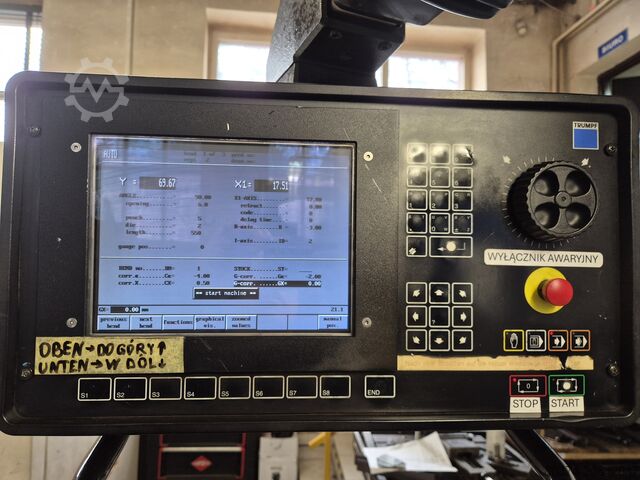

Condition: excellent (used), functionality: fully functional, Year of construction: 1997, control type: CNC control, actuation type: hydraulic, controller manufacturer: DELEM, controller model: DA65, bending force (max.): 50 t, working width: 1,200 mm, number of axes: 4, overall weight: 4,750 kg, total length: 2,500 mm, total width: 2,000 mm, total height: 2,100 mm, power: 8 kW (10.88 HP), input voltage: 400 V, Equipment: CE marking, angle measuring system, documentation/manual, emergency stop, foot remote control, For sale: Used TRUMPF TrumaBend V50 press brake, year of manufacture 1997. The machine is in excellent technical condition and is highly reliable. Very precise and repeatable. In February 2024, all valve seals, safety valves, and hydraulic oil with filters were replaced by authorized service. The machine has a very low number of operating hours. Equipped with wiring for ACB sensors. Hydraulics: Hoerbiger Tool type: hydraulic Wila / Trumpf Control unit: DELEM DA65 Lhsdpfex Rcf Dox Abzjc Number of axes: 4 - Y1, Y2, X, R Number of back gauge fingers: 4 Machine number: 881125 Model: TrumaBend V50 Year of manufacture: 1997 Maximum pressing force: 500 kN Working length: 1200 mm Power: 8 kW Voltage: 400 V Hydraulic system pressure: 290 bar Weight: 4750 kg Overall length: 2500 mm Overall width: 2000 mm Overall height: 2100 mm If you have any questions or need additional information, please send a message or contact us by phone.

Condition: excellent (used), Year of construction: 1994, Hydraulic press brake Fab. TRUMPF Typ. TrumaBend V50 Year 1994 Technical data: Trumpf Make: Trumpf Type: TrumaBend V50 Year of construction: 1994 Capacity: 50 t Effective length: 1270 mm Ledsr D Sdgopfx Abzohc Stroke: 215 mm Operating pressure: 290 bar Voltage: 3 x 400V Rated current: 12.5 A Connected load: 8.0 kVA Compressed air connection: 6 bar Dimensions: approx. L 2.00 x W 2.00 x H 2.40 m Weight: 4750 kg Equipment: Control unit - Control system: Delem DA-28 - Pneumatic die displacement - Hydraulic tool clamping top and bottom - Controlled axes: Y1, Y2, X, R - 3 manual stop fingers, pneumatically clampable - Tools: Punch set segmented, straight, 1050 mm, new Die V16, 30° 1000mm Die V08, 30° 1000mm Die V10, 30° 1000mm All data without guarantee. A demonstration under power is possible at any time in our exhibition hall.
