Punching Machine

Trumpf TRUMATIC 500

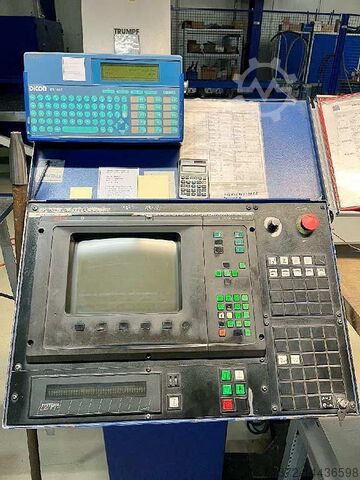

Condition: ready for operation (used), Year of construction: 1995, punching force: 22 t, total height: 2,300 mm, total width: 6,000 mm, sheet thickness (max.): 6 mm, overall weight: 11,050 kg, product length (max.): 6,900 mm, number of axes: 2, CNC punching machine manufactured in 1995. This TRUMPF Trumatic 500 features a maximum punching force of 220 kN, accommodating workpieces up to 150 kg. It offers a working range of 2500 mm along the X-axis and 1250 mm along the Y-axis, allowing for efficient processing of various sheet sizes. If you are looking to get high-quality punching capabilities, consider the TRUMPF Trumatic 500 machine we have for sale. Contact us for further details regarding this machine. • Condition: In working condition; normal signs of use (scratches/dirt, especially near punch head); floor wear visible • Max sheet thickness (steel): 6 mm • Note: Current tooling set is suitable for up to 1.5 mm sheet thickness • Max punch diameter: 76.2 mm • Max workpiece weight: 150 kg • Working range: X = 2500 mm without repositioning (4 m sheets previously processed using repositioning/extension tables); Y = 1250 mm • Axis speeds: X up to 90 m/min; Y up to 60 m/min • Stroke rate (nibbling): up to 900 strokes/min • Table/Design: Flat perforated work table; mechanical punching head with hydraulic/pneumatic lines; long material support arm; control panel on cabinet with display, controls, and emergency stop • Utilities: 400 V / 50 Hz / 3-phase; connected load approx. 17 kVA; compressed air 6 bar Additional equipment • Large set of punches, dies, and tool holders (complete tooling set) • Large metal cabinet with shelving for tool storage Ljdpfx Asz Azuremvoag • Metal scrap container on casters (under-table)

Year of construction: 2007, condition: good (used), Danobat CNC Drilling / Sawing Line – Year 2007 Single Rotating Spindle. 18 metres In- Feed Rollers. 12 metres Out- Feed Rollers. Pincher Unit Feed. Lsdpsig T Amefx Amvjag Infeed Cross Transfers. Outfeed Cross Transfers. 750mm Capacity. Sawing Capacity: Round cutting capacity(without vertical jaws, angle 0 degrees) 520 mm. Rectangular cutting capacity (without vertical jaw, angle 0 degrees) 700mm X 500 mm. Maximum capacity with vertical jaws 700 X 500 mm. Round cut capacity with 45 degree turn, 450 mm. Rectangular cutting capacity with 45 degree turn, 450 X 500 mm.

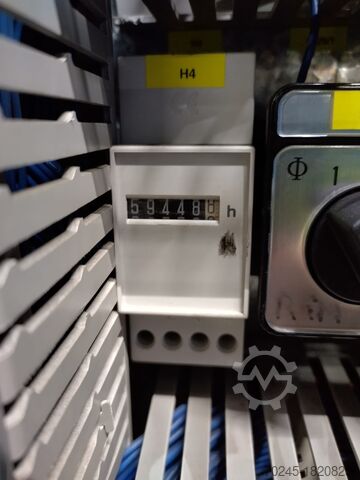

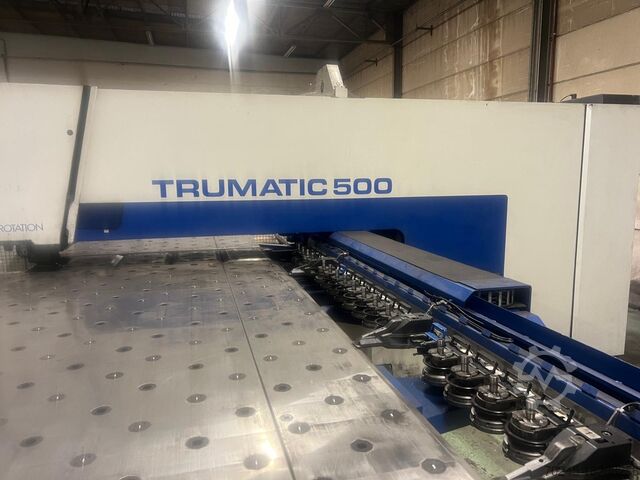

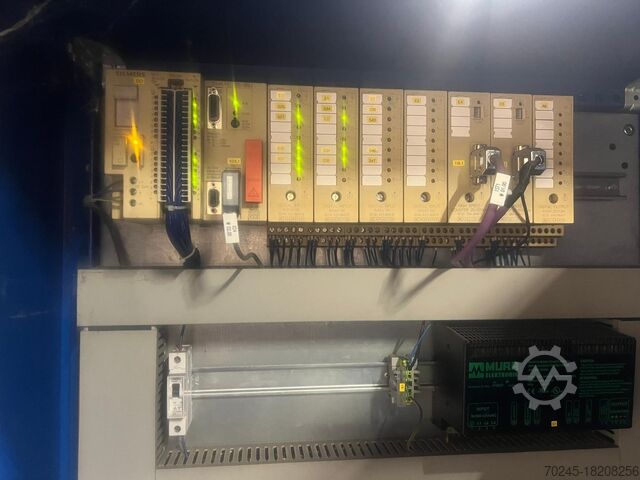

Condition: excellent (used), Year of construction: 2000, operating hours: 59,448 h, functionality: fully functional, WE OFFER AN VERY NICE CONDITION TRUMATIC 500 WITH COMPLETE AUTOMATION-SHEEMASTER Lsdpfx Amsvnzuajvsag

Year of construction: 1993, condition: ready for operation (used), A Trumpf punching machine still in operation, including a Trumalift loading and unloading unit that has not been used for a longer period, is available. 1) CNC punching machine Trumpf TruMatic 500, year of manufacture: 1993, max. punching force: 220kN, max. sheet thickness: 6.4mm, max. workpiece weight: 150kg, max. punching diameter: 76.2mm, simultaneous motion: 108m/min, stroke rate: 900/min, machine dimensions X/Y/Z: approx. 6700mm/5800mm/2200mm, weight: approx. 11000kg. 2) Trumpf Trumalift SheetMaster 1250 loading and unloading system, year of manufacture: 1993, max. sheet dimensions X/Y: 2500mm/1250mm, max. sheet thickness: approx. 8mm. Documentation available. An on-site inspection is possible. Ljdpfeyz Ap Rjx Amvjag

Condition: used, Servo drive, servo card, output module, CPU card, input processor, power supply, control card, input card, controller, converter, controller -Indramat: AC servo controller -MOD: 1/11919-002 Laedjfg Al Nopfx Amvsg -Art.: 234500-14530 - Quantity: 1 piece -Dimensions: 390/105/H325 mm -Weight: 8.2kg

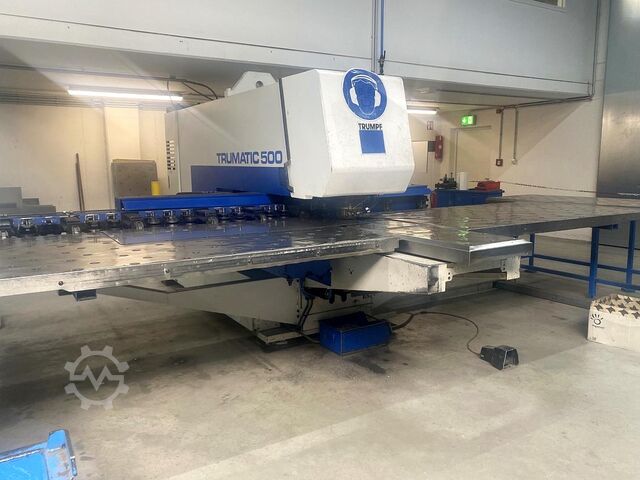

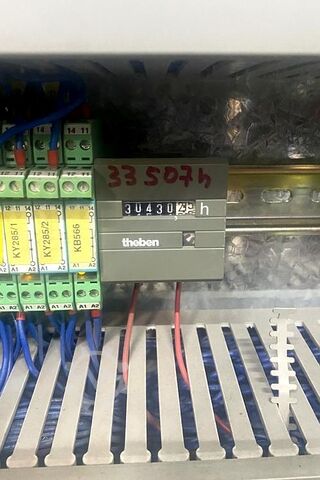

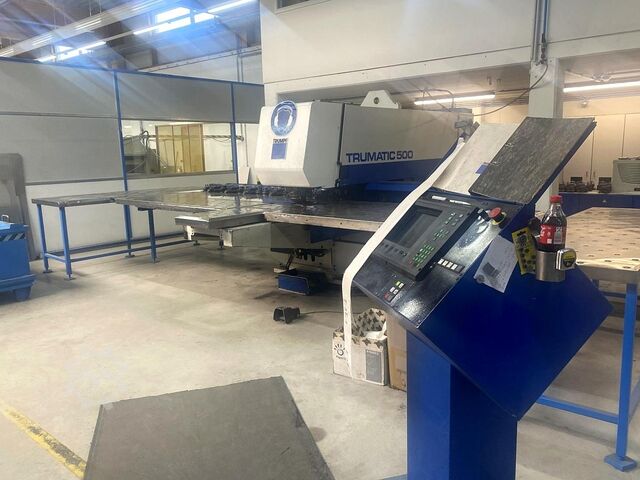

Condition: ready for operation (used), Year of construction: 1998, operating hours: 30,430 h, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 6 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, punching diameter: 76 mm, TECHNICAL DETAILS Ljdpfx Amozk A Ntoveag Pressing force: 220 kN Sheet metal thickness - max.: 6.4 mm Punch diameter: 76.2 mm Travel range X-axis: 2,500 mm Travel range Y-axis: 1,250 mm Positioning speed X-axis: 90 m/min Positioning speed Y-axis: 60 m/min Positioning speed Simulation: 108 m/min Positioning speed rotary axis: 360 °/sec Workpiece weight: 150 kg Smallest programmable path dimension: 0.01 mm or 0.01° Tool stations: 15 units Tool change time: 1.5 - 6.5 sec MACHINE DETAILS Dimensions: 6,400 x 5,800 x 2,100 mm Machine weight approx.: 11,050 kg Operating hours: 30,430 h

Condition: good (used), Year of construction: 1999, functionality: fully functional, Pressing force: 220 kN Sheet metal thickness – max.: 8 mm Travel distance – x: 3000 mm Travel distance – y: 1500 mm Ljdpfx Aezil Dkemvjag Positioning speed, X-axis: 90 m/min Positioning speed, Y-axis: 60 m/min Positioning speed, simulation: 108 m/min Positioning speed, rotary axis: 360 °/sec Punching diameter: 76.2 mm Workpiece weight: 150 kg Smallest programmable path dimension: 0.01 mm or 0.01° Tool stations: 15 pieces Tool change time: 1.5 - 6.5 sec Machine weight, approx.: 11,050 kg Dimensions: 6400 x 5800 x 2100 mm including setup cassettes including tool cabinet with tools including Quick-Set

Condition: good (used), functionality: fully functional, Trumpf punching tools List attached Ledpeygm Exjfx Amveag Please specify what you need Beading tool Multitool tools Hole, rectangle, square tools See list and photos

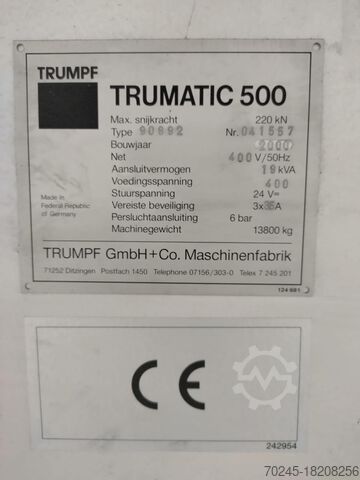

Condition: ready for operation (used), Year of construction: 1998, punching force: 22 t, total height: 2,300 mm, sheet thickness (max.): 6 mm, overall weight: 13,800 kg, table width: 3,000 mm, table length: 1,500 mm, table load: 100 kg, controller manufacturer: TRUMPF, product length (max.): 6,900 mm, This TRUMPF TRUMATIC 500 was manufactured in 1998. It features a maximum punching force of 220 kN and can handle sheet thicknesses up to 6 mm. The machine accommodates workpieces up to 150 kg, with a working range of 3000 mm on the X-axis and 1500 mm on the Y-axis. Contact us for more information about this machine. • Maximum punching force: 220 kN (approx. 22 t) • X-axis working range: 3000 mm without repositioning • Y-axis working range: 1500 mm • Maximum sheet thickness (steel): 6 mm • Maximum punching diameter: 76.2 mm • Maximum workpiece weight: 150 kg Laodox Uqzzjpfx Amvjg • X-axis speed: up to 90 m/min • Y-axis speed: up to 60 m/min • Stroke rate: up to 900 strokes/min in nibbling mode • Power supply: 400 V / 50 Hz, three-phase • Connected electrical load: approx. 19 kVA • Required compressed air pressure: 6 bar The machine is in working condition. It includes a large set of punches, dies, and tool holders. Dimensions Machine Depth 6000 mm

Condition: ready for operation (used), Year of construction: 1995, operating hours: 51,658 h, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 8 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, TECHNICAL DETAILS Sheet width: 2,500 mm Sheet length: 1,250 mm Sheet thickness: 8 mm Punching force: 220 kN MACHINE DETAILS Operating hours: 51,658 h Machine weight: approx. 11,050 kg EQUIPMENT - TRUMPF Sheetmaster Lodpsy U U Npjfx Amveag

Condition: used, Permanent magnet motor, permanent magnet motor, electric motor, n-Mot, Perm Magnet Motors, servo motor, permanent magnet main drive motor, direct current motor, asynchronous main drive motor, spindle motor, permanent magnet - three-phase servo motor -Manufacturer: Indramat, permanent magnet - three-phase servo motor -Type: MAC 071B-O-PS-2-C/095-AO/ -Speed speed: nmax: 4000 rpm -Shaft: Ø 19 x 40 mm -Quantity: 1x servo motors available -Price per piece -Dimensions: 295/115/H170 mm -Weight: 10 kg/pc. Laodpferqiprsx Amvog

Condition: ready for operation (used), Year of construction: 1998, operating hours: 30,430 h, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 6 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, punching diameter: 76 mm, TECHNICAL DETAILS Pressing force: 220 kN Maximum sheet thickness: 6.4 mm Punching diameter: 76.2 mm X-axis travel: 2,500 mm Y-axis travel: 1,250 mm Positioning speed X-axis: 90 m/min Positioning speed Y-axis: 60 m/min Positioning speed (simulation): 108 m/min Positioning speed rotary axis: 360 °/sec Ljdpfsxhfu Hex Amvsag Workpiece weight: 150 kg Smallest programmable increment: 0.01 mm or 0.01° Tool stations: 15 units Tool change time: 1.5 - 6.5 sec MACHINE DETAILS Dimensions & Weight Dimensions: 6,400 x 5,800 x 2,100 mm Approx. machine weight: 11,050 kg Operating hours: 30,430 h

Condition: ready for operation (used), functionality: fully functional, punching force: 22 t, sheet thickness (max.): 6 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,270 mm, workpiece weight (max.): 150 kg, Punching and nibbling machine with TRUMALIFT Sheetmaster! TECHNICAL DETAILS Press force: 220 kN Max. sheet thickness: 6.4 mm Travel path X-axis: 2,500 mm Travel path Y-axis: 1,270 mm Positioning speed X-axis: 90 m/min Laedpfx Ajx I Hh Romvsg Positioning speed Y-axis: 60 m/min Positioning speed simulation: 108 m/min Positioning speed rotary axis: 360°/sec Punching diameter: 76.2 mm Minimum programmable increment: 0.01 mm or 0.01° Workpiece weight: 150 kg Tool stations: 15 pcs Tool change time: 1.5 - 6.5 sec MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 6,400 x 5,800 x 2,100 mm Machine weight: approx. 11,050 kg EQUIPMENT Multitool control "Softpunch" function Pneumatic follow-up cylinders Small parts sensor for programmable part chute Parts box for finished parts Chip conveyor with container Scratch-reduced processing Air-cushioned mounting Additional clamping bridge Prepared for TRUMALIFT SheetMaster TRUMALIFT Sheetmaster for workpieces up to 2,500 x 1,250 mm Alignment system for loading stack with spreader magnets Manually movable scrap grid system

Condition: used, Servo drive, servo card, output module, CPU card, input processor, power supply, control, converter, controller, servo line former, drive control device Ledpfxen Tvcdo Amvsag -Indramat: AC Servo Line Former from DMT CD320 cycle lathe -Type: NAM 1.2-15 -Item: 246506 K39/96 -Dimension: 325/105/H390 mm -Weight: 21 kg
