Centerless Grinding Machine

TSCHUDIN ecoLine 400

Condition: excellent (used), Year of construction: 2006, functionality: unexamined, machine/vehicle number: 06.E.400.020, Manufacturing origin CH Voltage 3x400V - 24(V – DC) Netweight 5500 kg Dimensions 237x206x195 cm TECHNICAL DATA Control Fanuc 21i-MB 3 axes U : work wheel axis W : workpiece / dressing axis X: drive wheel axis Through feed grinding Workpiece diameter Ø 1.5 - 50 mm Plunge grinding Workpiece diameter Ø 1.5 - 100 mm Grinding length max 270 mm Nlsdpfjiqt S Aox Ah Dji Grinding wheel Max. external diameter Ø 400 mm Inner diameter Ø 203.2 mm Max. speed 50 m/sec. Drive power 11 kW Optional drive power 29 kW Regulating wheel Max. external diameter Ø 250 mm Inner diameter Ø 127 mm Speed 5 - 1'000 min-1 Tilting angle +5° / -5 Drive power 3.7 kW Positioning accuracy In all 3 axes 0,1 µm Resolution of glass scales 0.05 µm Dimensions Length 2060 mm Width, (with door open) 2370 mm (3120 mm) Height, (with door open) 1950 mm (2100 mm) Weight 5500 kg Compressed air Max. pressure 16 bar Air consumption 165 L/min Air consumption with straightening spindle 250 L/min Temperature +15° / +40° C. errors and omissions excepted-data given without obligation

Condition: excellent (used), Year of construction: 1997, grinding diameter 80 - 250 mm grinding length 600 mm centre height 175 mm longitudinal feed 750 mm workpiece turning speeds 6 - 600 U/min grinding spindle speed 1500 - 3600 U/min cross movement - autom. and by hand 320 mm Control Kelco 80 total power requirement kW Njdpeu D I Tlefx Ah Djli weight of the machine ca. 4,4 t dimensions of the machine ca. 3,1 x 2,1 x 2,0 m

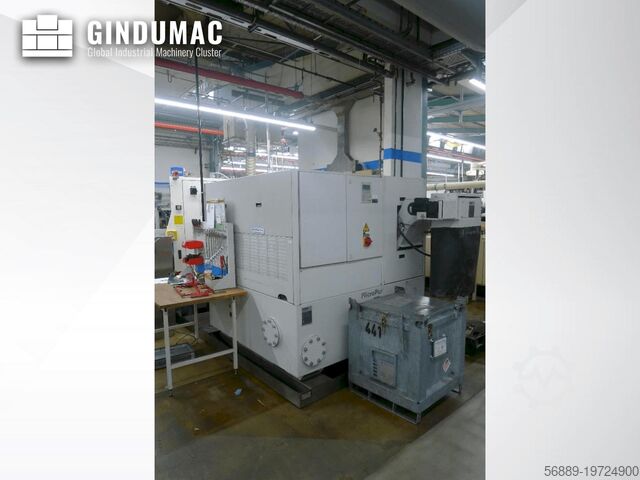

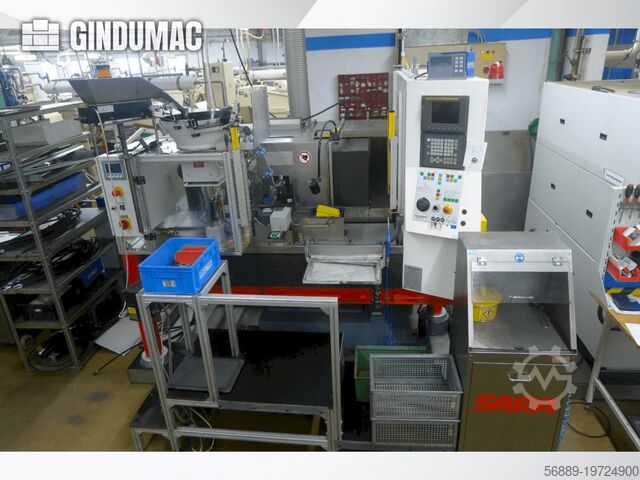

Year of construction: 2013, condition: ready for operation (used), A centerless CNC cylindrical grinding machine Tschudin is available. Workpiece diameter min./max.: 1.5mm/100mm, max. grinding length: 250mm, grinding wheel diameter outside/inside: 400mm/203.2mm, grinding wheel peripheral speed: 50m/s, grinding wheel power: 11kW, control wheel diameter outside/inside: 225mm/127mm, speed: 265rpm, inclination: +/-5°, power: 3.7kW. Machine dimensions X/Y/Z: approx. 2000mm/2400mm/1900mm, weight: approx. 6000kg, control: Fanuc 21i-MB. Including Knoll Micro Pur 240 F ultra-fine filter, Streuli SHSRT300-TL142/180 lifting station and Kraft & Bauer FB703S-UV3-TFM70° fire extinguishing system. Documentation available. On-site inspection is possible. Nlodpfxjwwllgo Ah Dji

Condition: used, Year of construction: 2014, Technical details: grinding diameter max.: 3-220 mm regulating wheel width: 500 mm max. width of grinding wheel: 500 mm weight of the machine ca.: 16 t. dimensions of the machine ca.: 12 x 10 x 8 m. grinding wheel diam. min/max.: 420-610 Njdpfxjt Uw Ave Ah Dsli grinding wheel diameter - width-internal grin: 304,8 x 500 mm Regulatin wheel diameter min/max.: 300-350 mm The machine is currently designed for plunge grinding JUPITER's Centerless grinding, also available with CBN. Junker this circular grinding method with CBN grinding wheels, which opens up significant productivity benefits from the long service life of the grinding wheel, especially at high volumes. In addition, the simultaneous removal takes on the entire Schleswig-Holstein, which provides both in mass production and in small batches for significantly reduced processing times. The grinding process with JUPITER When centerless grinding, there are two grinding processes: the through grinding and plunge. Both methods are possible with the JUPITER. Applications through grinding: Pin and Bushings Body, rings, smaller rings, piston parts (eg compressors), waves with constant diameter piston rods (eg shock), Small piston for hydraulic and fuel injection, precision wires and rods, piston pins. Applications Plunge: Rotor shafts, transmission parts, bearing surfaces of camshafts, tube and pipe fittings for composite camshafts, universal joints, parts for needle injection, valve stems, barrel rolls. *

Condition: used, Year of construction: 2017, Technical details: grinding diameter: 280/320 mm grinding length: 750 mm Nledettxg Sopfx Ah Doi centre height: 170 mm weight of the machine ca.: 22,5 t dimensions of the machine ca.: 4,7 x 3,65 x 3,0 m

Condition: excellent (used), Year of construction: 2000, The machine can be inspected and tested in our warehouse after prior appointment. Nledpfx Ahewl Uq Ie Dei

Condition: used, TECHNICAL DETAILS - Distance between centers : 1000 [mm] - center height : 175 [mm] - X/Z stroke : 285/1150 [mm] - Axis X programmable feed speed : [mm/min] - Resolution : 0.0001 [mm] - Axis Z programmable feed speed : [mm/min] - Resolution : 0.0001 [mm] GRINDING WHEEL HOLDER HEADSTOCK - Orientation : 0/30 [°] * Grinding wheel dimensions : 500x63 [mm] PART-HOLDER HEADSTOCK - Type of cone : ISO50 - TAILSTOCK POWER SUPPLY - Supply voltage : 400 [V] MACHINE HOURS - Number of hours under power : 28230 [h] EQUIPMENT Nodpext U Rhofx Ah Dsli - CNC : FANUC Oi-TD - Electronic handwheel - Automatic diamond device - Coolant tank * with paper filtering unit

Condition: used, Year of construction: 2001, table length 600 mm table width 380 mm control FANUC 16i-M longitudinal travel 500 mm cross travel 300 mm largest grinding diameter 230 mm Nedpfx Ajwmwwysh Dsli Jig grinding machine | HAUSER - S35-400 The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. The machine video from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35

Condition: used, Year of construction: 2015, turning diameter 410 mm turning length 800 mm control Sinumerik 840D sl Siemens greates pass round over bed 700 mm centre distance 975 mm travel -x axis 300 mm travel -z axis 850 mm turning speed range - spindle 25 - 5.000 U/min chuck 260-81 mm bar material dia. 65 mm spindle bearing diameter 130 mm power capacity 40% ED = 34 kW power capacity 100 % ED = 25 kW max. Torque 380 / 280 Nm Nljdpfxsxwzads Ah Dei C-Axis 0,01 ° turret (x-stations) 16 tool taper VDI 30 DIN 69880-30 driven statition 16 pos Spindle speed driven tools ~ 4.000 min -1 power capacity - driven tools 40% ED = 11,3 kW power capacity - driven tools 100 % ED = 5,6 kW rapid traverse X-axis 30 m/min rapid traverse Z-axis 30 m/min tailstock adjustment 800 mm morse taper MK 5 total power requirement 65 kVA weight of the machine ca. 6,2 t dimensions of the machine ca. 5,5 x 3,0 x 2,5 m CNC Turning- and Milling Center GILDEMEISTER - CTX beta 800 - only 14.061 Spindle hours - WITHOUT tools - WITHOUT dust extraction - Good condition

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 30013012, 27.10 25: Machine currently in serial production. Shutdown planned for mid-2026. Please state your offer price. Sale only within Europe, including Turkey. Njdeth Sc Hjpfx Ah Deli ----- For technical data, see handout. Without packaging; any warranty rights are excluded. Should you wish to dismantle the system yourself, please indicate this in your bid. We do not assume any liability for the accuracy of the technical data, the completeness of accessories and tool equipment, nor for compliance with all safety and environmental protection requirements as specified in accident prevention regulations.
