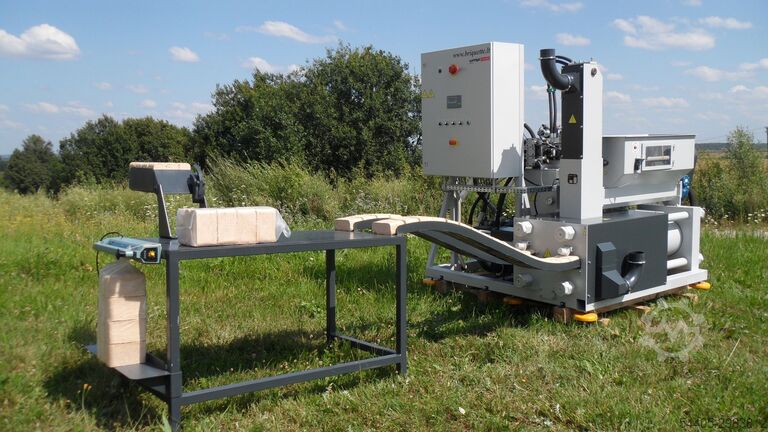

Briquetting press

UMP Technika BP500A

Condition: used, Year of construction: 2019, operating hours: 4,000 h, functionality: fully functional, machine/vehicle number: BP 500 A, DESCRIPTION Njdpfx Aoxmav Nsh Dsli BRIQUETTING PRESS This press is intended for compressing secondary raw materials into briquettes (briquette shape: rectangular). Technical specifications of the press: Dimensions: Length: 1800 mm (2100 mm for transport) Width: 1800 mm (2000 mm for transport) Height: 1900 mm (2200 mm for transport) Net weight: 2945 kg Power supply: 380 V, 50 Hz, 33 kW, 70-100 A Output capacity: 450 kg/h (+/-50 kg depending on raw material type and fraction) Noise level: A-weighted sound pressure level at operator’s station: 77.8 dB +/-5 dB Compression pressure: Minimum: 1000 kg/cm² Maximum: 1700 kg/cm² Pressure: Max. 300 bar Raw material moisture content: No more than 14% Briquette dimensions: Width: 150 mm Thickness: 60 mm Length: 40-105 mm Permissible ambient temperature for operation: -20°C to +35°C (up to +50°C with additional cooling system) The press consists of: Electrical system – controls the hydraulic press system. There are four electric motors: the first (30 kW) drives the main hydraulic pumps, the second (1.1 kW) powers the cooling hydraulic pump, the third (0.55 kW) drives the cooling fan of the oil system, and the fourth (1.5 kW) drives the sawdust feed screw. The operation of the motors and hydraulic valves is managed via contactors and intermediate solid-state relays by a microprocessor with expansion modules. For visualization and parameter adjustment, a liquid crystal display with buttons is provided. Hydraulic system – manages the operation of hydraulic cylinders using pumps, high- and low-pressure valves, solenoid valves, and hoses. There are three hydraulic cylinders: the first is the main cylinder for compressing sawdust, the second is a vertical cylinder for initial sawdust compaction, and the third is a forming cylinder for moving the briquette form. Also installed are an oil cooling system with a pump and air cooler. Oil filtration is performed by the main high-capacity filter, a filter for the cooling system, and a fine filtering unit. Feeding of raw material into the press is performed by an integrated loading hopper. The raw material in the hopper is mixed intermittently to prevent bridging. The mixer is driven by a chain from the auger gearmotor. The auger cyclically feeds the material to the shaft of the vertical cylinder. The hopper is equipped with two level sensors – lower and upper. When the hopper is enlarged, the sensors can be repositioned as needed. Control – dual-mode, manual and automatic, is provided. All control equipment is mounted in the electrical cabinet. Automatic control constitutes the normal press operation without operator intervention. Manual control is used for press setup, troubleshooting, returning the cylinders to their home positions, or in emergency situations. Operation is facilitated by a display located on the cabinet door. It allows for viewing and adjustment of input parameters, as well as real-time monitoring of press status and error messages.

Condition: good (used), Good, used condition Main motor: 11 kW Maximum throughput: 200 kg/h Year of manufacture: 12/2008 / Technically tested: 01/2025 Briquettes: 150x60 mm . *Used machine, purchased as is Functional guarantee upon delivery Nlodst Hxudopfx Ah Dsi

Condition: used, Year of construction: 2017, total width: 2,450 mm, total height: 1,100 mm, total length: 1,900 mm, Empty weight: 800 kg Price: On request - Year: 2017 - Documentation available: No - CE marking present: Yes - Serial number: 5037411-000150 - Transport dimensions: 1900mm x 2450mm x 1100mm (l x w x h) Njdpfx Ahjxan Uto Doli - Transport weight [kg]: 800kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: new, Year of construction: 2025, Dealer wanted! Tariff number: 84659600 Nledpfx Ahjvucclo Dji Briquette diameter: 70 mm Front bushing: 120 mm Briquette stroke max.: 100 mm Briquette stroke opt.: 80 mm Throughput (depending on material): up to max. 150 kg/h* *depending on bulk density *based on a bulk density of 200 kg per cubic meter Motor power: 5.5 kW Length: 2095 mm Width: 1300 mm Height: 1700 mm Weight: 1250 kg Oil quantity: 220 liters Silo diameter: 1200 mm Silo shape: 12-corner Silo content: approx. 1.0 qbm Pump: 75 liters Hydraulic pre-compressor The feed must be free of metals and mineral contamination. Damage to the pressing tools and/or increased wear may result.

Condition: like new (used), Year of construction: 2021, operating hours: 185 h, functionality: fully functional, machine/vehicle number: 980-530, input current: 380 A, I am selling a Reinbold RB200 briquetting machine, manufactured 07/2021, and a Gross Typgaz 82 shredder, engine power 22 kW, manufactured in 2002. Nedpev Hlxyjfx Ah Doli Complete shredder system + fully functional briquetting machine, purchased by me at a price of 51,300 euros. The sale price with immediate collection is 30,000 euros.

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 1800x1800x1900 mm Weight 3000 kg Total power requirement 33,5 kw Nedpfx Aevz Ex Neh Deli
