Bezel

unbekannt Durchmesser 325 mm

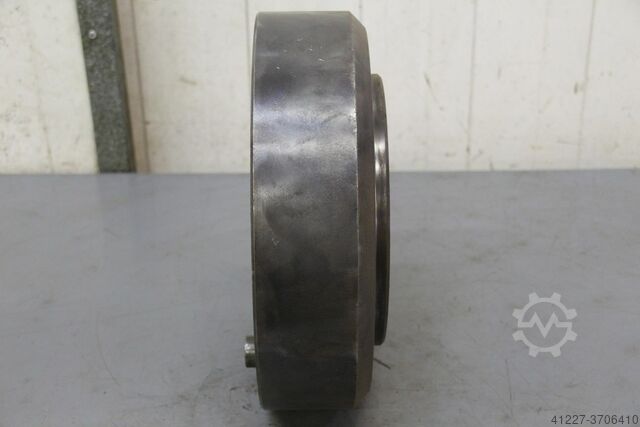

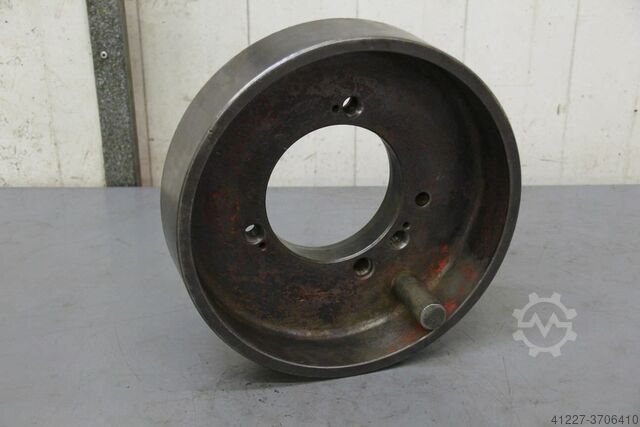

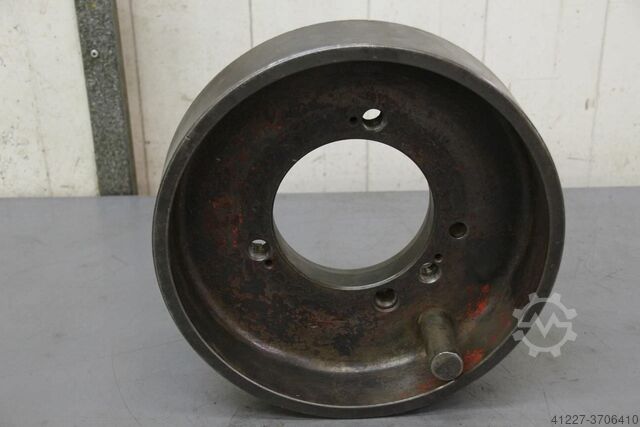

Condition: used, Flange mounting, driving flange -Chuck flange with: driving pin -Outer: Ø 325 mm -Cone diameter: 139 mm Fpsdpfx Afedvdvmeuen -Weight: 20 kg

Condition: excellent (used), Year of construction: 1983, - Turning diameter over bed [mm]: - 1000 - Turning diameter over support [mm]: - 630 - Turning diameter in the bridge recess [mm]: - 1230 - Spindle bore [mm]: - 120 Fodpfxeytnt Do Afujpn - Center distance [mm]: - 2000 - Rotation speed range [rpm]: - 5 ÷ 500 - Maximum workpiece weight in the chuck: 1300 kg - Machine weight: 10000 kg

Condition: used, Year of construction: 1971, turning diameter over bed 1250 mm turning diameter over slide rest 900 mm turning length 5000 mm faceplate 1250 mm workpiece weight in steadies max. 20000 kg workpiece weight 16000 kg weight of the machine ca. 22 t The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. Fsdpfx Asy D A Edefuopn About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: repair required (used), Year of construction: 1969, functionality: not functional, machine/vehicle number: 41526, spindle bore: 95 mm, turning length: 8,000 mm, spindle speed (max.): 710 rpm, spindle speed (min.): 14 rpm, type of input current: three-phase, Manufacturer: Meuser Machine type: Lead screw/feed spindle lathe Condition: Damage to the lamellar clutch Distance between centers: 8000 mm Swinging diameter over bed: 470 mm Swinging diameter over cross slide: 360 mm Spindle bore: 95 mm Spindle speed: 14 - 710 rpm Motor power: 15 kW Supply voltage: 380 V Cross slide travel: 630 mm Top slide travel: 190 mm Tailstock travel: ~8000 mm Tailstock spindle diameter: - Tailstock spindle stroke: 230 mm Fsdjzxpf Ropfx Afujpn Tailstock mounting: MK6 Bed width: 390 mm / 530 mm Digital measuring system: X-axis, Z0-axis

Condition: used, Year of construction: 2018, functionality: fully functional, machine/vehicle number: SN 018-0212, travel distance X-axis: 4,000 mm, travel distance Y-axis: 580 mm, travel distance Z-axis: 700 mm, spindle speed (max.): 2,200 rpm, spindle speed (min.): 140 rpm, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 6 m/min, rapid traverse Z-axis: 6 m/min, controller model: Penta-Tec, overall weight: 6,000 kg, nominal power (apparent): 12 kVA, number of slots in tool magazine: 10, We are offering this used BAUER Bohrmax Z40 vertical machining center, manufactured in 2018, for sale. Manufacturer: BAUER Model: Bohrmax Z40 Year of manufacture: 2018 SCOPE OF DELIVERY / TECHNICAL DATA: • Spindle speed range: 140-2200 rpm • Drive for X, Y, Z axes: servo motor • Rapid traverse X-axis: 20 m/min • Rapid traverse Y-axis: 6 m/min • Rapid traverse Z-axis: 6 m/min • Distance from top of table to bottom of tool holder: 700 mm • Tool holder: SK40 • Tool changer for 10 tools • T-slots: M12 • Drilling diameter: 3-32 mm • Thread drilling: M4 - M24 • Tolerance X-axis: ± 0.1 mm • Tolerance Y and Z axes: 0.06 mm • Drive motor for spindle: 7.5 kW • Light curtain at the front • Control: Touchscreen 18” • Chip conveyor with slat conveyor additional integrated equipment: • Automatic tool length measurement • Handheld control unit RCS01 • Software extension for pendulum operation + DXF package Fpedpfx Aezlp T Iofuon • Universally controllable hydraulic clamping system with 8 clamping points (manufacturer Polund - Pro-Clamp Systems) If you have any questions or require further information, please send us a message or call us.

Condition: used, Year of construction: 2016, Coolant cleaning system Manufacturer: Zyklomat Type: ZKR 14/350 Year of manufacture: 2016 For cleaning grinding emulsions Supply of max. approx. 250 L/min. at approx. 3.5 bar water Fodozwccmjpfx Afuspn Transfer to the filter system is carried out on-site, air and foam-free. Temperature max.: 50°C Cleaning capacity: 350 L/min. Recirculation from clean tank to dirty tank: 100-350 L/min. Machine supply max.: 250 L/min. Filtration principle: ZYKLOMAT high-performance hydrocyclone Z1B-9/3 Particle separation limit: approx. 5 µm Medium: Emulsion 3-6% Operating temperature: Ambient temperature Solid particle volume: approx. 5.14 m3 Operating volume max.: approx. 4.58 m3 Operating volume min.: approx. 3.60 m3 Process flow: Fully automatic full-flow filtration Sludge discharge: Fully automatic, with consistent consistency The dirty liquid is fed via on-site lifting stations. The chips and fine sludge produced during grinding (grinding debris, scale, corundum) are discharged via a scraper conveyor. In the upper scraper section, the sludge is pre-dried. Filtration takes place via ZYKLOMAT high-performance hydrocyclones. The system operates fully automatically. Maintenance: annual maintenance Availability: 10-2026 Double scraper tank for discharge of grinding sludge Type: KR 1.75-5.1 Total volume: approx. 5.14 m3 Volume max.: approx. 4.58 m3 Length: approx. 4,000 mm, incl. 70 mm stiffening Width: approx. 1,890 mm, incl. 140 mm stiffening Height: approx. 1,105 mm, incl. 100 mm bottom profile Neck height: approx. 2,300 mm Theoretical discharge volume max.: 15 kg/h Function: Coolant tank with integrated clean tank, sedimentation and flotation tank with fully automatic sludge discharge. 1 bevel gear motor Voltage 400 V, 50 Hz, IP 54 as scraper drive 3 connection nozzles for return lines from three machines 1 clean liquid tank, integrated at the rear into the scraper tank. Oil-tight welded, with internal circumferential bevel gear, various cover plates (non-walkable plates screwed onto angle frame), without ladder, without railing, without internal access rungs Volume max.: approx. 0.55 m3 51026ä

Condition: used, Gear motor, electric motor, electric gear motor -Speed: 19.5 rpm Fpedpfxecmtnae Afujn -Power: 0.55 kW -Construction: B5 -Diameter shaft: 35 mm -Protection class: IP 65 -Hole circle: 210 mm -Recess: 180 mm -Dimensions: 550/250 / H265 mm -Weight: 45 kg
